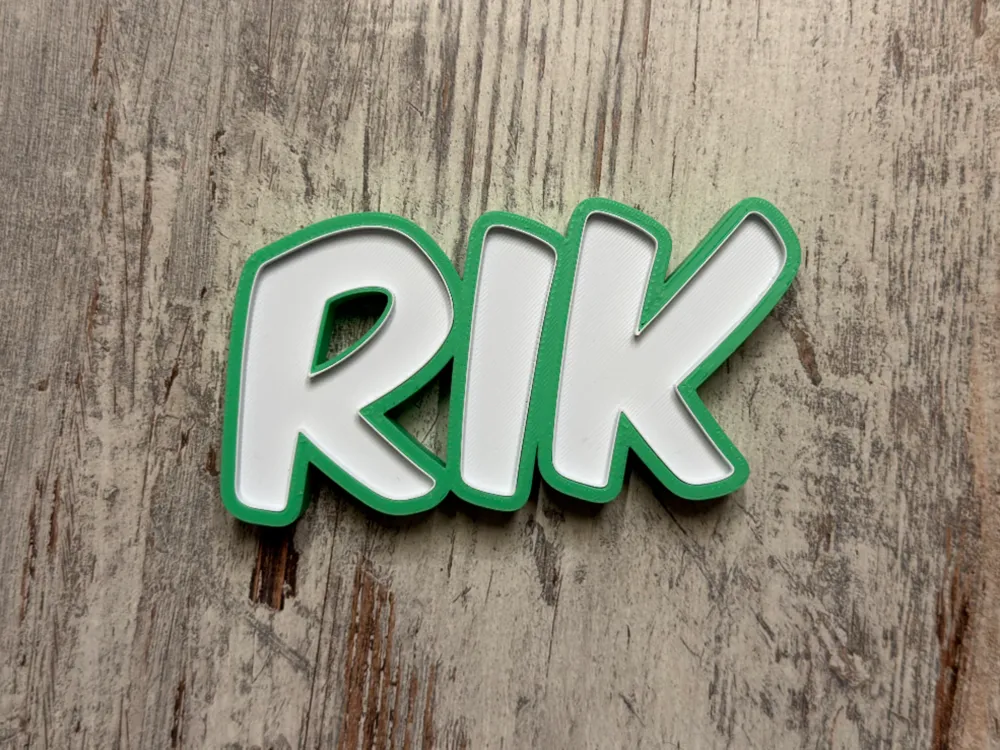

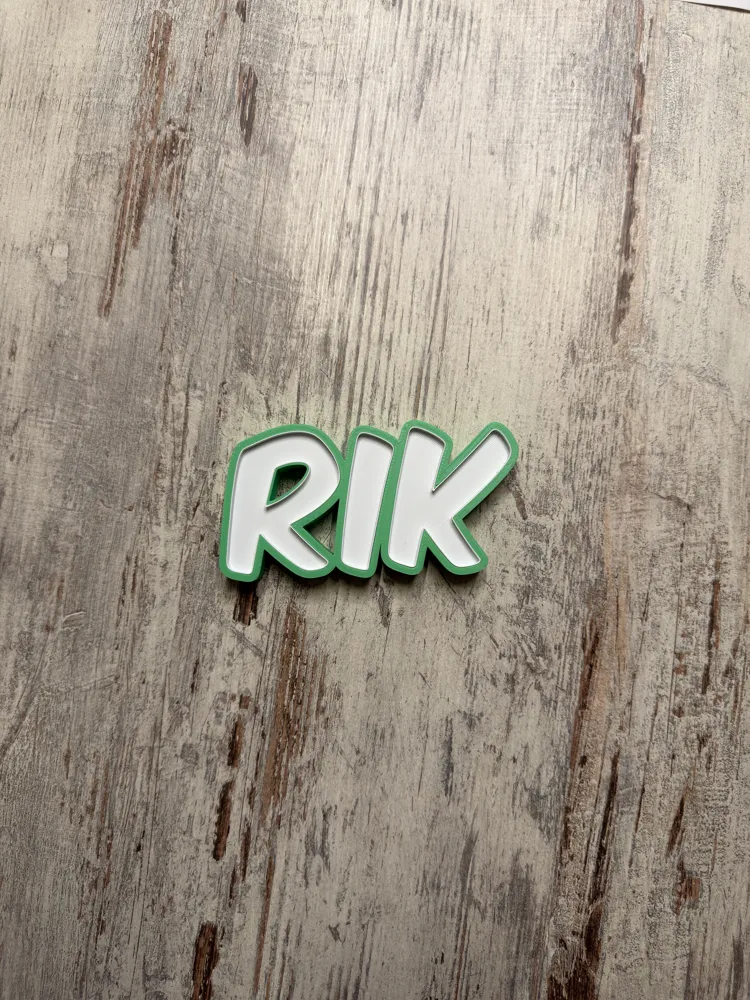

RIK - LED Name Lamp

"RIK" as a printable LED Name Lamp


ATTENTION:

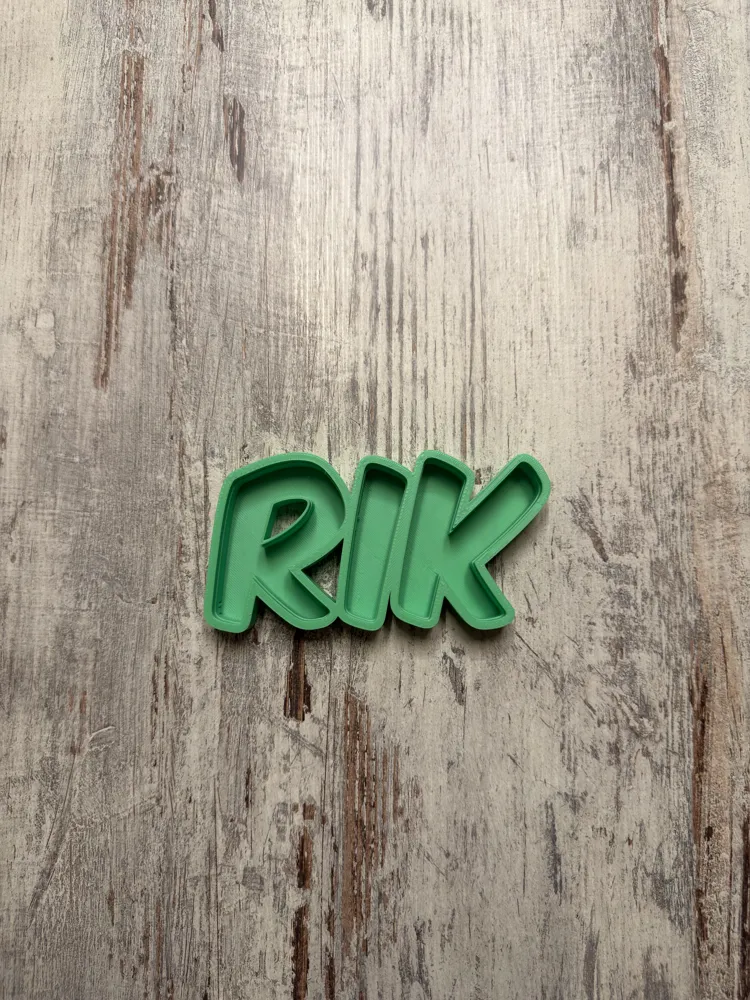

The finished name has been attached as an STL. The letters are all pre-arranged. If the print bed is large enough, you can drag several letters together onto one plate and print them continuously. Please do not forget to "merge the letters". Be careful not to let the letters slip, otherwise the passages will no longer fit and the geometry of the entire name will be altered.


Print settings: 0.2mm with 8% infill is sufficient. For the bodies, I would use "seamless" support for the LED passages.

Please do not scale it much smaller. Otherwise, the covers might no longer fit.
ATTENTION: If it is scaled too small, the passages for the LEDs in the letters will also become smaller. (Perform a test print beforehand) - And don't forget to scale the covers as well.



I recommend NOT scaling the X and Y axes smaller than 60%.

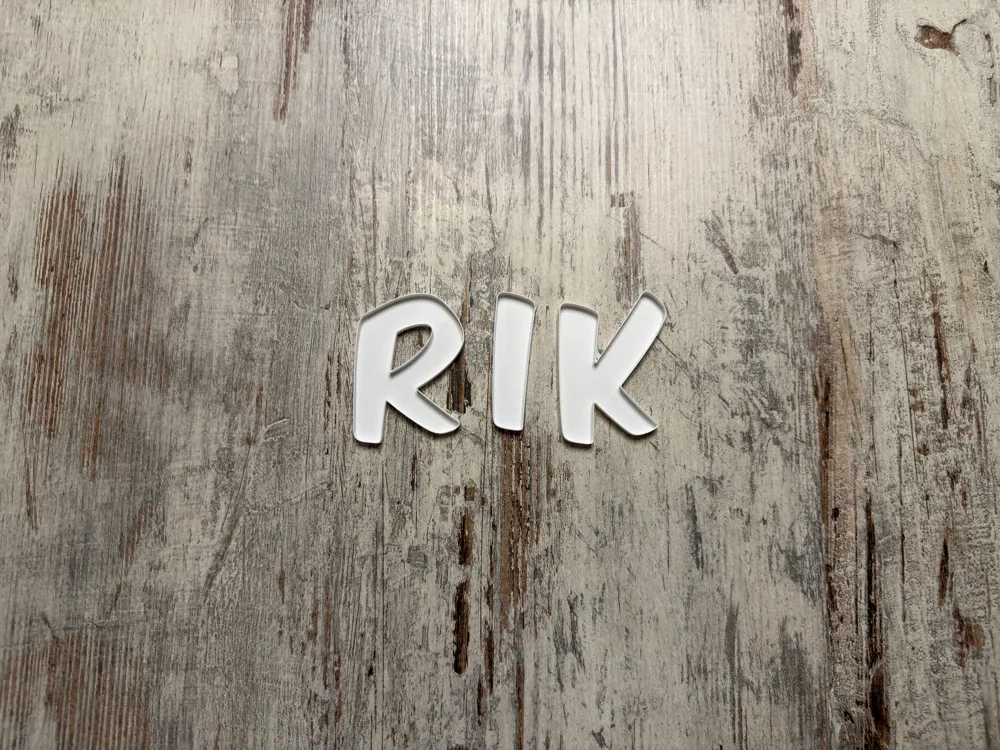

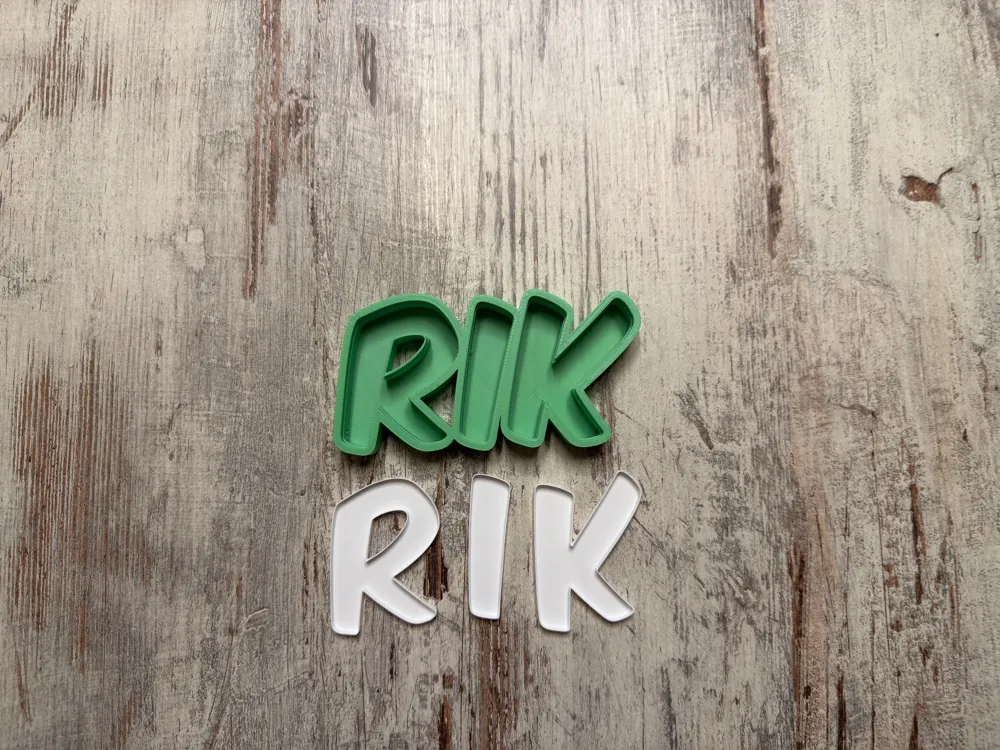

The covers can also be printed mirrored on the X-axis. This way, the covers will sit flush at the front. The disadvantage, however, is that the covers are not as easy to remove. I recommend printing a mirrored cover as a test beforehand.

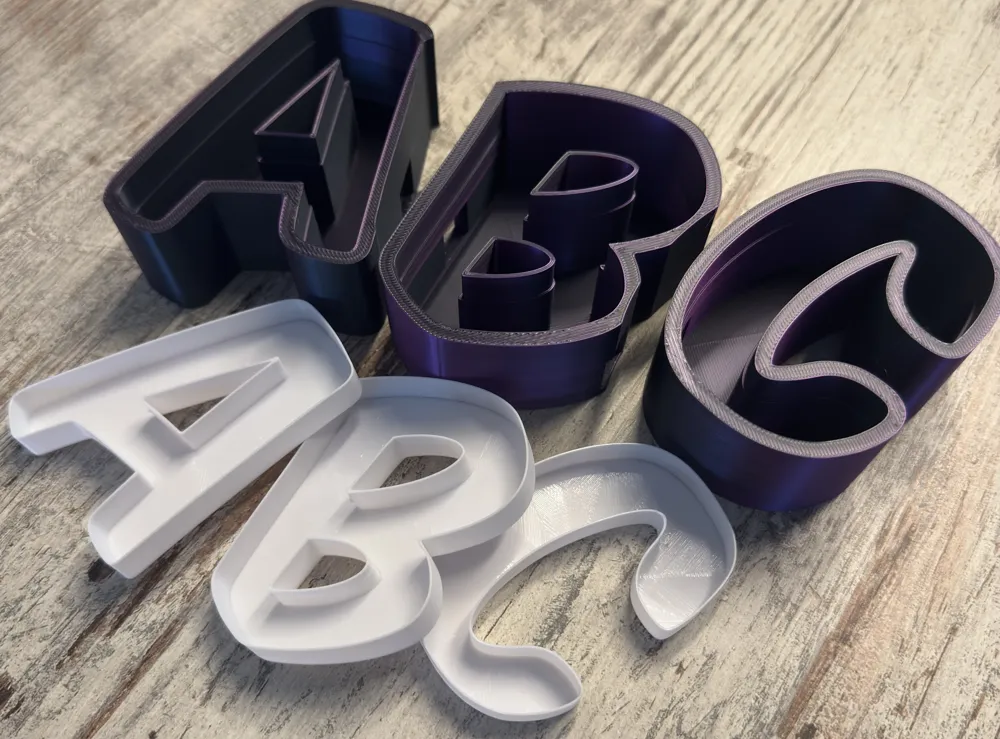

The letter pairs must be glued together. Please ensure that the LED passages are flush with each other. A special adhesive for PLA/PETG is best suited for this.

For LEDs, I recommend inexpensive 1-5m RGB LED strips for 8-12€ or, even better, COB-LEDs. Higher-quality RGBIC LEDs, depending on your skill, also allow for individually controllable letters.

For this name length, it is better to use 5m.

I am available for questions.


I am happy to create further individual LED names upon request and with a small donation.
