4 Bay NAS - Lenovo Thinkcentre M920q/M720q
Print Profile(3)
Description

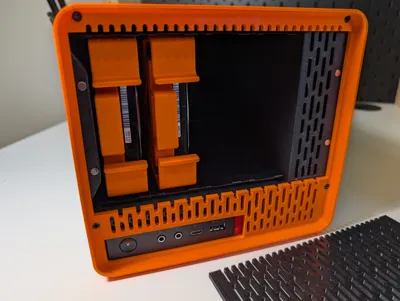

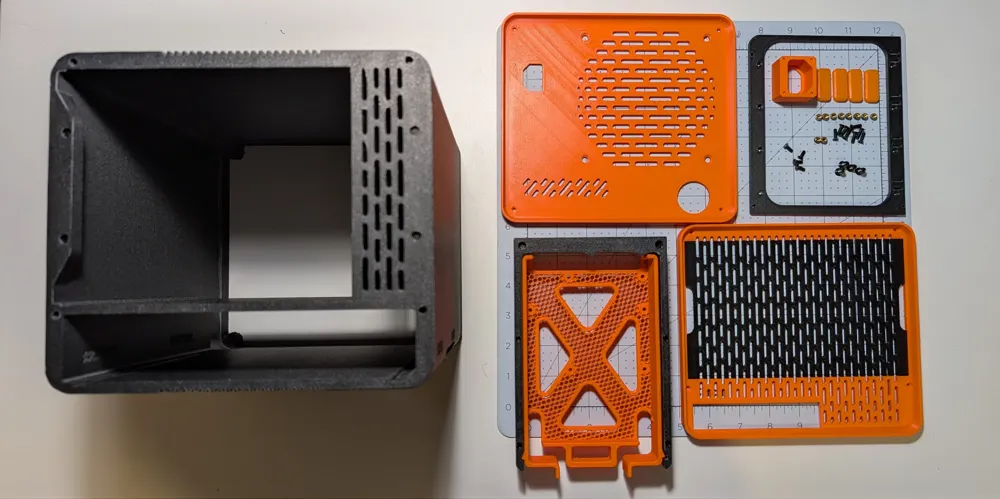

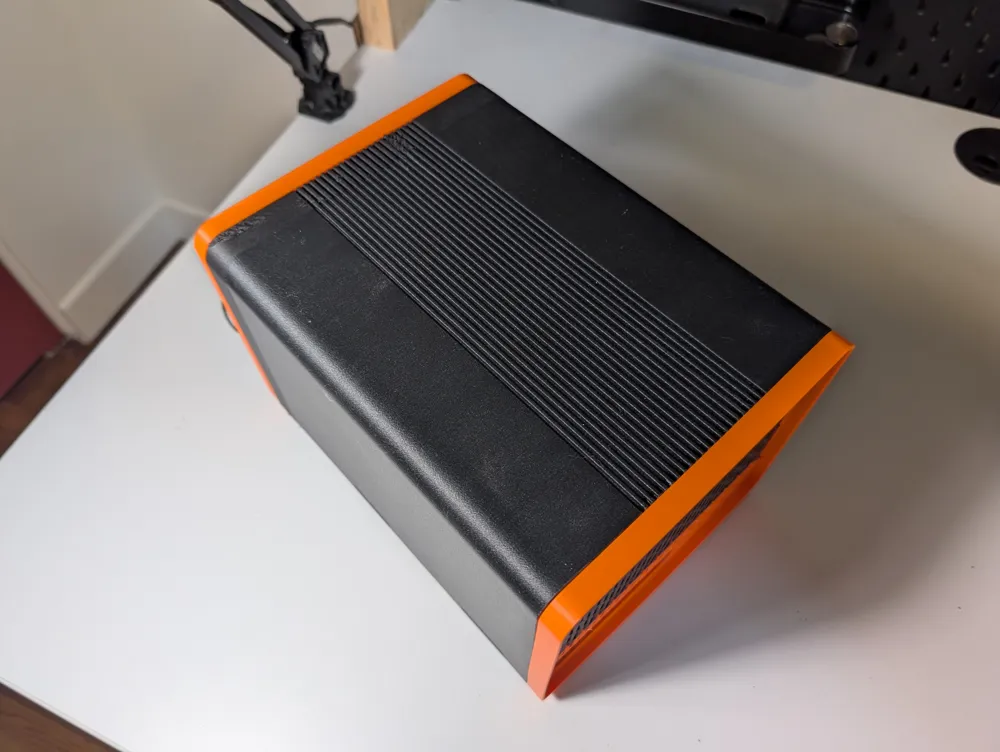

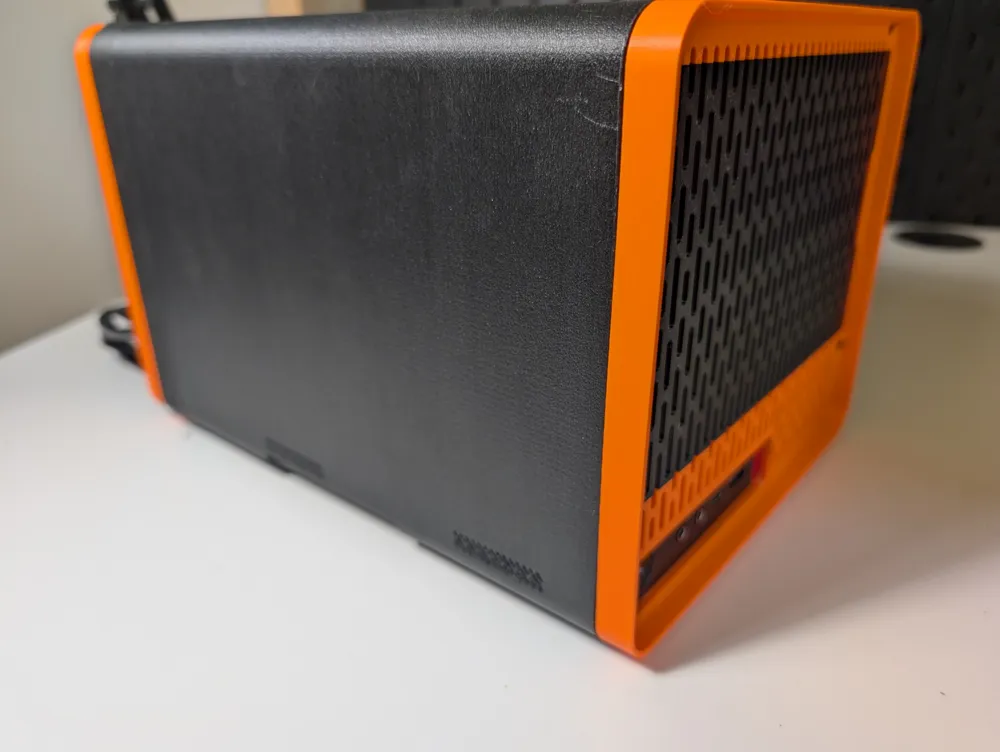

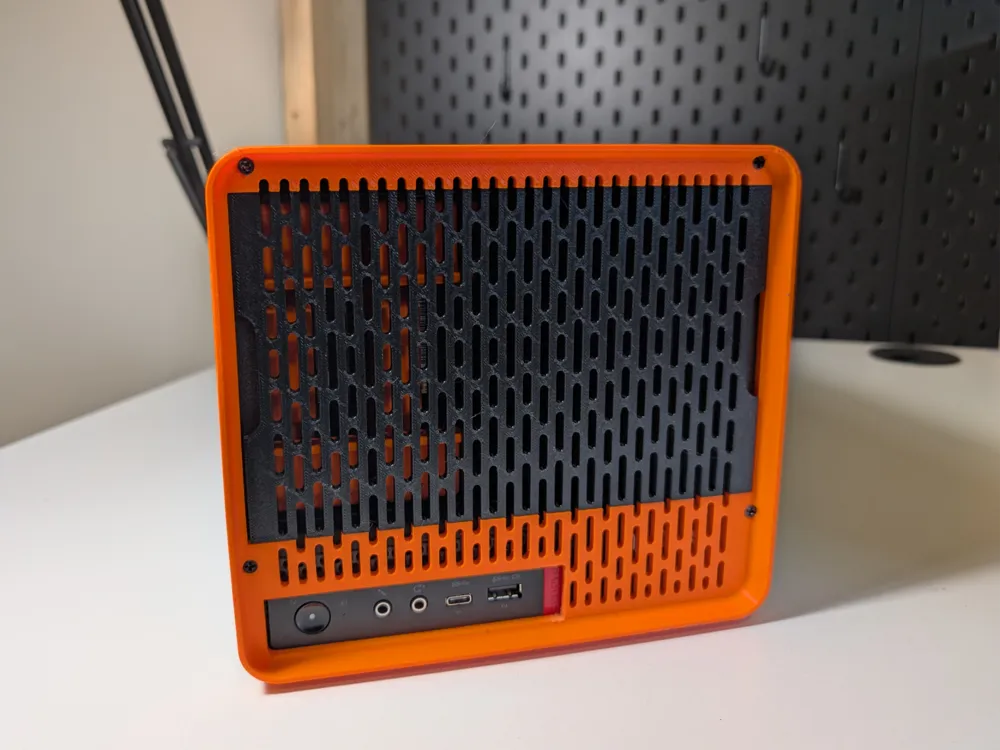

This is a 4 Bay NAS compatible with Lenovo Thinkcentre M920Q or M720Q.
!!! Make sure to print it at least in PETG to resist with high temperatures !!!

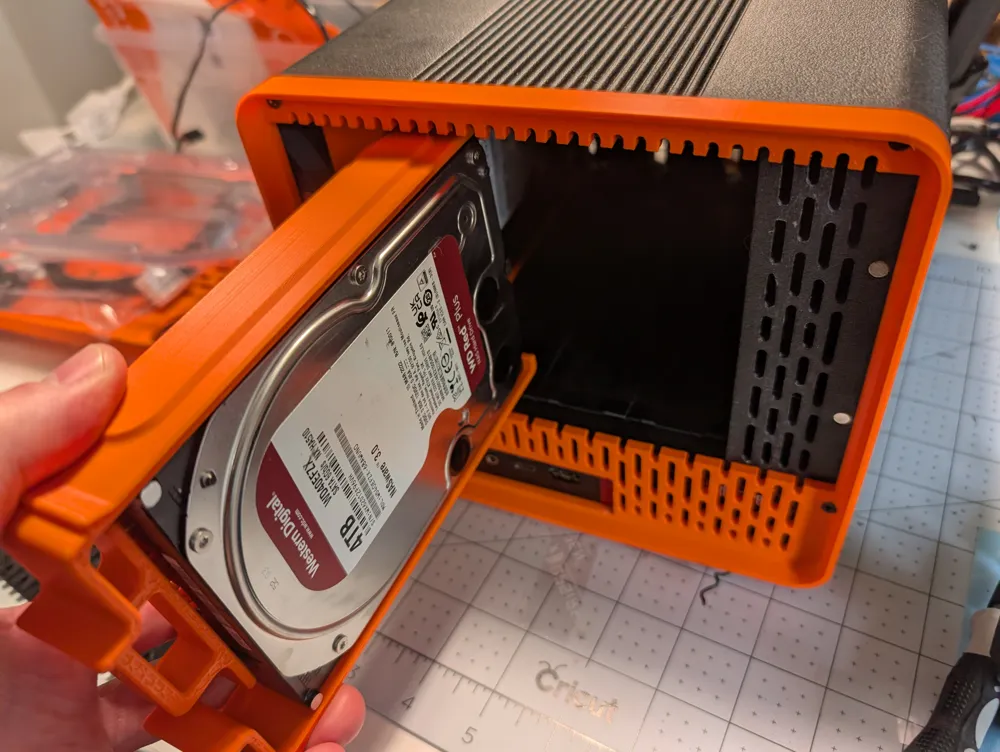

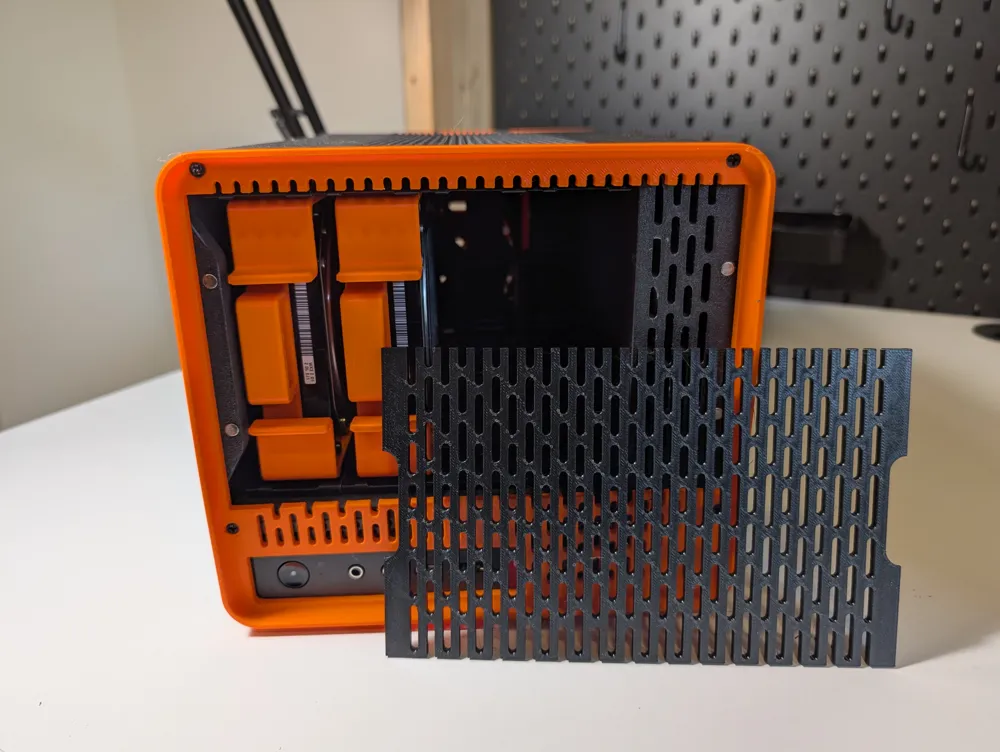

There is a version with magnets allowing you to remove easily the front grid to swap the disk or a version with a fixed front plate if you don't wanna use magnets.
In my case I used a Lenovo M920Q.
I'm running Truenas Scale on it.

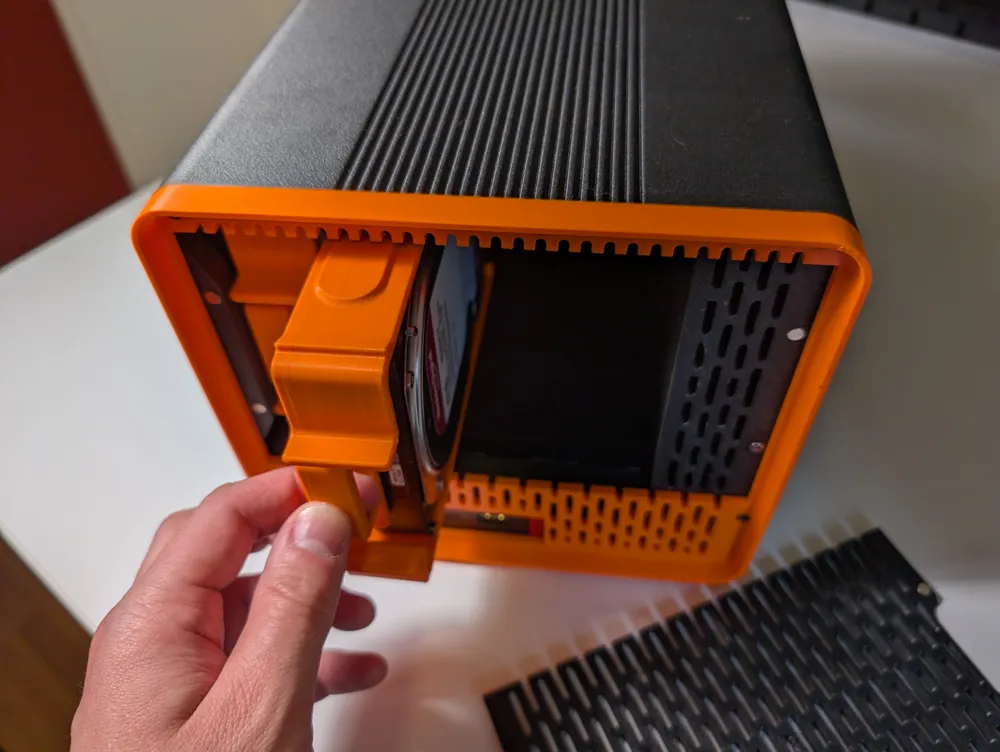

For the drives caddy I used the design from Salim Benbouziyane, I slightly changed it to meet my needs. But I highly suggest you to check his work on his youtube channel.
The HBA I chose works flawlessly with Truenas scale when others don't really work well.
But I also found that it gets pretty hot so I designed and printed a fan shroud to cool it down :
https://makerworld.com/en/models/1979023-inspur-9211-8i-hba-lsi-fan-shroud-for-lenovo-m920q#profileId-2128629
Here are the components you need for this project :
- Inspur HBA LSI : https://www.aliexpress.com/item/1005005028899772.html?spm=a2g0o.order_list.order_list_main.63.2a845e5bDIcViU
- Lenovo PCI-E Riser adapter : https://www.aliexpress.com/item/1005008596518830.html?spm=a2g0o.order_list.order_list_main.53.696e1802C9ruS5
- 4x Sata Adapters : https://www.aliexpress.com/item/1005007461202952.html?spm=a2g0o.order_list.order_list_main.38.696e1802C9ruS5
- 12v to sata power adapter : https://www.aliexpress.com/item/1005006990981922.html?spm=a2g0o.order_list.order_list_main.33.696e1802C9ruS5
- 12v 8A power supply : https://www.aliexpress.com/item/1005007087317638.html?spm=a2g0o.order_list.order_list_main.28.696e1802C9ruS5
- USB-C to PWM fan speed controller : https://www.aliexpress.com/item/1005007872215587.html?spm=a2g0o.order_list.order_list_main.23.696e1802C9ruS5
- 1x 120mm PWM fan : https://www.amazon.ca/-/fr/Ventilateur-standard-refroidisseur-configuration-pousser-tirer/dp/B07GJGF56L/ref=sr_1_2?__mk_fr_CA=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=JI3FWDCD5CRT&dib=eyJ2IjoiMSJ9.HDVWb3Di7EH9xav0zFr0h1Nbq82iyI9YSU9B7CBecRLKt-2WJ8gJnMI97iU7GToI0oEE63Z2meyxRoXcI6ggWqxZTctFvmcp5gl77N4nhWfZJYgPl4PycijcB5f1eYadYRy_hxy9IlDdwapsJO4oX8zUUhWChMxMuxvm_B5yfjC1iHxhWaDJJIBIEy-b2qJG9TFTz6_LKqGendYjau265spIwqYJ4suIGlsdqnU-6yuS134hoZBYhBxBAkZPYne0iPIV7BPl6Bkv00Gy8guZhhvJOkQetlQFRsfxQMRgBkI.KY_75nLIQ2B400KGvt6_kzJfkvuBQOEzwXHvqZG_CyQ&dib_tag=se&keywords=arctic%2Bp12%2Bpwm&qid=1762731343&sprefix=arctic%2Bp12%2Bpwm%2Caps%2C120&sr=8-2&th=1
- Power cord splitter : https://www.amazon.ca/dp/B0BBZHJP9R?ref=ppx_yo2ov_dt_b_fed_asin_title
If you're like me and prefer installing the Truenas apps on a different drive you can install a second ssd as I did.
So you'll need a M2 to sata adapter :
https://www.aliexpress.com/item/1005005446008865.html?spm=a2g0o.order_list.order_list_main.43.696e1802C9ruS5
- sata SSD : https://www.aliexpress.com/item/32465074880.html?spm=a2g0o.order_list.order_list_main.68.696e1802C9ruS5
And like me if you prefer your ssd outside of the pc you can use a sata extender :
If you print the fan shroud for the HBA you'll need a 4010 blower fan :
https://www.aliexpress.com/item/1005003879641881.html?spm=a2g0o.productlist.main.15.75efUt7tUt7ttx&algo_pvid=83e8df05-aa13-4233-8700-c354bcda5068&algo_exp_id=83e8df05-aa13-4233-8700-c354bcda5068-14&pdp_ext_f=%7B%22order%22%3A%22121%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&pdp_npi=6%40dis%21CAD%215.19%215.19%21%21%213.59%213.59%21%402103126e17627273478221674e9dd9%2112000027377530428%21sea%21CA%211611419714%21X%211%210%21n_tag%3A-29919%3Bd%3A8f2d80ee%3Bm03_new_user%3A-29895&curPageLogUid=y1lrK17LuQK9&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A1005003879641881%7C_p_origin_prod%3A

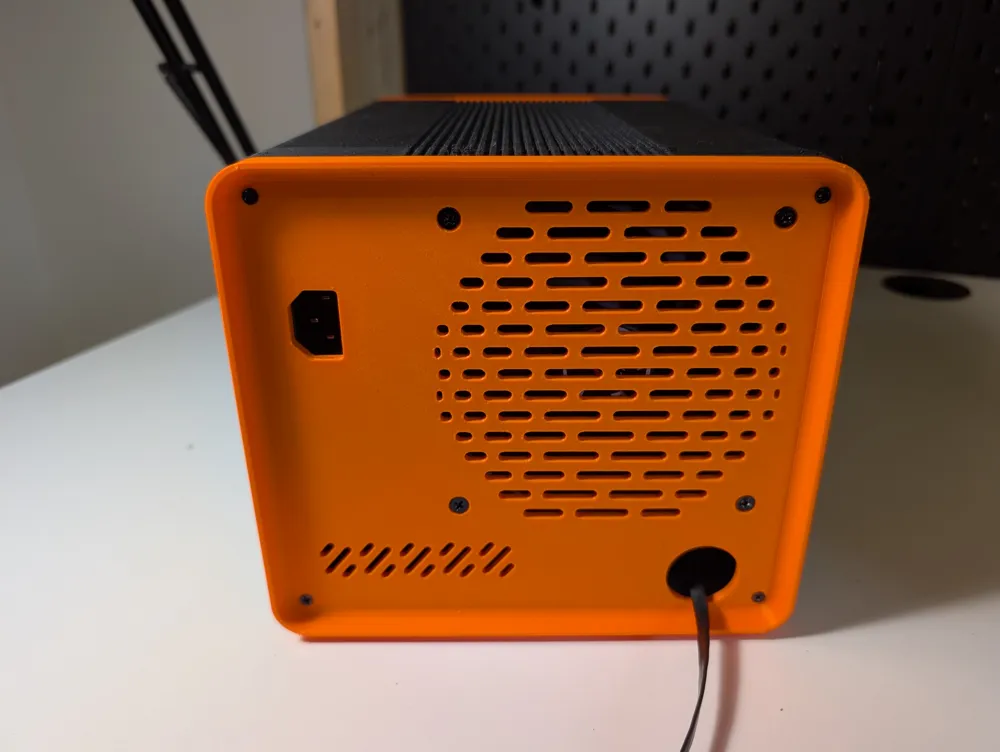

I also suggest you to print a 120mm fan grid to avoid your fan to touch the cables inside :
https://makerworld.com/en/models/1313819-hexagonal-fan-grille-for-120mm-pc-fan?from=search#profileId-1348545
