18650 / 21700 Battery Case + Switch + Step-Up Converter
š§ Features

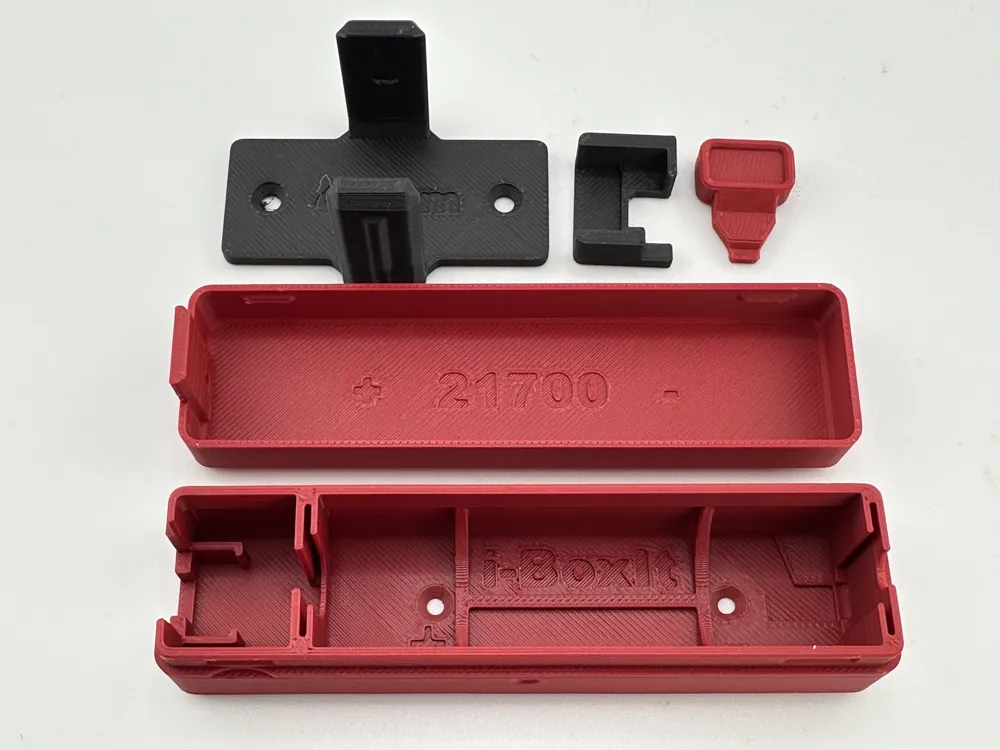

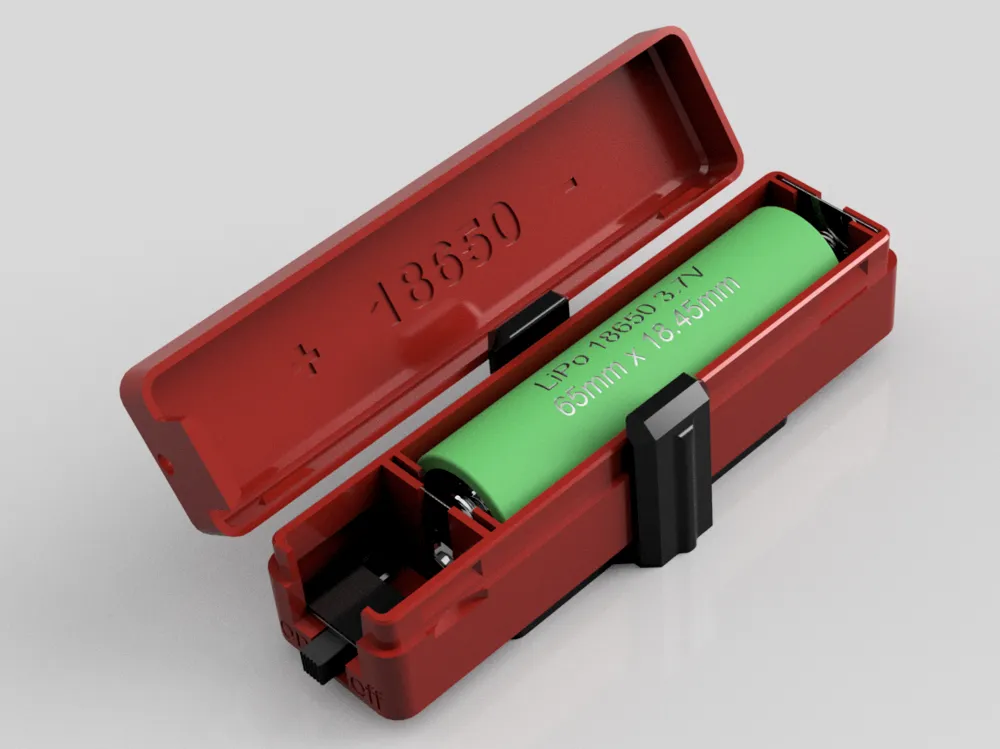

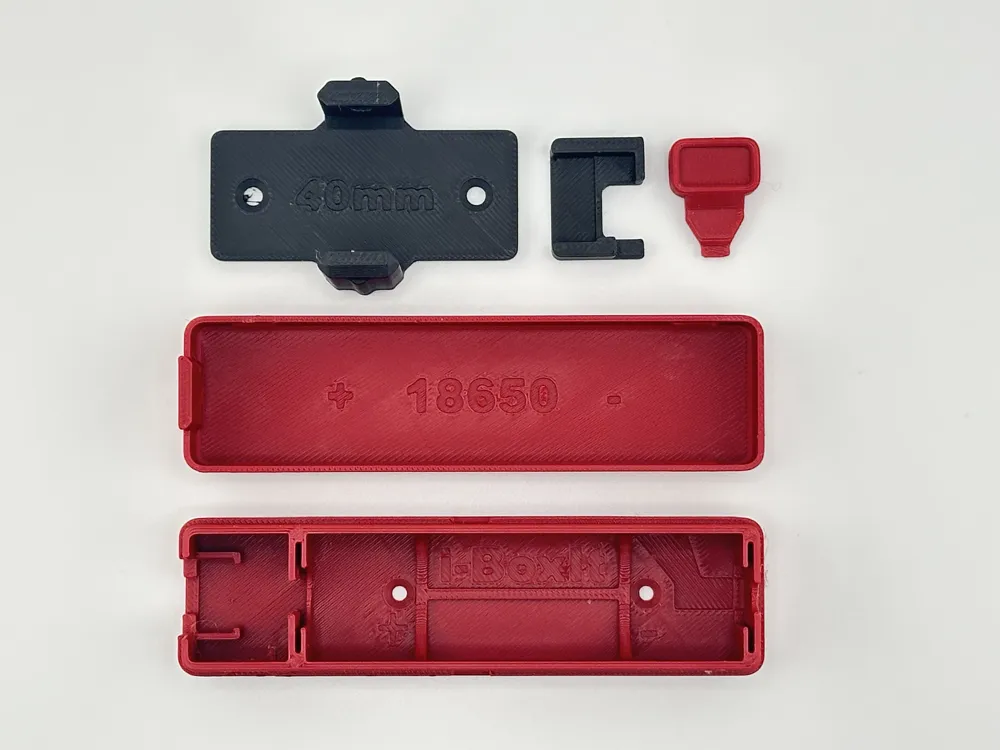

- Fits a single 18650 or 21700 cell
Circuit protected batteries should also fit! - Space for a step-up converter and on/off switch
- Box with screw holes for easy mounting
- Clean layout for wiring and cable routing
- Removable lid for maintenance or upgrade
- Wall Mount
- Opener, you can also use a penny to open the case
How to assemble
Ā
š© Components
- š Contact Spring Plates 16 x 18.5mm
https://s.click.aliexpress.com/e/_c3Q9FsBz - ā” Step-Up Converter ( 5V at 1A , 8V at 0.5A, 9V at 0.45A, and 12V at 0.3A)
Ā https://s.click.aliexpress.com/e/_c3s0CUCX - š Switch (K032b028-G4)
https://s.click.aliexpress.com/e/_c3wziMXz - LiPo 18650
https://s.click.aliexpress.com/e/_c4oeOBtH - LiPo 21700
https://s.click.aliexpress.com/e/_c2JtehdH
šØļø Print Settings
- Material: PLA or PETG
- Layer height: 0.20 mm
- Infill: 15%
- Supports: not needed
š” Tips
- Double-check polarity before connecting!
- Step-up converter may get warm ā PETG recommended.
- Add a small inline fuse for extra safety.
https://s.click.aliexpress.com/e/_c3EHCL7v
