Ikea Platsa 120mm Fan Exhaust with Magnetic Duct
Print Profile(1)
Description

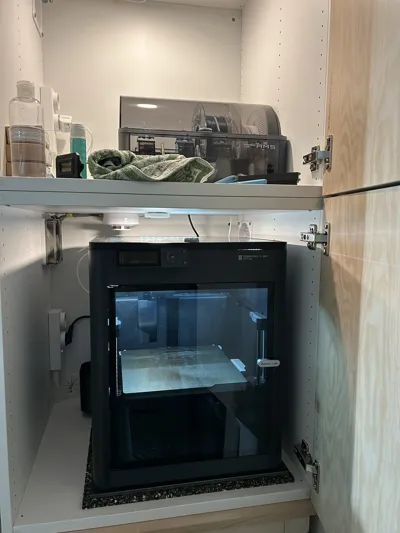

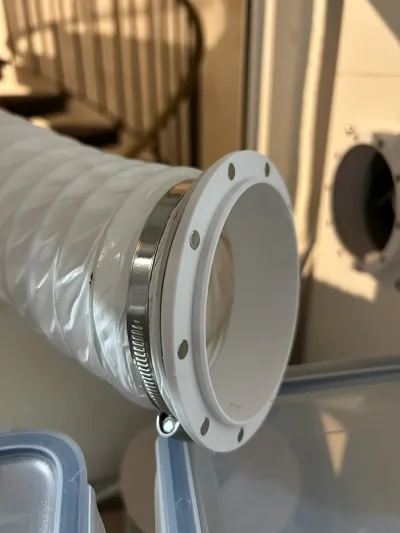

Ikea Platsa exhaust air system with a 120 mm fan and a 100 mm exhaust air hose, including a magnetic hose connection.
The components fits to all cabinets with a wall thickness of 18 mm, in which a hole with a diameter of 115 mm must be drilled.

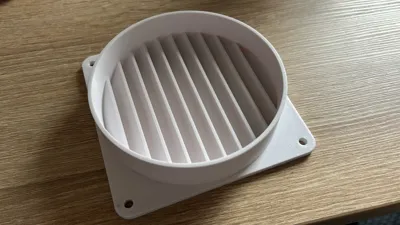

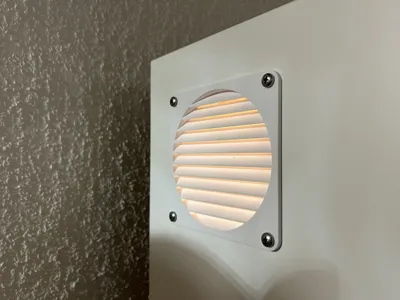

Included is an air inlet and an air outlet to which the fan is mounted. There is also a cover for the air inlet so that the cut edges can be concealed.
It is possible to screw the parts together or individually into the wall, which is why the holes for the screws are not countersunk. This gives you a little more flexibility.
📃Part list:
- 20x Magnet (6x3mm)
- 16x Round head screws for a 5mm hole (10mm maximum length)
