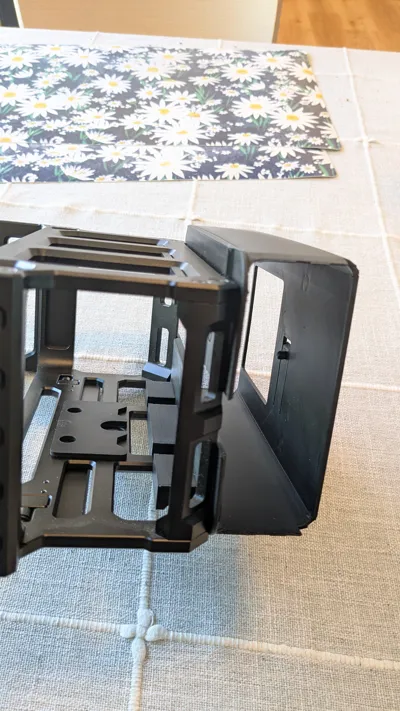

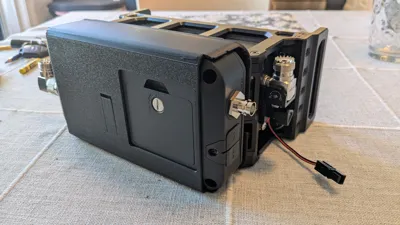

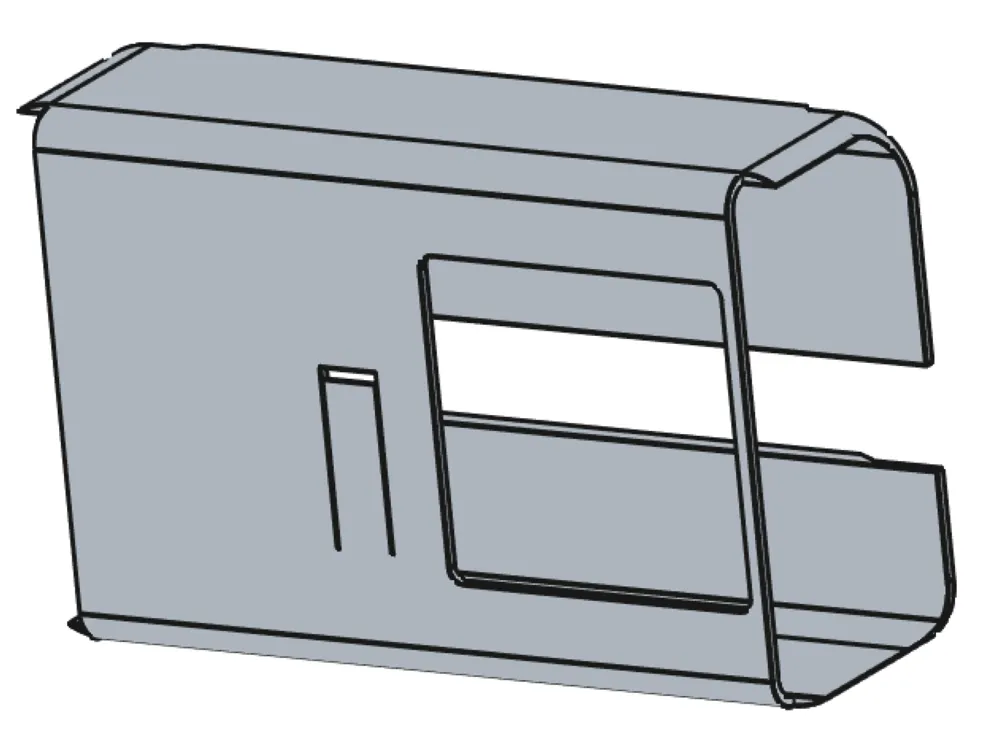

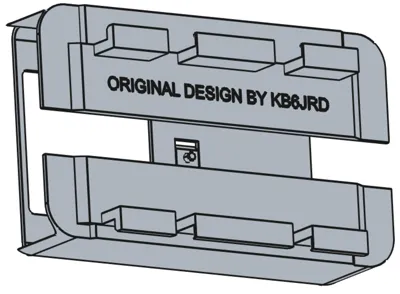

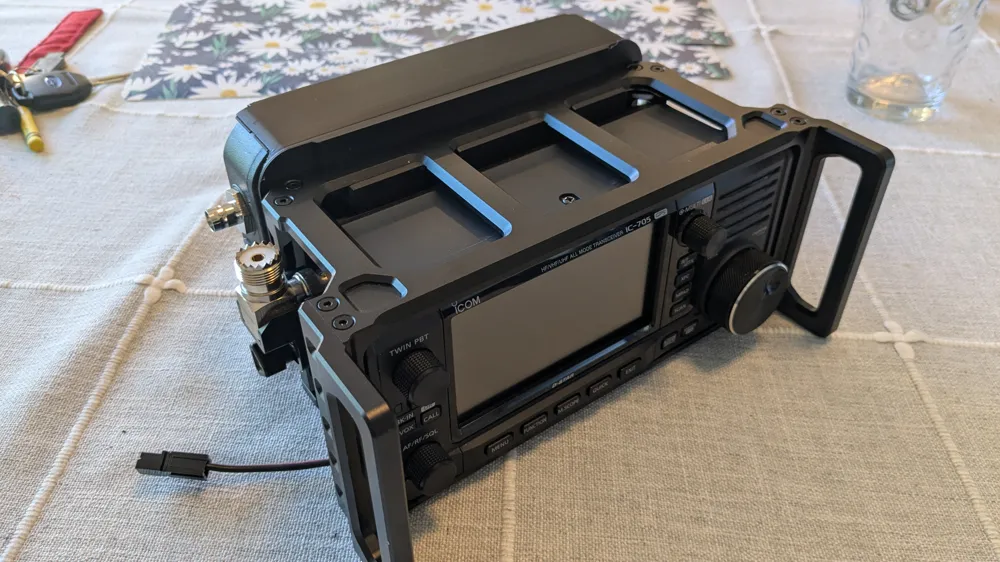

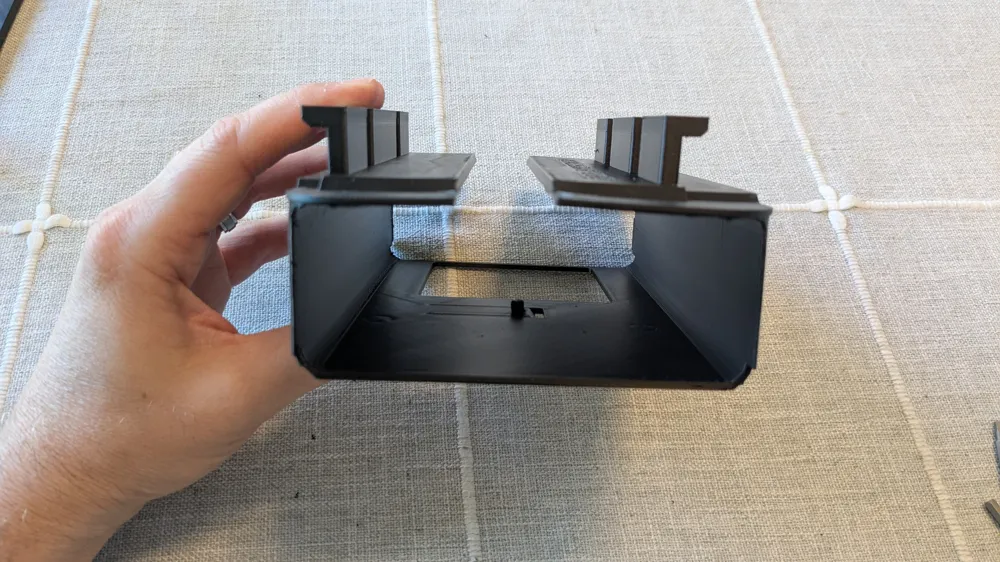

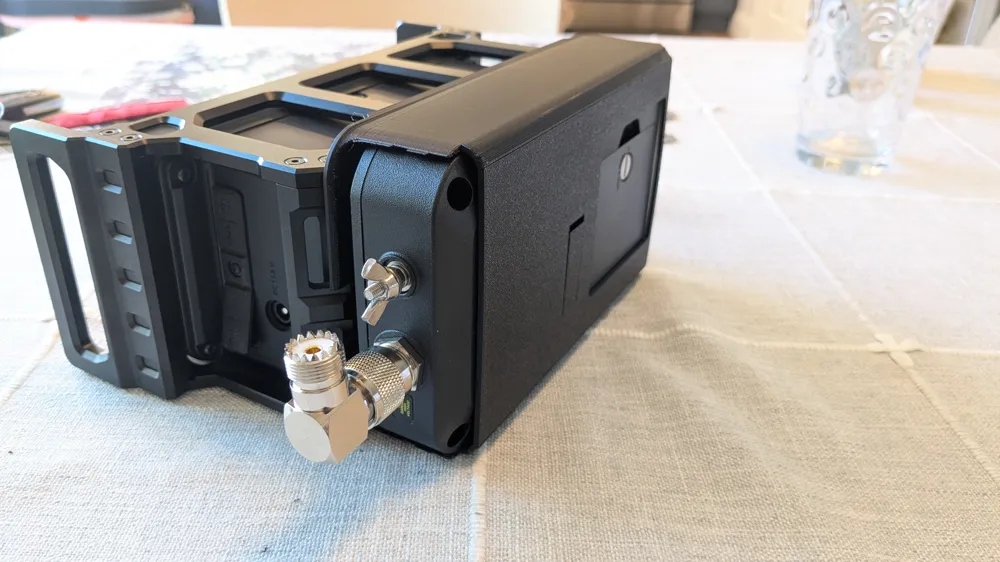

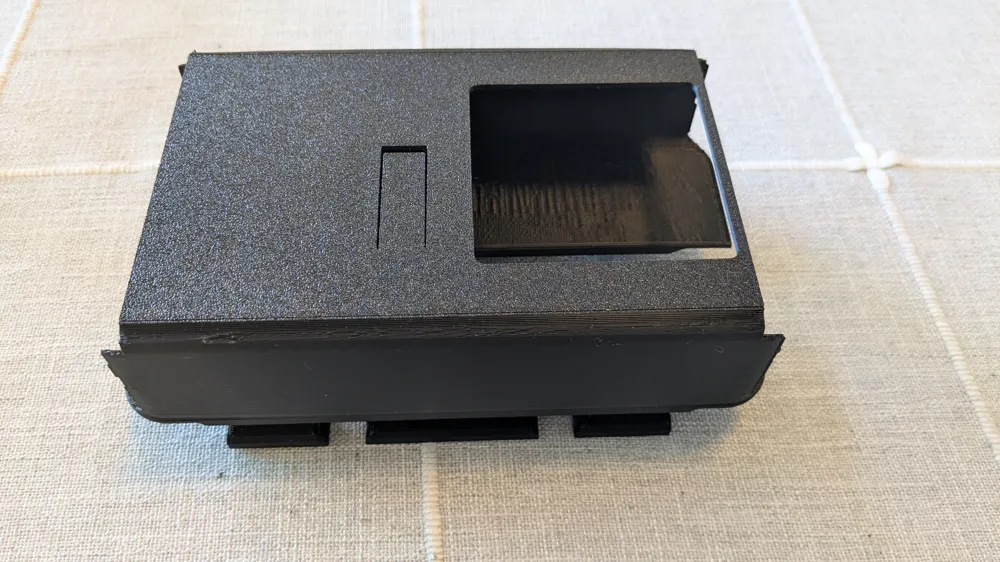

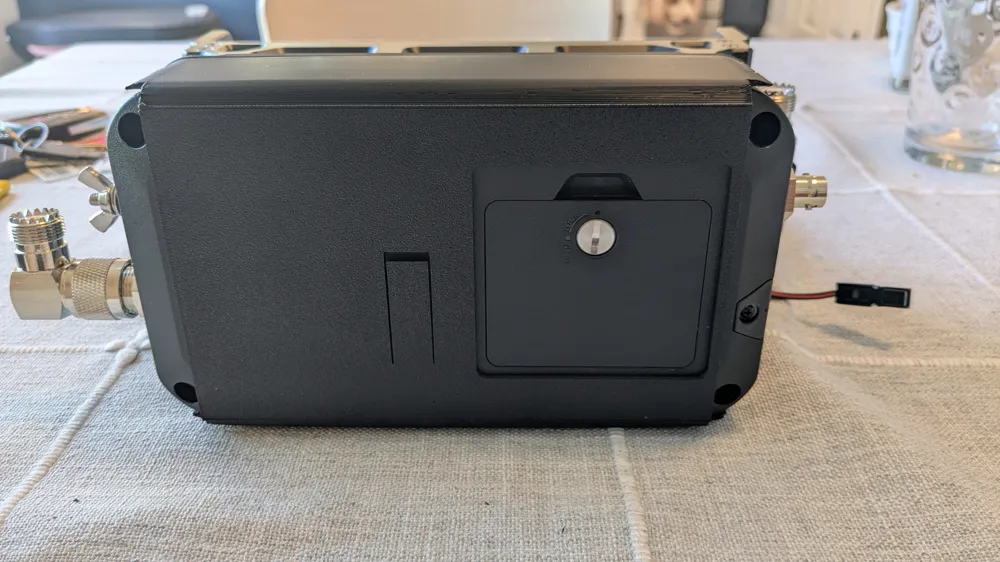

Icom AH-705 tuner mount for the Windcamp ARK-705 protective cage. Allows for toolless AH-705 install and removal once mount is installed on Windcamp ARK-705. Note you do have to remove the radio from the ARK-705 to install the cage, but adding/removing the AH-705 tuner is toolless thereafter.
DISCLAIMER: USE AT OWN RISK, I'M NOT RESPONSIBLE IF YOU BREAK YOUR STUFF.
Printing Parameters:
Material: PLA
Wall Count: 3
Detect Thin Walls: True
Layer Height: 0.2mm
Supports: True
Support type: tree(auto)
