Desktop Remote Control Holder (8 Slots, Stepped)
Print Profile(1)
Description
Summary
A compact desktop holder (120 x 120 x 85 mm) designed to organize up to 8 remote controls. The holder features a "stadium" (slanted) design and has two columns with different widths (one side is extra-wide for A/C remotes, etc.).
Description
This holder is the ultimate central command for your living room, desk, or nightstand!

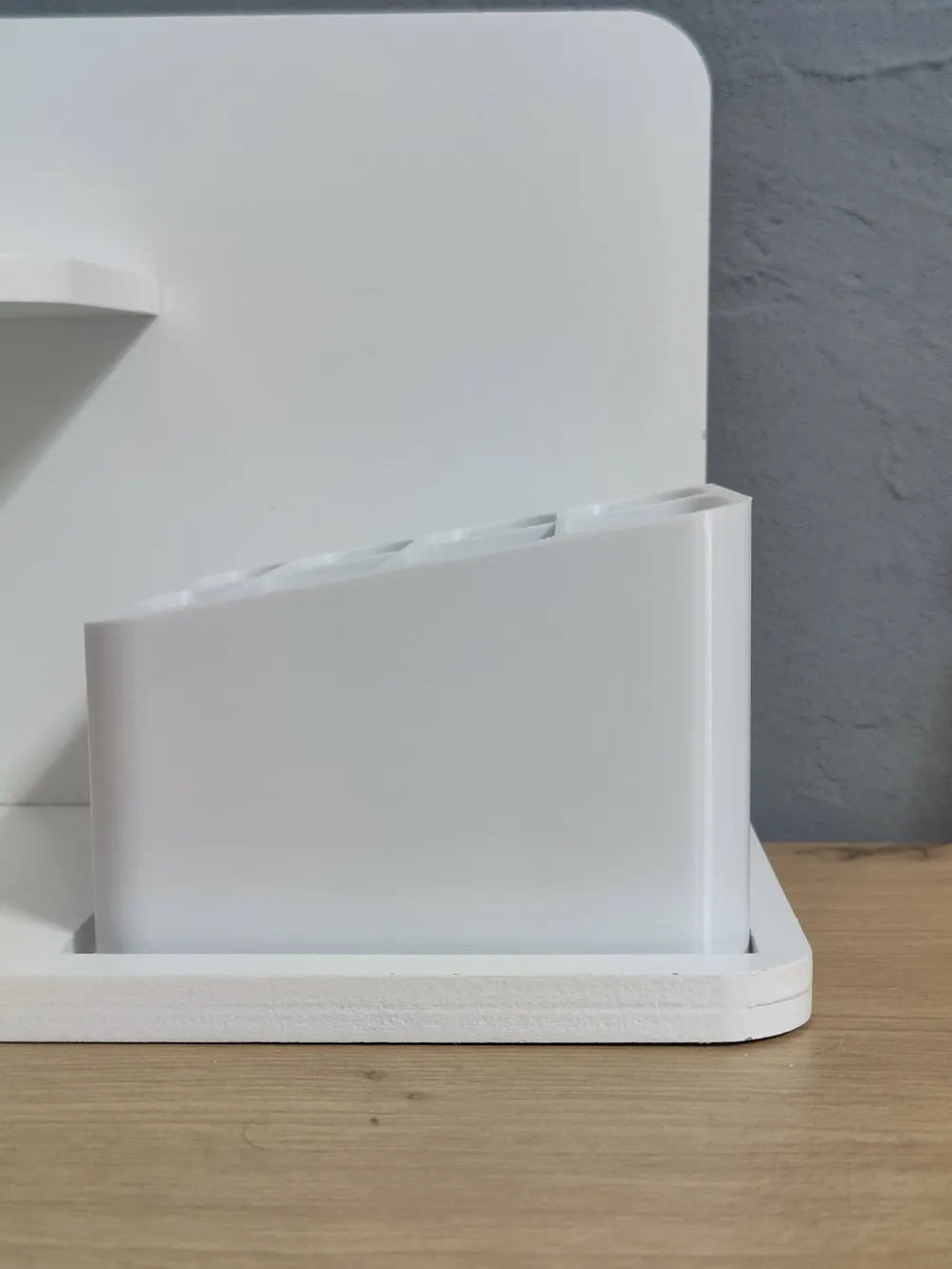

With a 120x120 mm footprint, this insert organizes up to 8 remotes. The design is slanted downwards towards the front, and the slots are stepped in 4 rows (max height 85mm). This ensures that remotes in the back are still visible and that smaller devices in the front are easy to grab.
Design Details: The 8 slots are split into two columns. The right column (59.5 mm) is intentionally wider to accommodate larger devices, such as an Air Conditioner remote. The left column (53 mm) is ideal for standard, slimmer remotes.
The slots also become shallower (stepped from 30 mm down to 21 mm) towards the front, providing a perfect fit even for very small remotes (e.g., for LED strips).

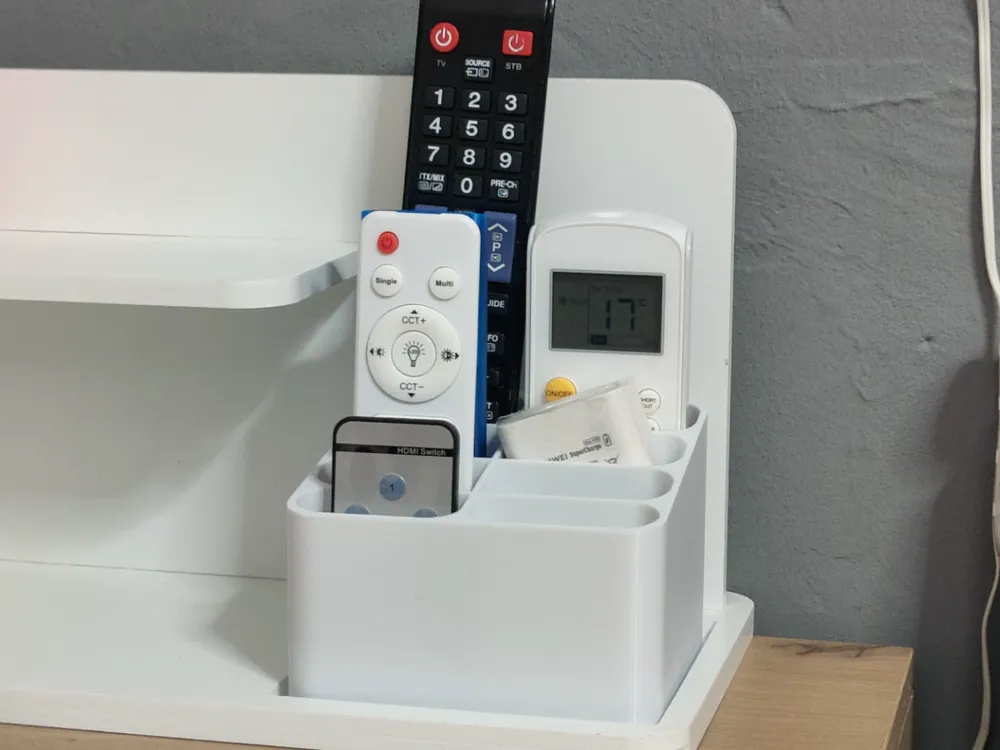

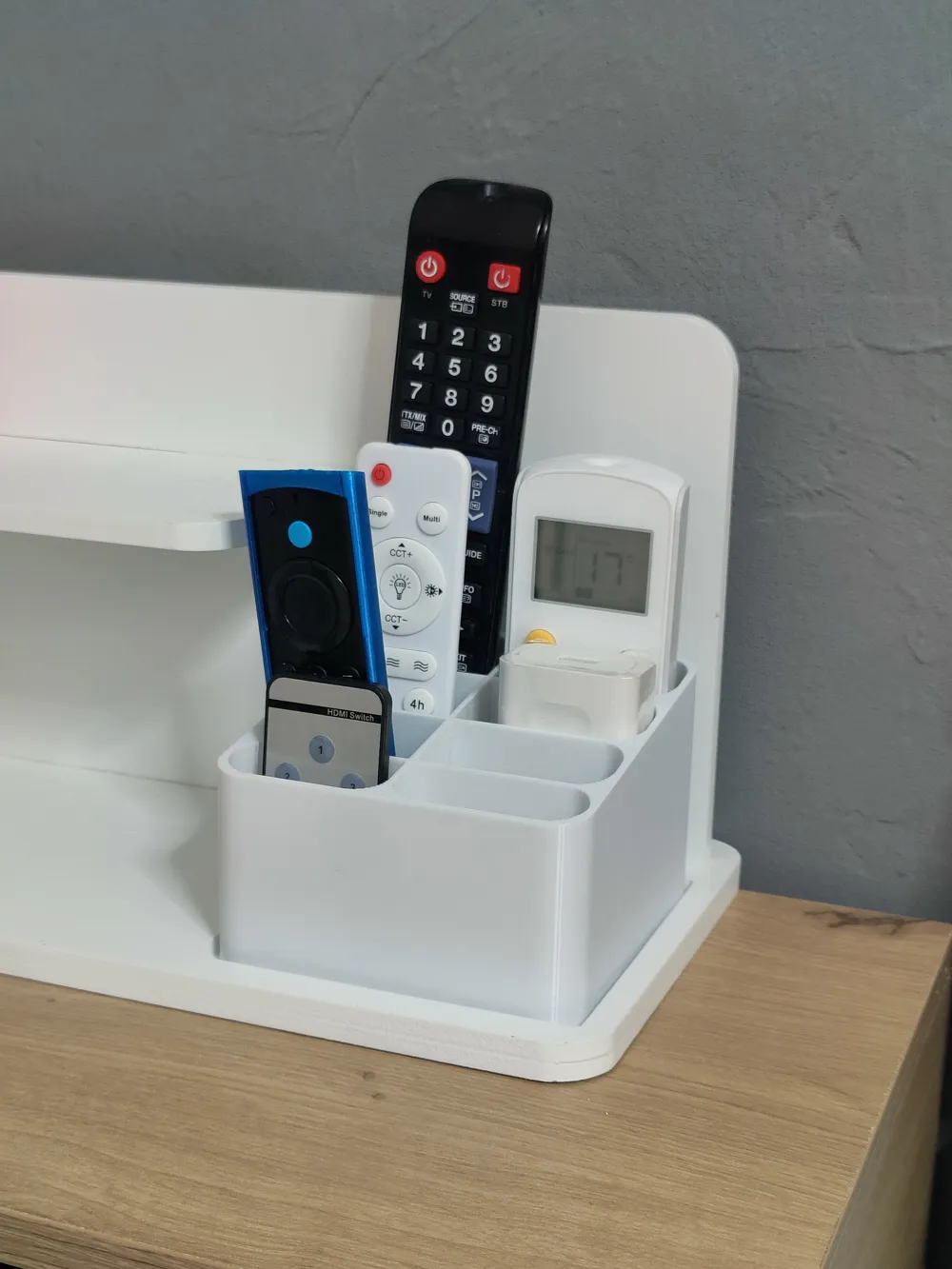

Tested to hold: FireTV stick remote, Samsung TV remote, light remote, speaker remote, and a wide A/C remote.

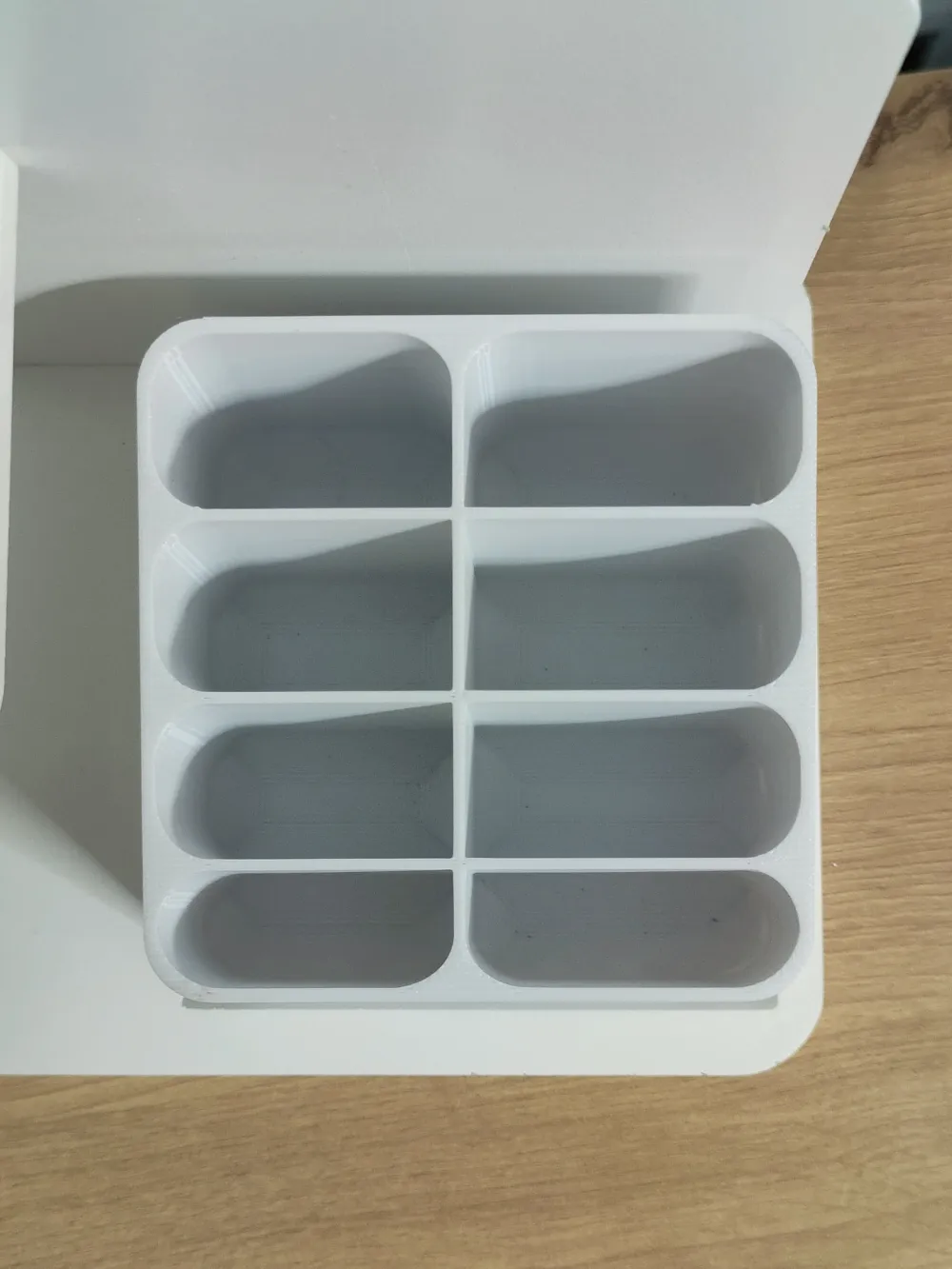

Slot Layout (Internal Dimensions):
- Left Column (Width: 53 mm)
- Back Slot: 30 mm deep
- Slot 2: 30 mm deep
- Slot 3: 27.5 mm deep
- Front Slot: 21 mm deep
- Right Column (Width: 59.5 mm)
- Back Slot: 30 mm deep
- Slot 2: 30 mm deep
- Slot 3: 27.5 mm deep
- Front Slot: 21 mm deep
Features:
- Compact Footprint: 120 x 120 x 85 mm (L x W x H).
- High Capacity: 8 slots for maximum organization.
- Stadium Design: Slanted for the best overview and access.
- Field-Tested Design: One extra-wide column for bulky remotes.
- Universal: Ideal for living rooms, offices, or bedrooms.
