KEA OMLOPP Upright Base

KEA OMLOPP Upright Base / Stand for Light Strip

Description

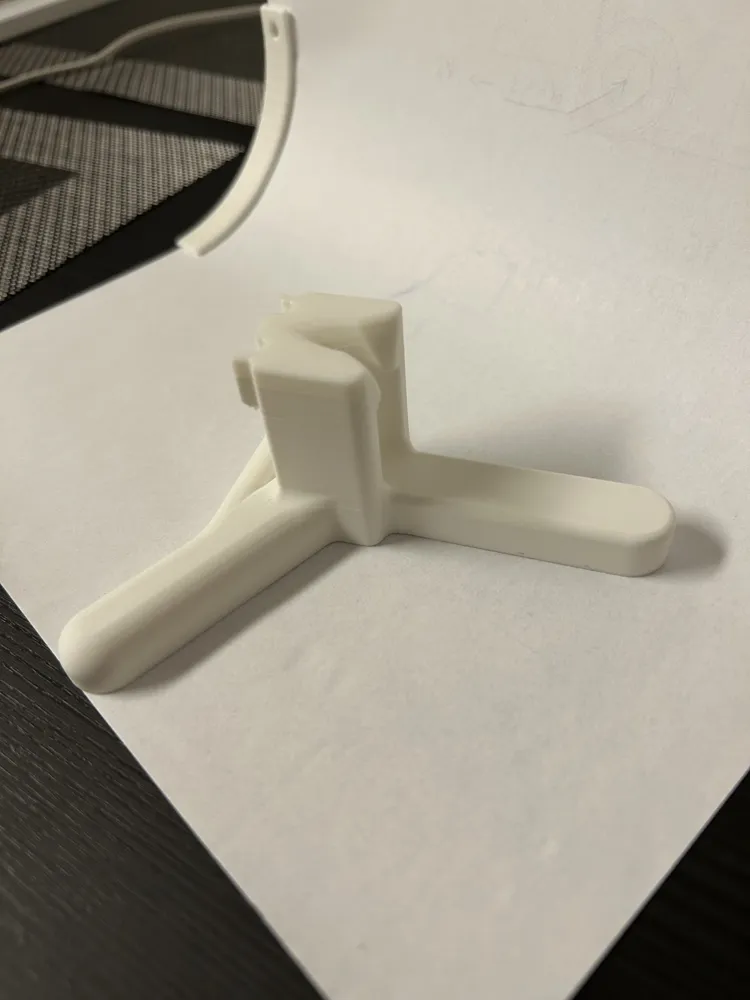

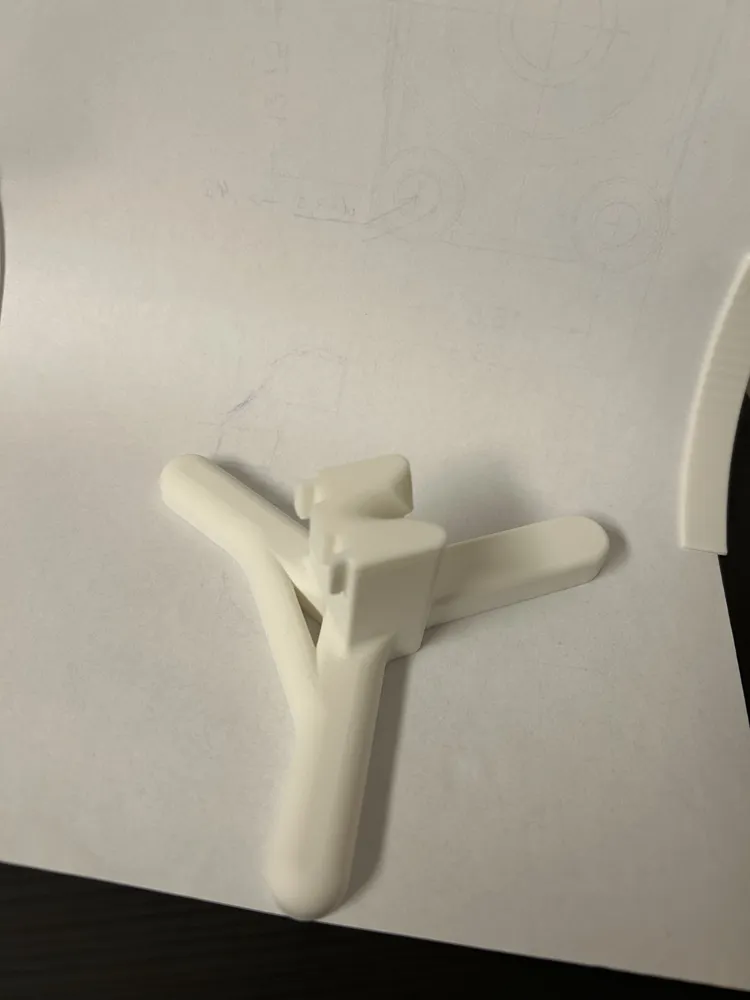

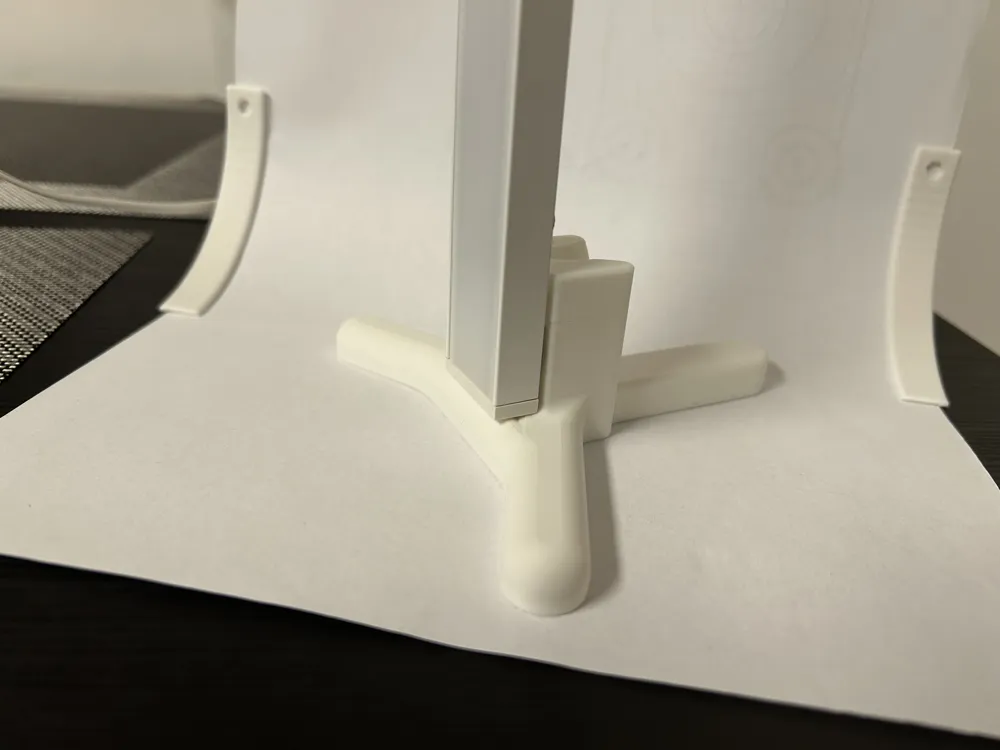

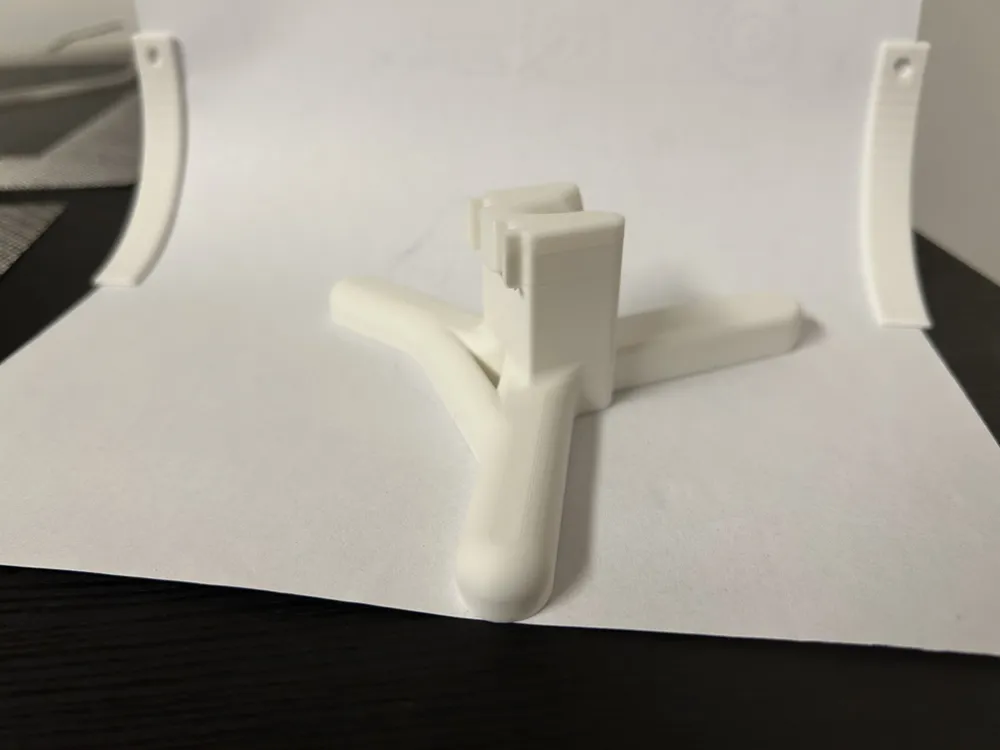

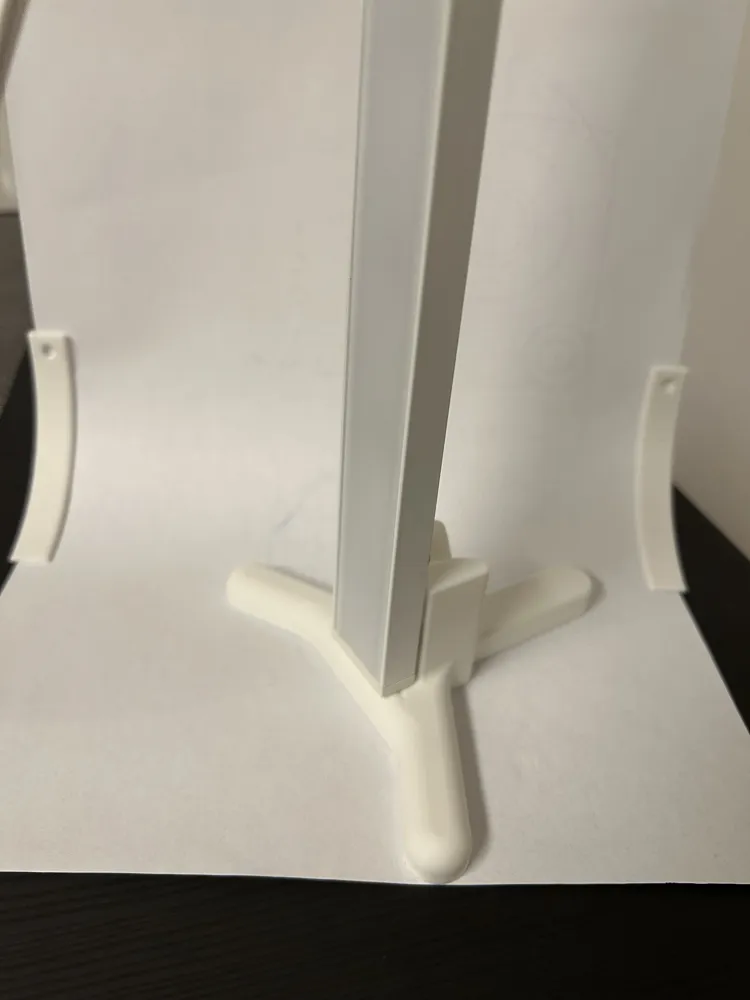

This simple and fast-to-print base is a practical upgrade for your IKEA OMLOPP light strip. It converts the light strip into a versatile, free-standing, upright lamp that can be placed anywhere in a room.

The design significantly expands the application area of the light source. The print requires minimal material and can be completed quickly, making it an efficient and useful solution.

Key Features:

• Easy Installation & Removal: The stand is designed for a snug fit. With just a little force, the light bar clips securely into the holder and can be easily removed when needed, making it ideal for flexible lighting setups.
• Stable Positioning: Say goodbye to wobbly light bars! This stand provides excellent stability, preventing your OMLOPP light from tipping over.
• Material & Print Friendly: This print uses minimal material and is incredibly fast to produce, making it an efficient and practical project for any 3D printer owner.

Print Settings Recommendation:

• Material: PLA (or PETG for more durability)
• Infill: 15%
• Layer Height: 0.2mm
• Supports: small part
• Brim/Raft: Not required (unless you experience adhesion issues)

Installation Instructions

1. Print the Base: Print the model using your preferred filament and settings. No supports should be required.
2. Insert the Light Strip: Align the IKEA OMLOPP light strip with the holder on the base.
3. Secure the Strip: Use a small amount of force to clip the light strip securely into the holder. The fit is designed to be snug for stability.
4. Remove (if needed): To remove the light strip, simply apply a little force to unclip it from the holder.
