🌿 Air Quality Monitor (ESP32-S3 + ESPHome + Home Assistant)
This custom Air Quality Monitor is a smart home project built around the ESP32-S3, designed to help you monitor and optimise the air quality in your home. It runs fully on ESPHome, seamlessly integrating with Home Assistant for real-time data, automation, and visual feedback.
🧠 What It Does
The monitor continuously measures:
- 🌫️ Particulate Matter (PM1.0, PM2.5, PM10) via a PMS sensor
- 💨 CO₂ and TVOC levels from a CCS811 sensor
- 🌡️ Temperature, Humidity, and Pressure from a BME680
- ☀️ Ambient Light levels from a VEML7700
All readings are displayed on a high-contrast OLED screen and also sent to Home Assistant for automation and long-term tracking.

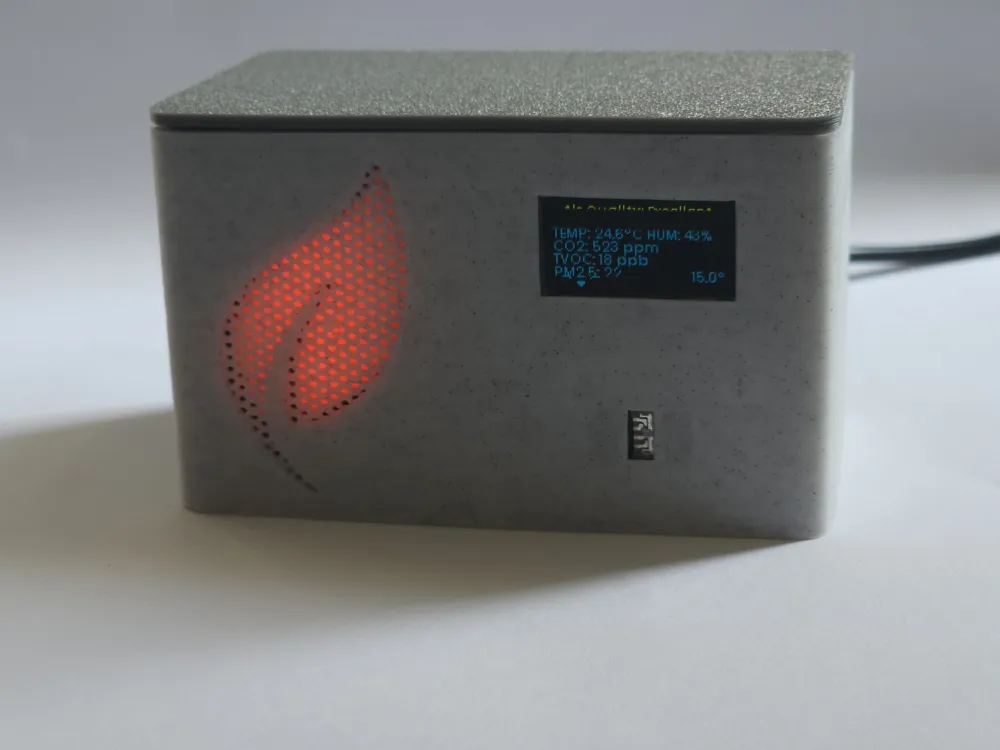

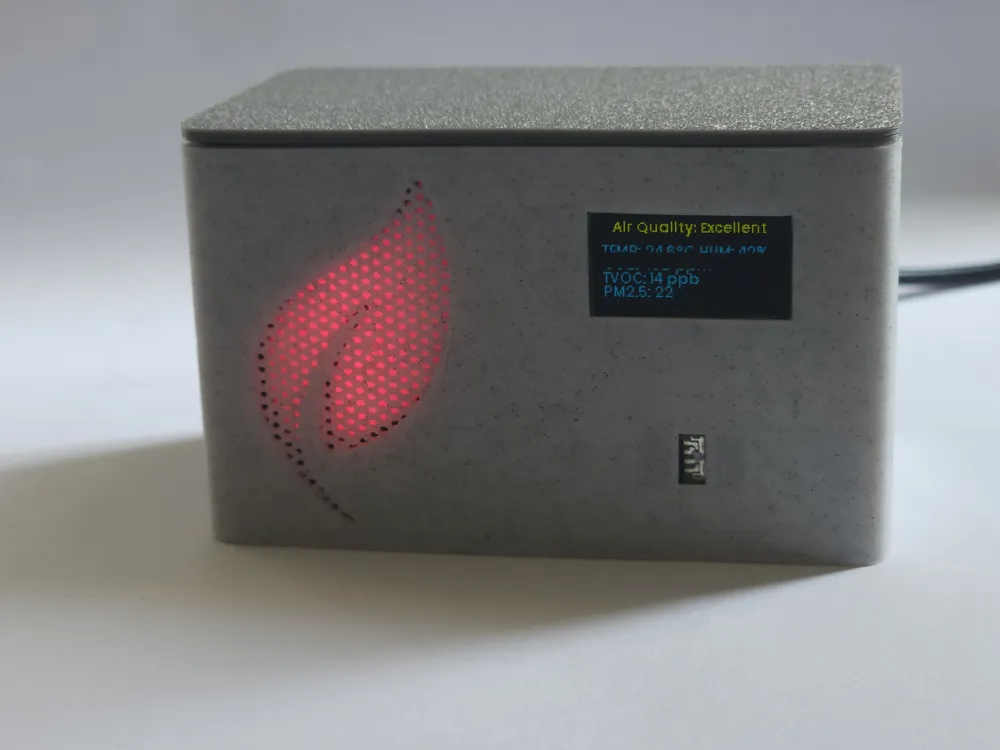

💡 Dynamic RGB LED Feedback
An integrated WS2812 RGB LED provides an at-a-glance visual indicator of air quality:
- 🟩 Excellent: Clean air, light green
- 🟢 Good: Healthy environment, soft green
- 🟡 Moderate: Acceptable but can be improved, yellow-orange tone
- 🟥 Poor: Consider ventilation, red
- 🟣 Unhealthy: Take action to clean the air, purple

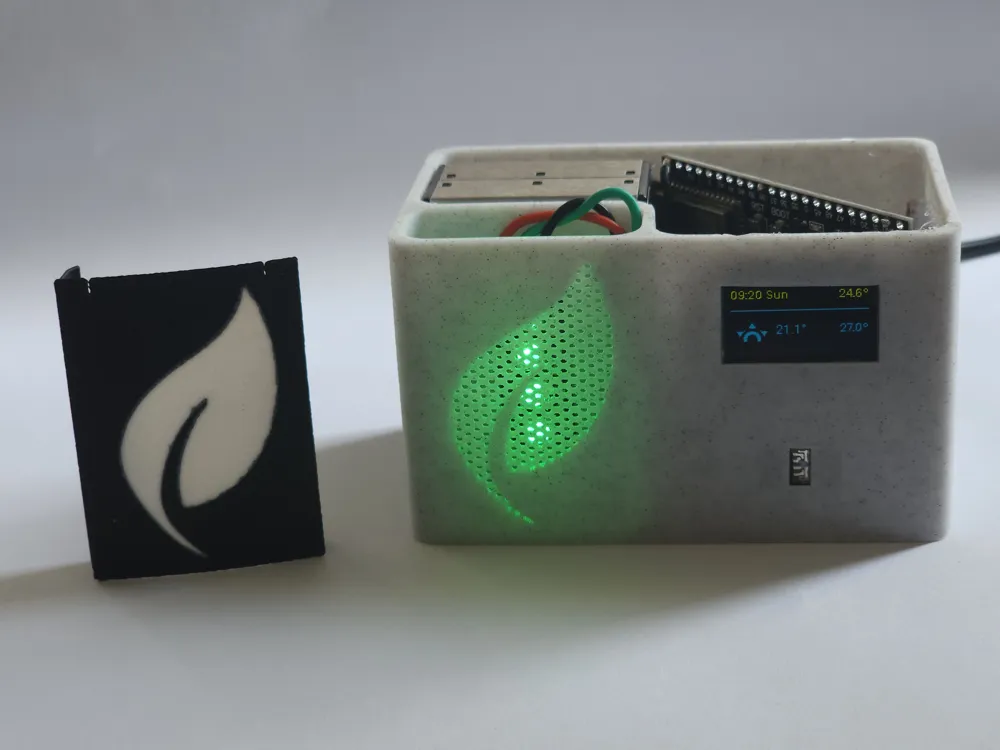

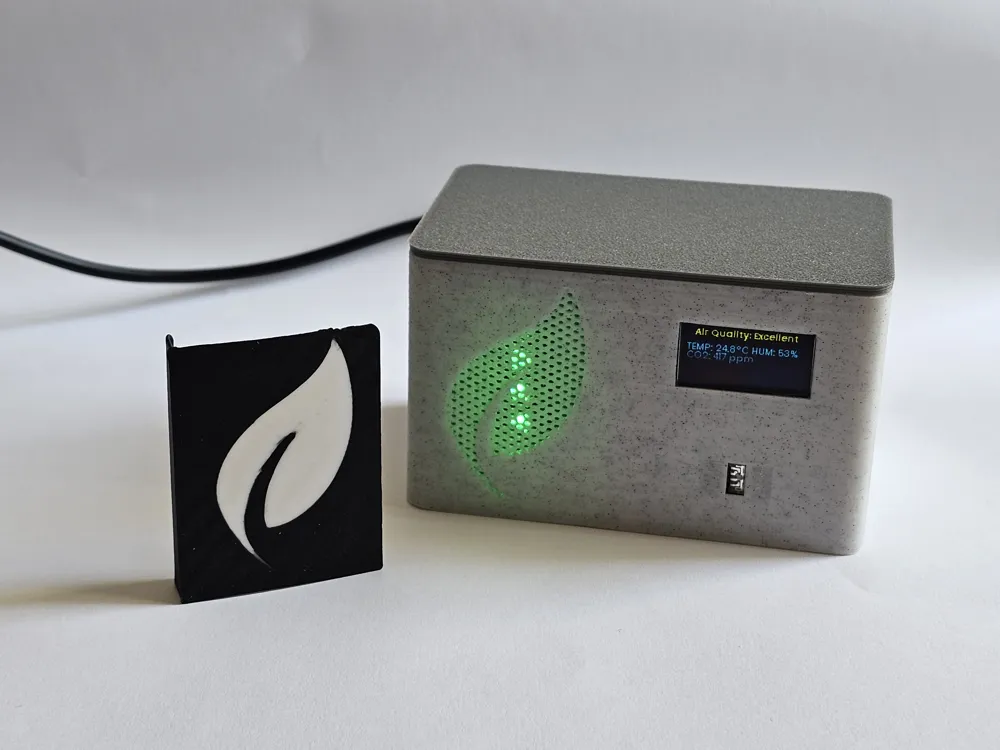

🌈 Optional: 3D Printed Light Diffuser
To achieve a softer and more visually pleasing glow, the LED can be positioned behind a 3D printed light diffuser.
This diffuser helps blur the individual LEDs, spreading the light evenly and giving a professional, polished look to the device.
It’s especially effective for night-time use, ensuring the indicator remains visible without being harsh or distracting.

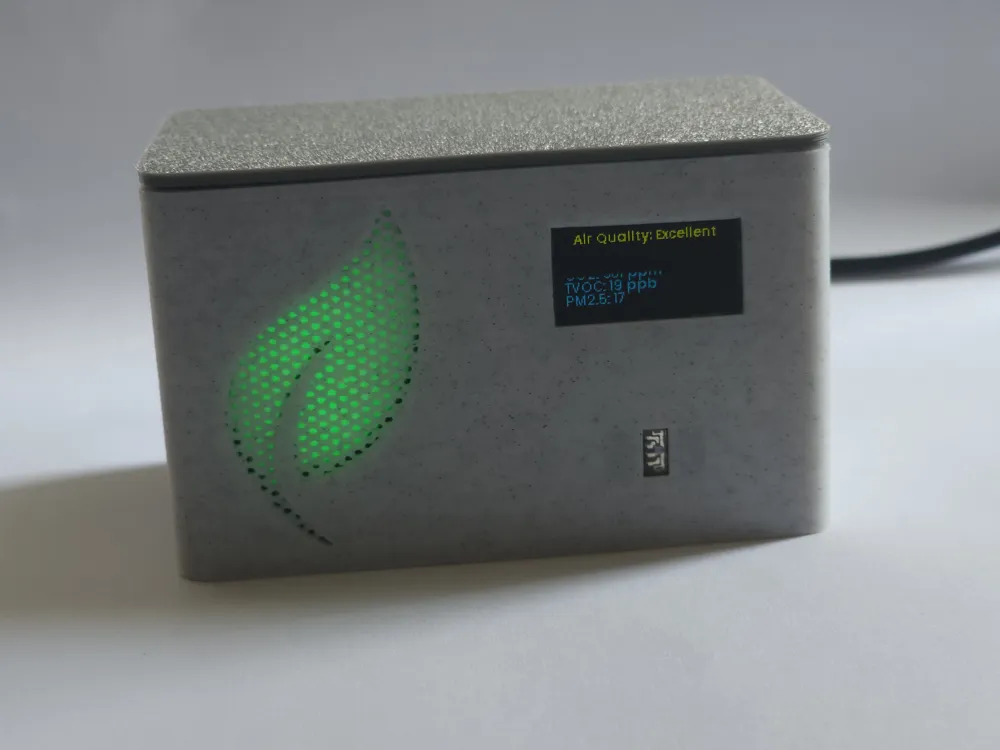

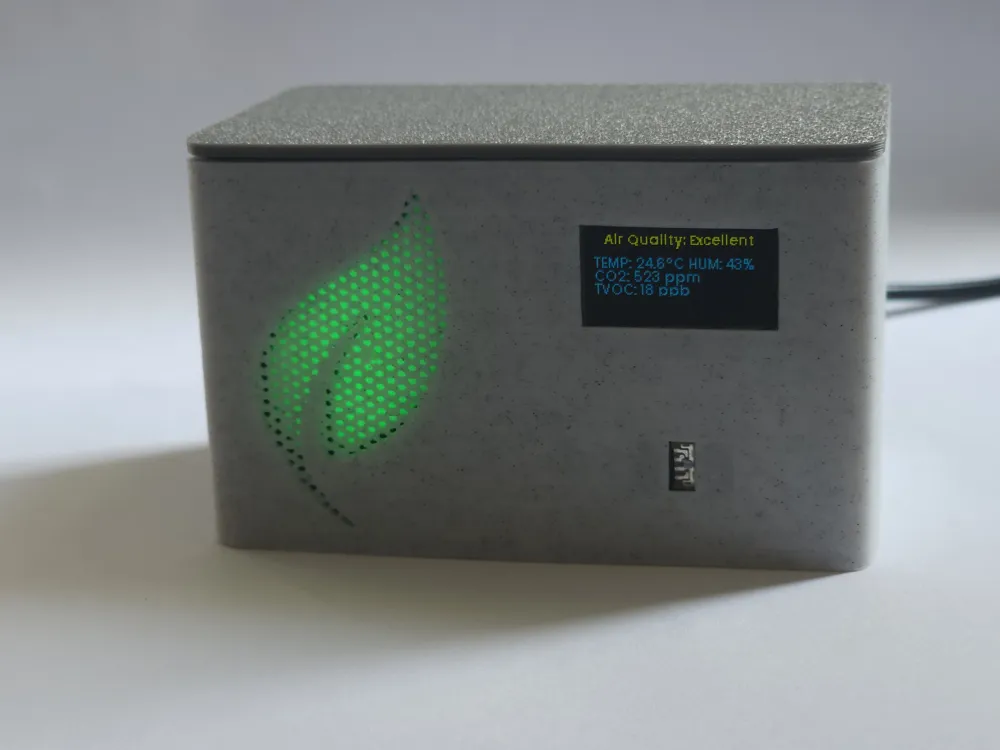

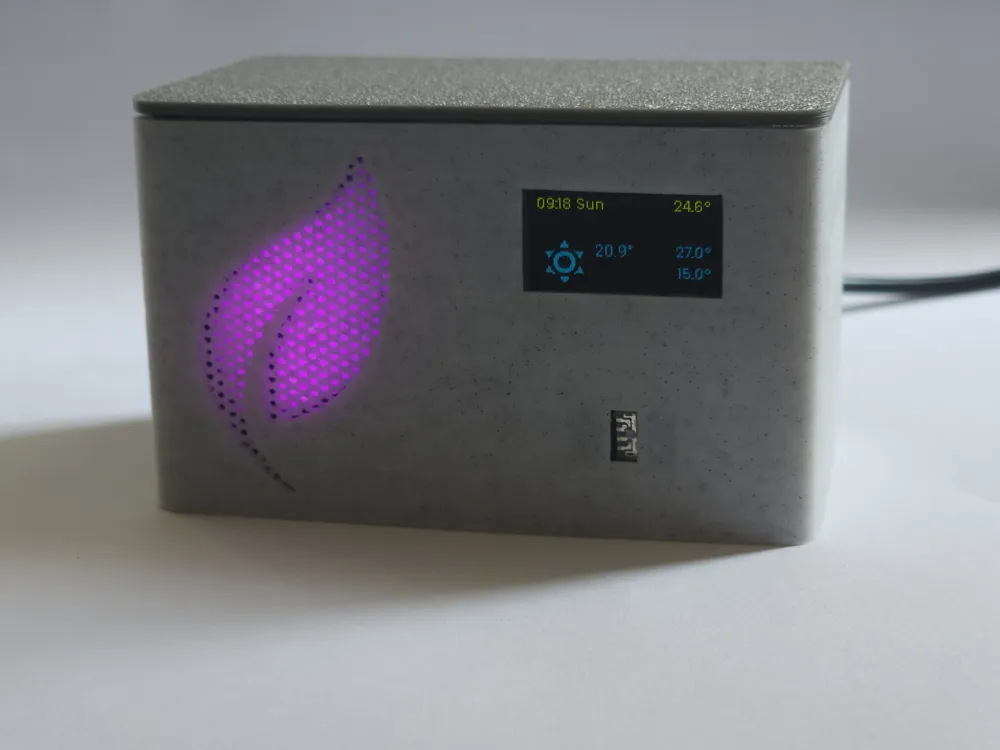

🖥️ Customisable OLED Display
The OLED screen is fully configurable - show live sensor data, weather information, forecasts, or time.
(Note: the photos show light streaks on the display - that’s only due to the camera refresh rate; in person, the screen is perfectly clear.)
⚙️ Hardware & Build

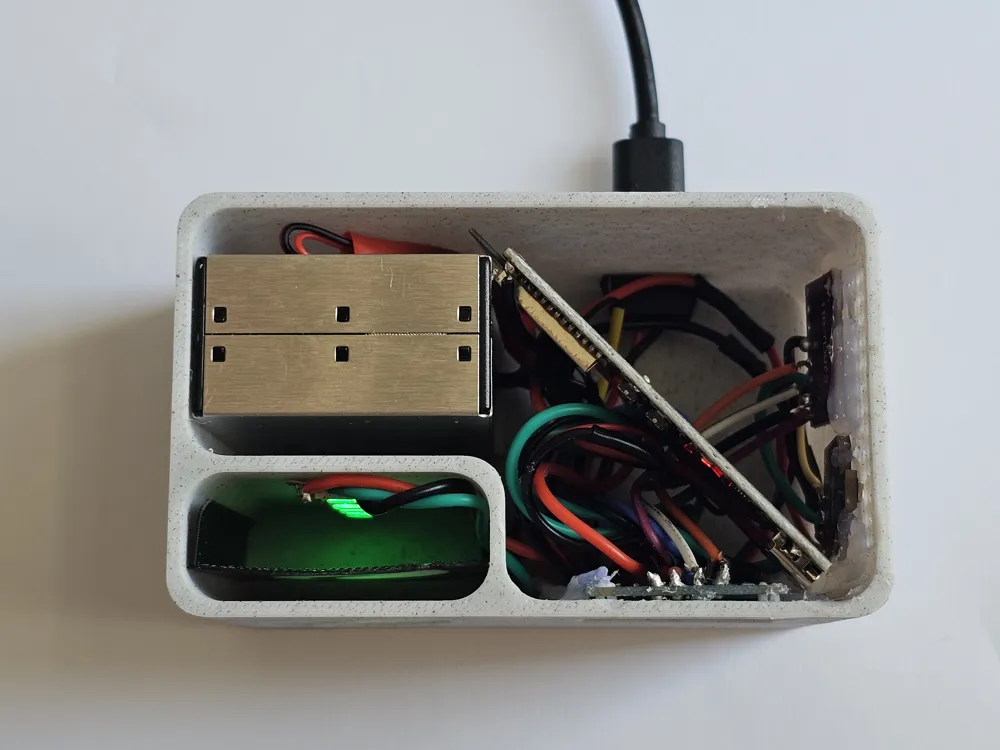

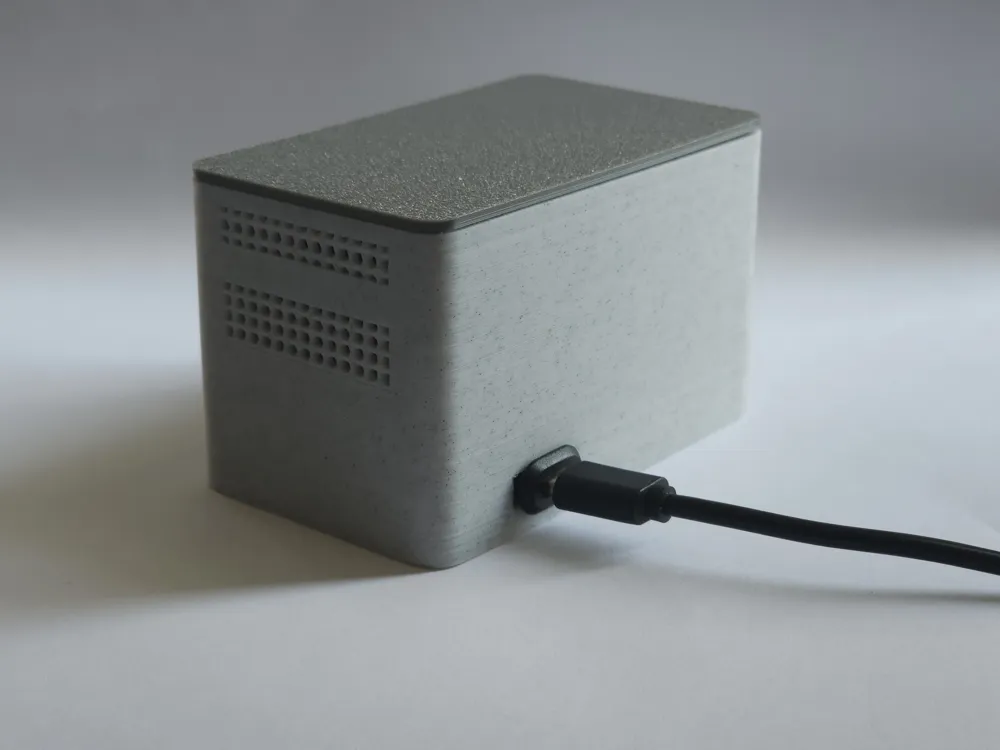

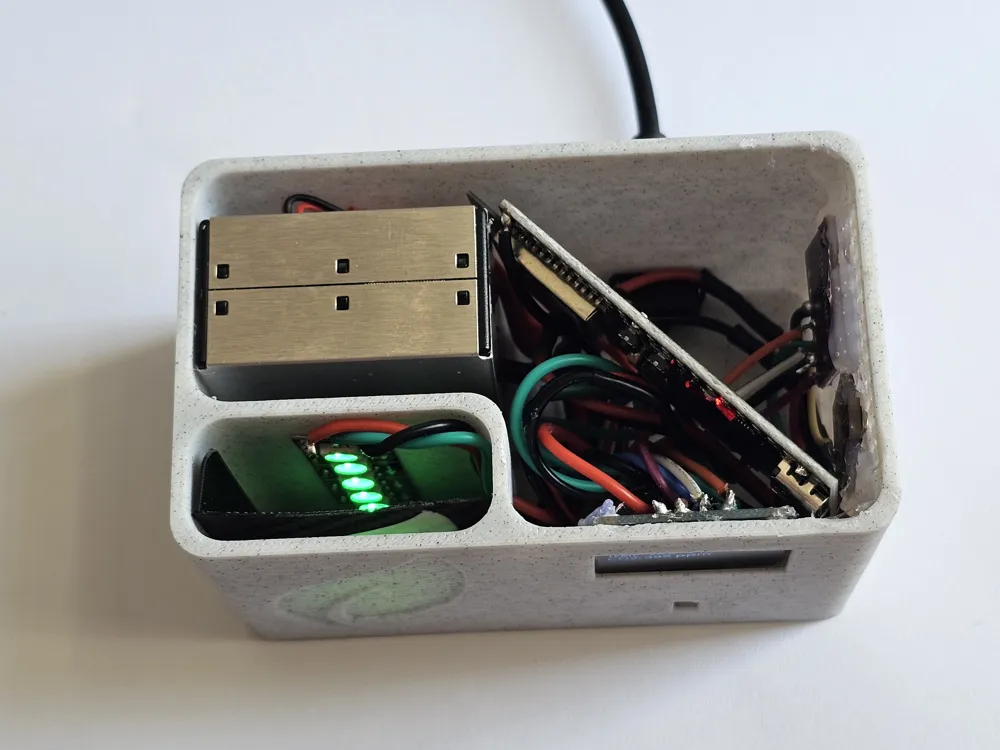

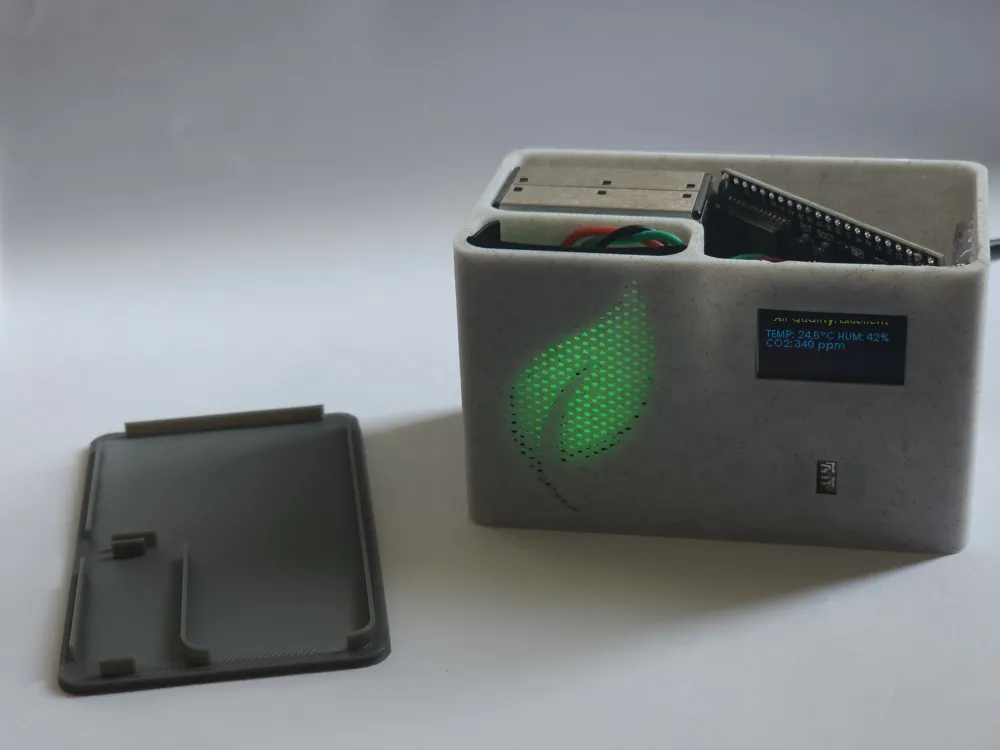

The compact enclosure is 3D printed and designed to hold each component neatly in place:
- Slots for each module (sensors, and display)
- Components are easily secured using hot glue
- Printed in Marble PLA with a Grey PLA lid - but feel free to print in any material or colour combination you like
⚠️ Tip: Leave enough wire between components to make soldering and installation easier. The build takes a bit of patience and careful soldering, but it’s entirely achievable even for hobbyists.
🏡 Why Build It?
If you care about indoor comfort, allergies, or just want a smarter home environment, this monitor helps you understand and improve your indoor air quality - ensuring you and your family always breathe clean air.
🔧 Technical Details
- Microcontroller: ESP32-S3-DevKitC-1
- Firmware: ESPHome (Home Assistant integrated)
- Display: 128x64 OLED (SSD1306)
- Lighting: WS2812 addressable LED
- Sensors: BME680, CCS811, PMSX003, VEML7700
🧩 ESPHome Configuration
The full configuration for ESPHome, including automation for LED colours, display pages, and sensor calibration, is available on GitHub.

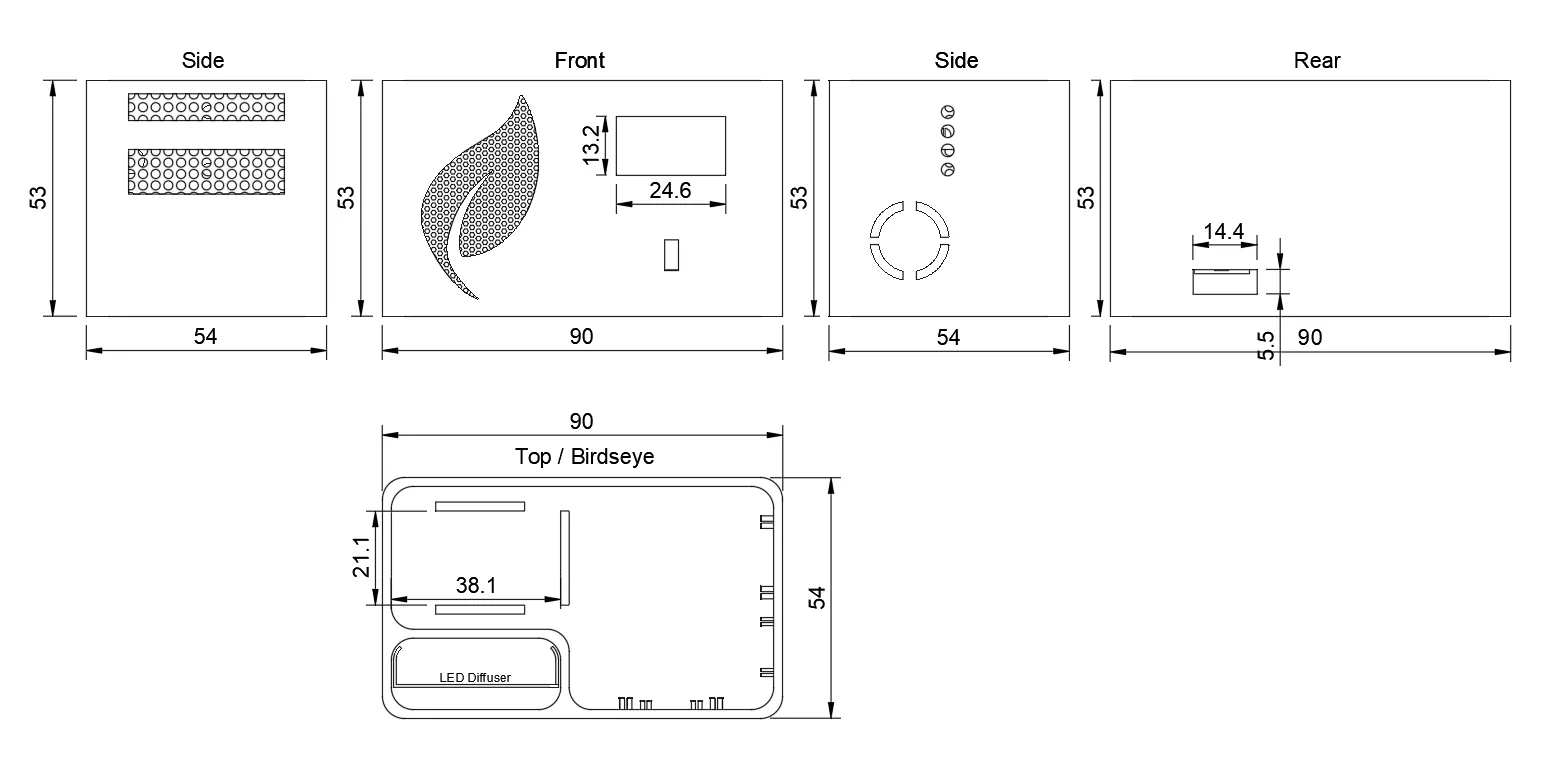

Dimensions
Sensor Positions:
Materials:
- ESP32 S3 DevKitC 1 N16R8 (other ESP devices should work, providing they accept 5V input via one of the pins instead of the USB port)
- VEML7700 (Light Sensor)
- WS2812B LED Strip (total of 5 leds)
- PMS5003 (Particulate Matter Readings)
- CCS811 (CO2/TVOC Sensor)
- BME680 (Temperature/Humidity/Pressure/VOC Gas)
- OLED 0.96" (128X64)
- USB C Female Plug
- Soldering Iron
- Glue Gun
- 3D Printer
- 4-6 colours of wires
Wiring Information
| Module | PIN | Destination |
|---|---|---|
| USB C Connector | 5V | ESP32 5V |
| GND | ESP32 GND | |
| LED | 5V | ESP32 5V |
| GND | ESP32 GND | |
| DATA | ESP32 GPIO16 | |
| PMS5003 | VCC | ESP32 5V |
| GND | ESP32 GND | |
| SET | ESP32 GPIO11 | |
| RX | ESP32 GPIO17 | |
| TX | ESP32 GPIO18 | |
| VEML7700 | SDA | ESP32 GPIO8 |
| SCL | ESP32 GPIO9 | |
| VIN | ESP32 3.3v | |
| GND | ESP32 GND | |
| BME680 | SDA | ESP32 GPIO8 |
| SCL | ESP32 GPIO9 | |
| VIN | ESP32 3.3v | |
| GND | ESP32 GND | |
| CCS811 | SDA | ESP32 GPIO8 |
| SCL | ESP32 GPIO9 | |
| VIN | ESP32 3.3v | |
| GND | ESP32 GND | |
| WAK | ESP32 GND | |
| OLED 0.96 | SDA | ESP32 GPIO8 |
| SCL | ESP32 GPIO9 | |
| VIN | ESP32 3.3v | |
| GND | ESP32 GND |
