Tactile Switch Clicker 5X (Tactile Switch)

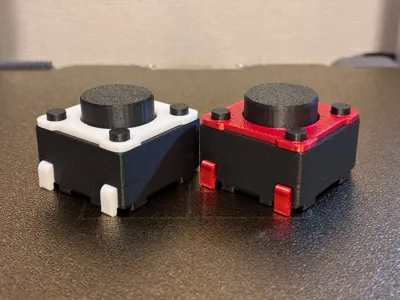

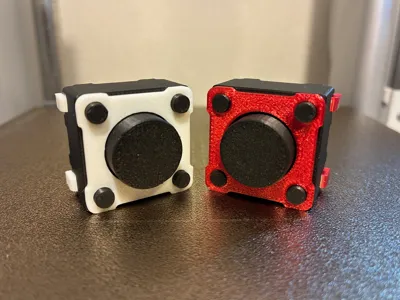

This is a clicker fidget that mimics the shape of a tactile switch used in electronic devices.
It's an enlarged model, 5 times the size of a 6mm square tactile switch.
AMS is not required. It consists of separate parts for each color.
Finished dimensions: 30x33x24mm

Introduction:

• This clicker is a toy for enjoying the feel of pressing a button or for display as a model.
• Based on the shape of a common DIP-type tactile switch, the balance has been adjusted for an easy-to-understand appearance and a moderate operating feel.
• Required: A Cherry MX switch (or compatible) is separately required for assembly. If you cannot obtain one, please print and use this dummy switch instead.

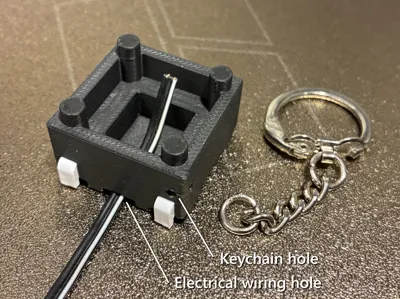

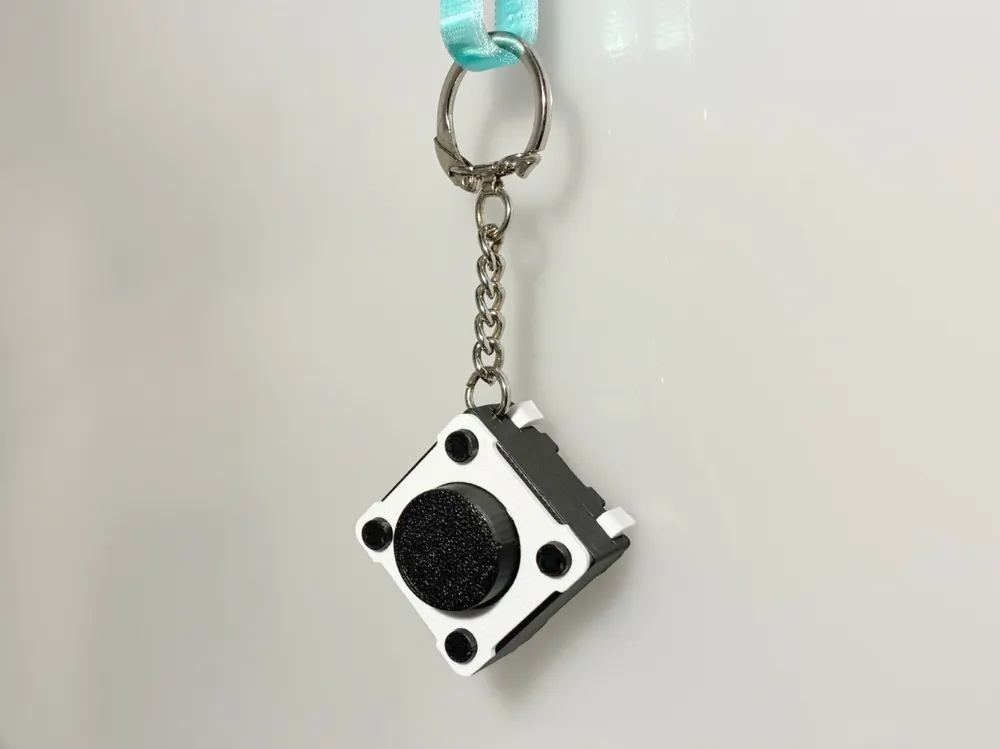

• Option 1: If you want to use it as a keychain, it can be attached to the hole on the side. (Keychain hardware is separately required)
• Option 2: If you want to wire it electrically, you can pass wires through the hole at the bottom. (0.3 sq parallel wire in the photo)

How to build:

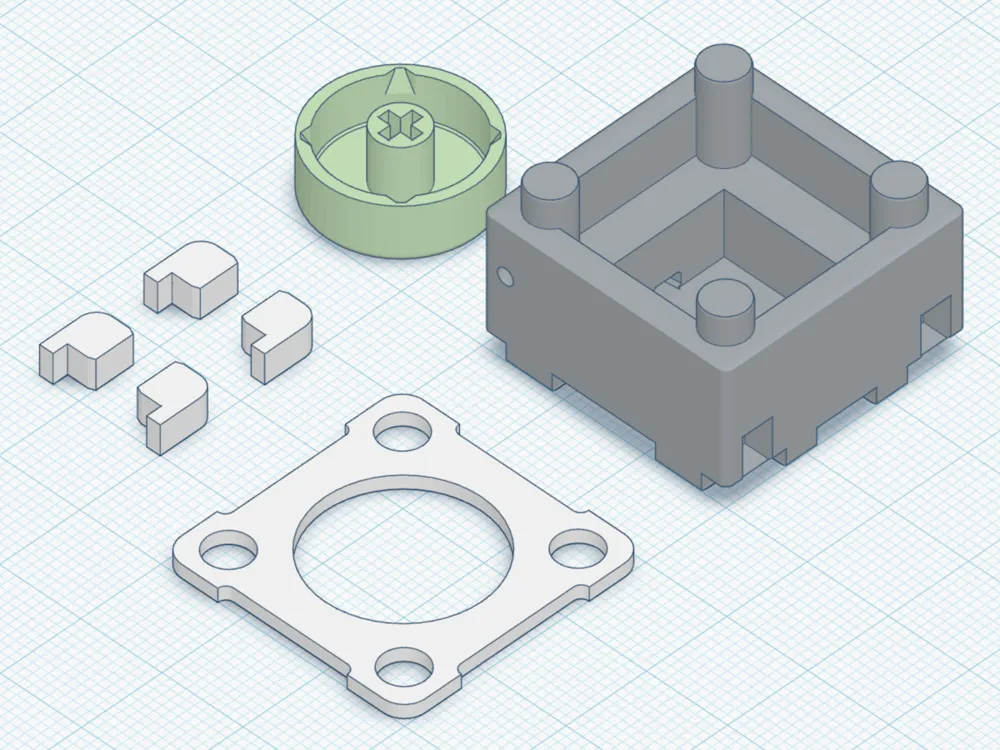

• Print Plate 1 (Base and Button) in black, and Plate 2 (Plate and Terminal) in white/gray/silver/or your preferred color.
  (In the sample photo, Plate 2 was printed in white and silk red.)

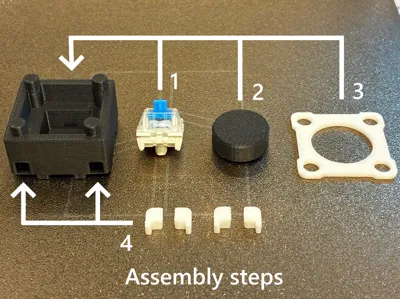

• Assemble the base in the following order: (1) key switch, (2) button part, (3) plate.
• Attach the (4) terminal parts to the four holes in the base.
• If the fit is loose, please fix it with adhesive.
