Simplified SSD1306 0.91in Model (For Reference)

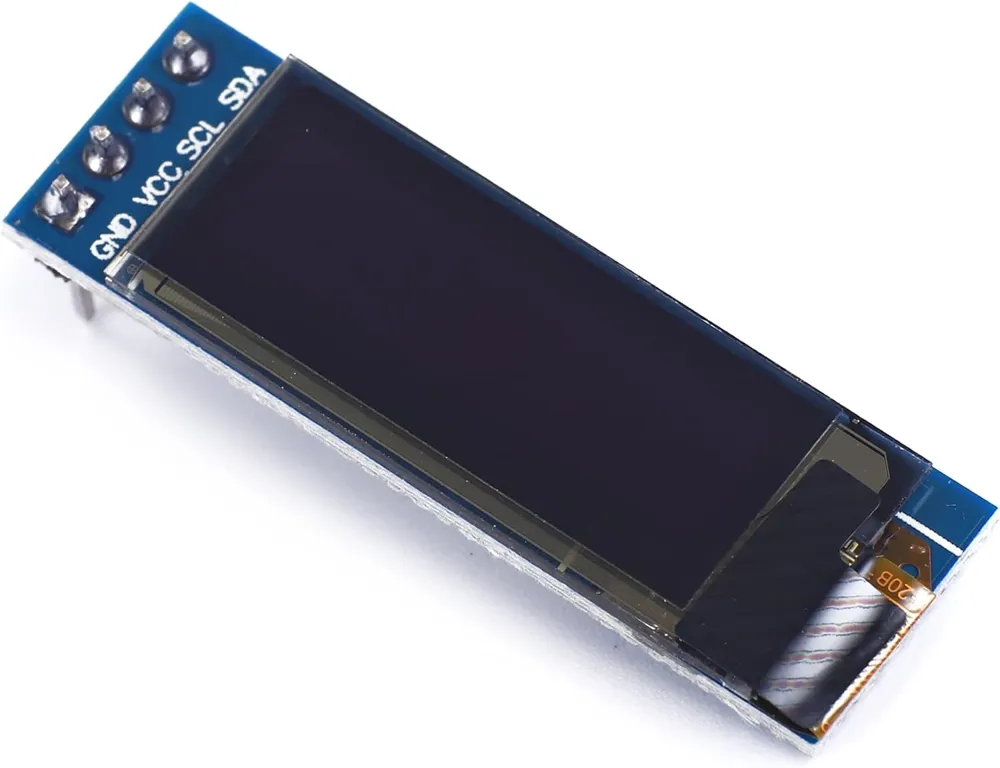

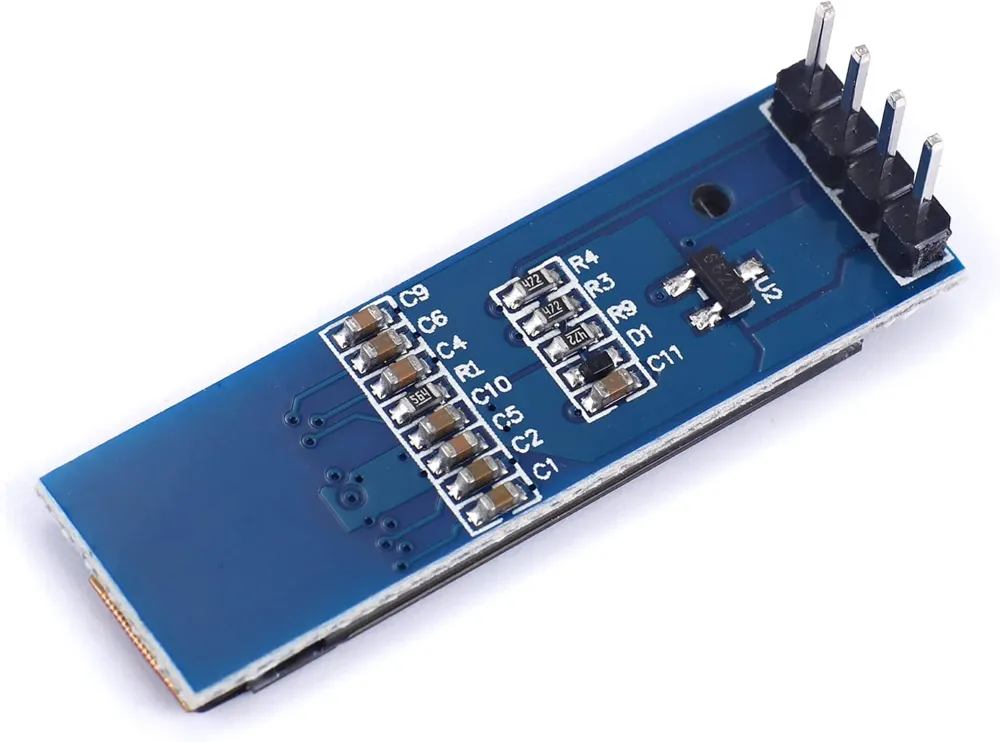

SSD1306 OLED Display Reference Model (0.91")

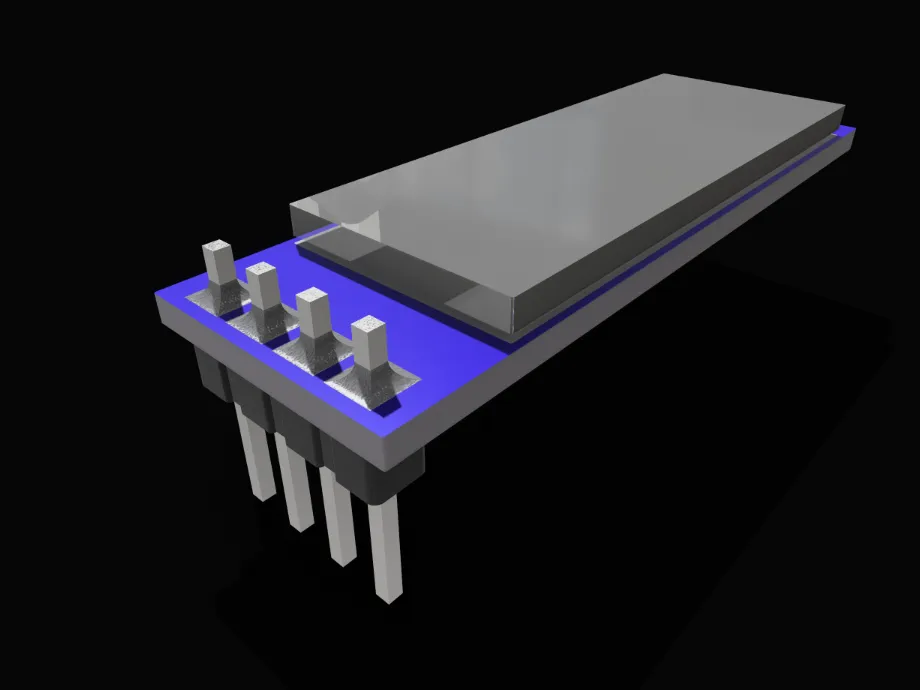

A simplified, accurate 3D reference model of the popular SSD1306 0.91 inch OLED display. Perfect for CAD work and designing custom enclosures without having to measure the actual component!

Specifications

Display Type: OLED Screen Size: 0.91 inches Resolution: 128x32 pixels Interface: I2C Module: SSD1306

Note

This is a reference model for design purposes only - not intended to be printed and used as the actual display. Use it as a guide in your CAD software to ensure proper fitment.
