Ford Fluid Dipstick
Print Profile(1)
Description

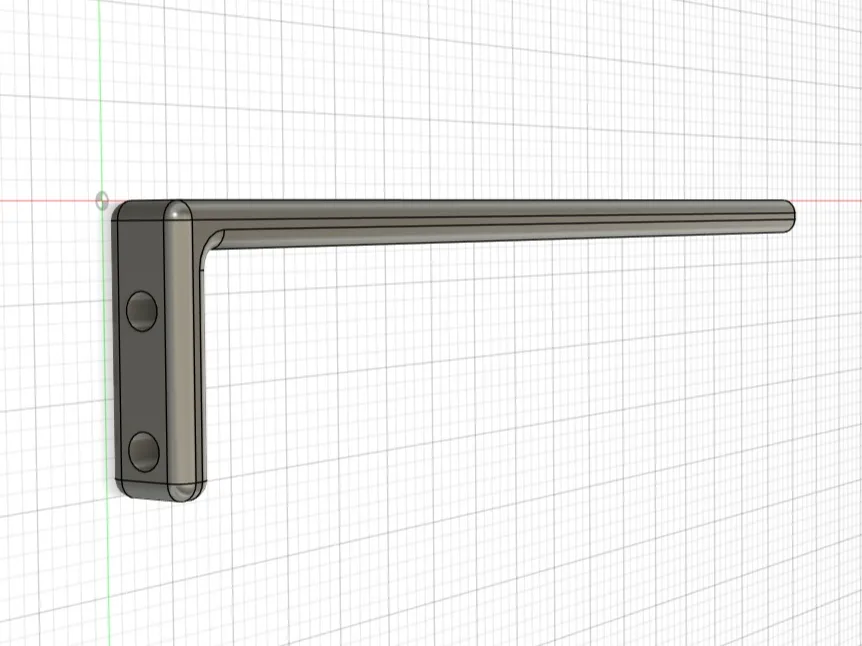

Simple fluid dipstick for doing differential or transfer case fluid drain and fills. Holes measure 3mm and 10mm below lower plane of the handle/stick portion.

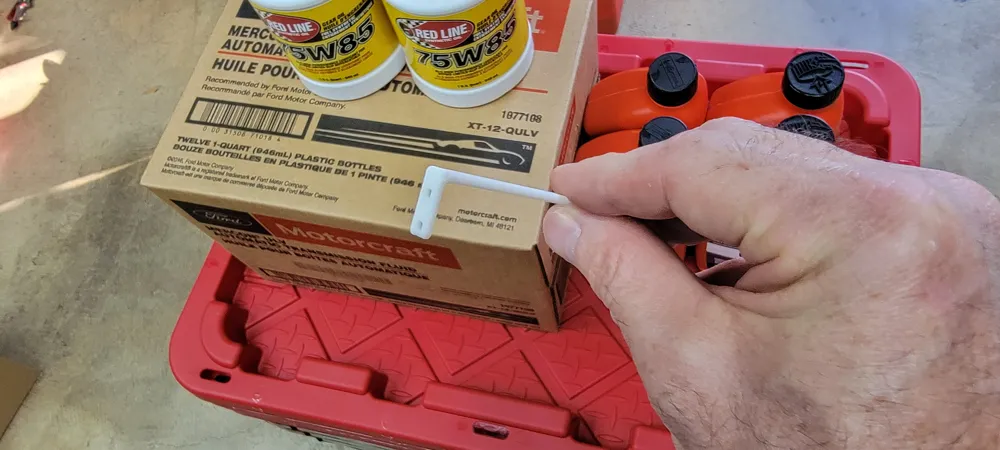

Insert, rest dipstick inside hole, level, and the fluid should come up to either the lower hole (10mm from drain hole bottom), or to the upper hole (3mm from drain hole bottom).

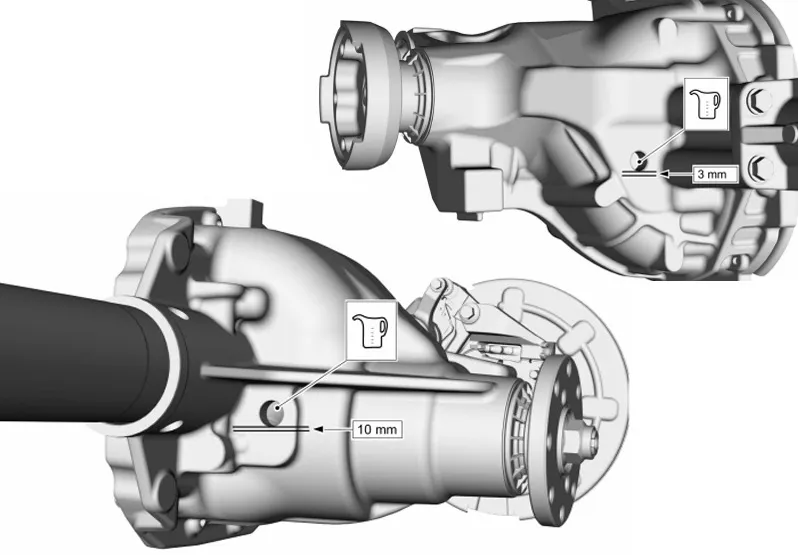

See last picture for reference on how to measure.
Comments and feedback welcome.
V1 - 11/08/2025
