Magnetic 2-pin terminal, magnetic quick-release connector
IP Report
GIF
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
15 min
1 plate
Open in Bambu Studio
Boost
42
117
1
2
40
15
Released
Description
Content has been automatically translated.

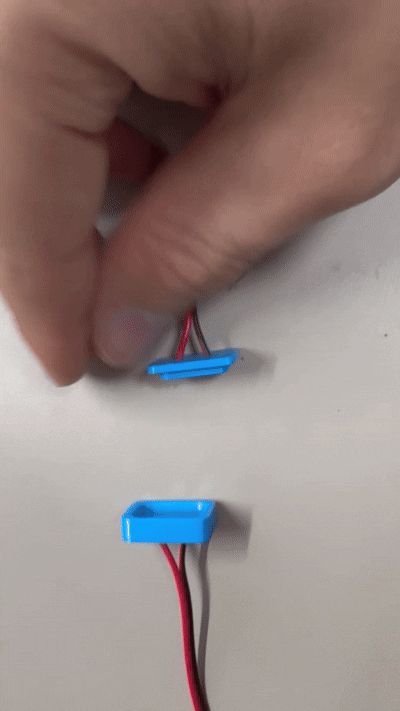

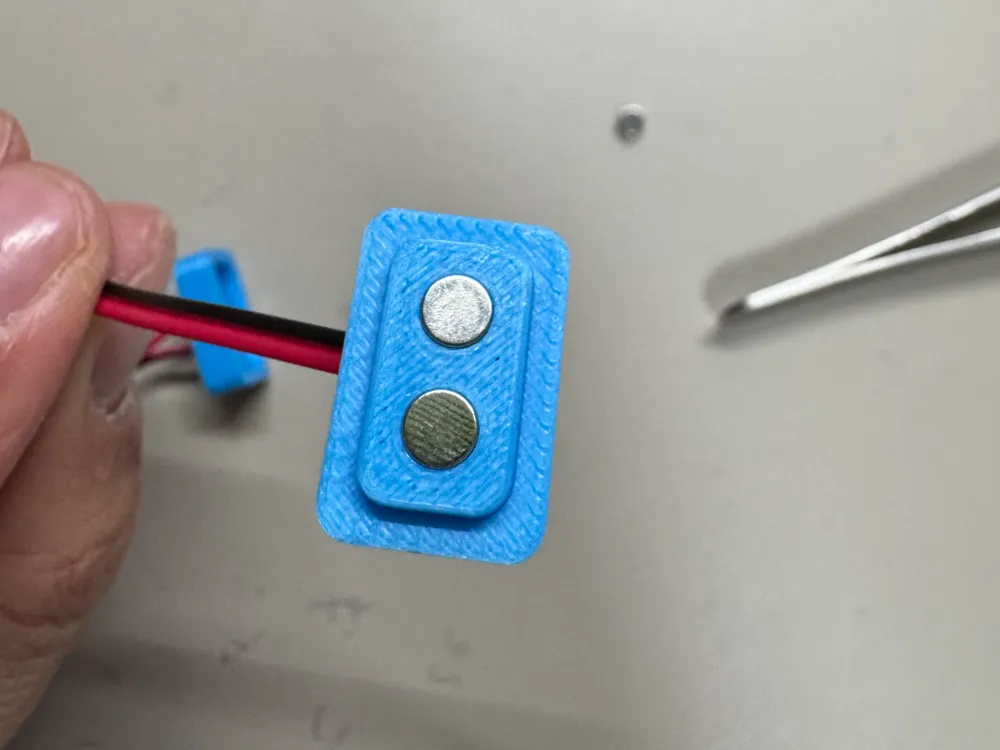

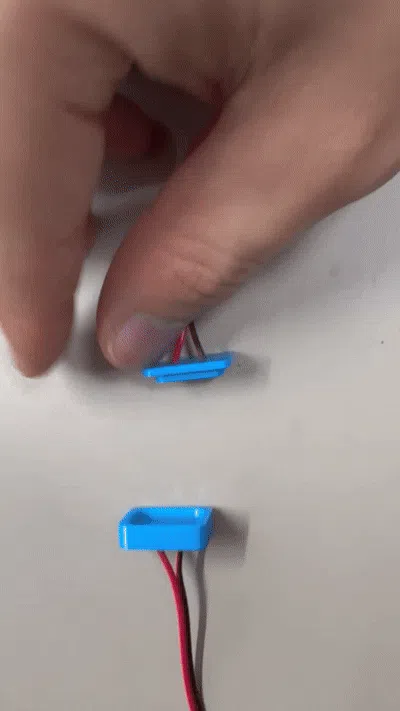

Used 4*2 round magnets to make a magnetic 2-pin connector, no glue needed
Suitable for low-power devices, using magnets as conductors for quick wiring

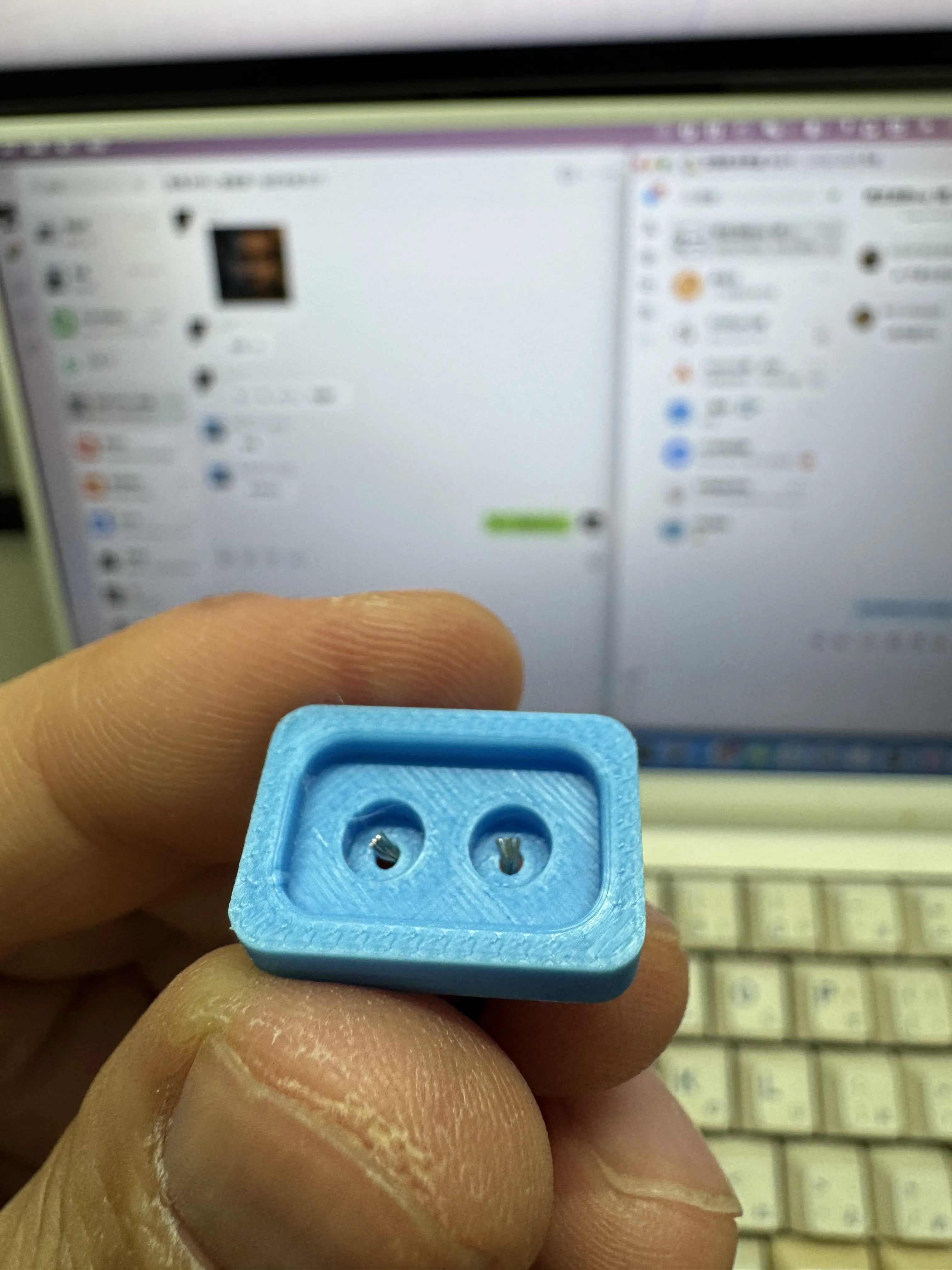

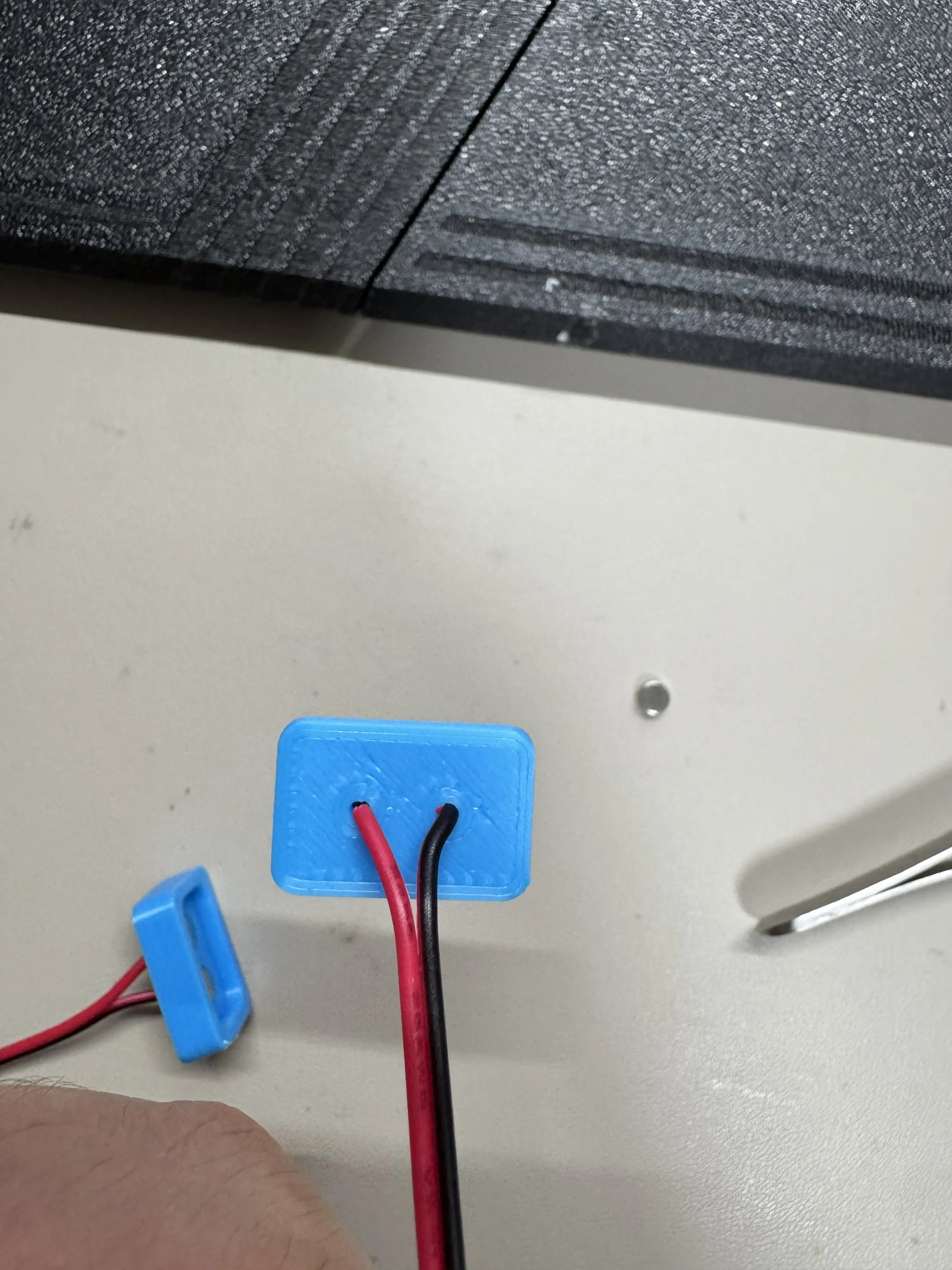

Thread the wire through the hole, pull it through as long as possible, then press the magnet directly onto it to secure it
Install the positive and negative poles with opposite magnetic polarity, this acts as a foolproof measure, preventing incorrect polarity connection
