Description
Outlet filter floss for Xiaomi Fish Tank 2nd Generation
Feel free to share photos of the actual item in the comments!
Regarding models for Xiaomi Fish Tank 2nd Generation, also see: https://makerworld.com.cn/en/collections/1354776-xiao-mi-yu-gang-er-dai
Boost Me (for free)

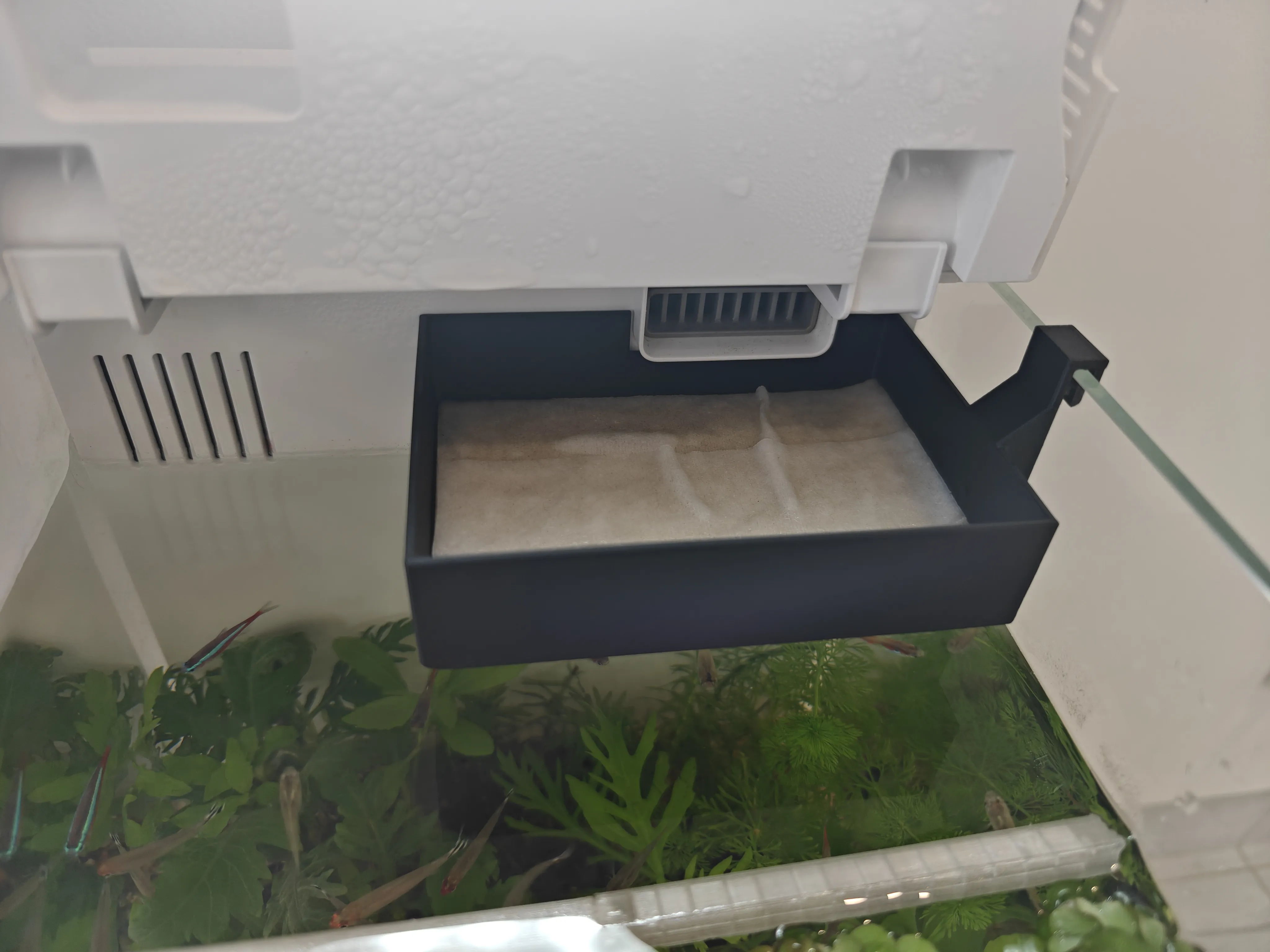

The current dimensions are designed based on the filter floss size I purchased, which is 102 x 72mm If you need other sizes, please leave a comment
2026-01-06: Shortened the distance between the "hook" and the "outlet" by 1mm for a more comfortable hook position

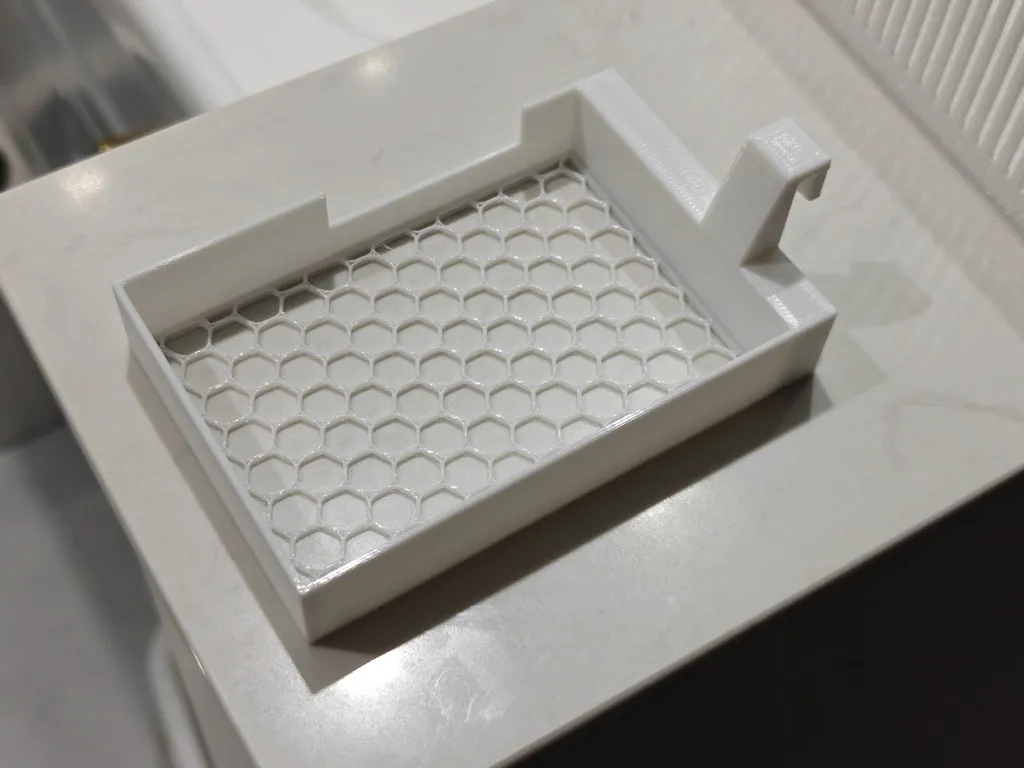

2025-12-09: Added a sparse infill version (recommended for higher flow rate and longer filter floss lifespan I tested it with color masterbatch here)
2025-11-15: Added 15mm version (plate 2)
2025-11-11: Water retention height reverted to 10mm (originally 20mm) In actual use, reducing filter floss makes the effect smoother, no need to stack multiple pieces of filter floss
2025-11-09:
1 After a day of testing, it deformed due to gravity, so it was strengthened and optimized
2 To accommodate more filter floss at once, water retention height was increased by 5mm (suitable for the lowest water level line)

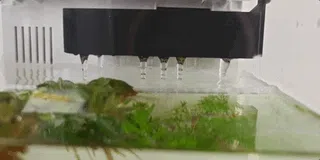

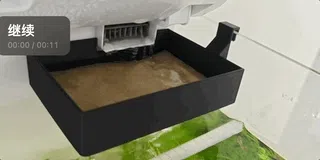

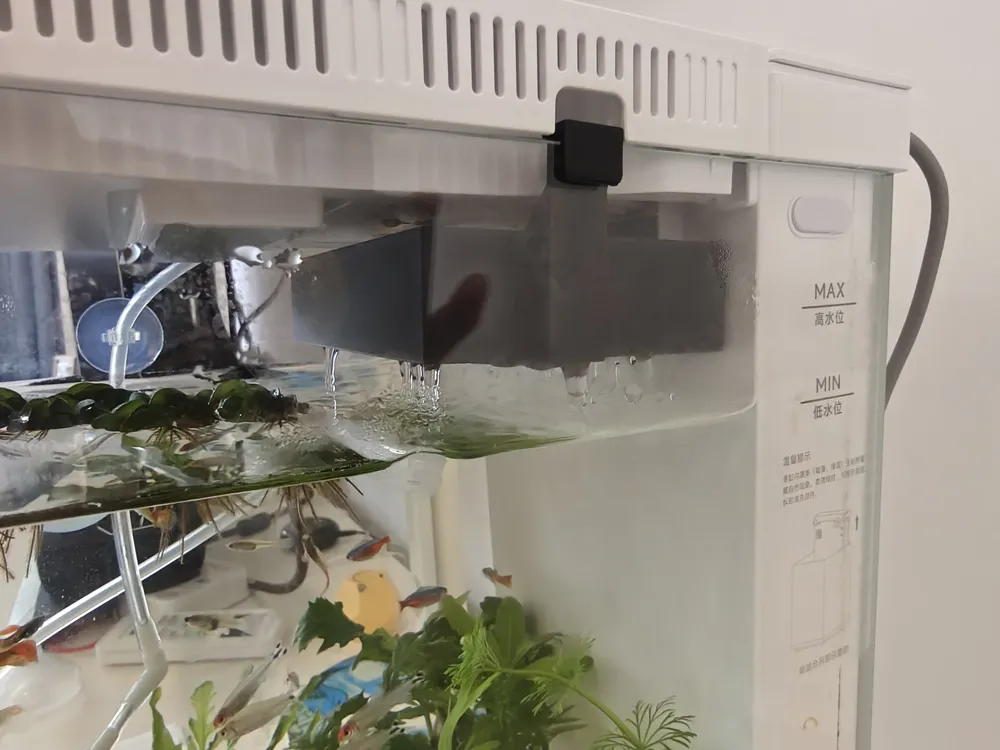

Yellow water and green water require additional filtration, so this outlet was designed

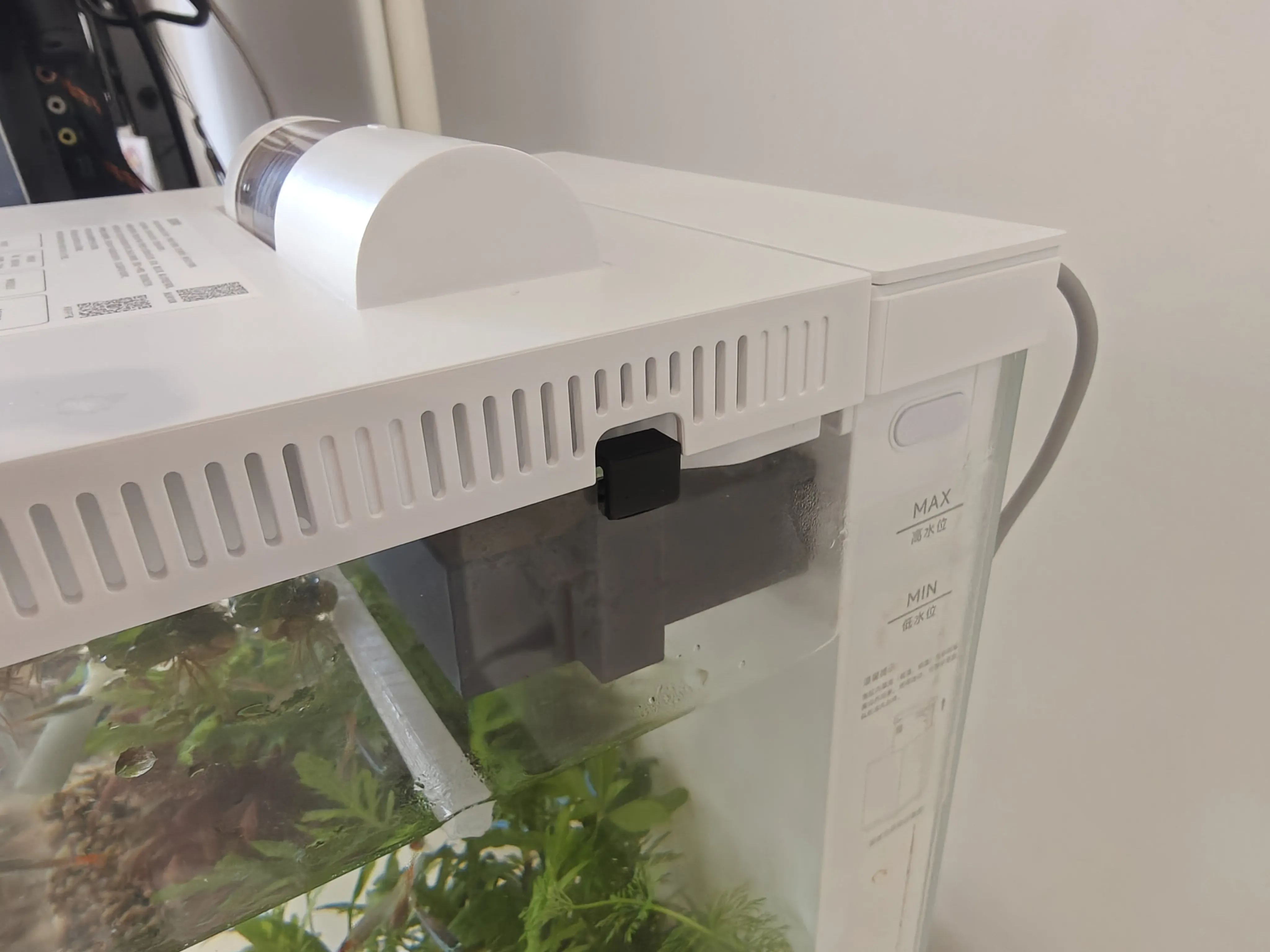

Installation is very simple, just hang it in the reserved hole
