Description

Please read the description!

It’s time again to release a brand-new model of my Organizer Box — and here it is: the Organizer Box XL Pro!

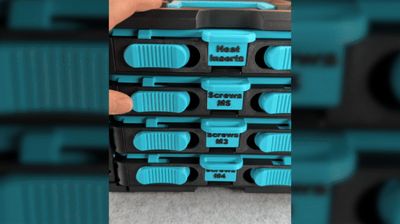

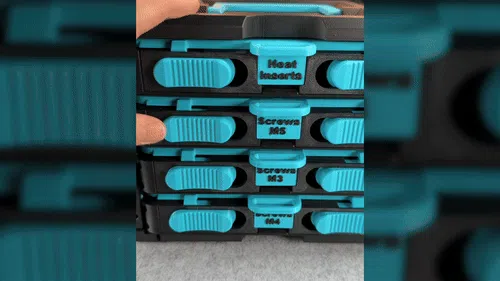

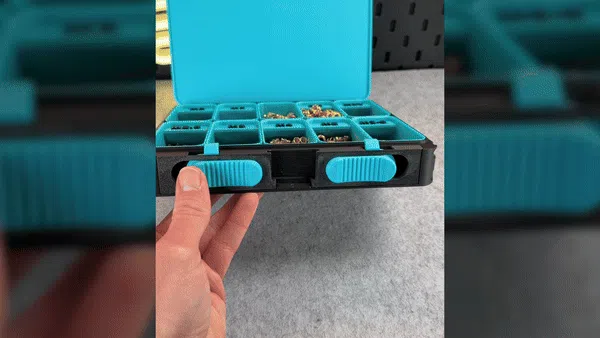

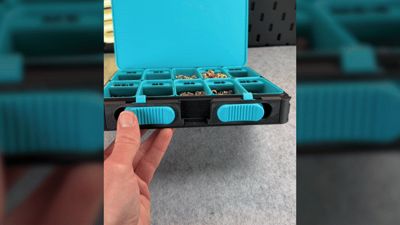

This version has been refined even further. One of the most requested features was to prevent the boxes from sliding out of the holder — and that’s now solved with a brand-new locking mechanism. The sliders have also been completely redesigned; they now work even smoother, and you’ll probably find yourself opening and closing them just for fun — they make such a satisfying sound!

The only downside is that this version requires M3 heat-set inserts and M3 screws, so please check the Material List in the Assembly Instructions beforehand (In Download Folder Below). The big advantage, however, is that the Organizer Box is now easy to repair in case a slider ever breaks — though that hasn’t happened so far. This box has already been in use for about a year and still works perfectly.

This model is not compatible with gridfinity!

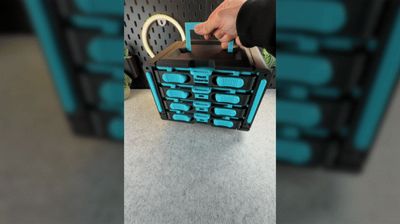

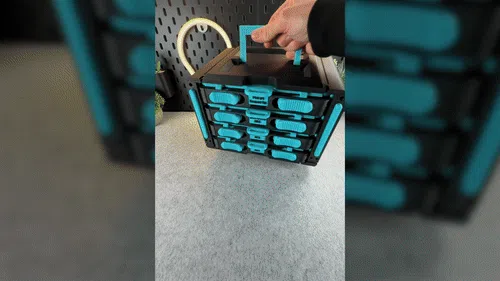

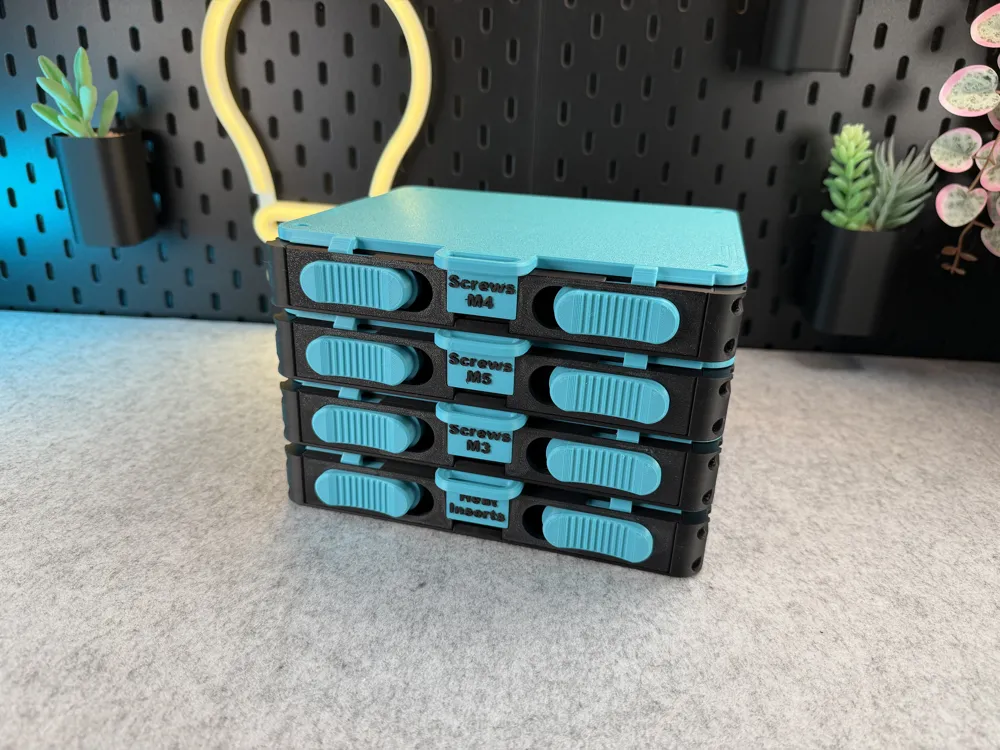

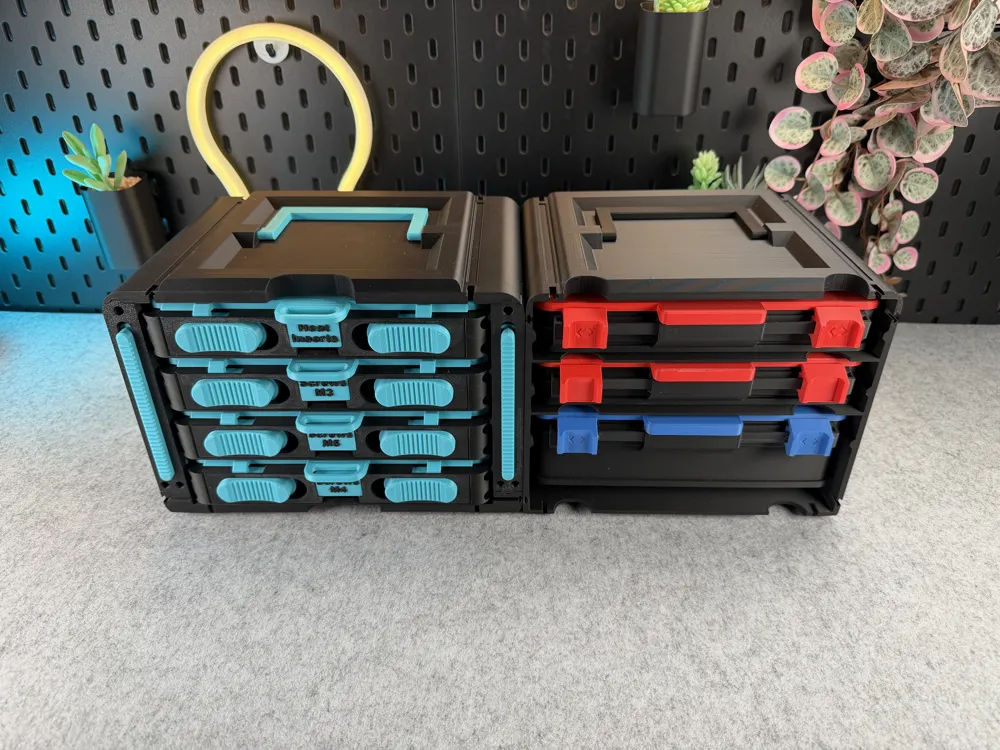

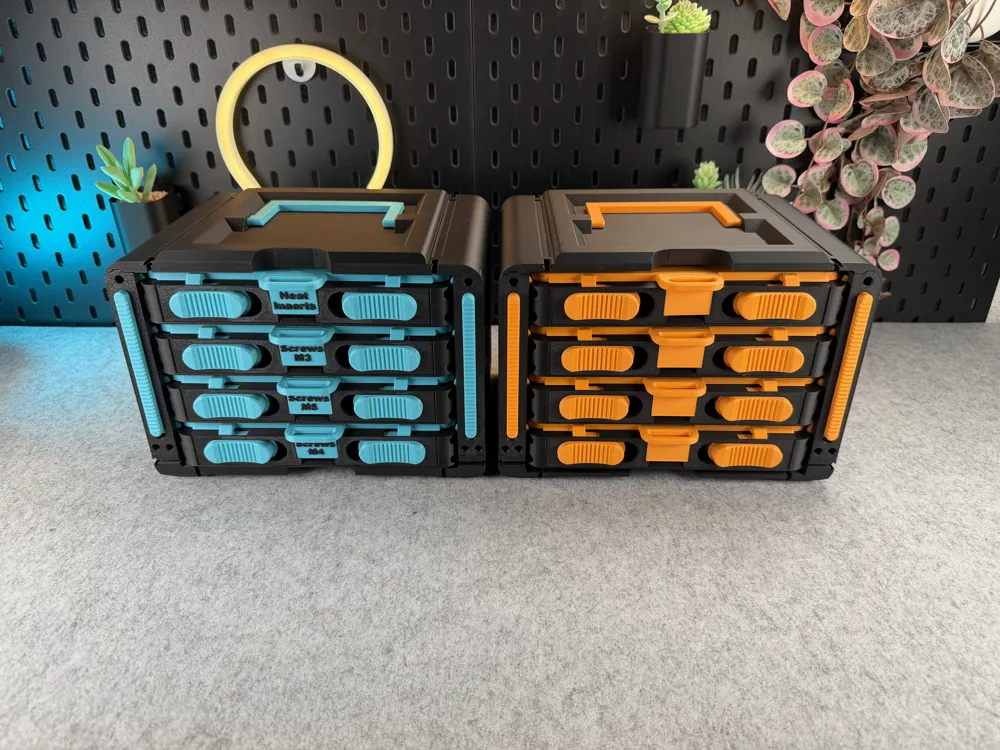

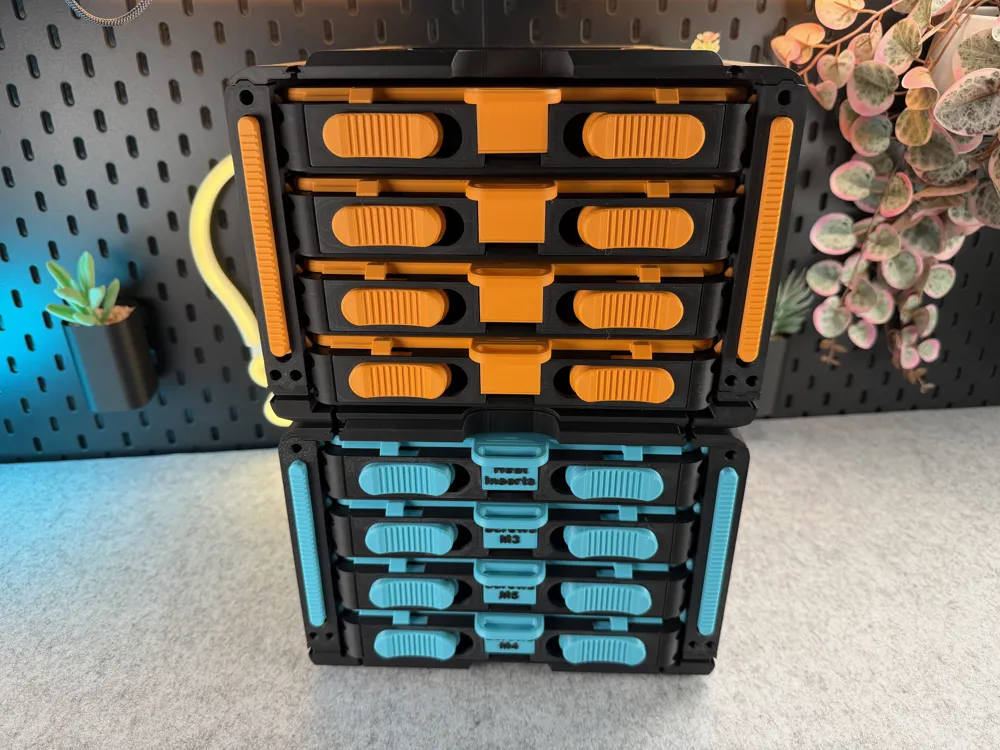

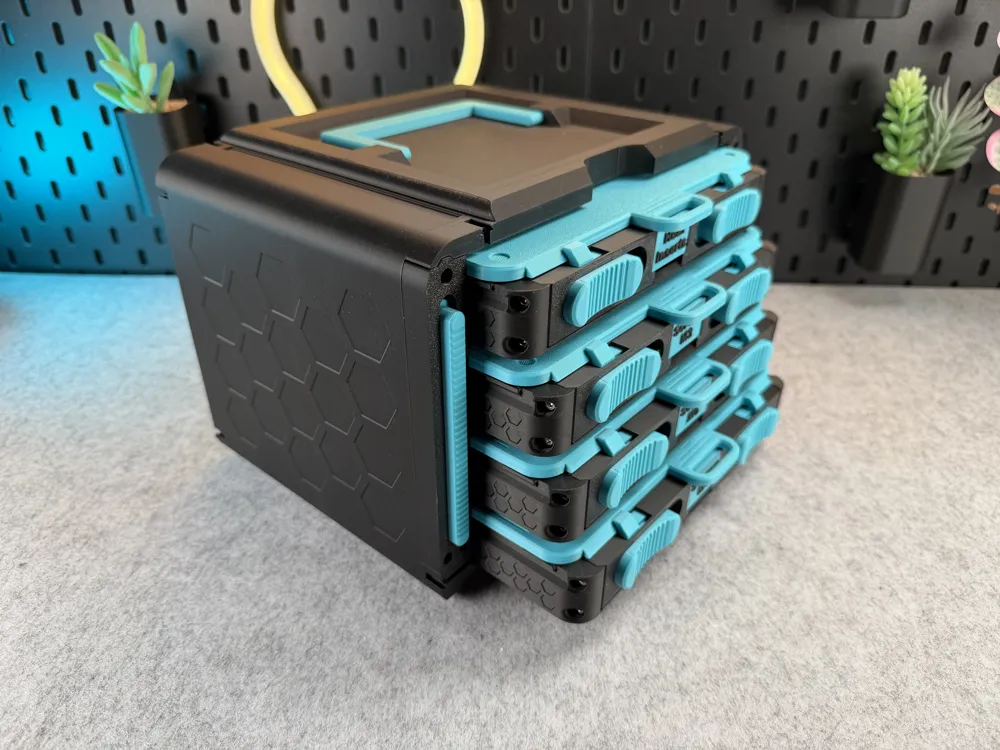

All inserts from the previous versions are still fully compatible but the new Pro Box isn’t compatible with the old Holder (the pro Version has a new guide). But all Holders are all stackable as always. This organizer box (XL Pro Version) has a lockable sliding mechanism. The boxes can be stored in a holder with up to 4 pieces. You can connect the holders with connectors in any direction and thus hold them all together. Inserts are available in all sizes. The box should only be placed directly on the table and not mounted to the wall, as it is made of plastic.

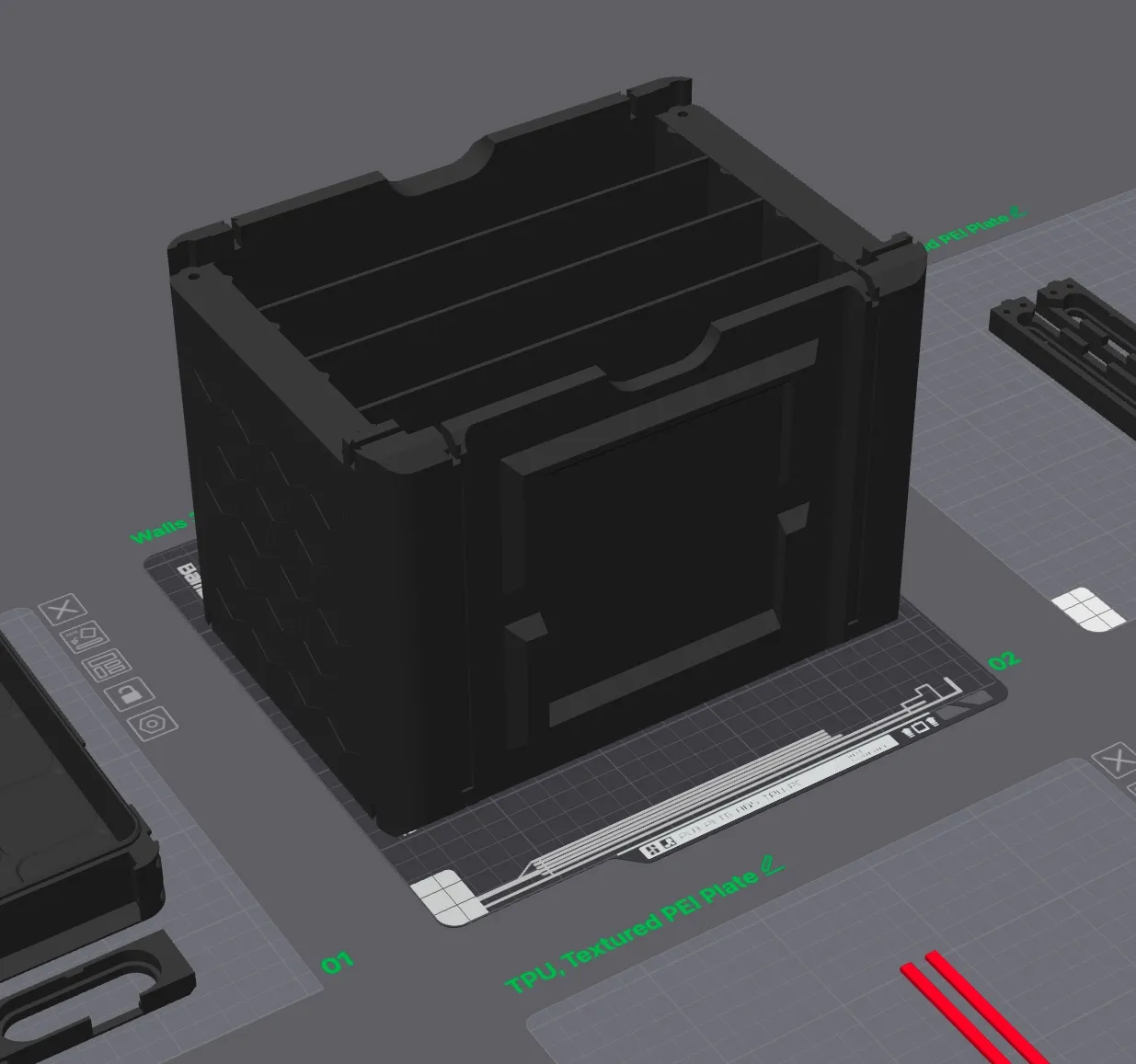

However, there’s one more important note! The Holder barely fits into a CoreOne or X1C, and I wasn’t able to print it myself since I don’t have access to one of these printers. So please be aware: the Holder might warp slightly on the print bed.

👉 Use a brim and turn off your printer’s side fan if it has one!

(Once again — I was only able to print the Holder on larger print beds. On smaller ones, I couldn't test it, so you’ll have to decide for yourself whether you want to give it a try!)

I hope you enjoy the new version of my Organizer Box — have fun printing and assembling it! There won't be a Double Box version of this model for now!

You need at least a 3D-printer with a bed size of 250x210x 220mm or above that!

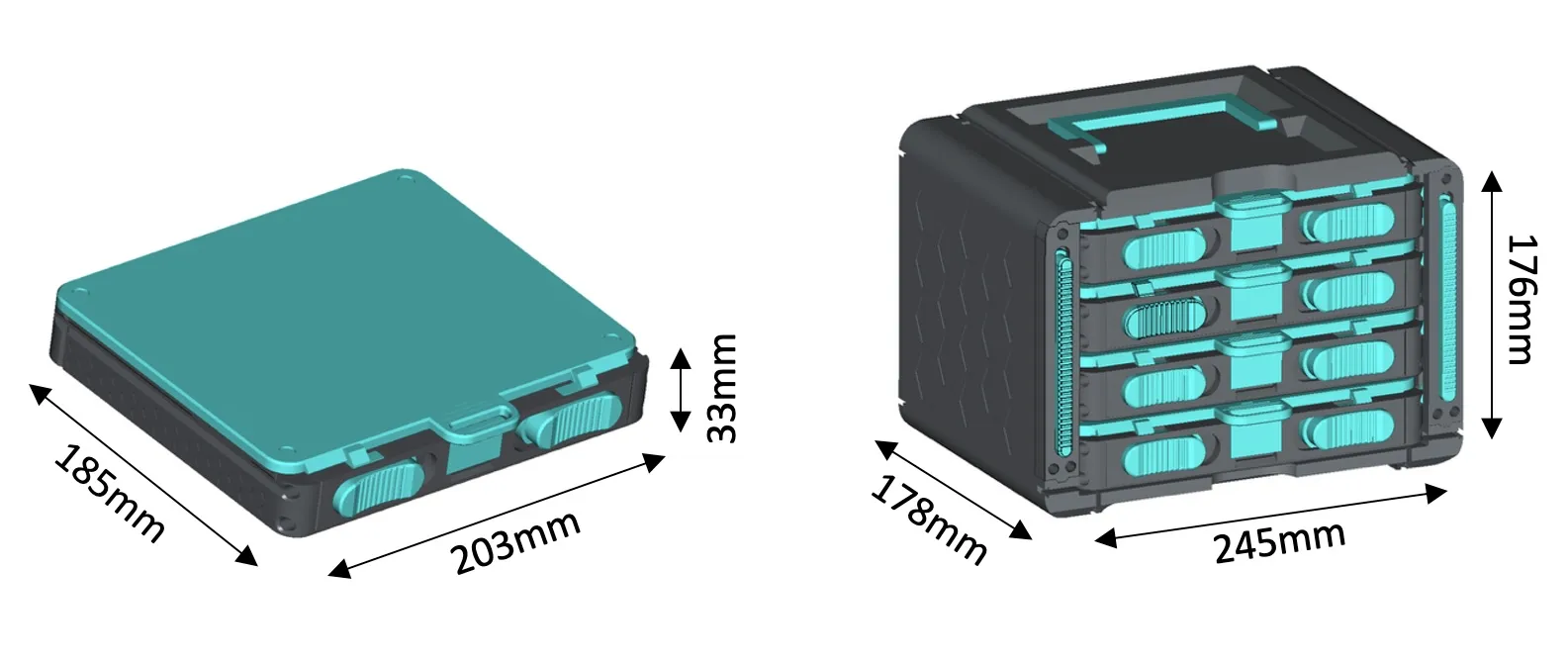

Size of the Models:

👉All my other Organizer Box Models or check out all my Models!

Organizer Box Small: https://makerworld.com/de/models/539768-organizer-box

Organizer Box XL: https://makerworld.com/de/models/599648-organizer-box-xl

Organizer Box XL Double: https://makerworld.com/de/models/684575-organizer-box-xl-double

Organizer Box Small Double: https://makerworld.com/de/models/859478-organizer-box-small-double

Insert with Label you can find it here: https://makerworld.com/de/models/1978314-insert-with-label-for-organizer-box

---------------------------------------------------

ℹ️Here are my tipps for printing! Please use these values, as I have adapted my models to these and only so I can guarantee that everything works perfectly!!! Tipps and values:

Filament: PLA recommended (PETG also works)
Quality (Layer Height): 0,2mm / 0,12mm for the Sign
Wall Loops: 3
Infill: 15% (the Handle and the ConnectingPiece for the Holder must be printed in 100% Infill)
Infill pattern: Doesn't matter (I used Rectilinear)
Supports: Yes! Manual Supports! I Painted them on for you!
Wall generator: For all Inserts Arachne!!! For all other parts Classic!!!
Print the parts as they are already oriented

PLA (Just a recommendation)

PETG (Just a recommandation)

TPU (Just a recommandation)

(About 600g of Filament usage)

Lid, Slider Left, Slider Right, Sign, Slider Right Holder, Slider Left Holder

(About 2000g of Filament usage)

Holder, Bottom, Sliding Block, Sliding Block Right Holder, Sliding Block Left Holder

Inserts

Connecting Piece, Handle

Feets

ℹPlease make sure that the parts come not loose while printing them. When this happens it could be that the function of my sliding mechanism does not work perfectly! It's just a recommendation, if the parts should hold well on your plate, you don't necessarily have to use a brim. You can add a brim to the:

Lid
Bottom
Organizer Holder

---------------------------------------------------

ℹChanges and added models:

02.01.2026 = Added an Adjusted Handle for the Holder + Fixing Handle (New Model made)
31.01.2026 = Fixed both Handles (Added Fillet)

Problems that have occurred	How to solve them
Sliders are to difficult to move	Take a look in the Downloads Folder (Adjusted Parts) and Print them again! They have been adjusted to fix this problem!
filament won't fit through the hinges	drill out the hinges if you can (be very careful that you don't take to much away!) because the filament must sit a little tight in the hole, otherwise the hinge will not work correct and the filament can fall out of the hinge!
Handle falls out of Holder	Take a look in the Downloads Folder (Adjusted Parts) and Print it again! This Handle has been adjusted!

Boost Me (for free)

If you enjoyed this model, please consider boosting it to support me to further develop creative and more cute looking designs🥰. Thank you!

Documentation (4)

Assembly Guide (1)

Assembly_Instructions_Organizer_Box_XL_Pro.pdf

Other Files (3)

Dimensions_BoxInsert_1x1_Type0_V01.pdf

Dimensions_BoxInsert_1x2_Type0_V01.pdf

STEP Files.zip
