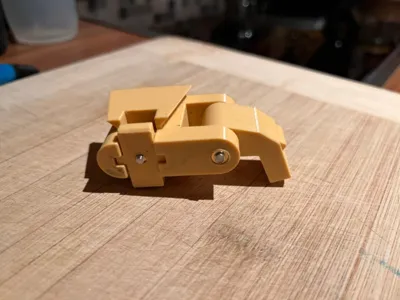

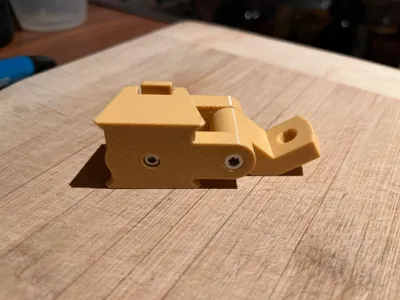

J-ARM A14 (PVS14)
Print Profile(1)
Description
What is needed for assembly:
1 x DIN 912 M4x30
1 x DIN 912 M3x30
2 x spacer DIN 988 5x10x0.5
1 x insert M4x8x6 (M4xH8)
1 x insert M3x6x5
soldering iron - to add threaded inserts to model

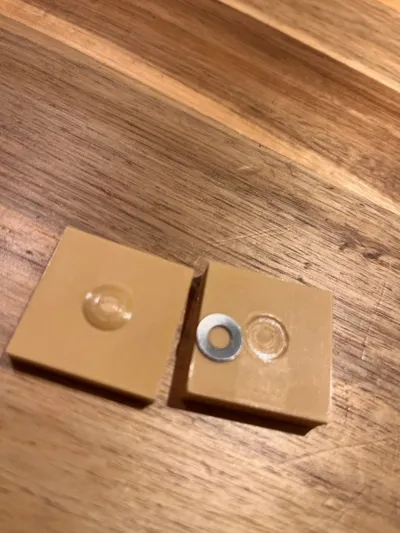

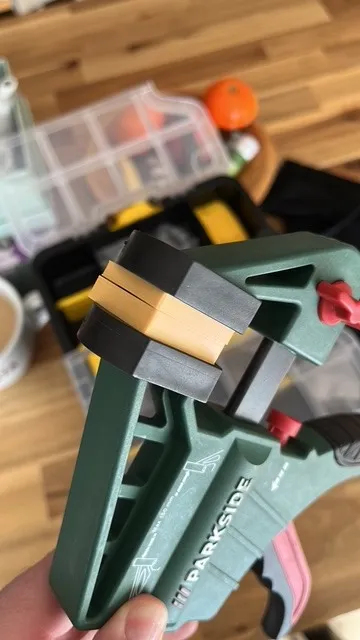

clamp - insert the spacer into the spacer adjustment “tool” (part of print files) and use clamp for a while - this will ensure that the spacer has a right angle (repeate with second spacer as well)
3D printing settings
- Printed on Bambu Lab A1:
- Best results with PETG
- Default profile - 0.20mm Strength
- bottom shell layers - 5
- Sparse infill density - 55 % (up to you - even 100 is ok)
- Support - tree auto
