Bolt Action Toy

Version 3 replaces some parts and adds new parts

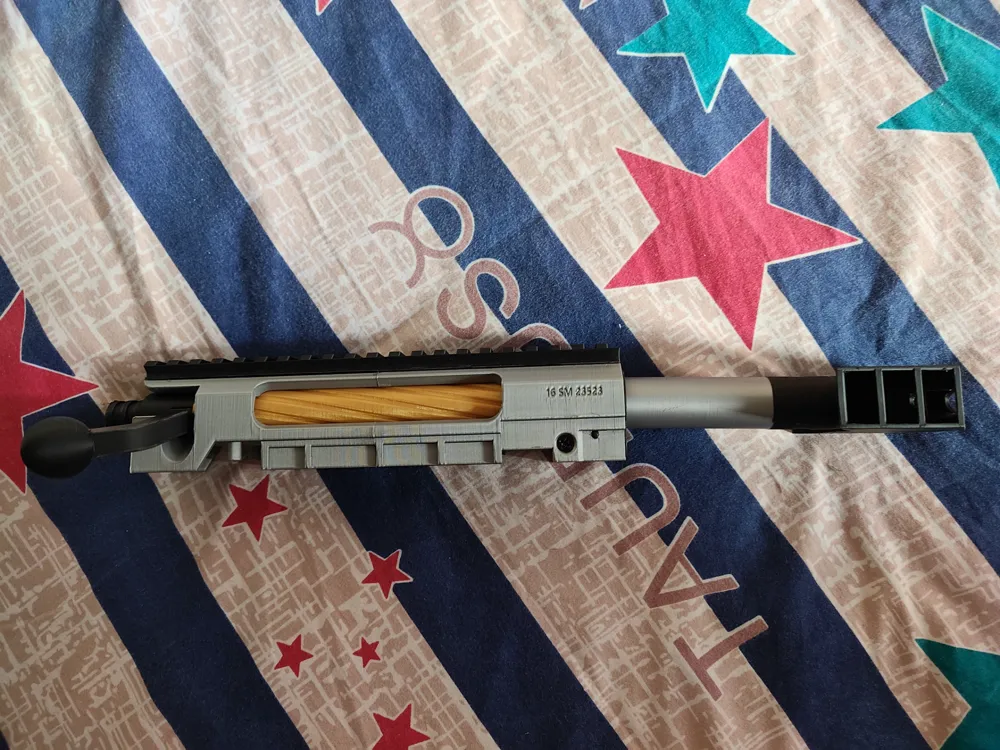

A bolt-action fidget toy based on the JieYing AWM, please search on the site for the complete receiver, an expert has uploaded it

My 3D printer is an A1 mini model, and due to print size limitations, the receiver was printed in sections

Model assembly requires a 3mm outer diameter spring for assembling the extractor, ejector, and bolt lock (the pins used in these three parts can be directly made from printing filament, note to widen holes with a drill)

A 12mm outer diameter spring is placed into the cylindrical part with an internal step on plate 2 and secured with super glue, then glued to the top of the chamber to help the extractor hook the bullet rim, the remaining parts can be directly secured with super glue, but if using screws and pins, be sure to widen the holes with a drill bit

For a video of the actual item, please watch Bilibili BV1fR2MB6Exy
