Bettr 2s 750mAh Battery Holder for Pavo Pico2/Femto
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
22 min
1 plate
Open in Bambu Studio
Boost
14
27
1
1
34
23
Released
Description
Content has been automatically translated.

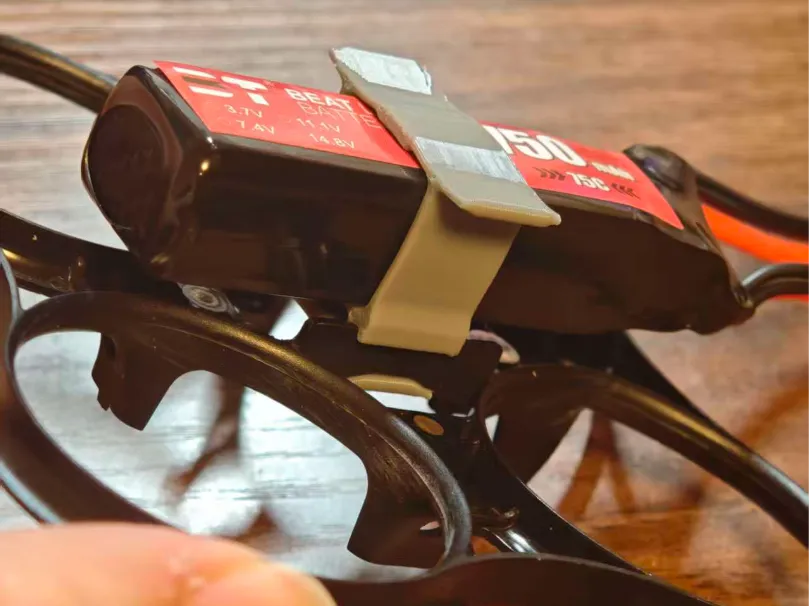

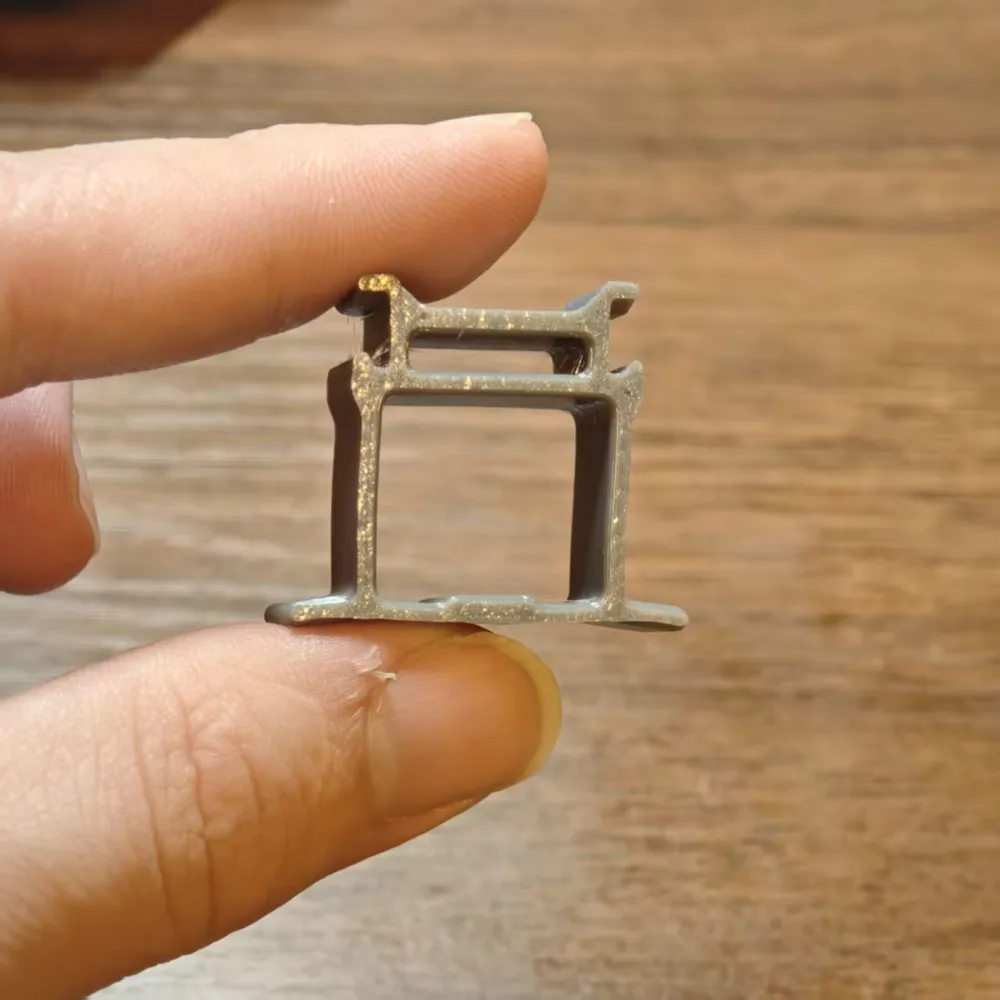

A battery holder for Betafpv Pavo Pico2 or Femto, used to install Bettr's 2s 750mAh battery. Tested on Pico2 and Femto, the dimensions are fine. It needs to be printed with TPU filament. Printing with rigid filament will not allow installation. I used TPU 95a, and it is not recommended to use filament that is too soft, as it may not securely fix to the aircraft.

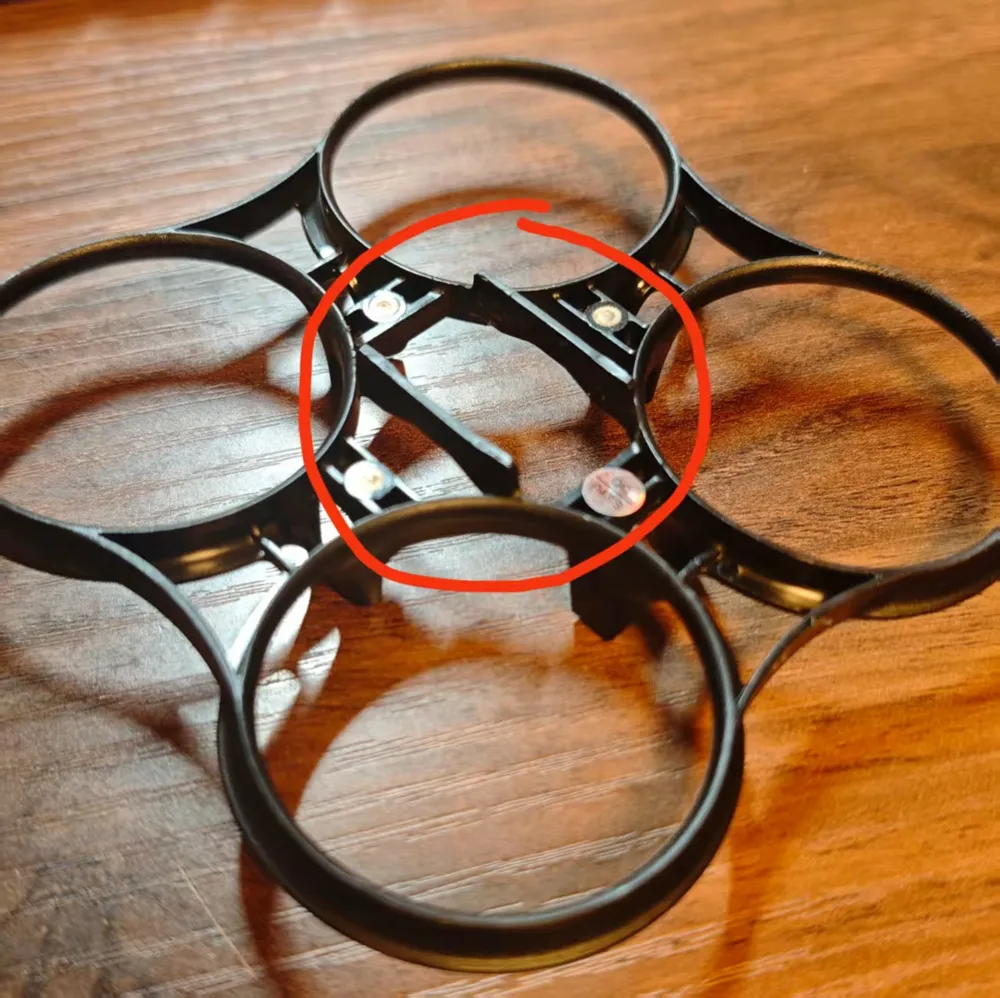

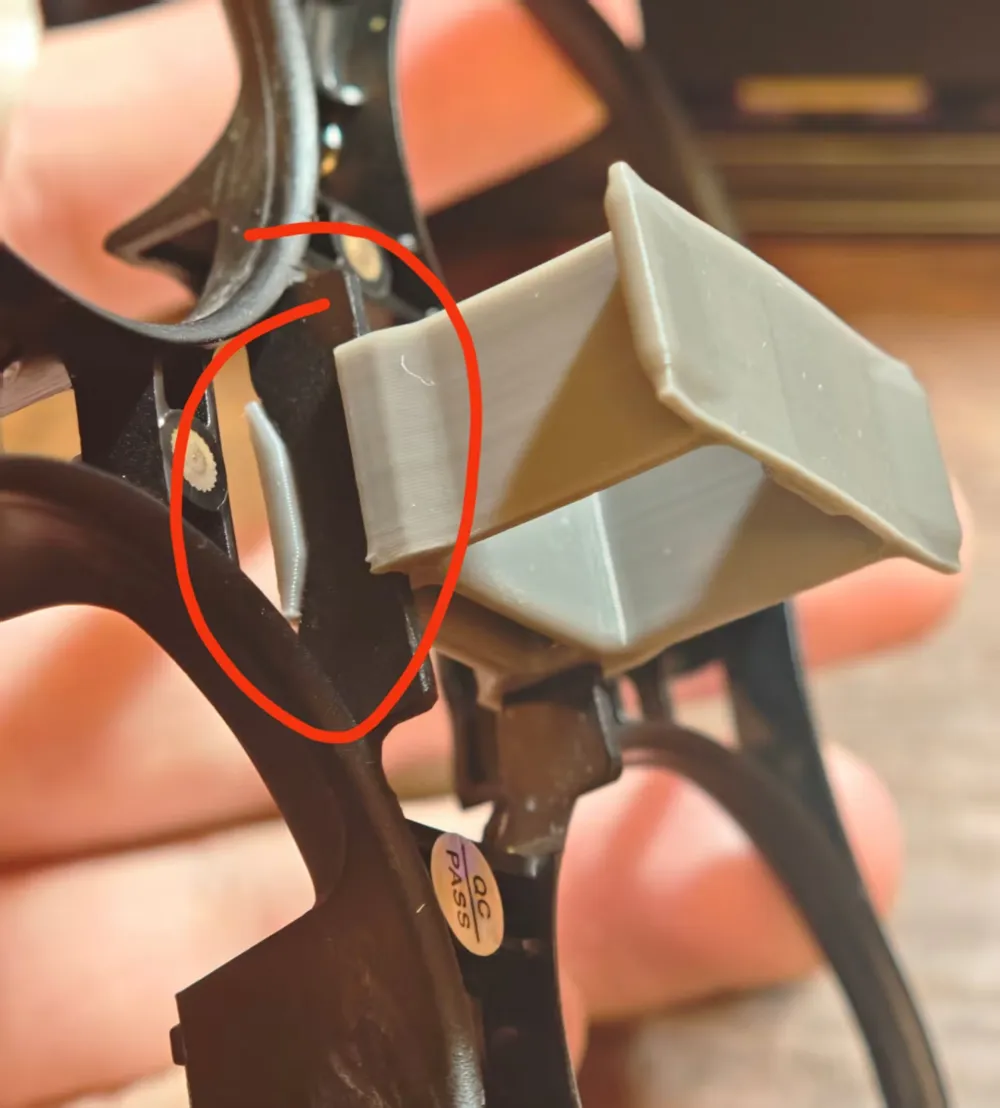

Instructions: You need to cut off the original battery holder, keeping the longitudinal support beams on both sides. Ensure a clean cut, see the diagram for details. Then snap the holder into place, making sure the buckles on both sides are properly engaged.
