Sonos Era 100 ceiling installation / Ceiling installation
Print Profile(1)
Description

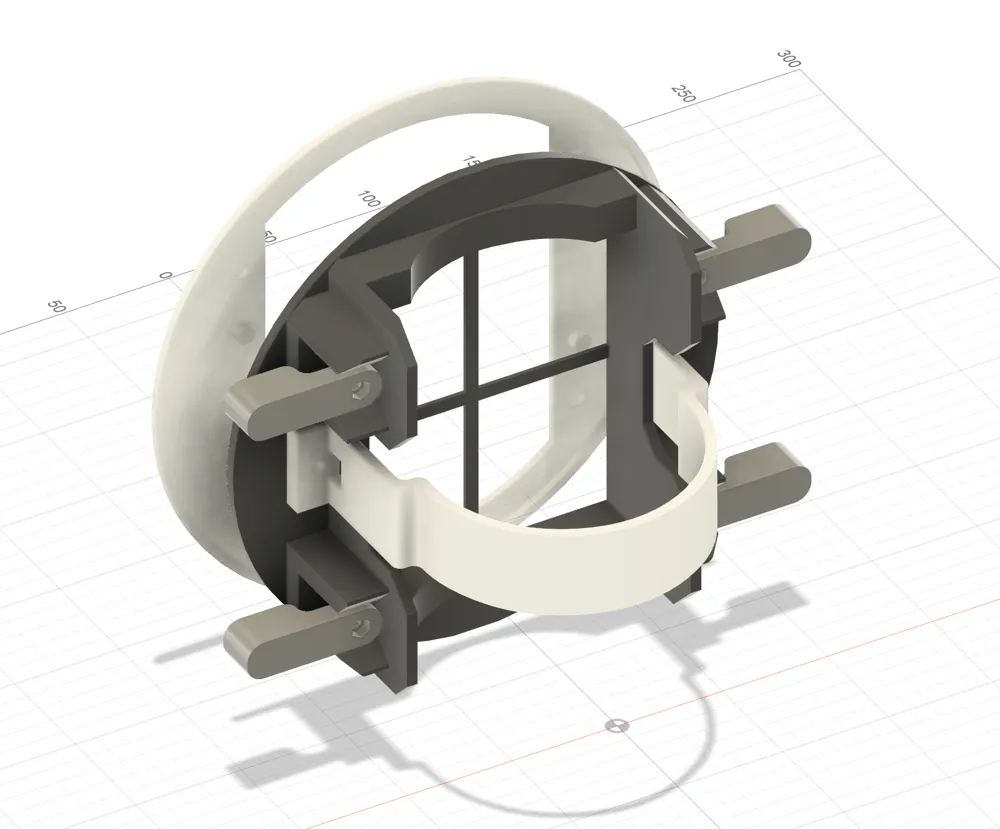

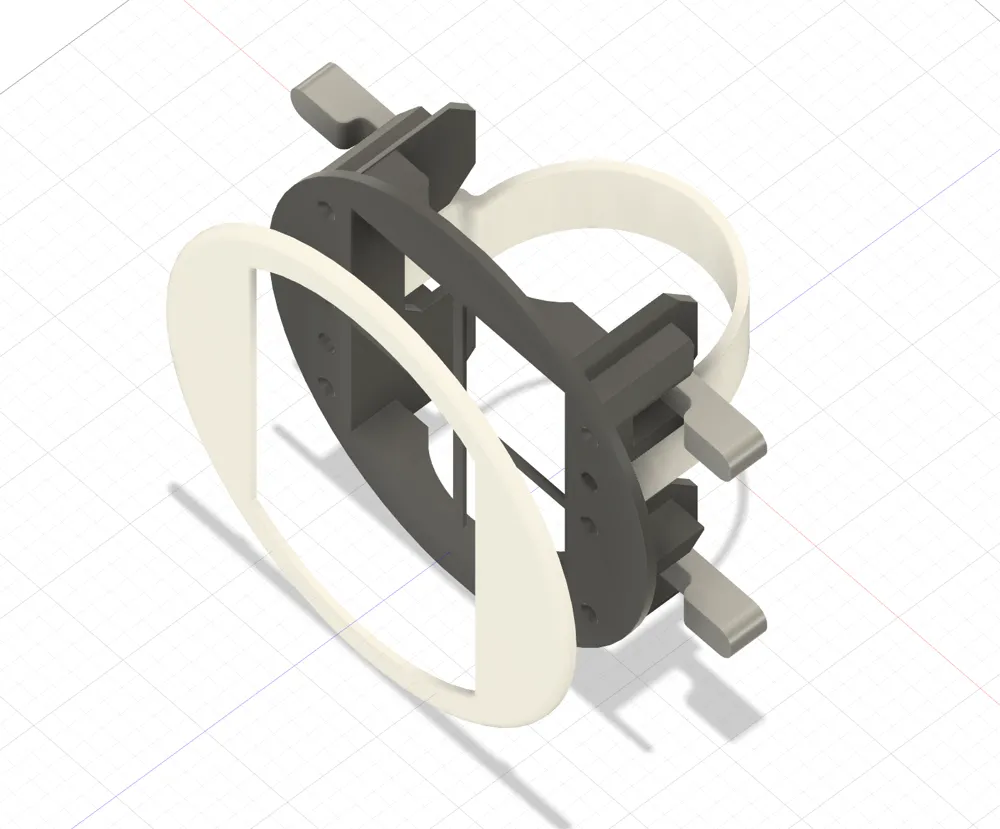

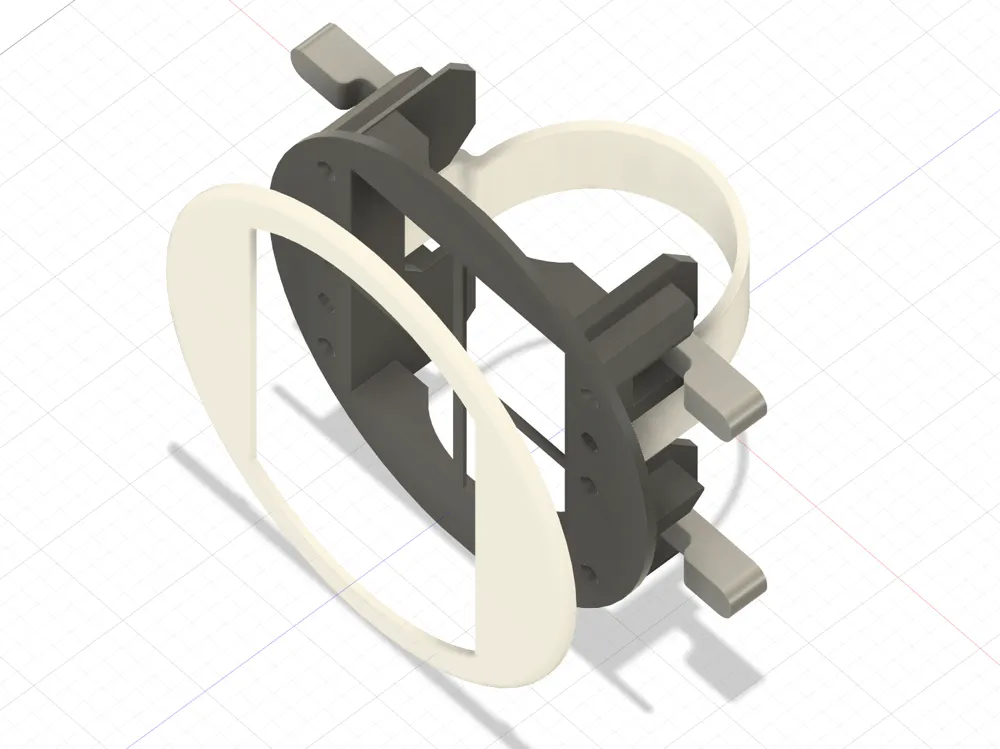

This 3D model allows you to integrate a Sonos Era 100 speaker elegantly and discreetly into a suspended ceiling. The mount has been designed to provide a stable installation, easy maintenance, and a clean, professional appearance.
The front cover can be covered with speaker fabric to visually blend the speaker into the ceiling. The fabric is glued from the back. Four magnets (Ø 8 × 3 mm) are inserted into the designated recesses and provide a simple magnetic attachment for the front cover, allowing for quick removal when needed.
The four side clips securely hold the mount to the ceiling. For installation, four M5 × 70 mm countersunk screws and four M5 nuts are required. The bracket that holds the speaker is fastened using two M5 × 20 mm countersunk screws, two M5 nuts, and two washers, ensuring a solid and stable connection.
