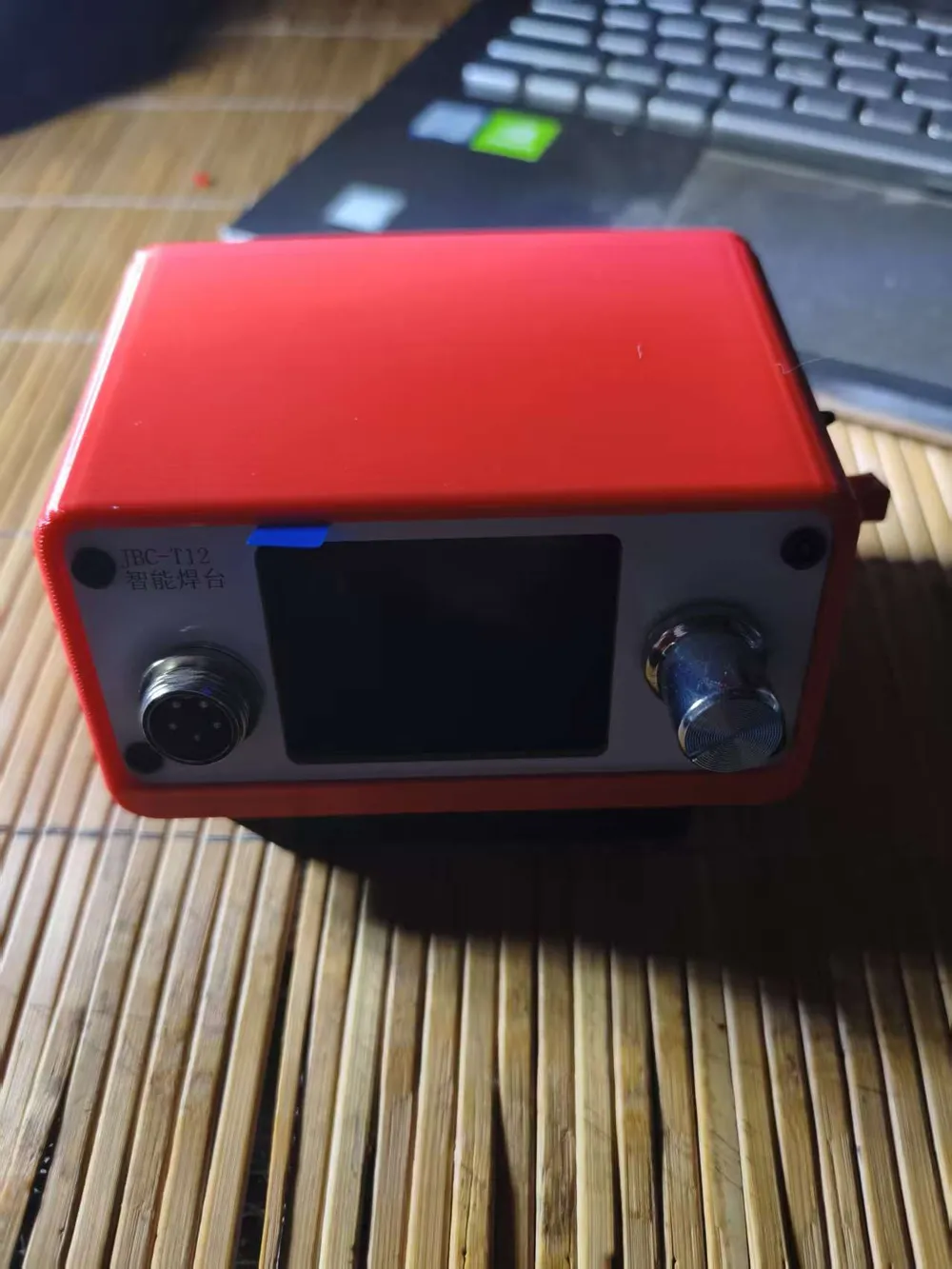

JBC245/210/T12 Universal Soldering Station / Compatible with Dayi A3 Battery / PD 100W Type-C Port / 3-6S Battery XT60 Interface

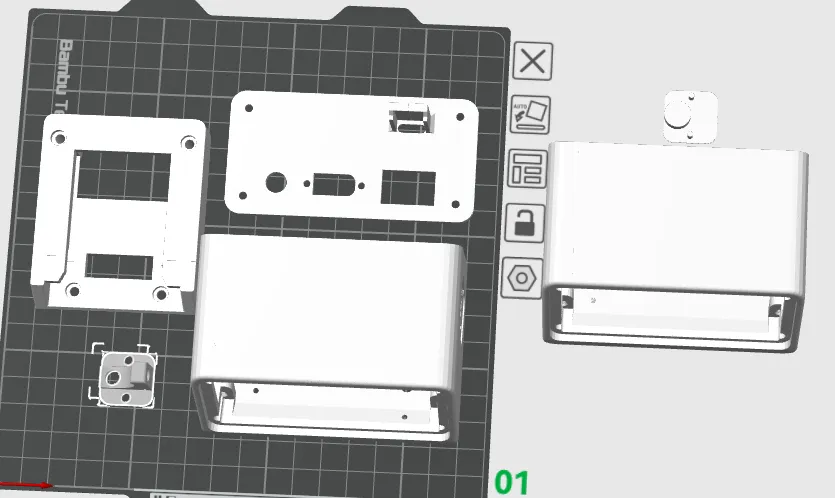

Print Profile(1)
Description

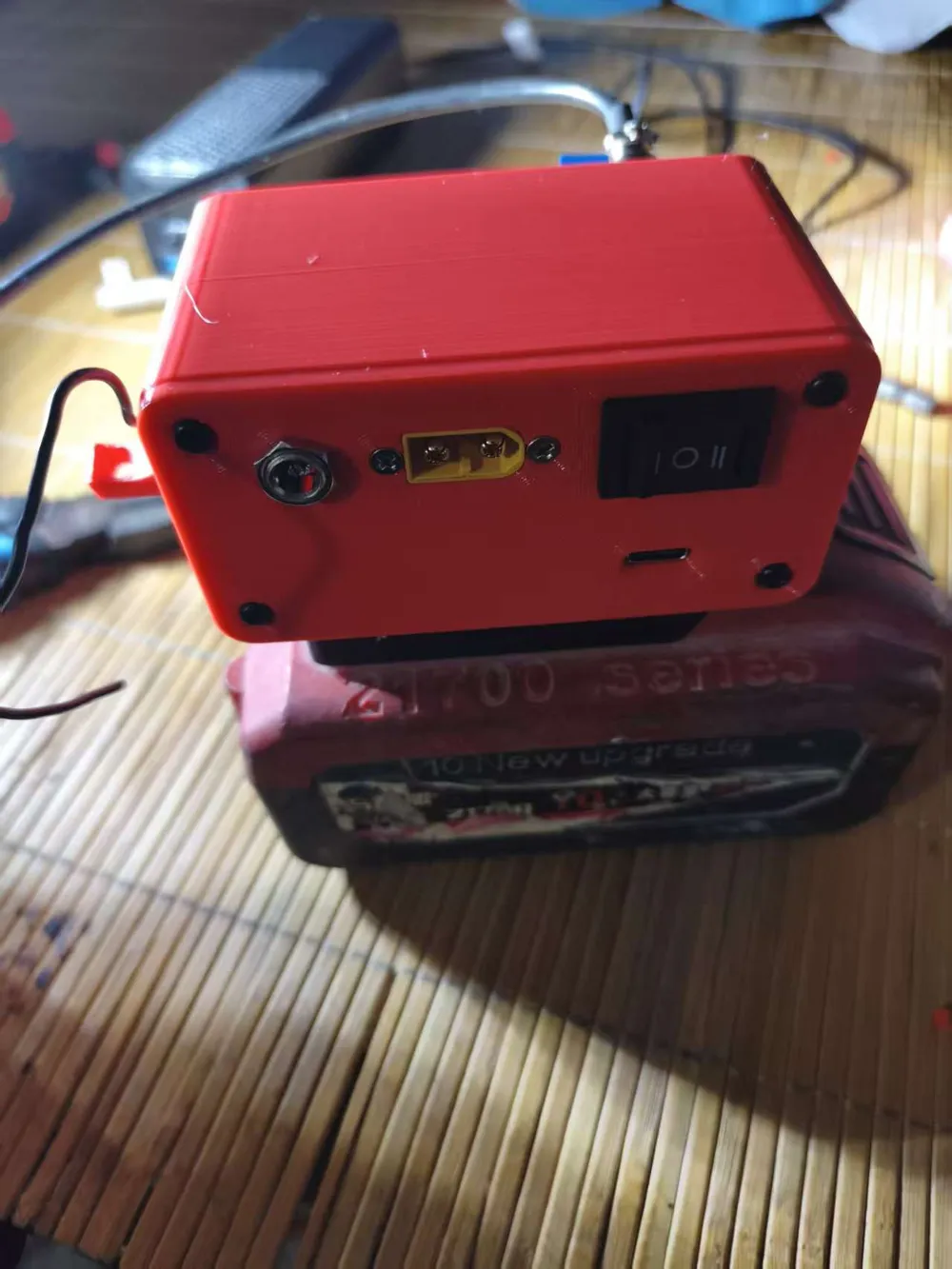

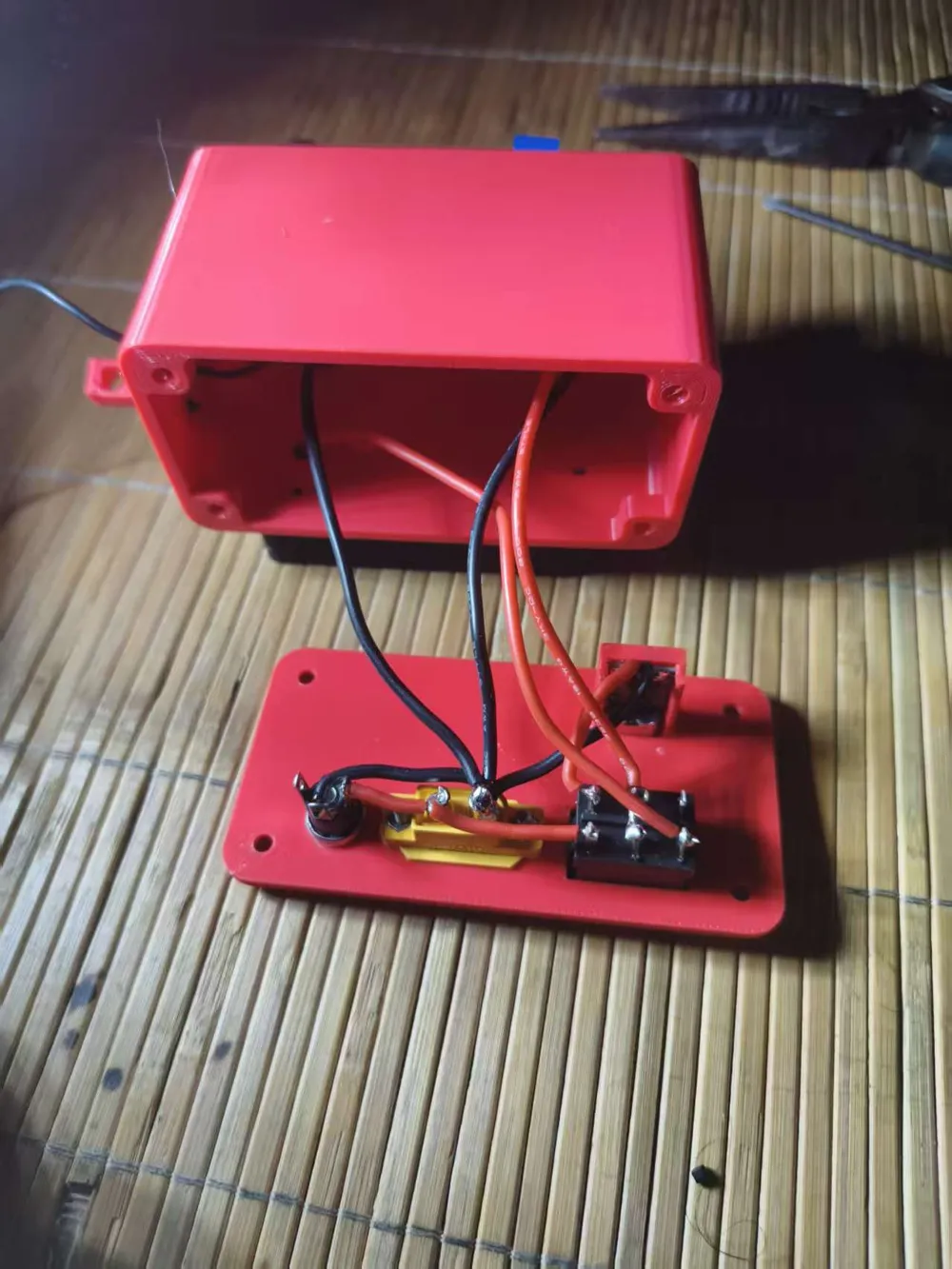

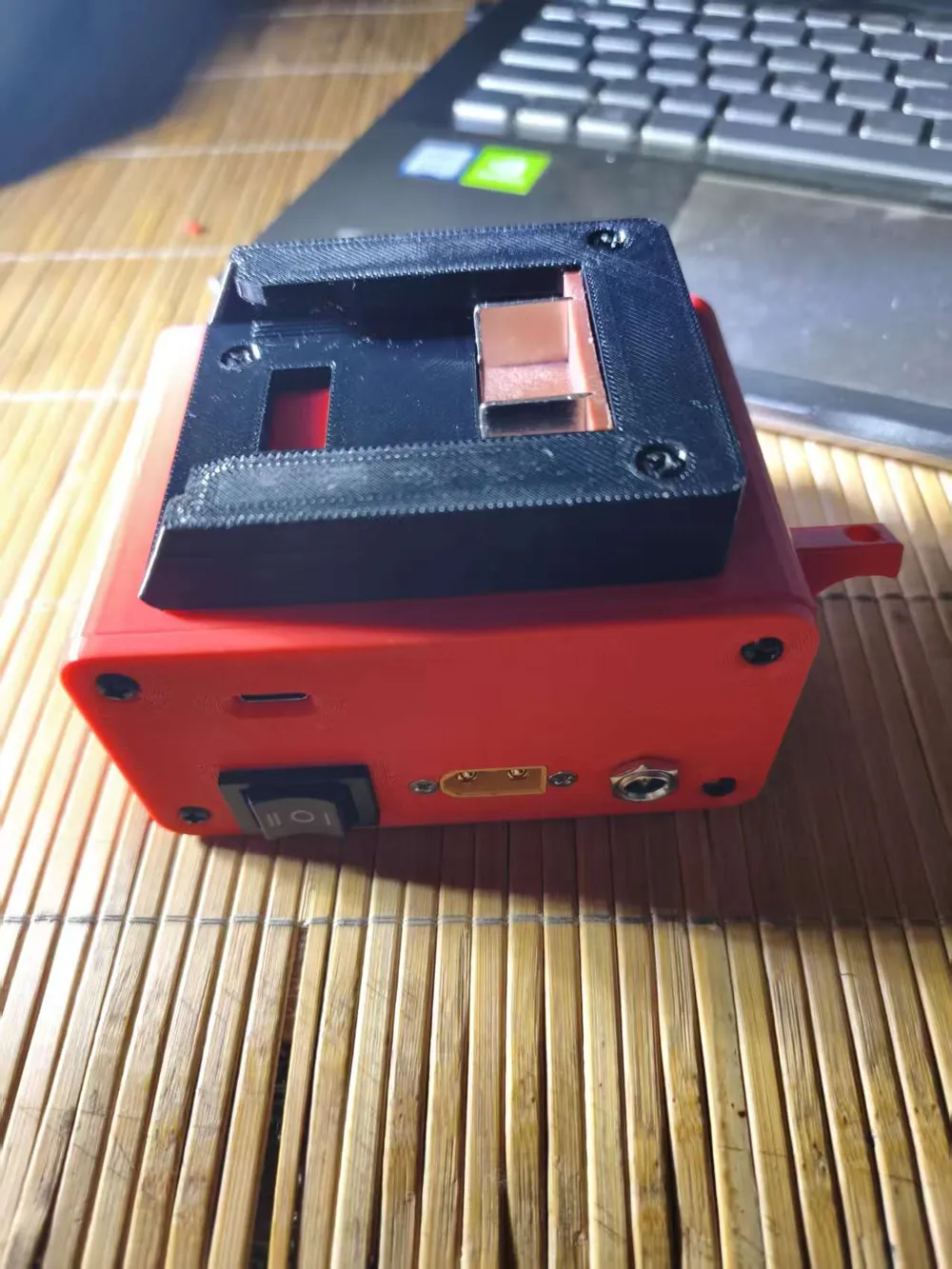

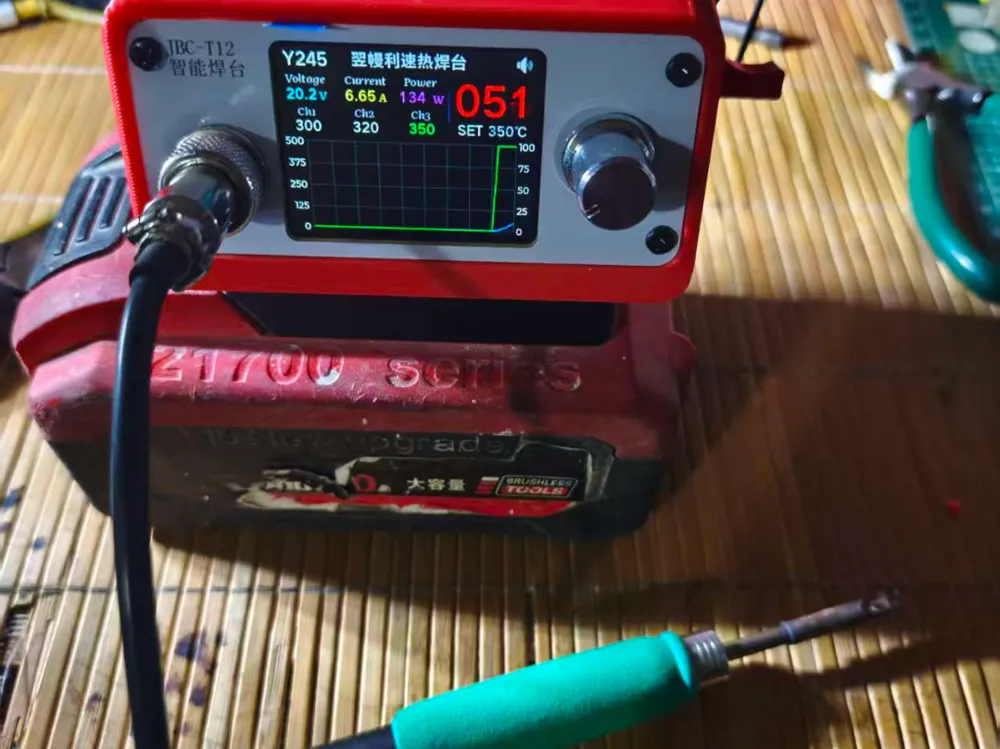

Suitable for those with Dayi A3 batteries to DIY a portable soldering station, which can be directly powered by a battery, or by XT60 battery/DC plug,
Auxiliary materials: one Technician No 9 open-source JBC control board, compatible with the 8838 panel

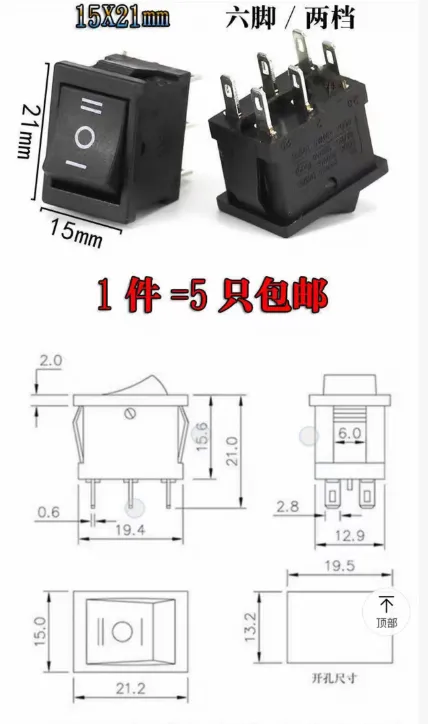

one 15*21 rocker switch
one XT60E1-M male connector
one high-current DC female socket
one Type-C decoy module, 100W head decoying 15V/60W head decoying 12V
sleep seat ring
two M5*10 screws to fix the sleep seat ring and connect the sleep seat wire
eight M3*8 pointed self-tapping screws to fix the power take-off seat/cover plate/sleep seat
two M3*18 pointed self-tapping screws to fix the power take-off seat cover plate
two M2.5*8 fine-thread screws to fix XT60 / no need to buy if some sellers include them
