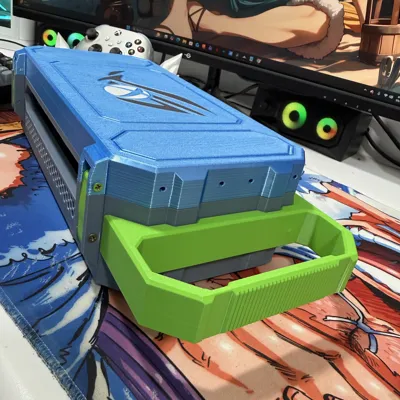

Travel case for ROG XBOX ALLY
Print Profile(1)
Description

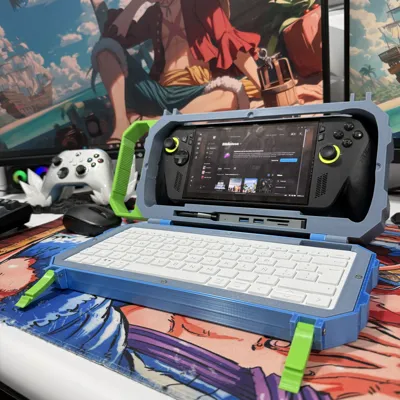

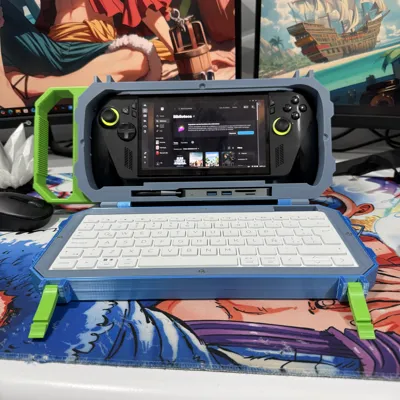

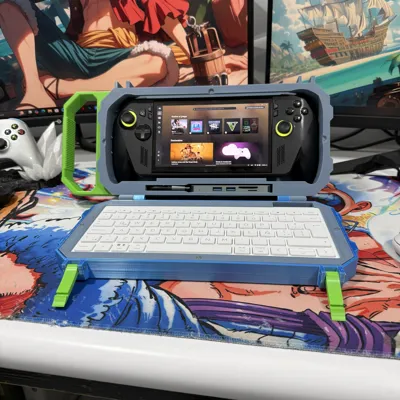

This model is perfect for when you travel and don't know whether to bring your laptop for work or your ROG Ally for gaming, because with this accessory we solve everything.

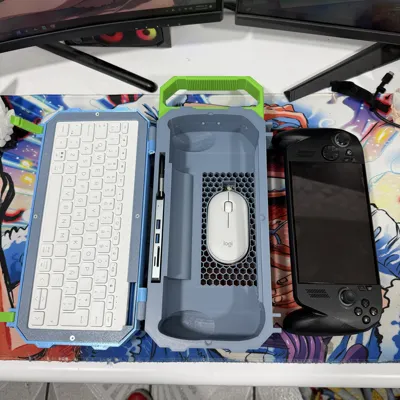

Since in the same case we will find compartments for a mouse, keyboard, as well as for a type C input hub.
Materials needed for this case:
2 M3x30mm Screws
4 M3x20mm Screws
Keyboard: HP 350
Mouse: Logitech Pebble M350
I tried to choose the most economical, quality keyboards and mice from well-known brands that can be easily found in any store.
The Hub used is a generic brand, but as long as it has the following measurements, it is compatible: 114 mm high and 28mm wide
Many generic hubs from Chinese websites have these measurements; it would be a matter of checking their specifications.

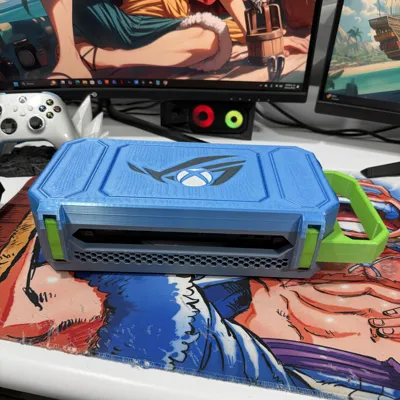

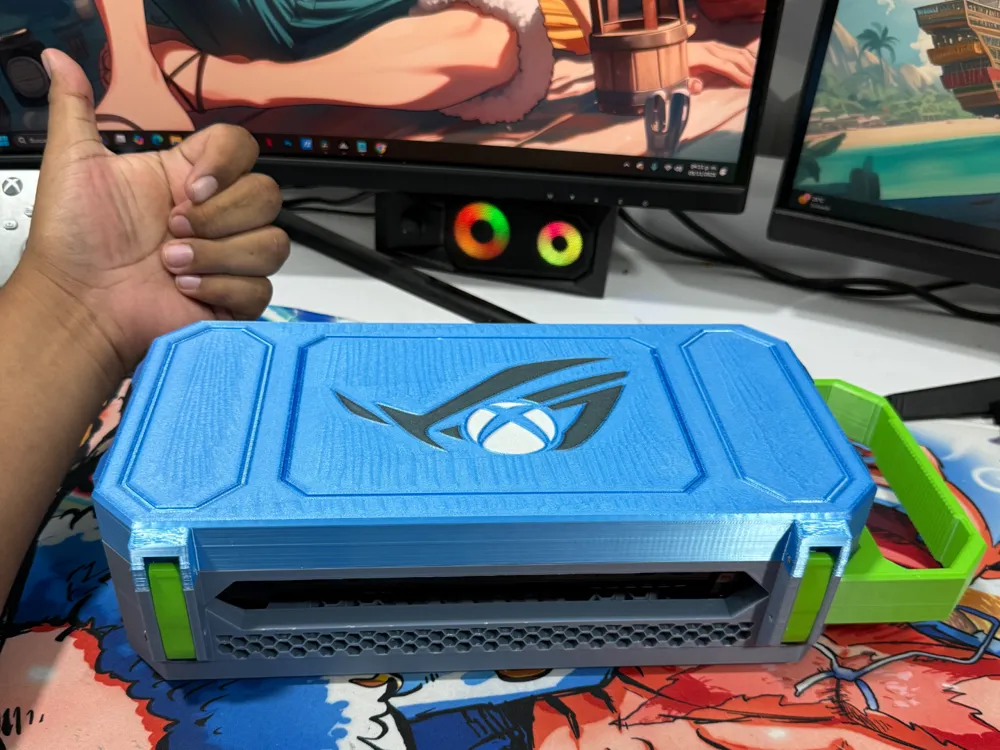

In the file there are 2 different versions of the top cover, a multicolor one and a normal one, choose the one you like.

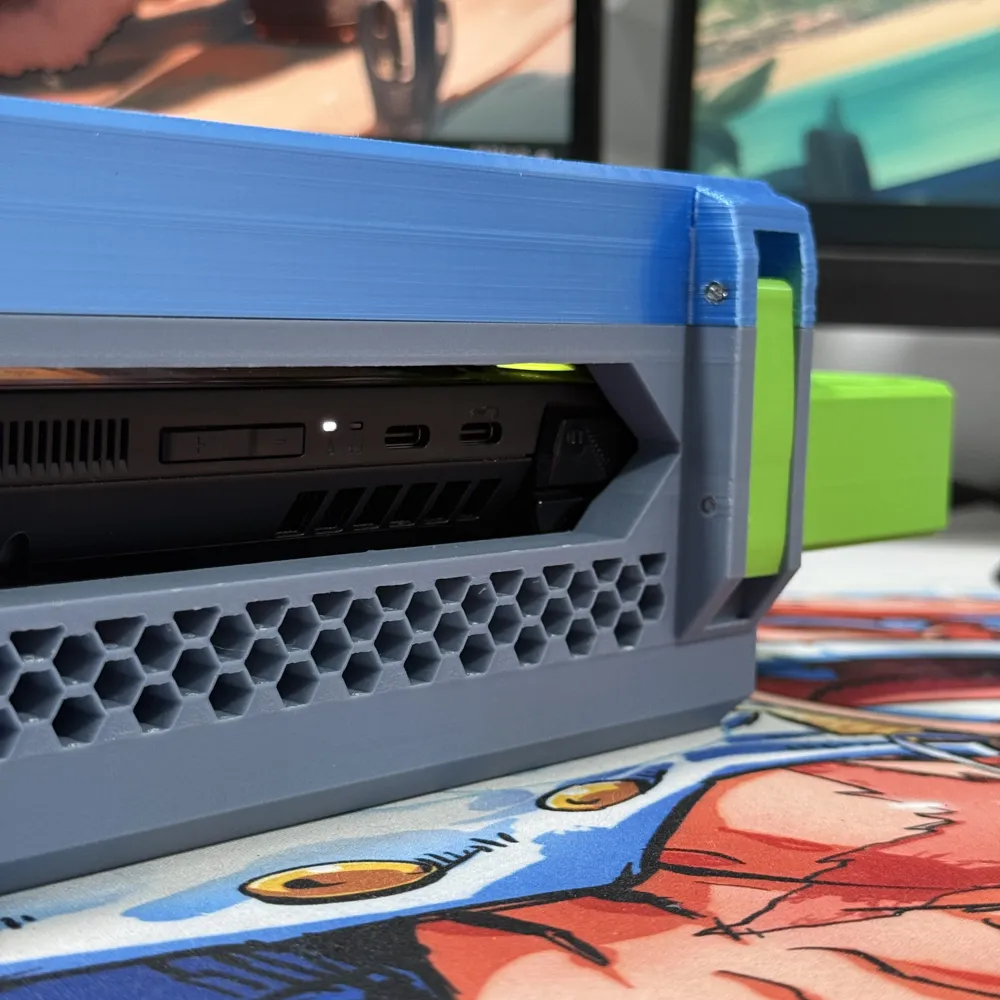

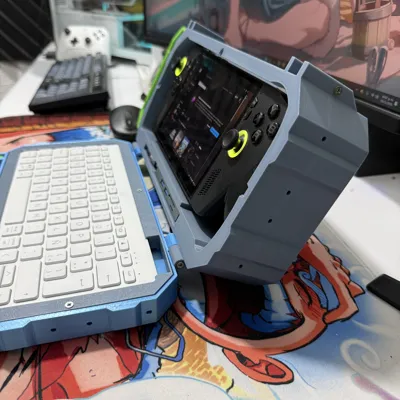

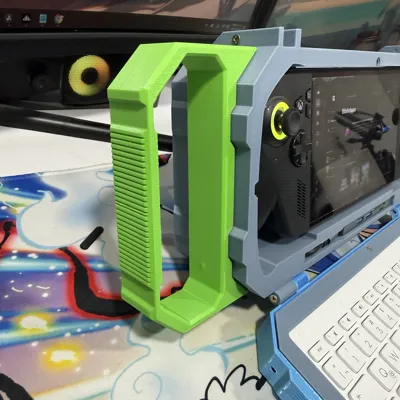

On the sides where the console rests, I left little tolerance to put a sheet of Foam to give it more stability as well as
a more sensitive finish where the console rests, I recommend gluing it with some adhesive.
And if you want it to print on a small bed printer, let me know in the comments, I could adapt the file and upload a cut version.

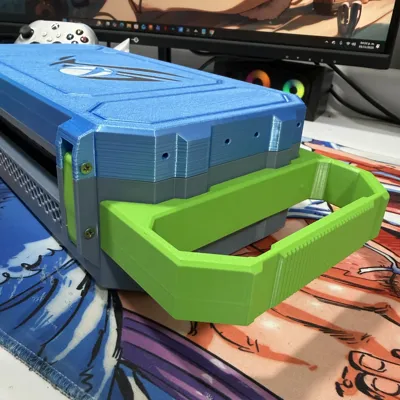

On the sides of the case there are some holes, these are planned to be used to update the case, I will add some extra compartments so you can put your charger, maybe a mouse pad, and carry everything in the case more comfortably.
