Photo frame with stand, wall mount & variable clips

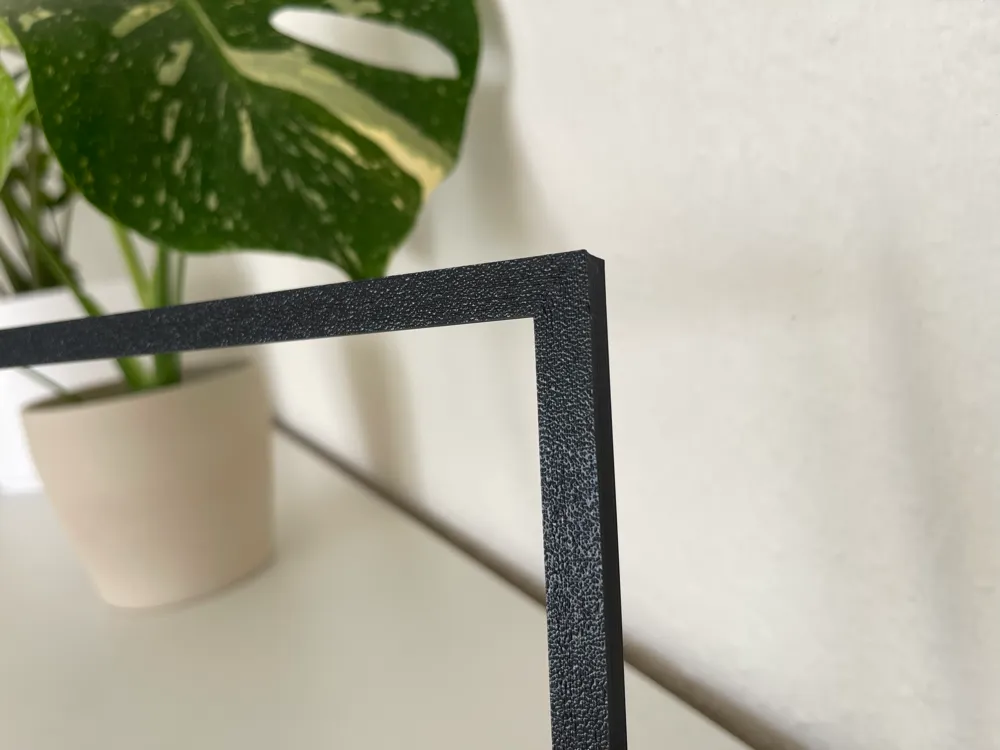

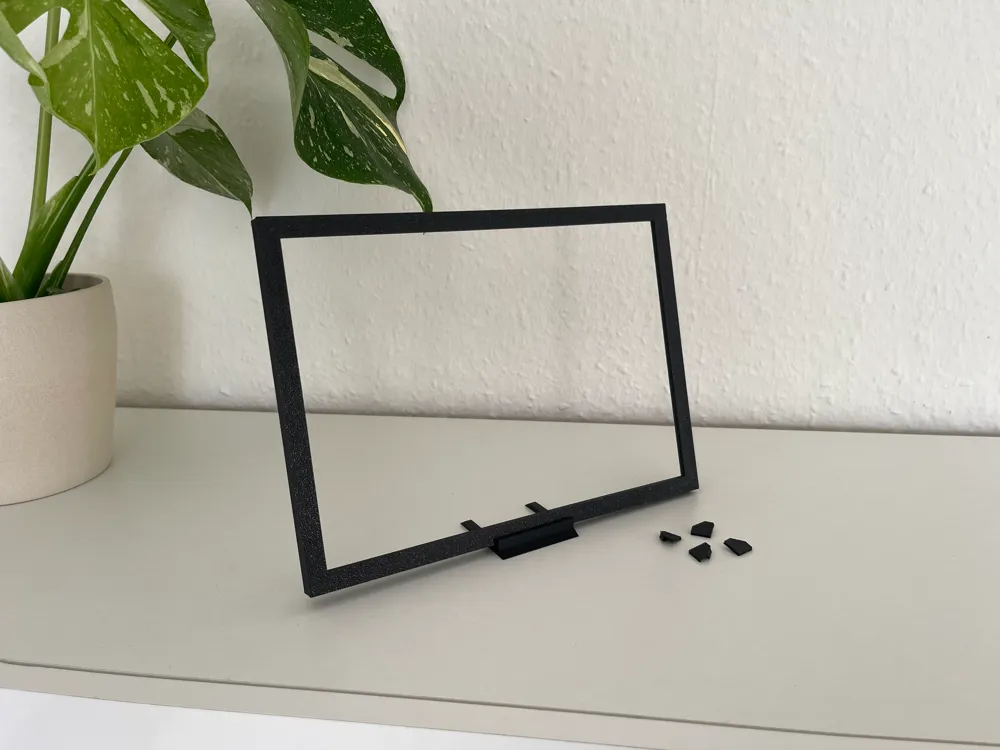

This minimalist photo frame is ideal for elegantly displaying your photos or artworks – whether standing on a shelf or hanging on the wall.
✨ Features
- 📏 Image size: 24 × 17 cm (aspect ratio is almost A4, so easily scalable)
- ⚙️ Scalable: You can scale the frame proportionally in X and Y directions to adjust for other image sizes.

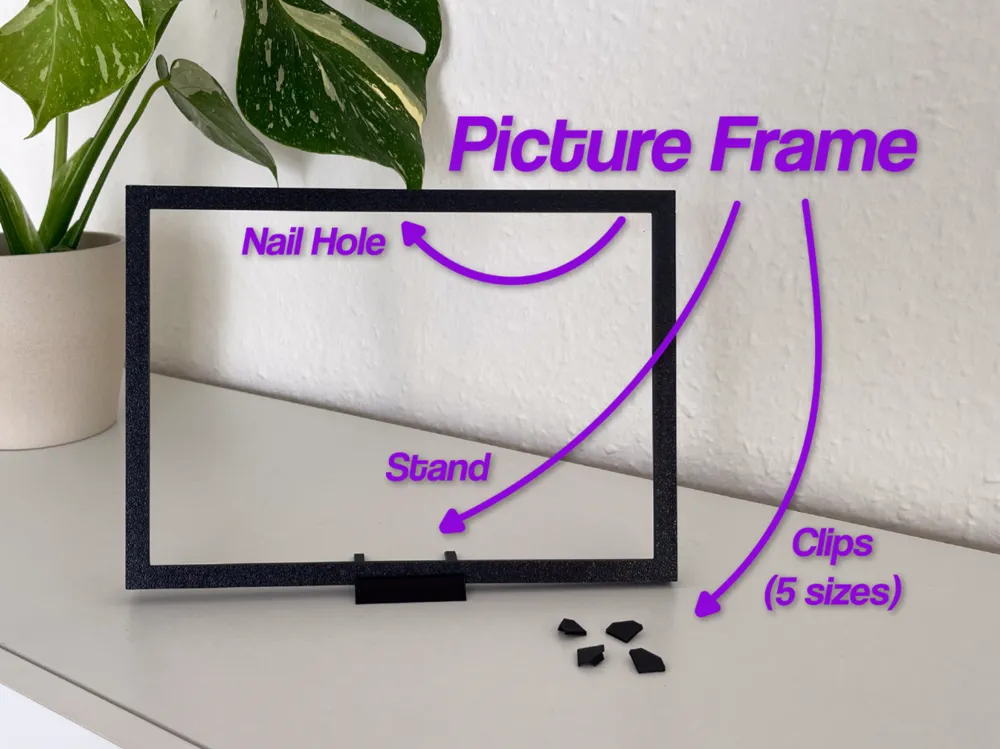

👉 Important: The clips must be scaled with the same scaling factor so they continue to fit. - 🧩 Flexible mounting:

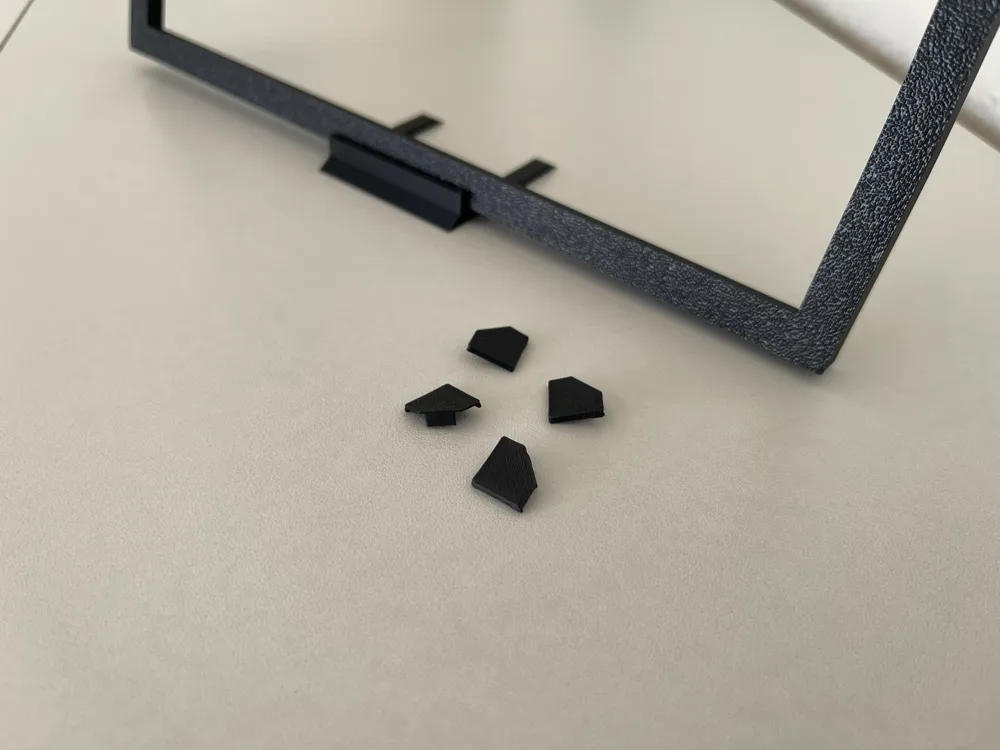

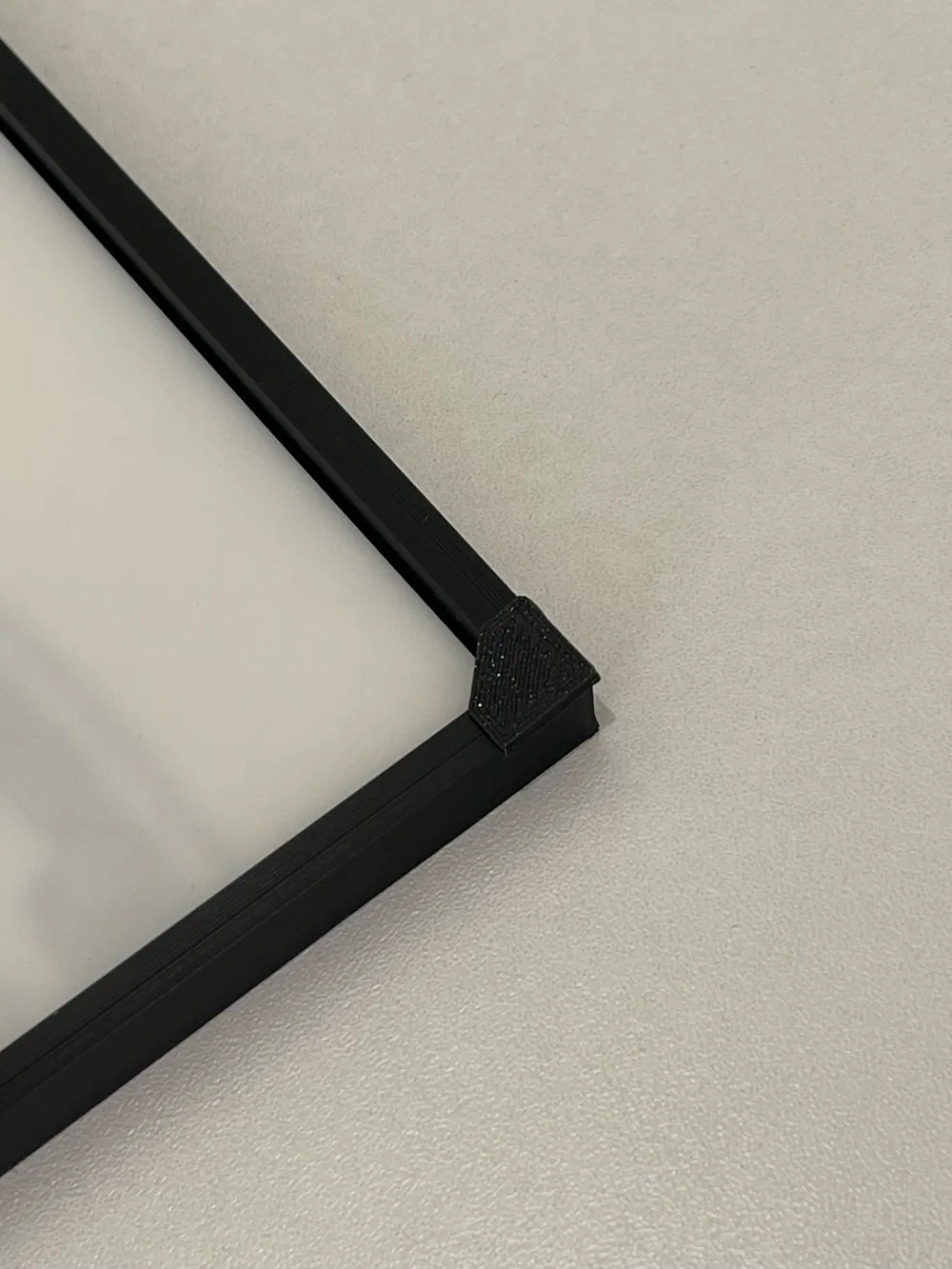

- Clips for securing the image on the back – in 5 sizes (0.1 mm – 0.5 mm), depending on paper or film thickness.
- Nail Hole (drilling) for easy wall mounting with a nail or screw.

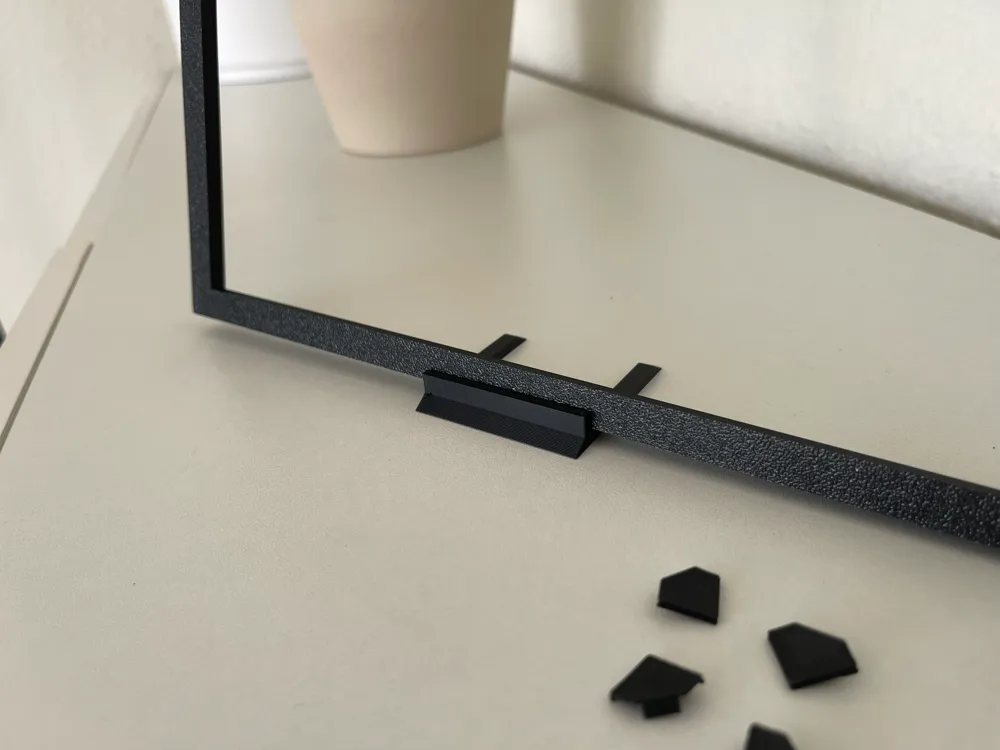

- Stand to place the frame freely on a cabinet, table, or shelf.
- 🧱 Print-friendly Design:
- No support structures needed
- Clean, flat surfaces
- Optimized for FDM and Resin printers
🧰 Print recommendation
- Material: PLA or PETG
- Layer height: 0.2 mm
- Infill: 15 – 20 %
- No support required
- Clips are best printed with slightly increased wall thickness (e.g., 3 perimeter) to ensure stability.
- Brim is recommended
💡 Note
If you scale the frame (e.g., 150%), scale the clips to the same ratio so everything fits together perfectly. The stand does not need to be scaled, as the depth of the frame remains constant when scaling the X and Y axes.
