Utility Dashboard - DIN/Anker Powerport/5" ESP LCD

I remixed two models to mount a Guiton 5" LCD on my network panel. The DIN mount holds a USB power supply and display.

The dashboard uses a Guiton JC8048W550 module with an assortment of sensors. I plan to use it to control some lights and sorts.

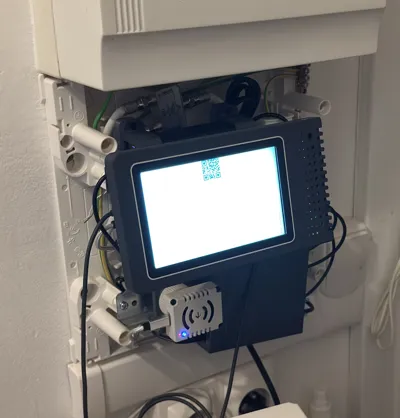

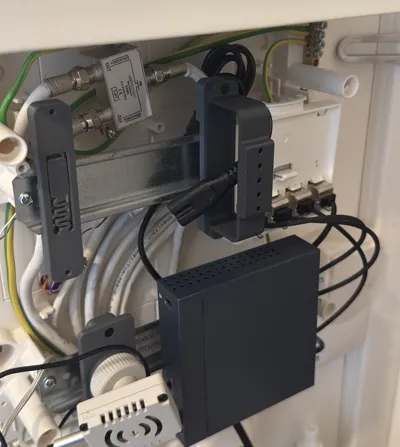

The DIN mount holds a USB Power supply (Anker PowerPort 6) and acts as a riser to hold the screen outside the utility box.

This dashboard runs an ESPHome firmware.

Hardware:

• M3 screws for mount and 2x heat set inserts.
• BT2.5, BT3 screws

Sensors:

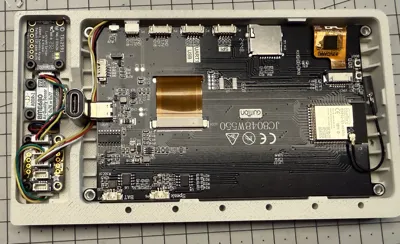

• Can hold several 2.5cm QWIIC boards (you can stack two, for example), with slot for a light sensor.
• One slot for pimoroni BME680
• QWIIC cables
• Note that the tolerances are quite small for qwiic wire, but it does fit. I'll try to improve this.

Extras:

• I include a light pipe that can be printed on a resin printer and put in the slots on the left. It targets the default LED on one of the QWIIC board, but you can put your own too. I think it looks cool.

Attributions:

• LCD case by strange_v: https://www.printables.com/model/1153436-slim-5-screen-mount-for-bambu-lab-p1-series
• DIN Rale bracket: https://www.printables.com/model/420009-din-rail-bracket-heat-insert-version-525mm-625mm
