Make your own hitbox for 40 yuan
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 8% infill
Designer
6.9 h
3 plates
0.2mm layer, 3 walls, 8% infill
Designer
14.4 h
6 plates
Open in Bambu Studio
Boost
3
9
0
0
14
2
Released
Description
Content has been automatically translated.

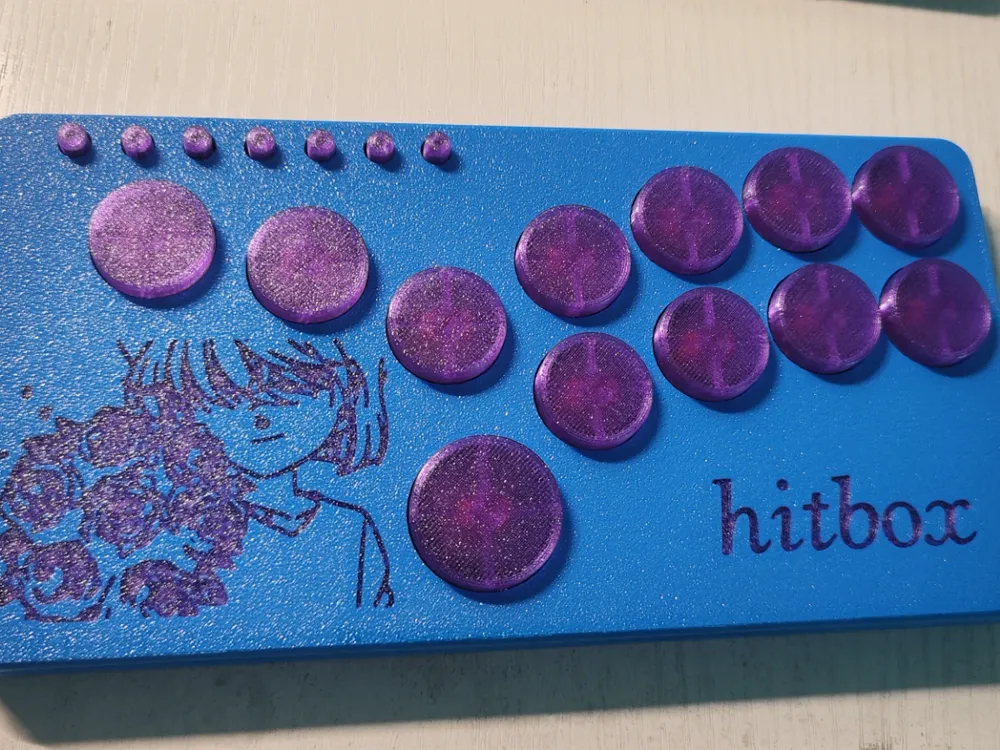

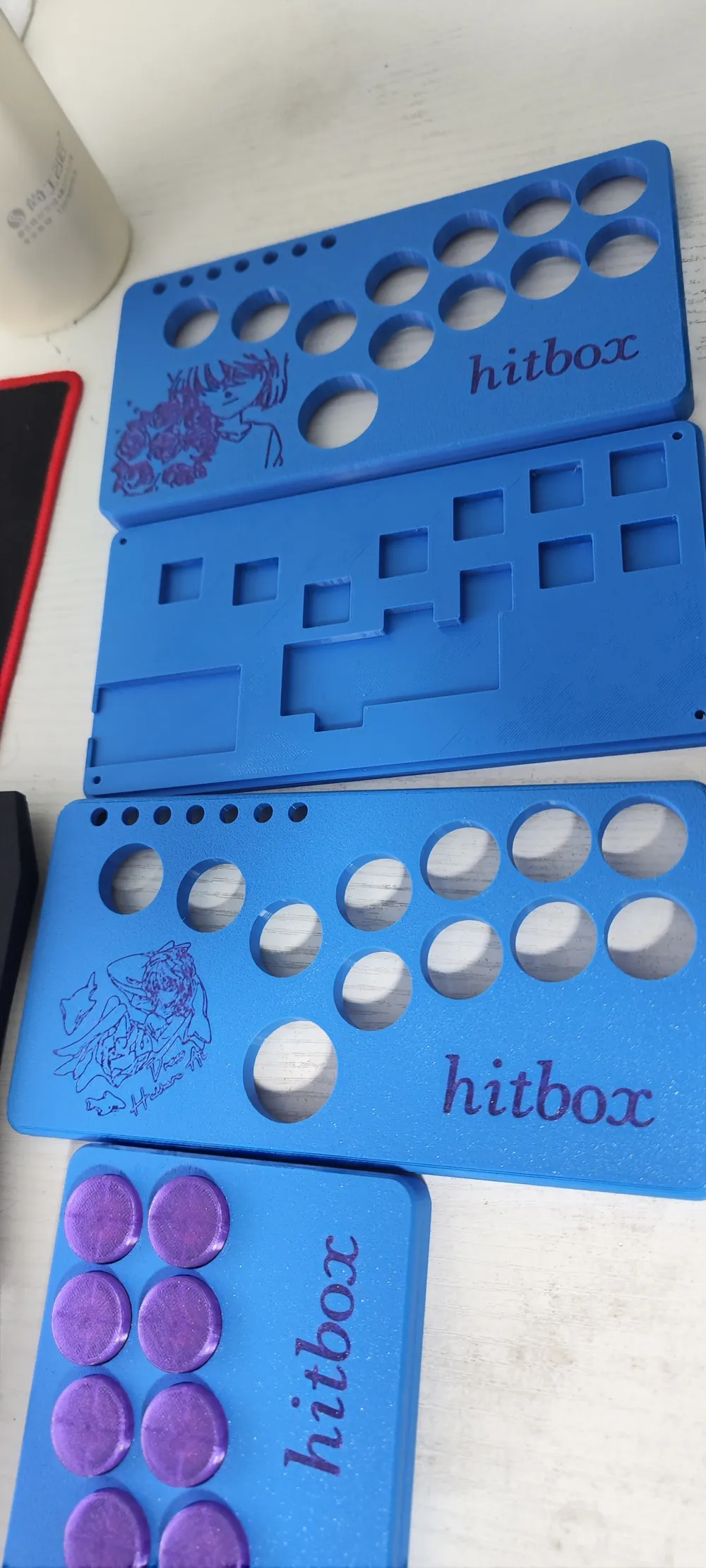

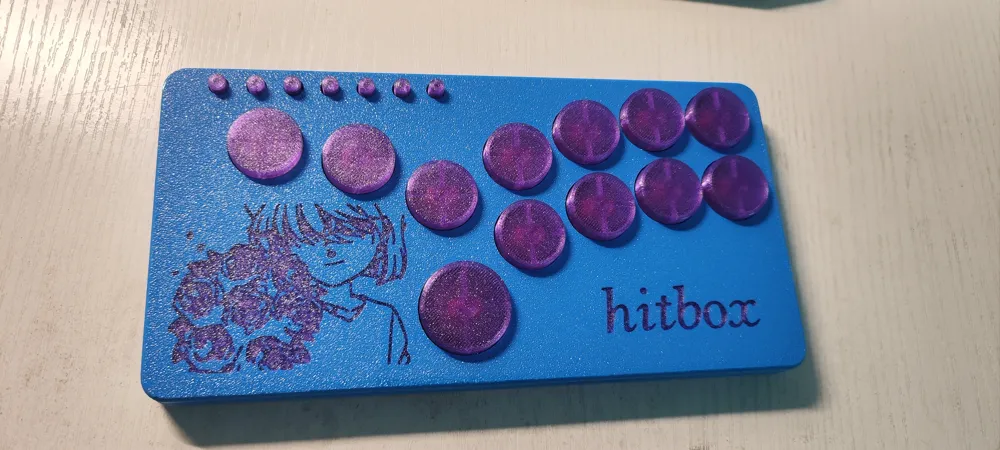

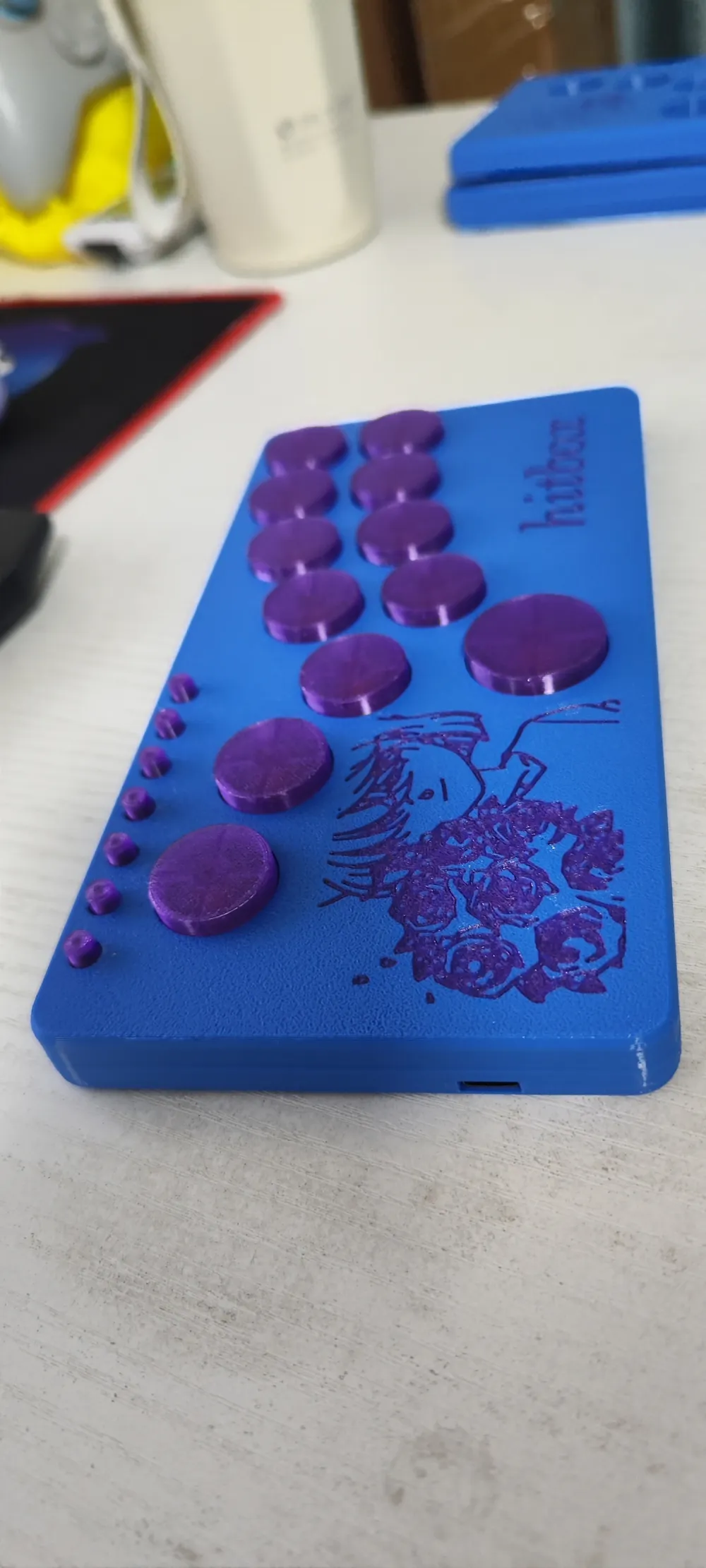

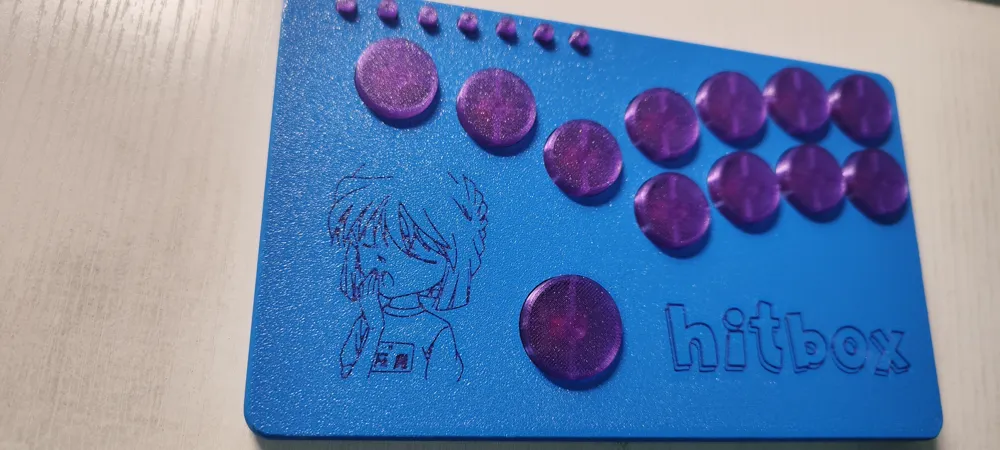

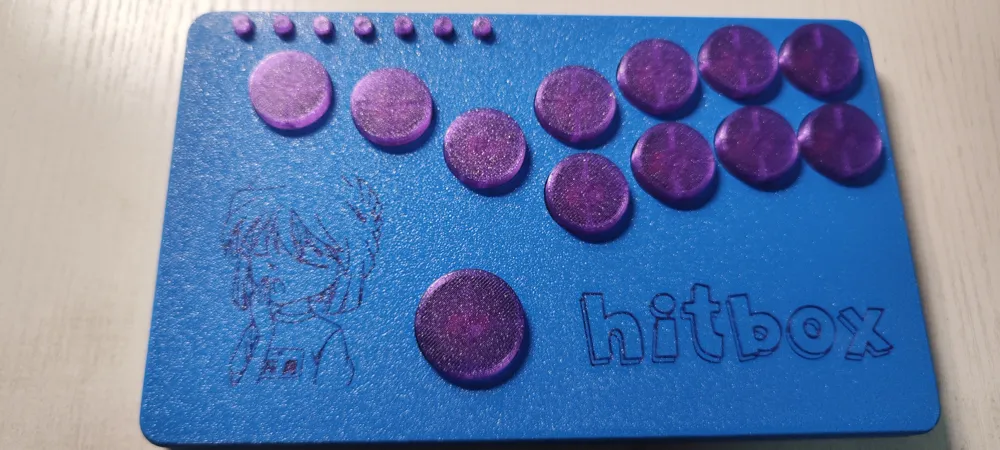

For only 40 yuan, you can make your own hitbox and start enjoying games!
The PCB files are from Qiao Ziqing on Bilibili, thanks to the creator for the open-source design! [[DIY Hitbox] Creating a PCB version hitbox using JLC PCB's free manufacturing service, production process] https://www.bilibili.com/video/BV18e4111761/?share_source=copy_web&vd_source=9b462524f9f05cde209fa71210bb5b3a
Bill of Materials:
Pico RP2040
Gateron Low-profile Red Switches x 12
FPC Flexible Flat Cable
FPC Connector
Tactile Switches 6x6x10
M3x12 Bolts x 8
*********************************************
Modified PCB files, adjusted jump button position, increased spacing for easier operation
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
