Shelly Mini Gen3 Enclosure with Manual Switch
Print Profile(1)
Description

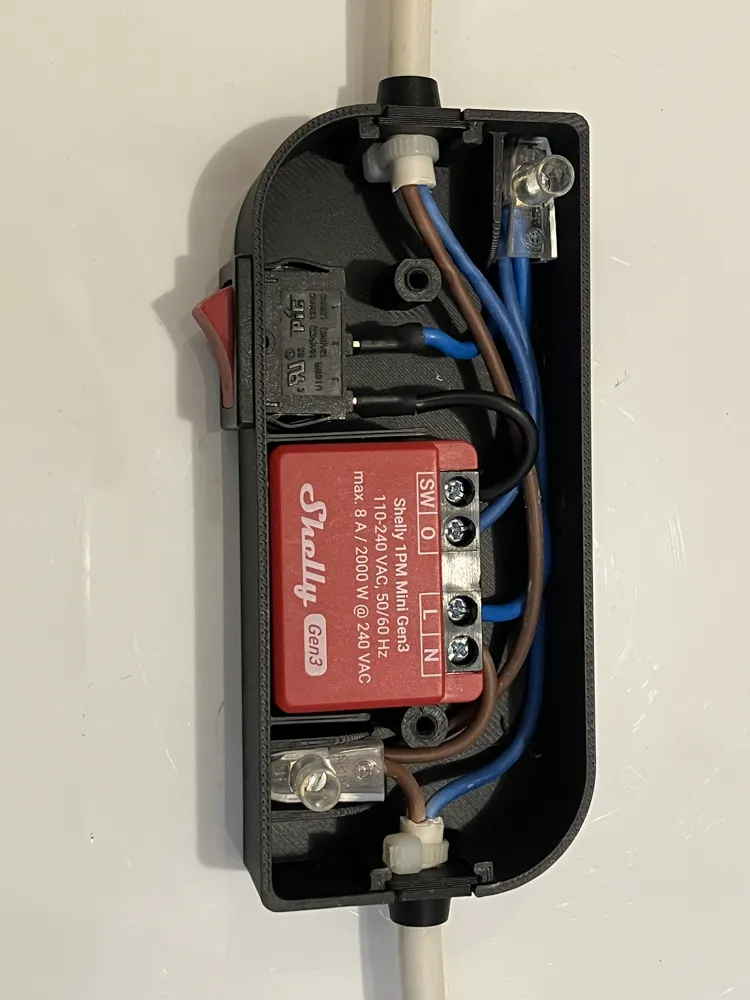

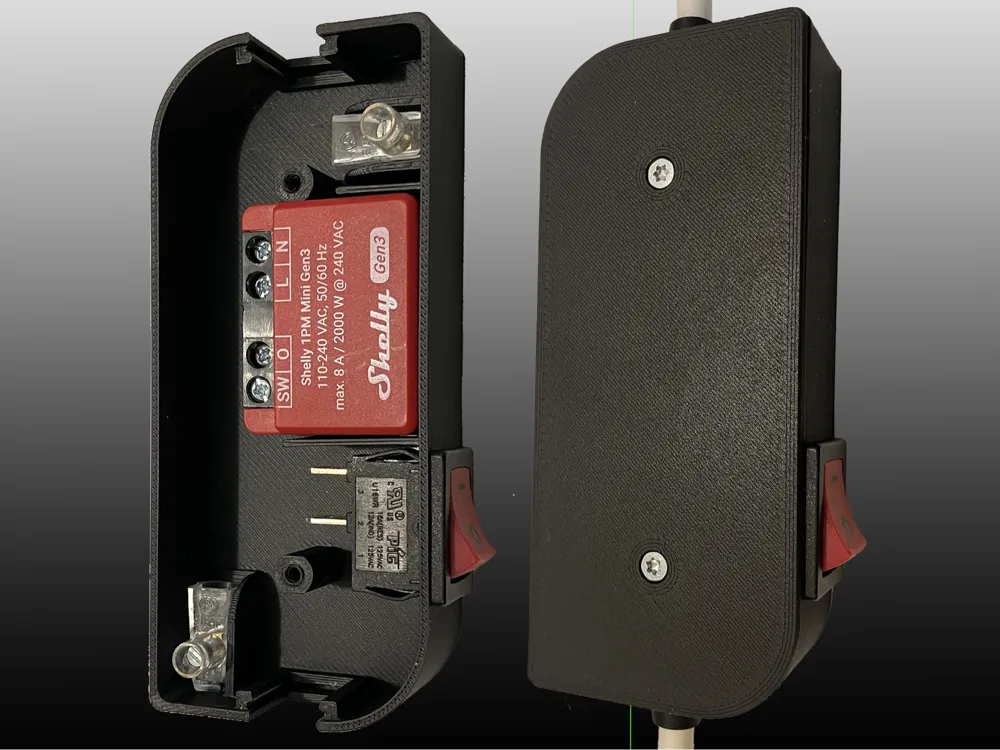

This is a compact and practical enclosure designed for the Shelly Mini Gen3 smart relay.
The case includes an integrated manual switch, allowing you to directly operate the connected device without using the app.
The internal wiring uses standard 1.5 mm² transparent terminal blocks, making assembly simple and safe.

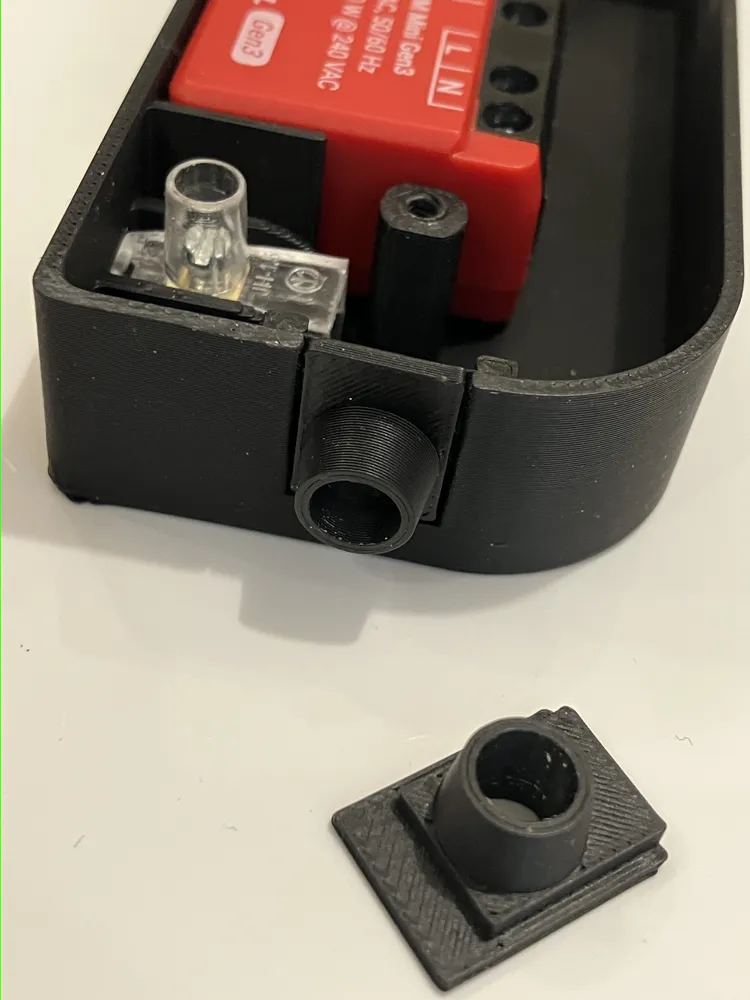

Two removable windows on each side let you install modular inserts that adapt to different cable diameters and shapes.
Currently, six insert models are available:
- Three for round cables with external diameters (5 mm, 5.5 mm, and 6 mm).
- Three for r flat two-core cable (6.8x4.1mm, 6.2x3.8mm, 5.6x3.4mm).
The design also supports three-core cables (with ground) — in that case, an additional inline connector should be used to connect the two ground wires (input and output).

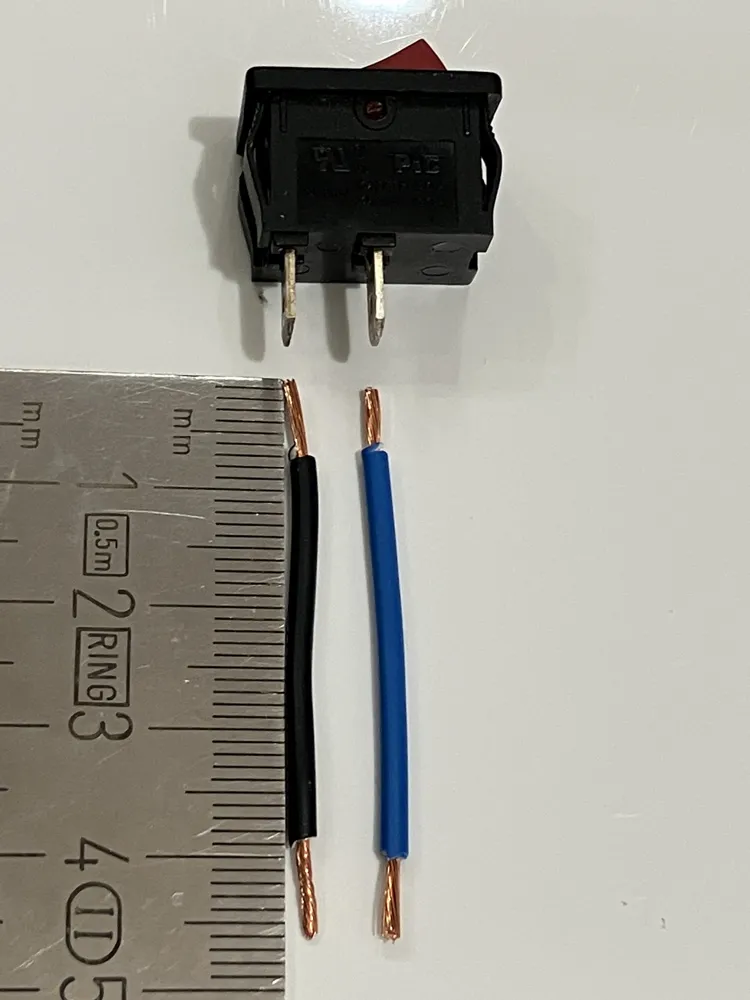

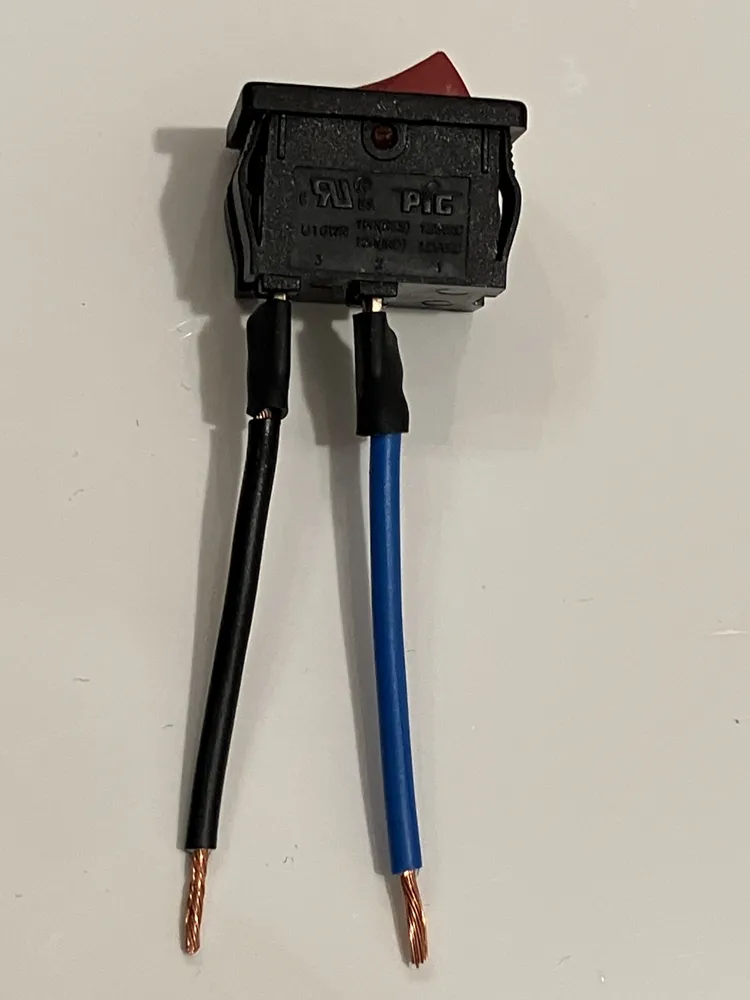

The switch wires must be soldered and protected with heat-shrink tubing for proper insulation.
