Unifi PoE to USB C G6 Weather Shield - Free 3D Print Model

Search models, users, collections, and posts

Audioillity

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

H2D

P1P

H2D Pro

P1S

H2S

H2C

P2S

X1E

A1 mini

X1 Carbon

0.2mm layer, 2 walls, 15% infill

Designer

3.5 h

2 plates

5.0(1)

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

White (45100) / Filament with spool / 1kg

ASA

White (53100) / Filament with spool / 1 kg

TPU for AMS

List other parts

Glue (Weather resistant) x 1: Glue is required to ensure the build remains weather resistant.

Description

UPDATE:

I've had this outside now for a few months, including during 100mph + winds. Has been holding strong, PoE injector still working perfectly along side Camera.

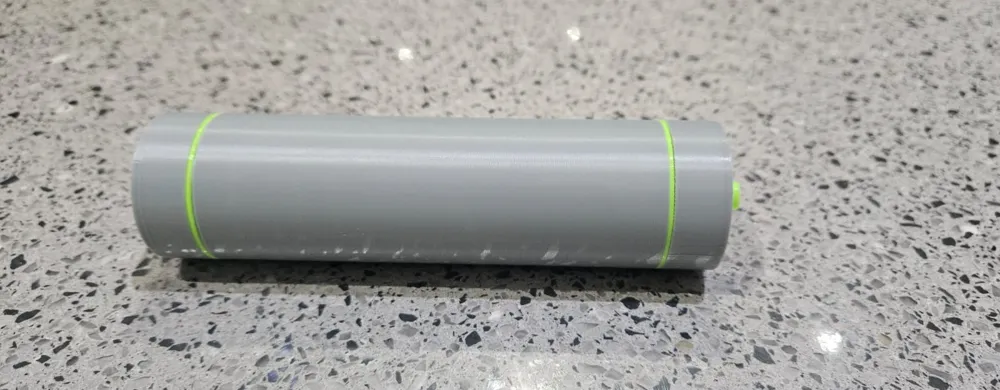

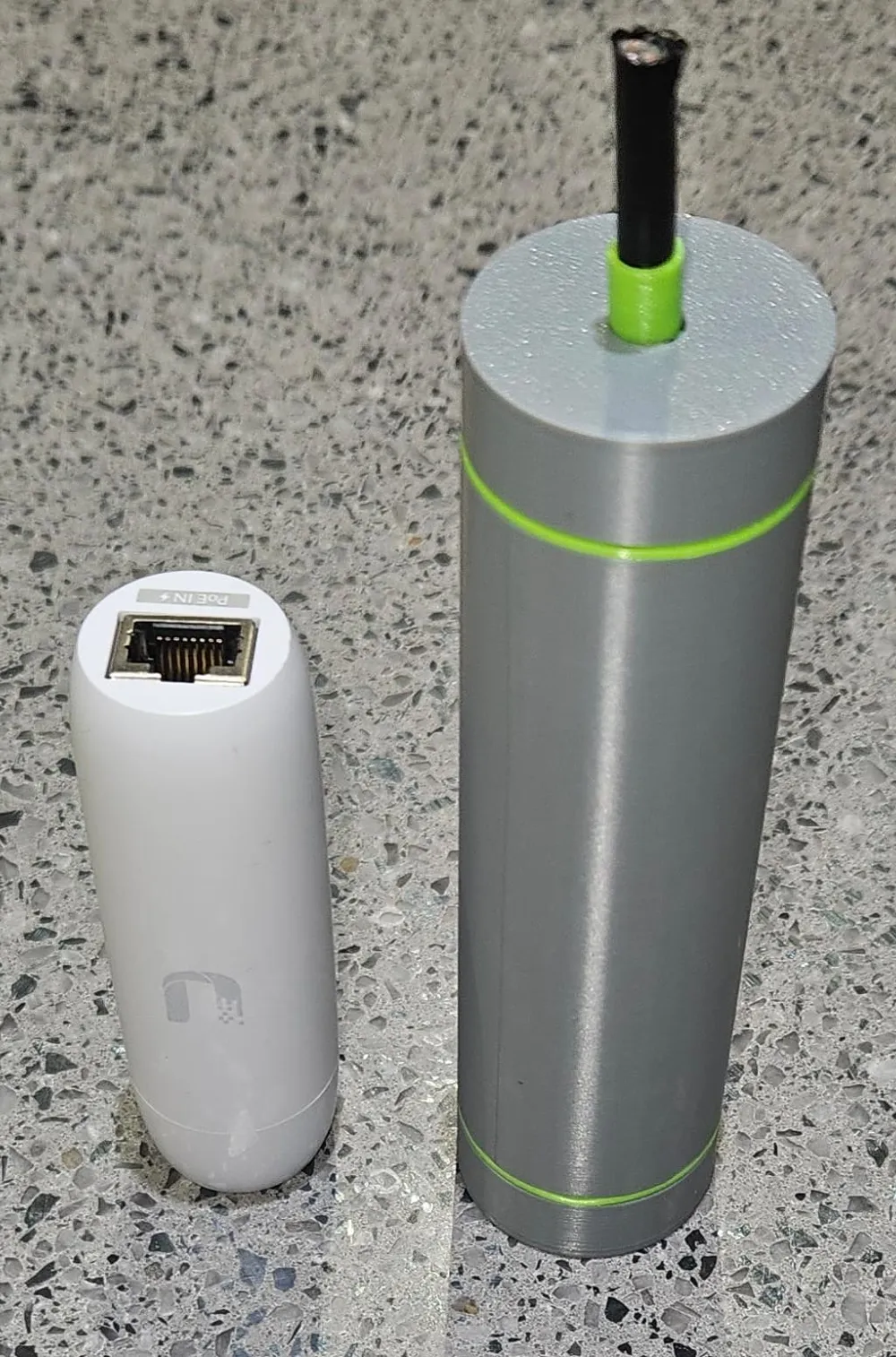

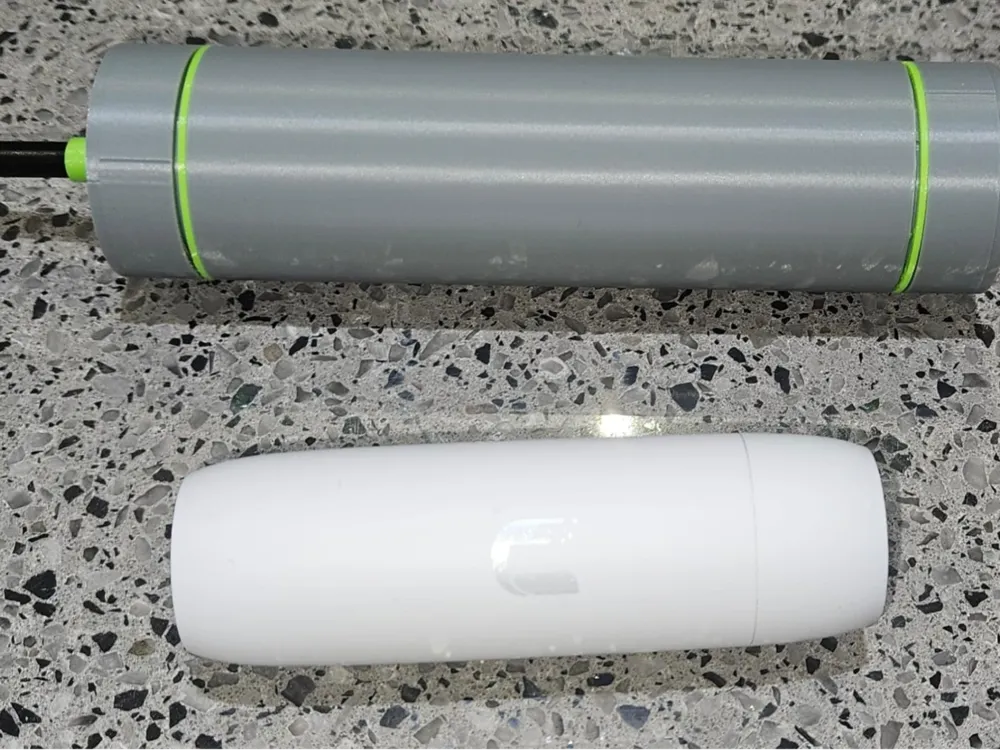

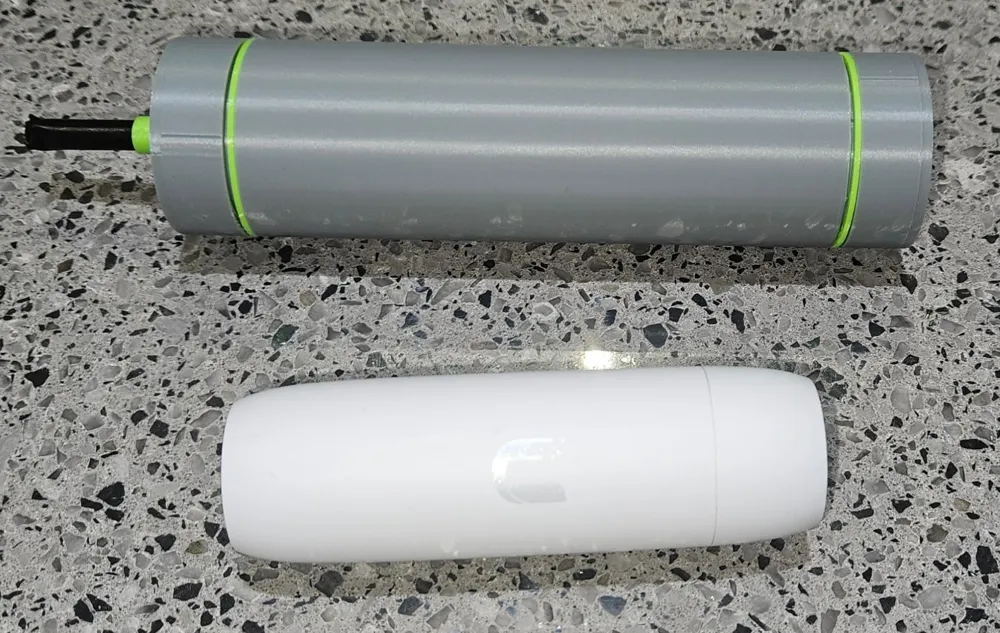

A very rough and prototype of a weather shield / protection for the PoE to USB C injector for the Unifi G6 Instant Camera. Allows you to feed in a Cat 6 UTP / STP cable in one end, and a USB C cable for the camera into the other end. The PoE injector unit sits inside the casing, provoding added weather protection as the units are designed for indoor use.

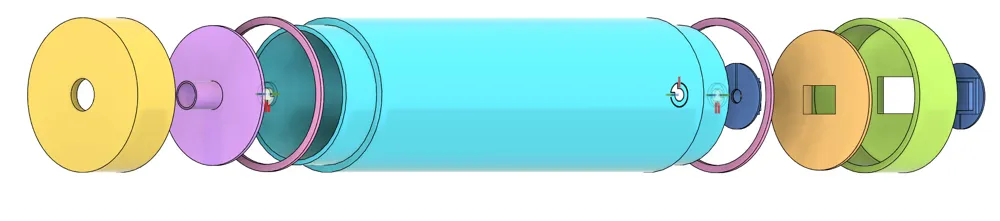

Version1: Requires careful assemble and use of glue to ensure the unit is fully sealed. I'd strongly recomend using ASA for the plastics and TPU for the flexible entry / exit points from the unit.

Disclamer: Use at your own risk, and ensure you fully glue / seal the unit for weather protection. Still being tested as part of my home setup.
