LED Strip Wire Splice
IP Report
Print Profile(3)
PLA Profile - 0.2mm layer, 2 walls, 15% infill
11 min
1 plate
ASA Profiile - 0.2mm layer, 2 walls, 15% infill
10 min
1 plate
PETG Profile - 0.2mm layer, 2 walls, 15% infill
11 min
1 plate
Open in Bambu Studio
Boost
58
127
1
0
70
30
Released
Description
Content has been automatically translated.
I created this splice out of the need to quickly and solder-free connect the LED strip to the wiring. This model works for 4-contact LED strips and also for 2-contact LED strips, as long as they are 10mm wide.
It's best to glue the bottom part of the strip and the wire to the connector to prevent it from coming loose.
I am new to modeling and printing, so any suggestions and improvements are welcome.
I hope it helps those who need it, just as I needed it here...lol

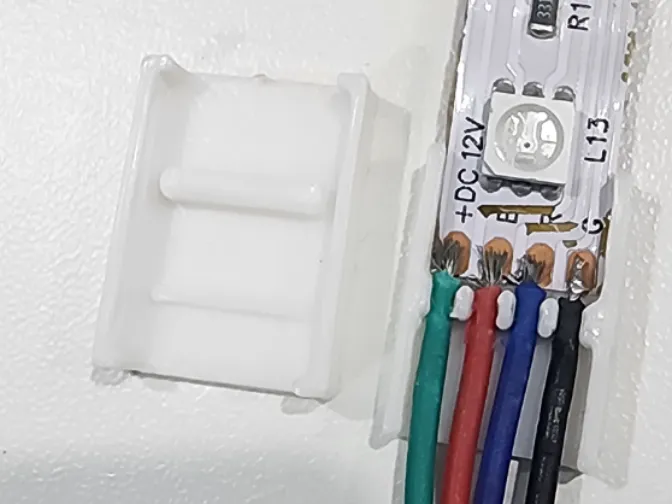

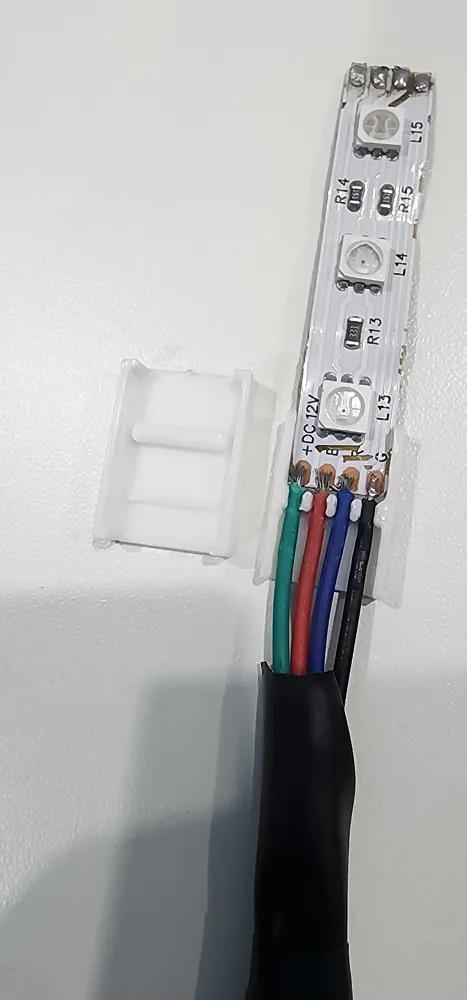

- The part with the embossed “L” is where the LED strip goes

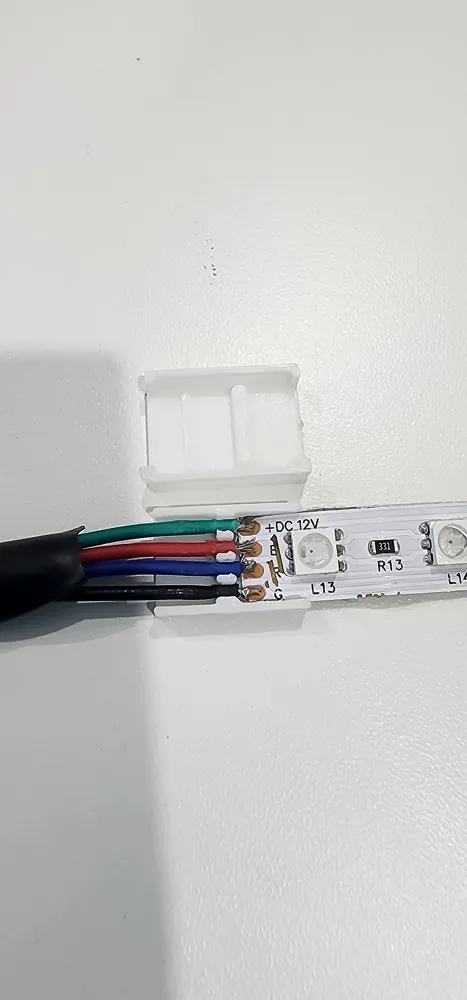

- The part of the lid that has a higher protrusion is the part that presses the wires to make contact with the LED strip connectors.
