Settlers of Catan Bookcase Edition - base & 4-5 p

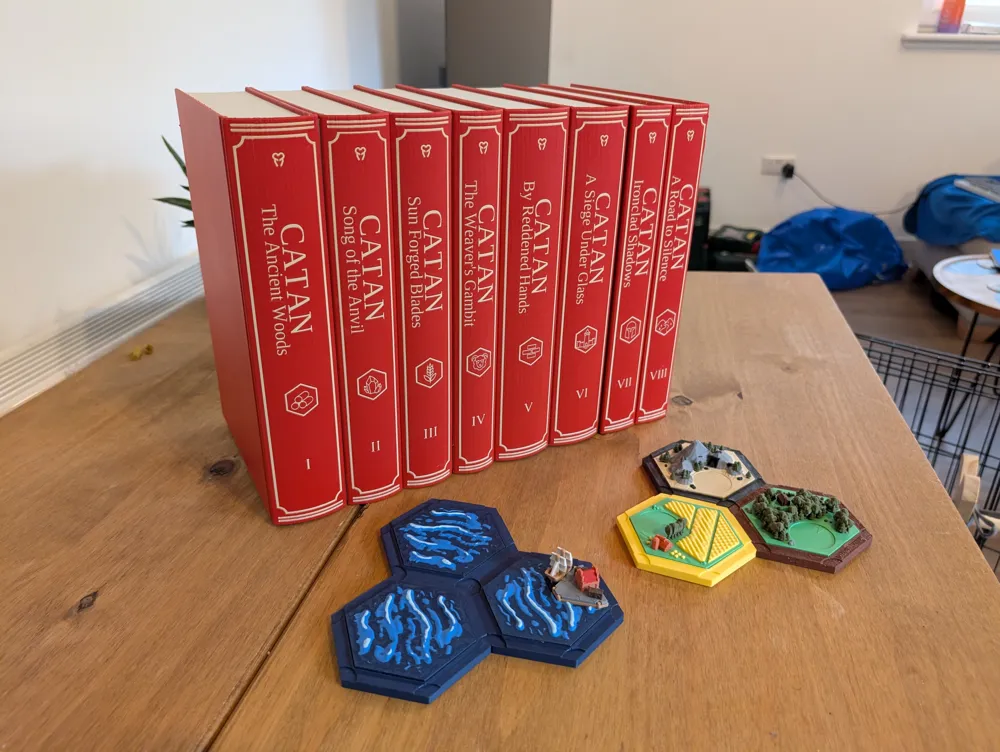

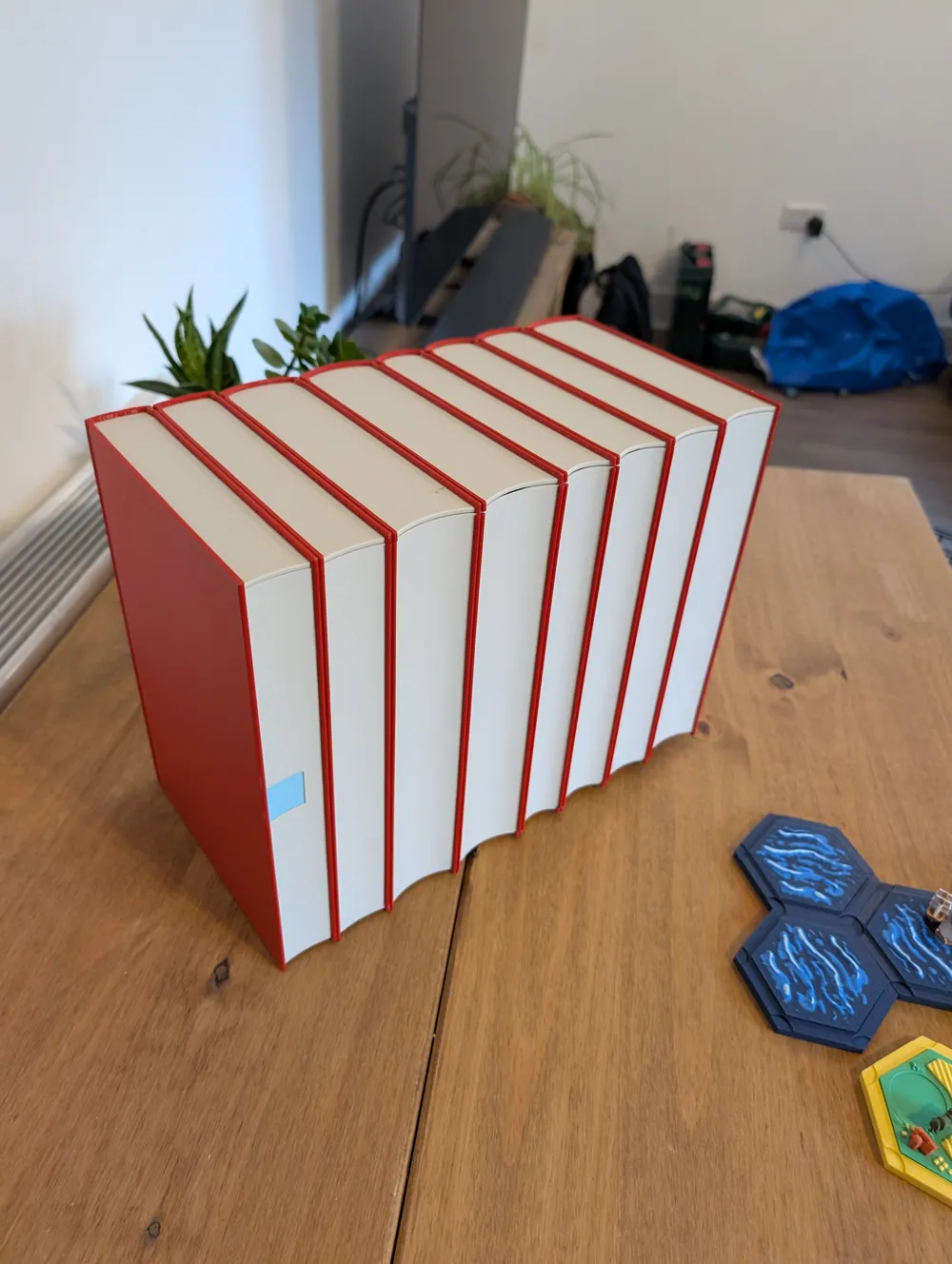

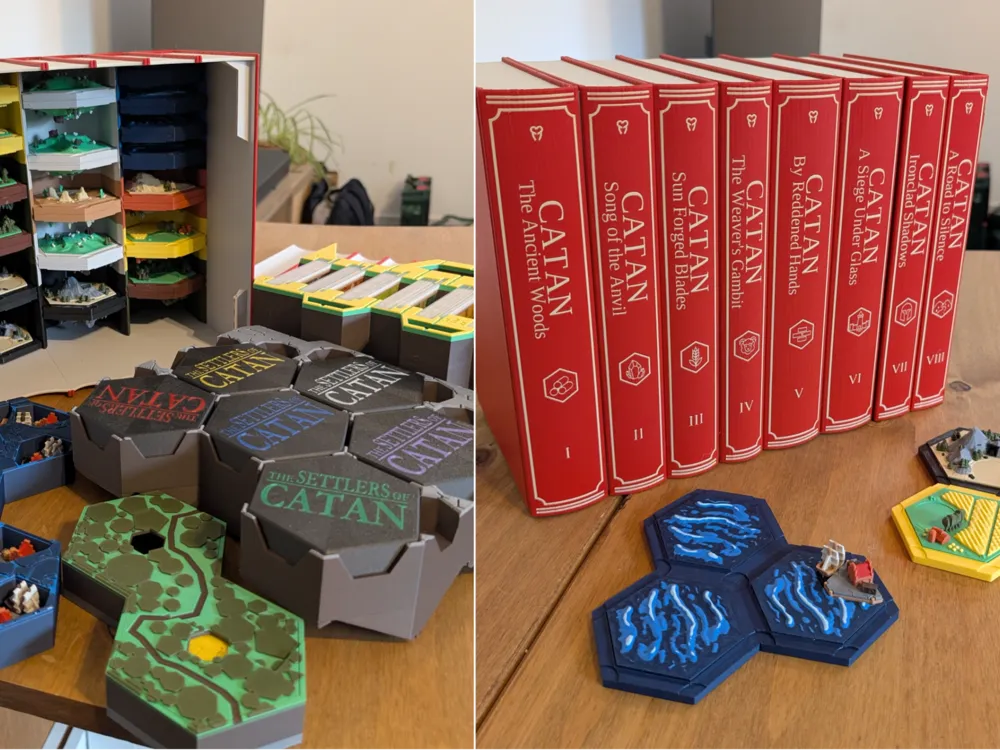

A Box to hide all your Settlers of Catan parts!

I made it with the intention of storing the Dakanzla 3D settlers of catan version set

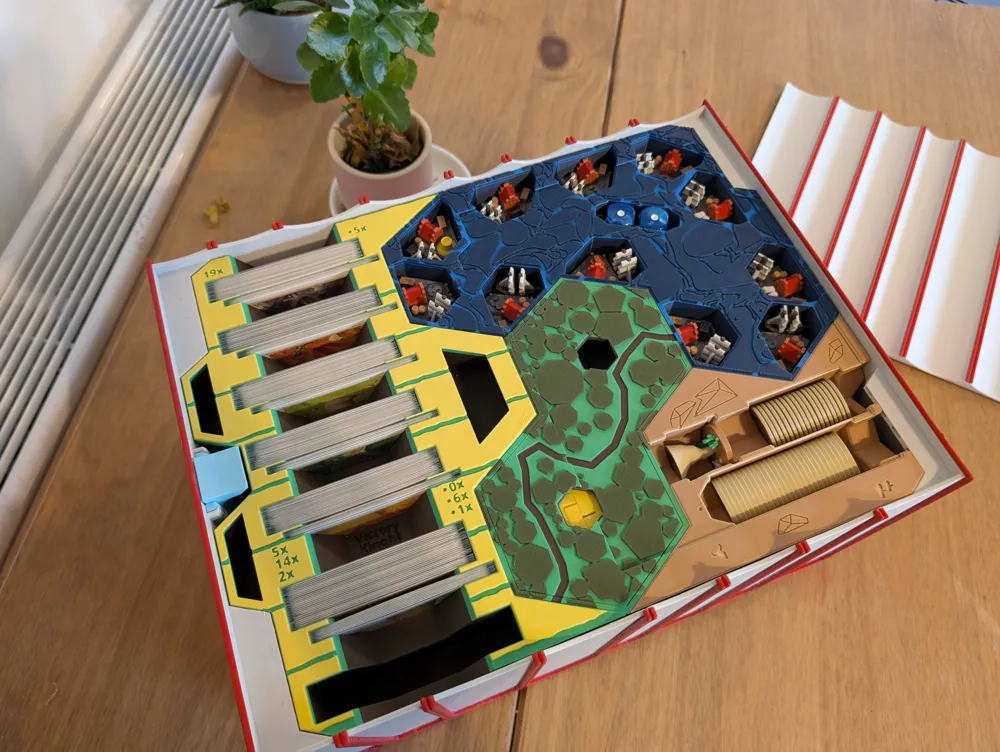

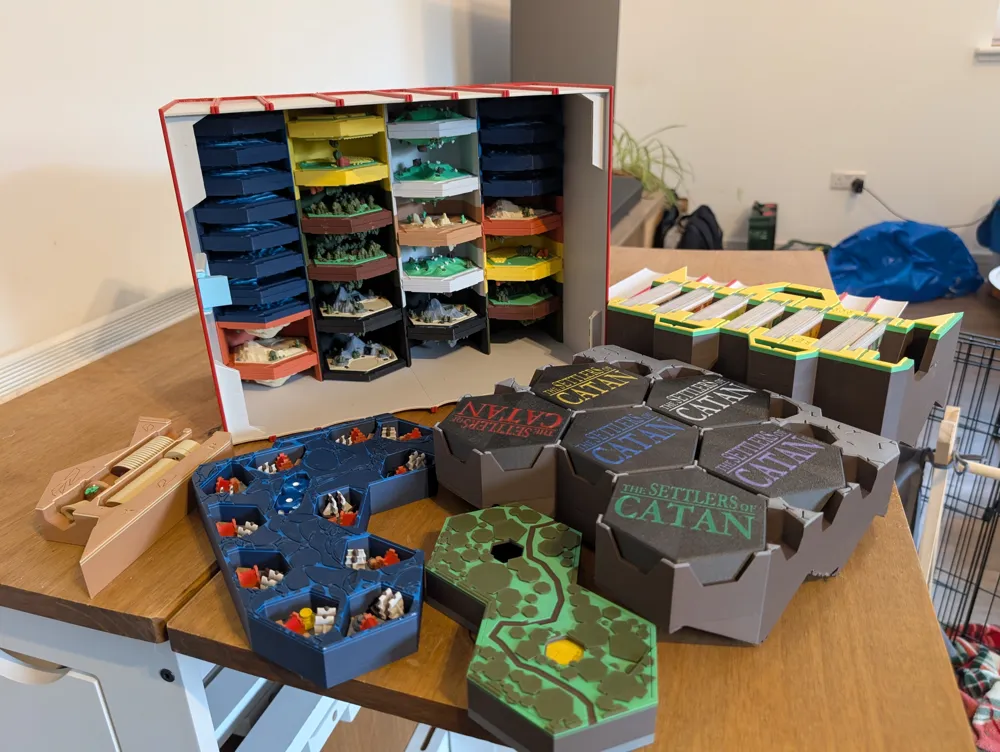

Here is what goes inside when using the tiles I have provided:

• The cards:
  • https://amzn.to/3LrXUJA
• The game
  • https://makerworld.com/en/models/179323-settlers-of-catan-base-game-5-6-player-expansion#profileId-197226
  • Or
  •  3D Settlers of Catan base + 5 to 6 players expansion
• 6x Pieces box
  • https://makerworld.com/en/models/1751356-magnetic-catan-player-pieces-box#profileId-1861942
• Tokens:
  • The game comes with a set for the base game but its missing one for the expansion
  • So I used this one and created a profile to scale it to the same size:
  • https://makerworld.com/en/models/449475-settlers-of-catan-number-tokens-base-expansion?replyId=93970462&replyType=2#profileId-1975196
• 6x Card foldable card holder
  • https://makerworld.com/en/models/1867387-compact-modular-card-holder-for-catan#profileId-1998229
• Printed version of the rules in A4 folded in half (booklet)
• Special cards (6x Building Costs, 1x Longest road, 1x Largest army)
  •  https://makerworld.com/en/models/2612060-catan-3d-cost-longest-road-largest-army-cards#profileId-2882640
• Trade tokens (Catan for two)
  • https://makerworld.com/en/models/2626225-catan-2-players-trade-token#profileId-2899380

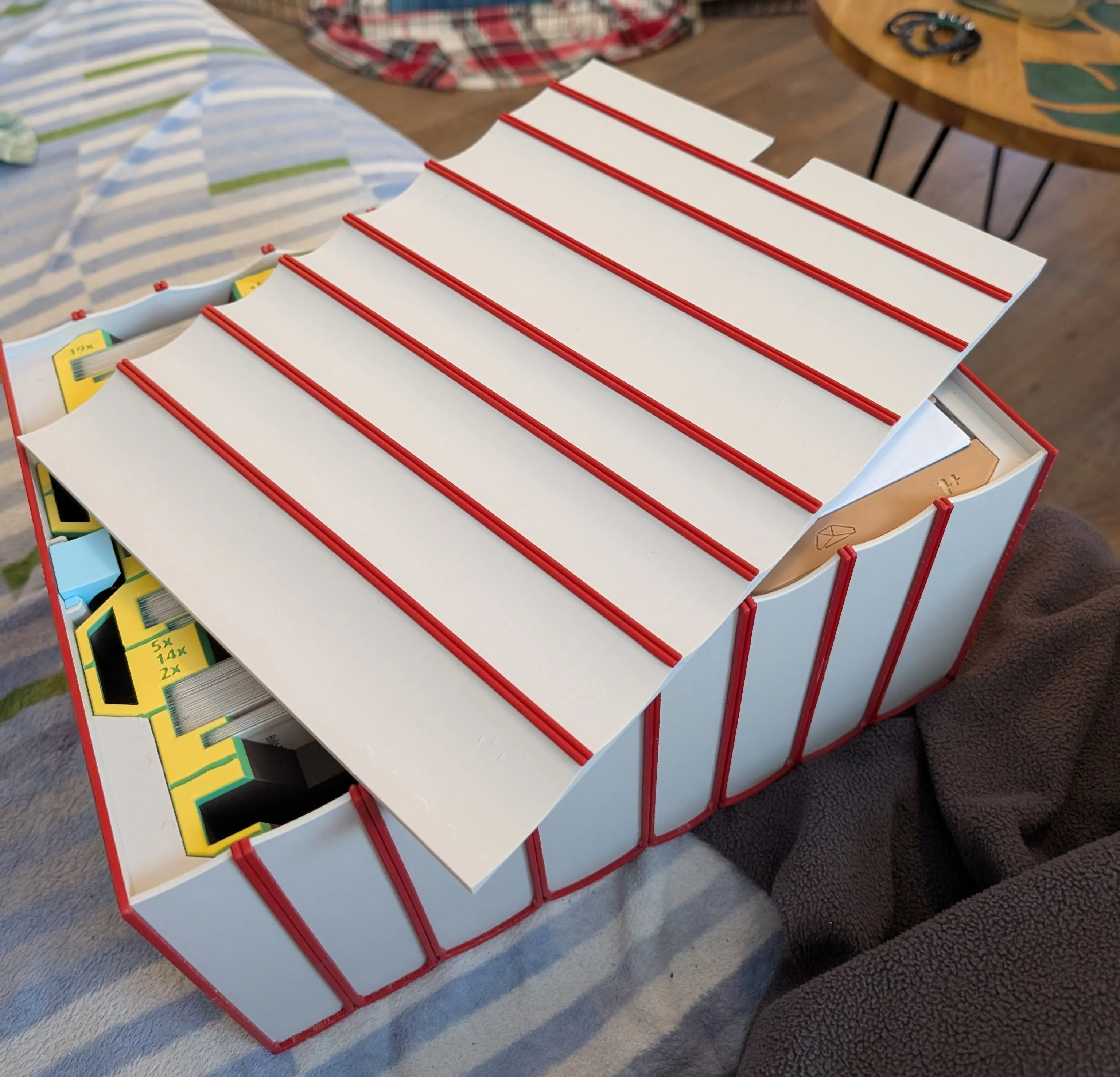

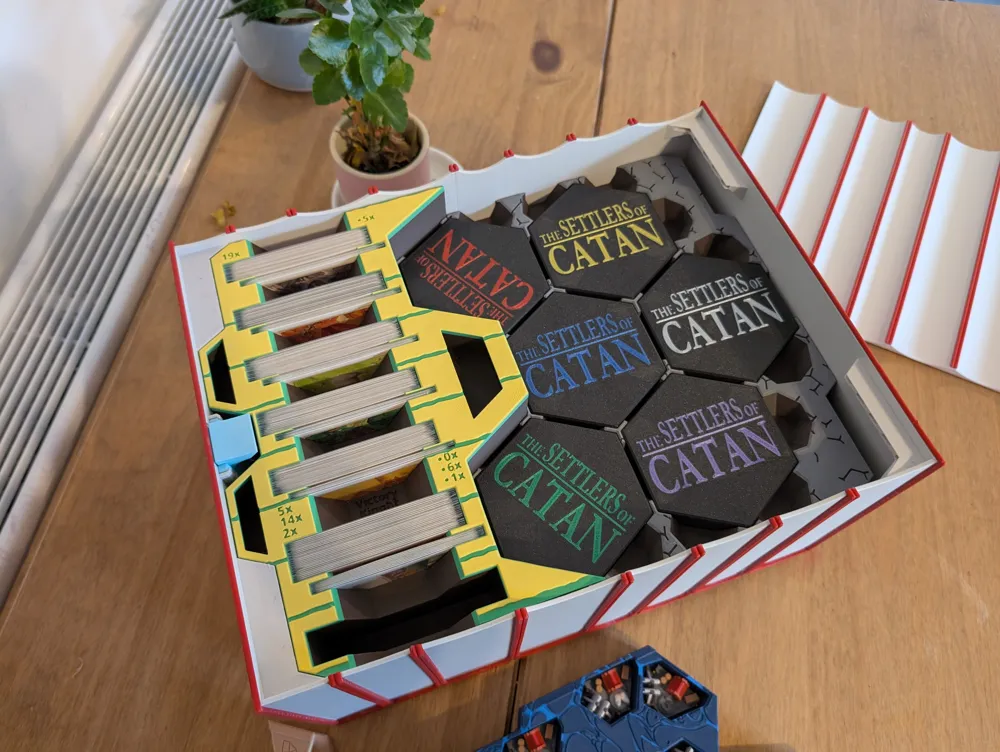

The inserts have separations to indicate what is part of 5-6 players expansion and what it part of the base game

This is to make it easier to separate (and yes you want to do that if you are playing with less then 5 people because it changes the game balance

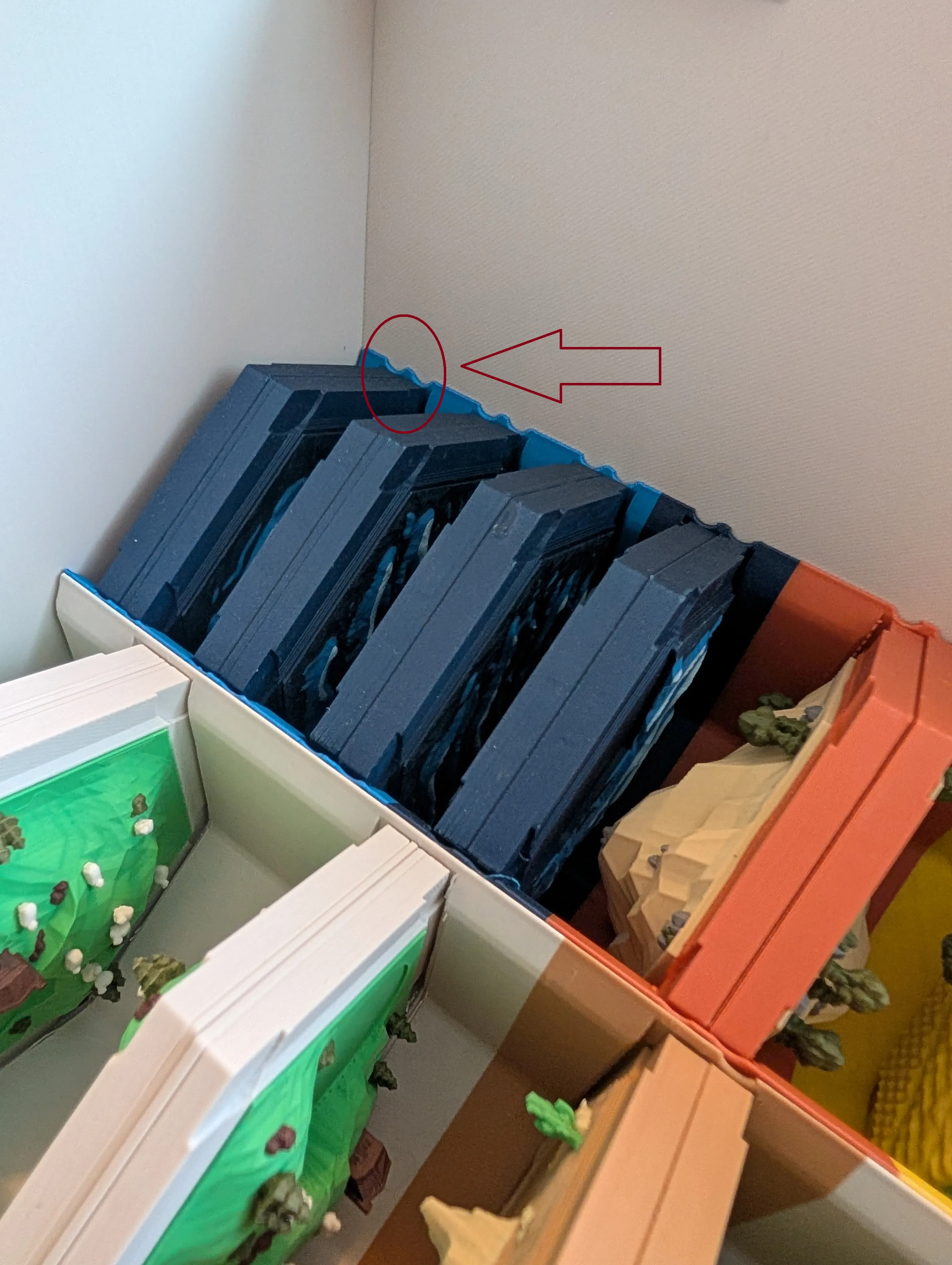

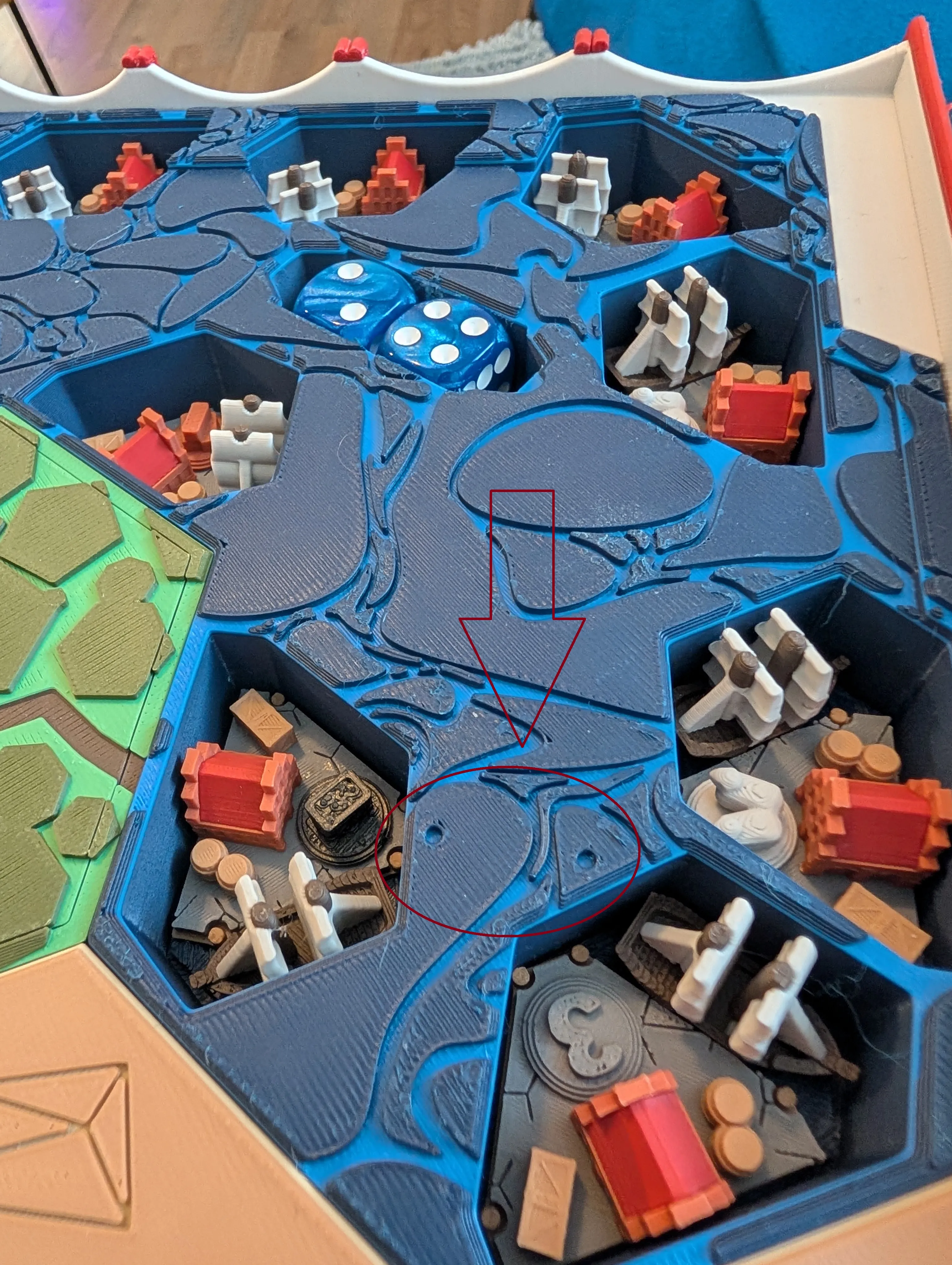

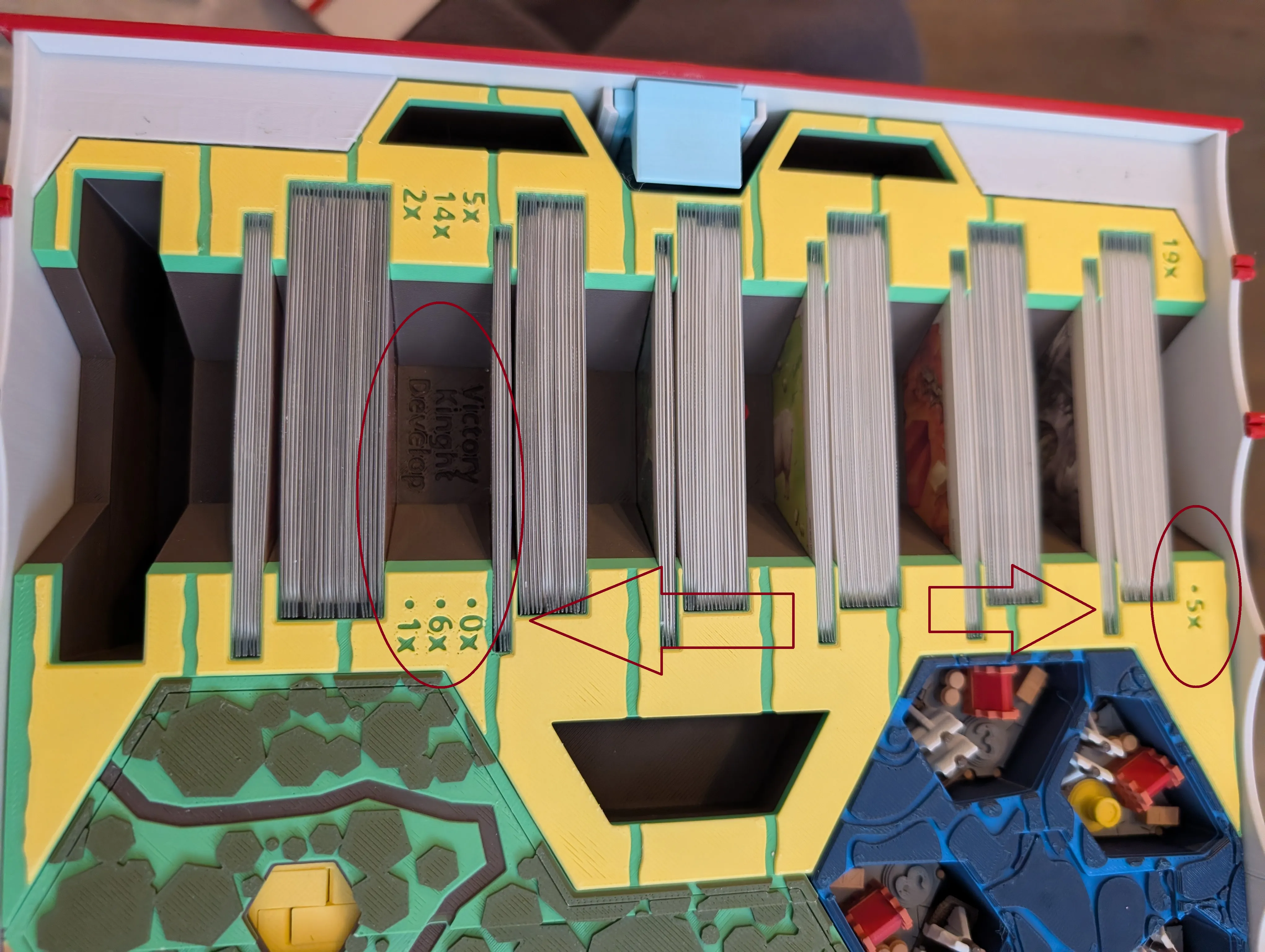

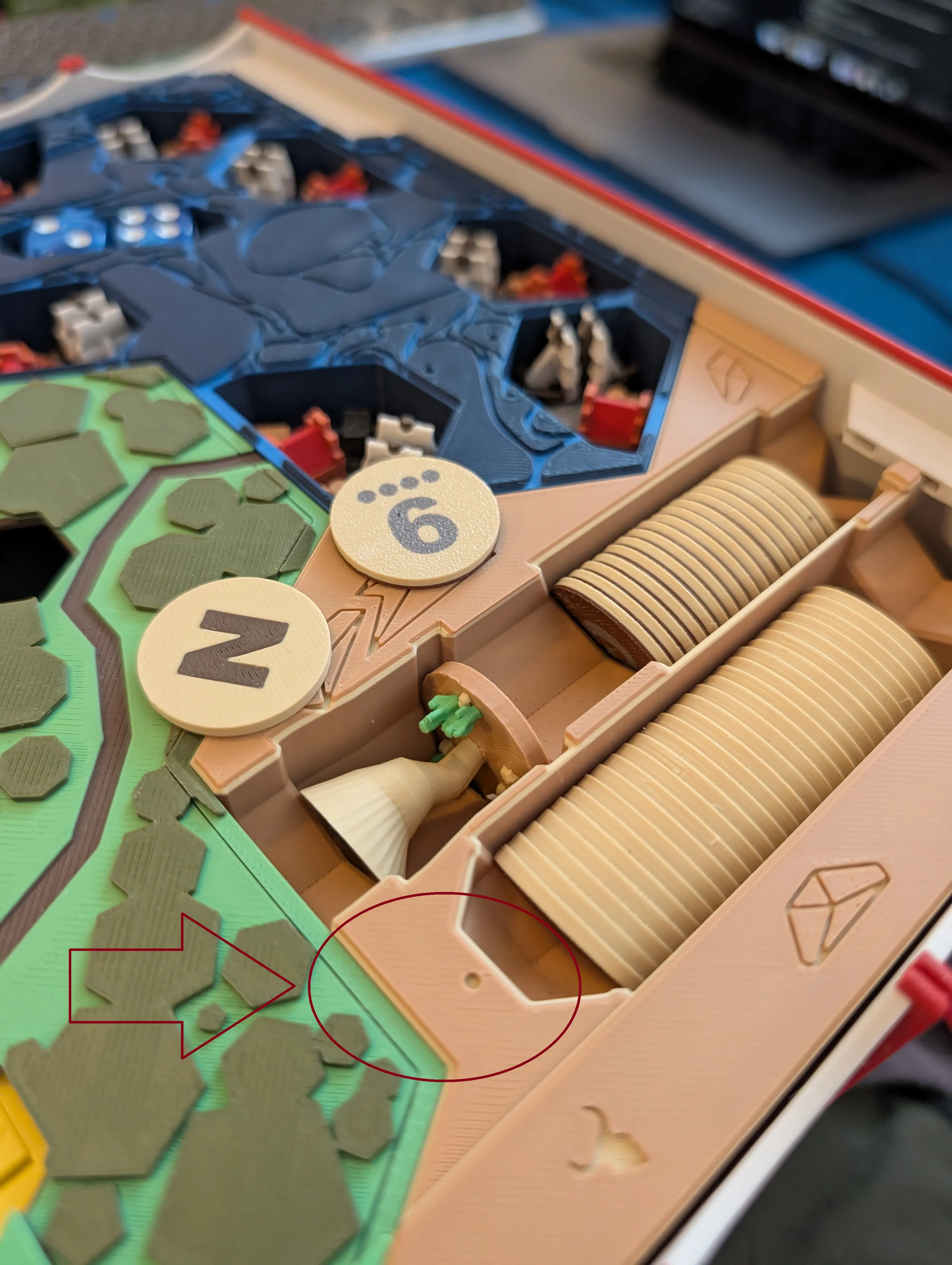

Everything that is 5-6 players has a round mark on it, and the cards tile have an indication of what cards need to be separated:

Building:

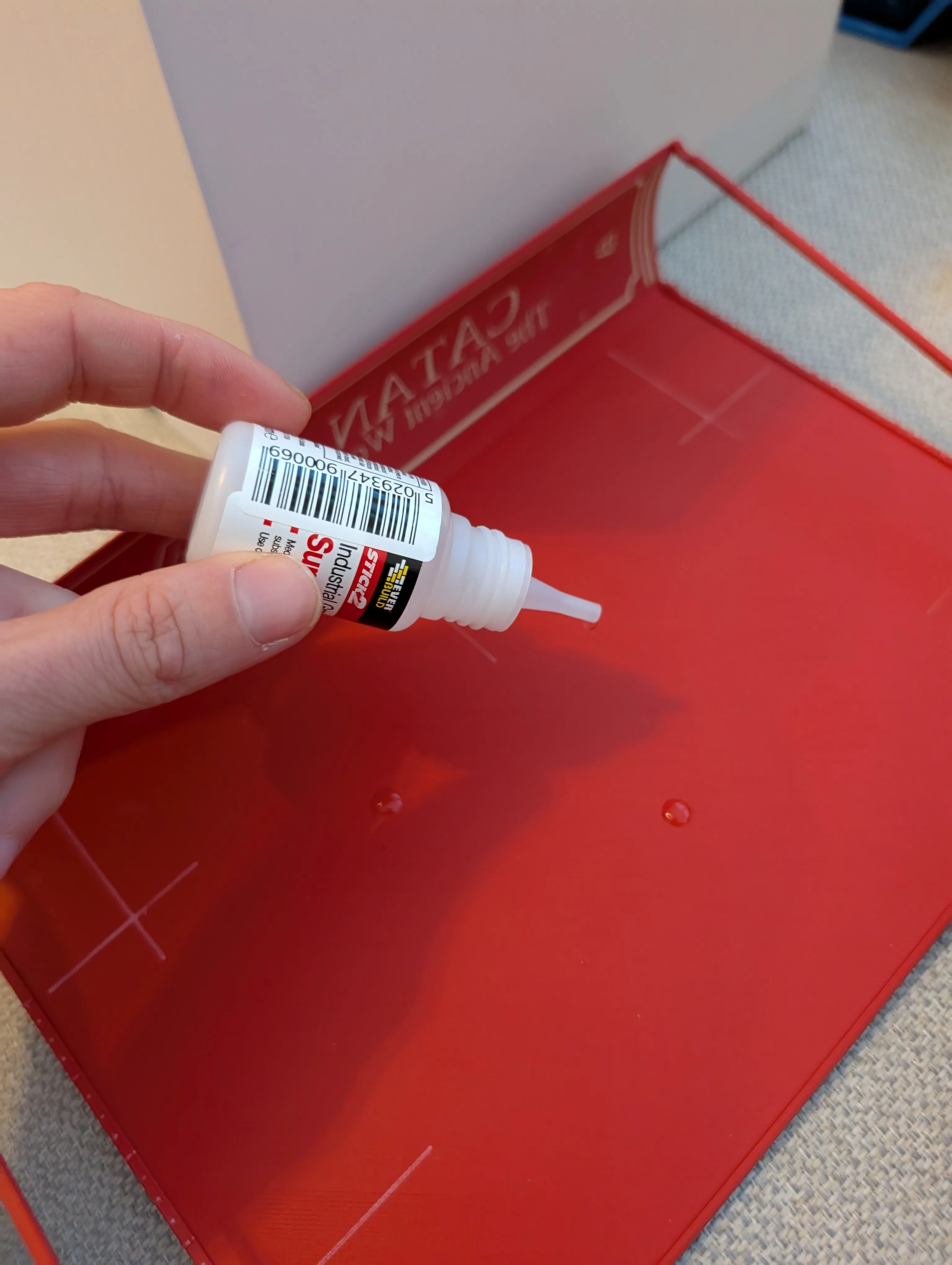

You will need to print all the parts then glue them together

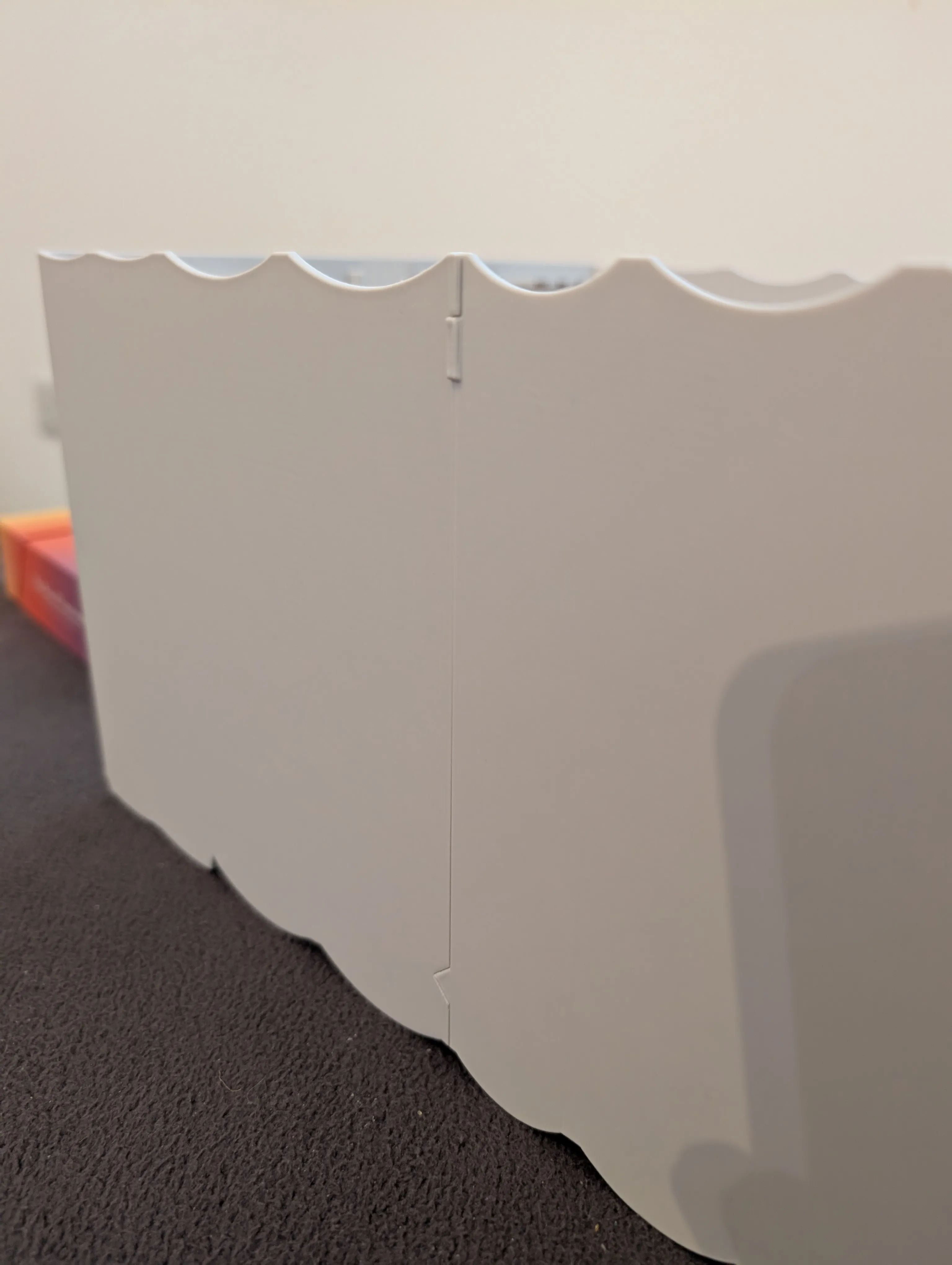

First the two box cases:

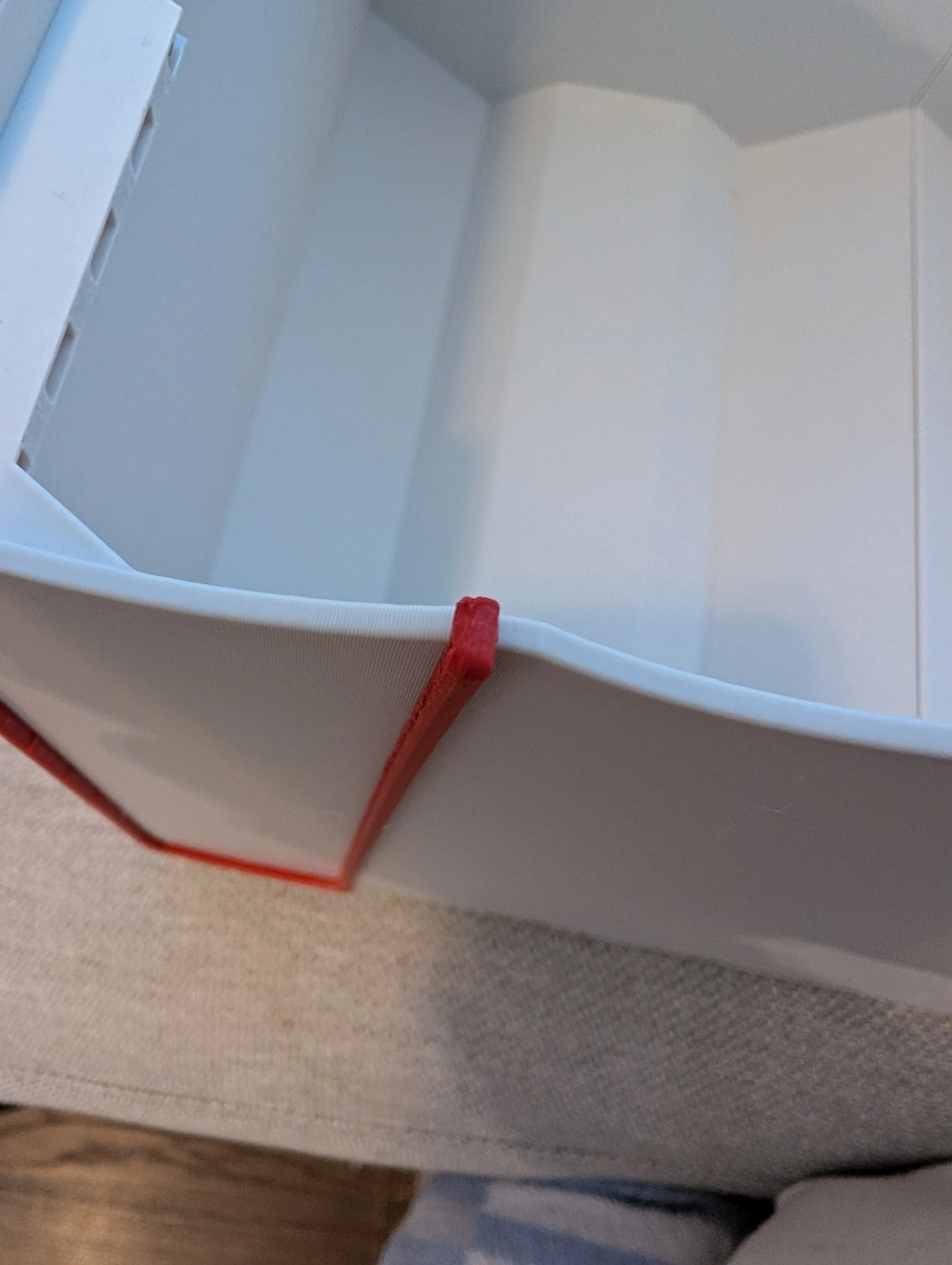

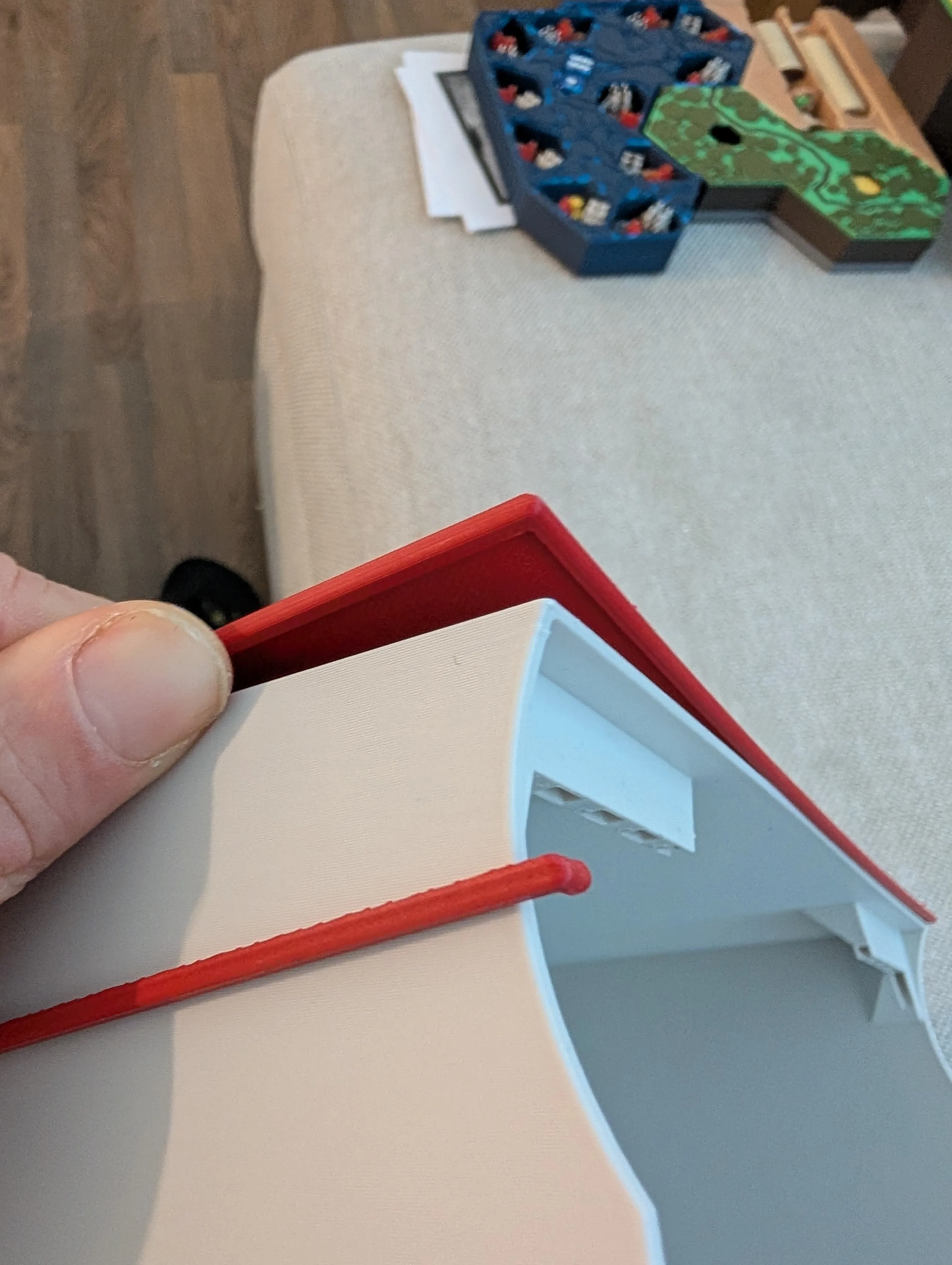

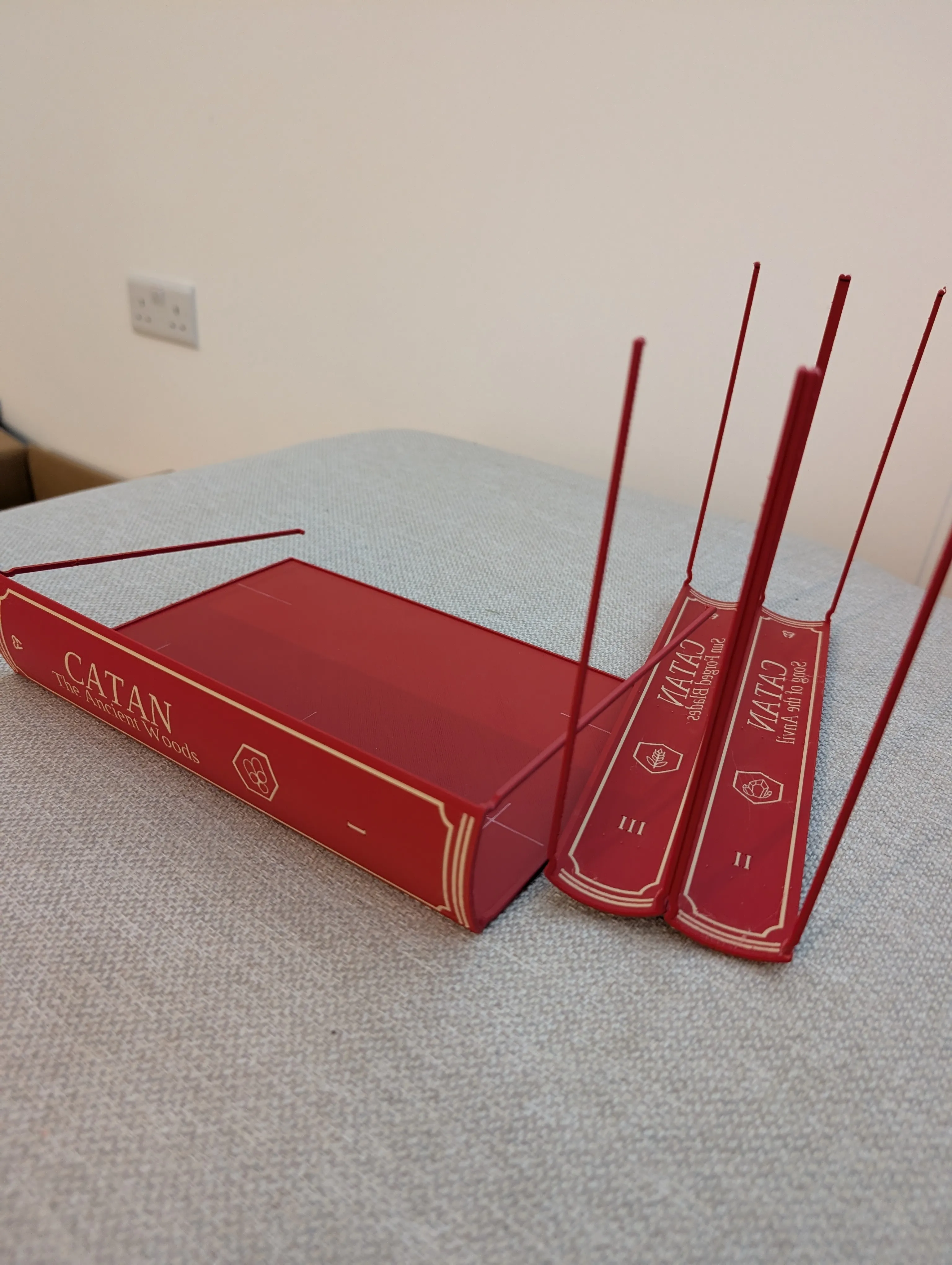

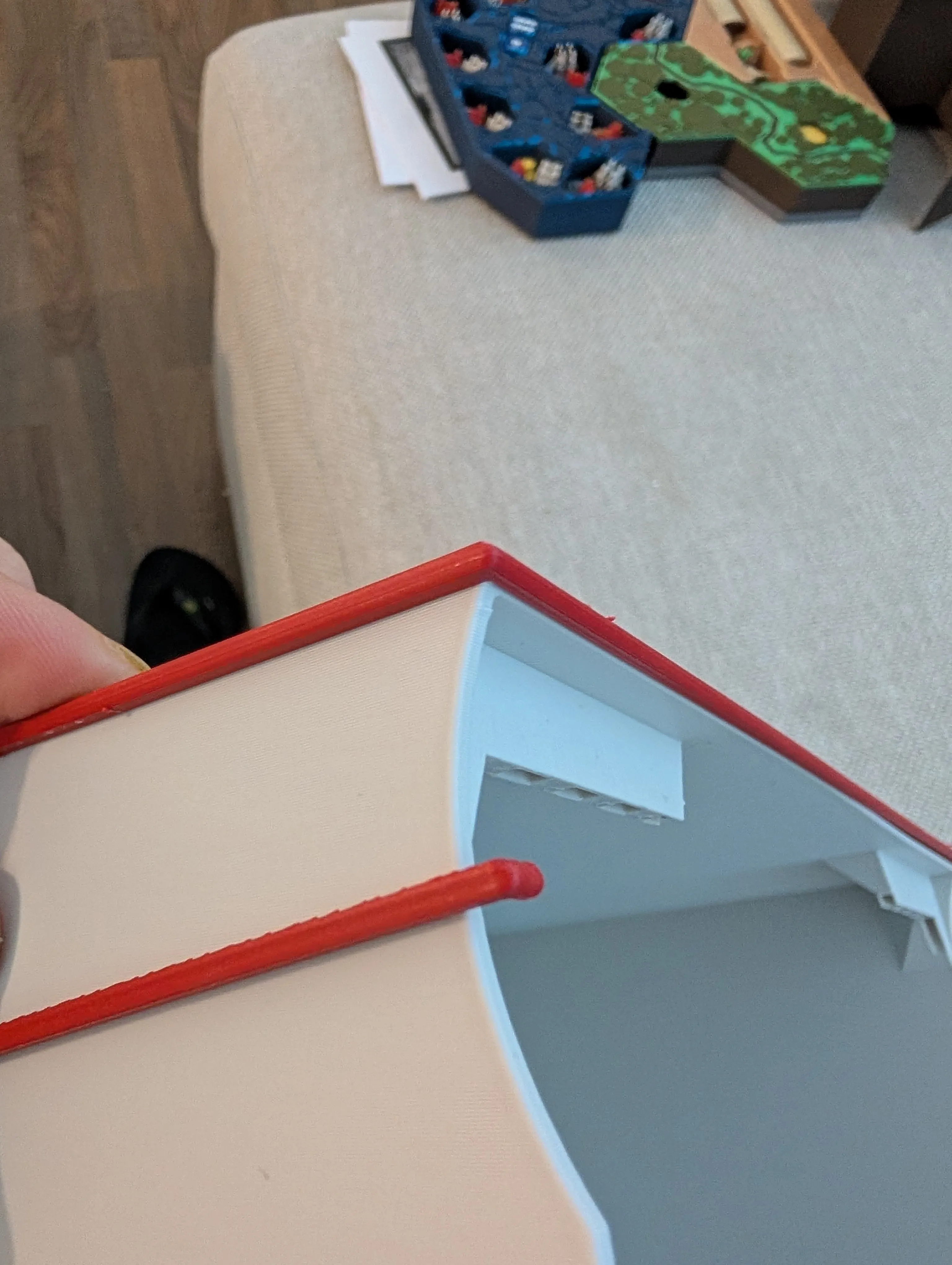

Then remove the supports from the spine pieces and glue them straight to the box in order. Last insert the spring on the spring slot:

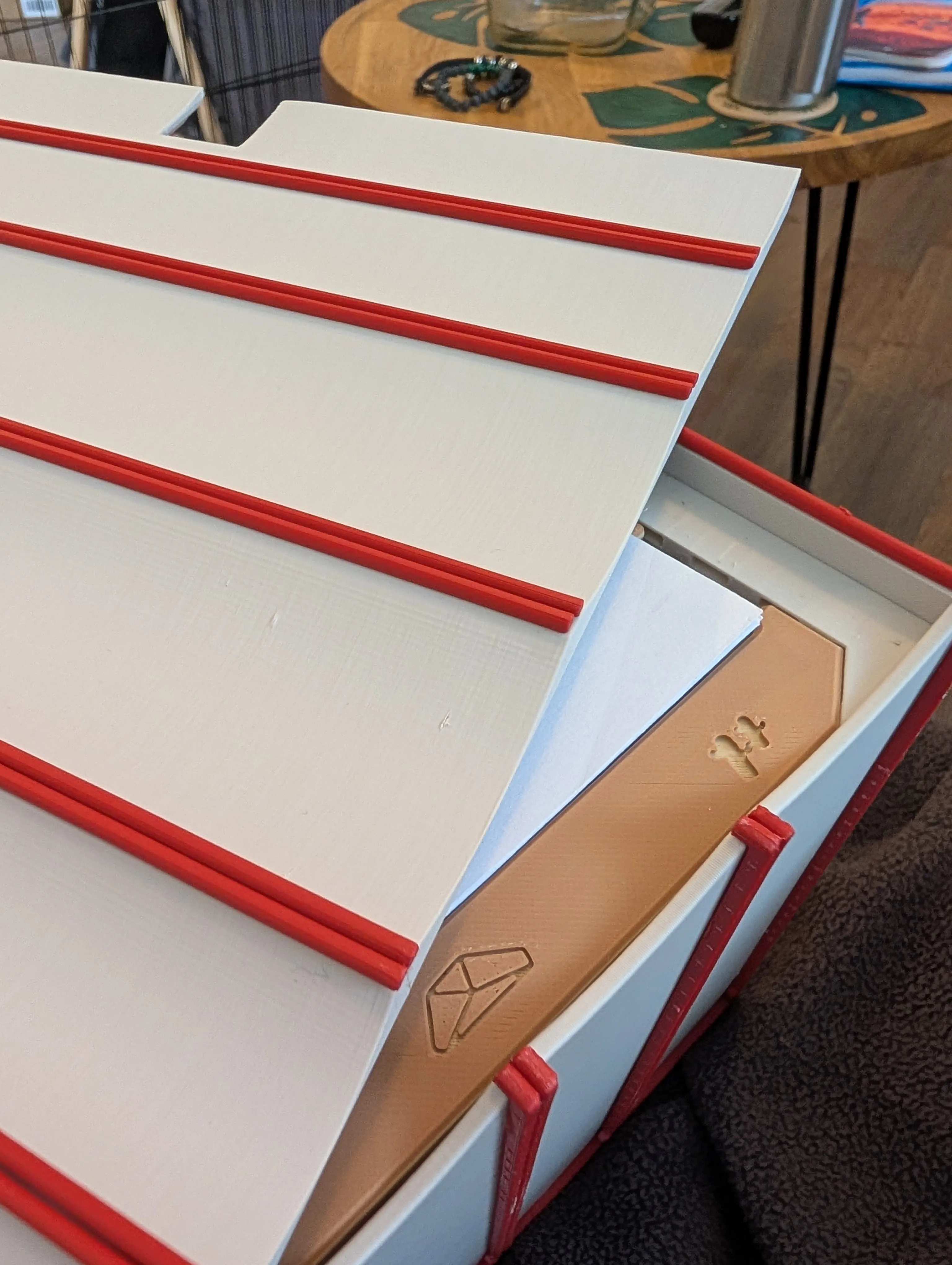

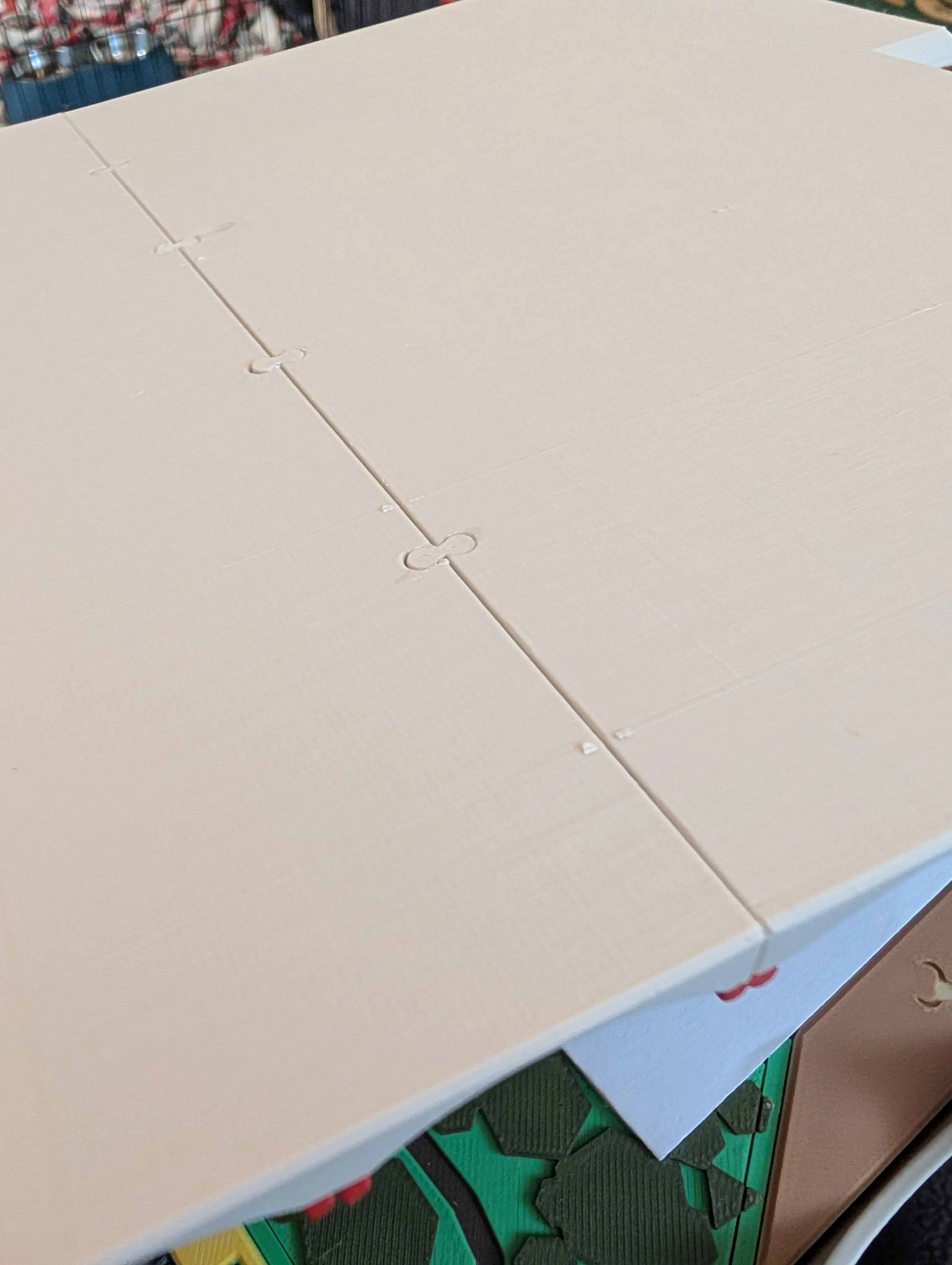

Do the same for the lid, print both parts, glue them together and use the butterflies to give some structure, then glue the ridges:
