Bill of Materials

Maker's Supply Kits and Parts
Select all
D4x2 mm Round Magnet (20PCS) - CA001
List other parts
  • Bambu 3D Effect Plate - Carbon Plate x 1: https://eu.store.bambulab.com/products/bambu-3d-effect-plate

Description

Content has been automatically translated.
Show original

Boost Me (for free)

If you like my creations, don't hesitate to encourage me with a boost ;-)

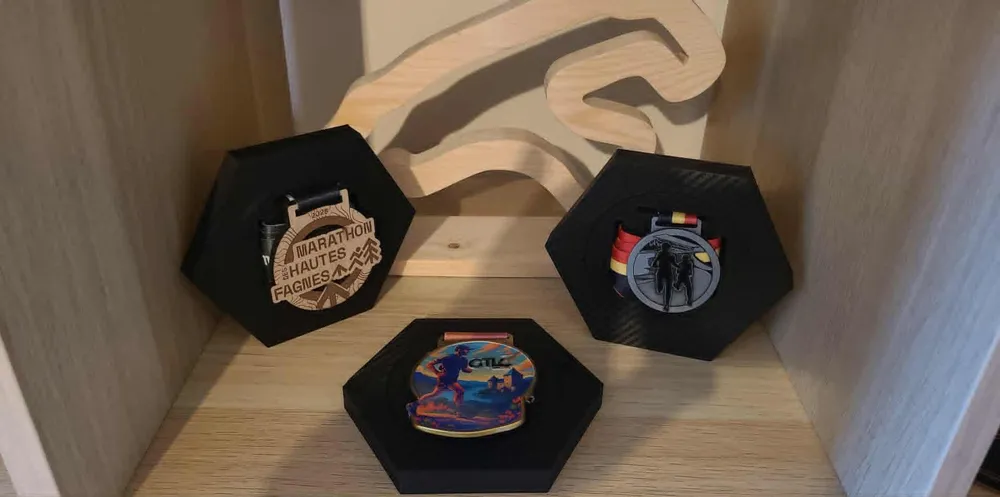

Premium hexagonal medal holder – carbon effect & magnetic closure

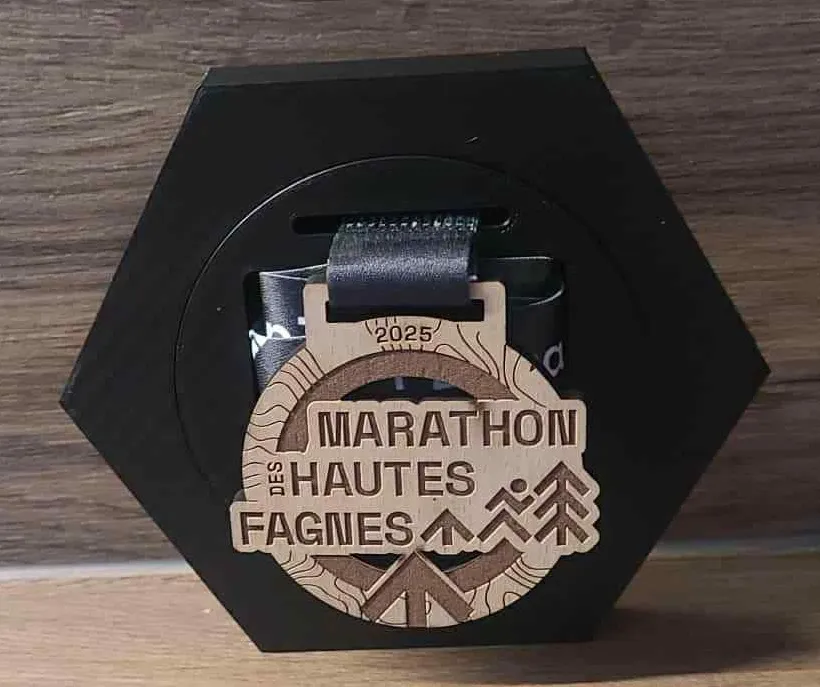

Showcase your finest medals with this elegant and modern hexagonal-design holder. Designed to provide a neat and unique presentation, it fits perfectly in an office, living room, or sports-dedicated space.

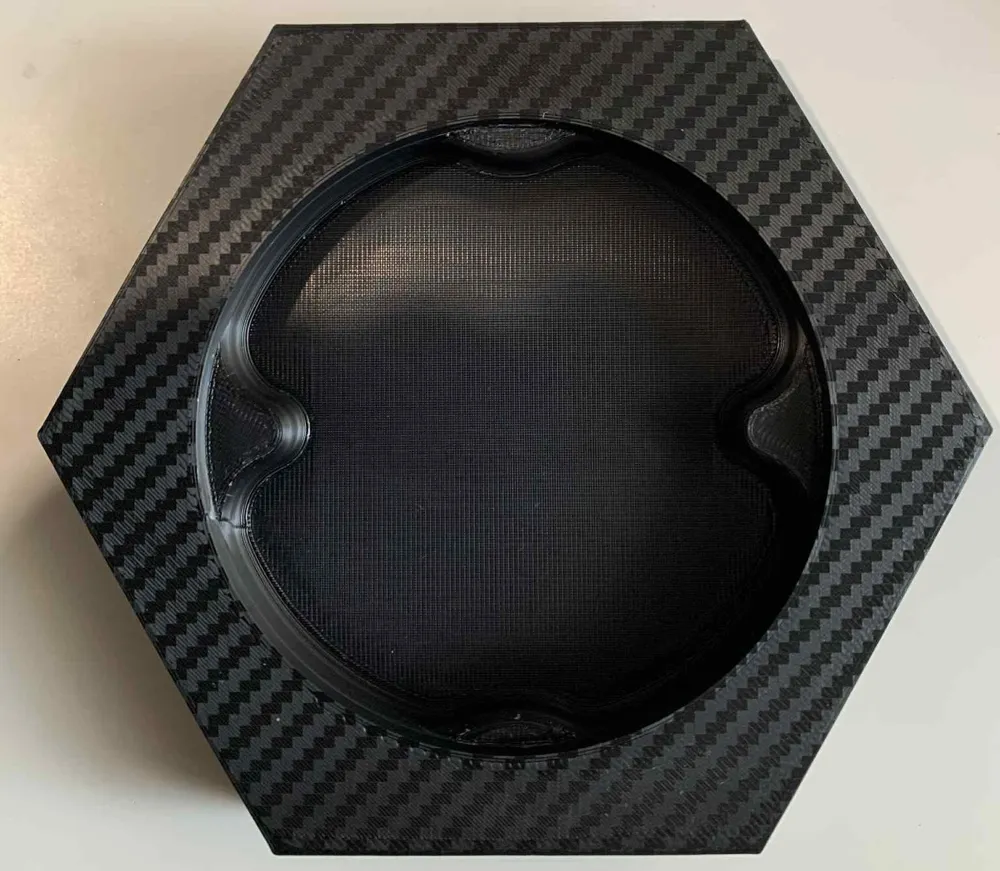

Premium carbon effect finish

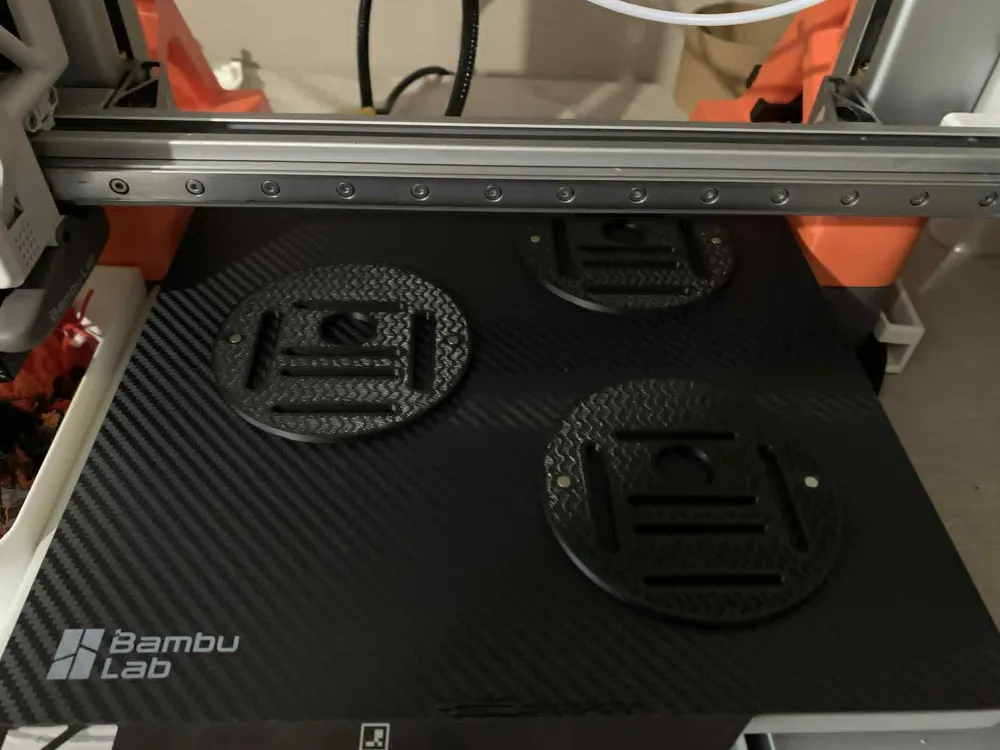

This model was printed with a 3D carbon effect plate, offering a sophisticated visual rendering and a very realistic carbon fiber appearance. A true decorative object in addition to a display stand!



Integrated magnetic system

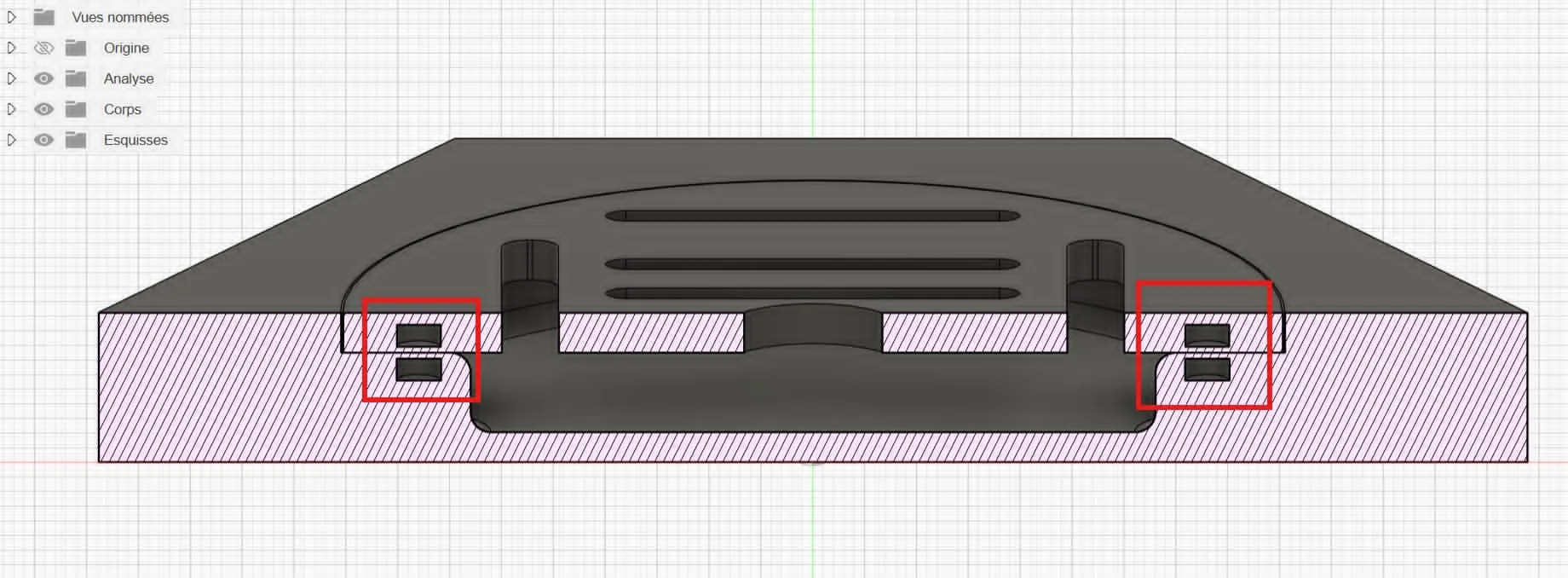

The lid and base are held firmly in place by magnets carefully integrated and embedded in the material.

A pause is integrated into the print profiles to allow for magnet insertion.

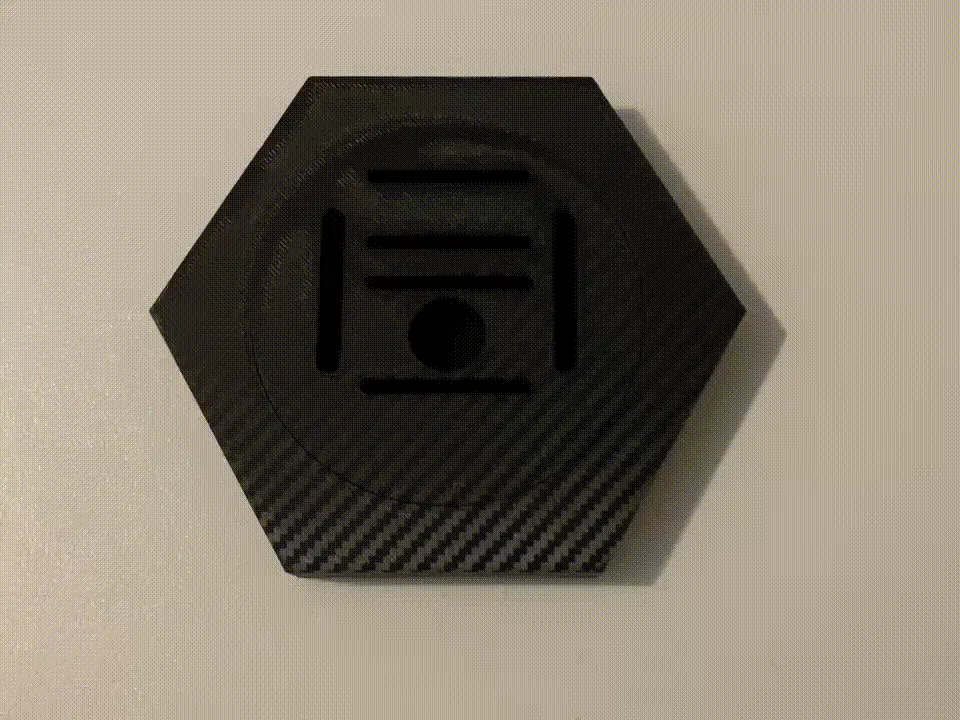

They ensure a discreet, solid, and durable closure, while allowing easy access to change or reposition the medal.



Perfect ribbon hold

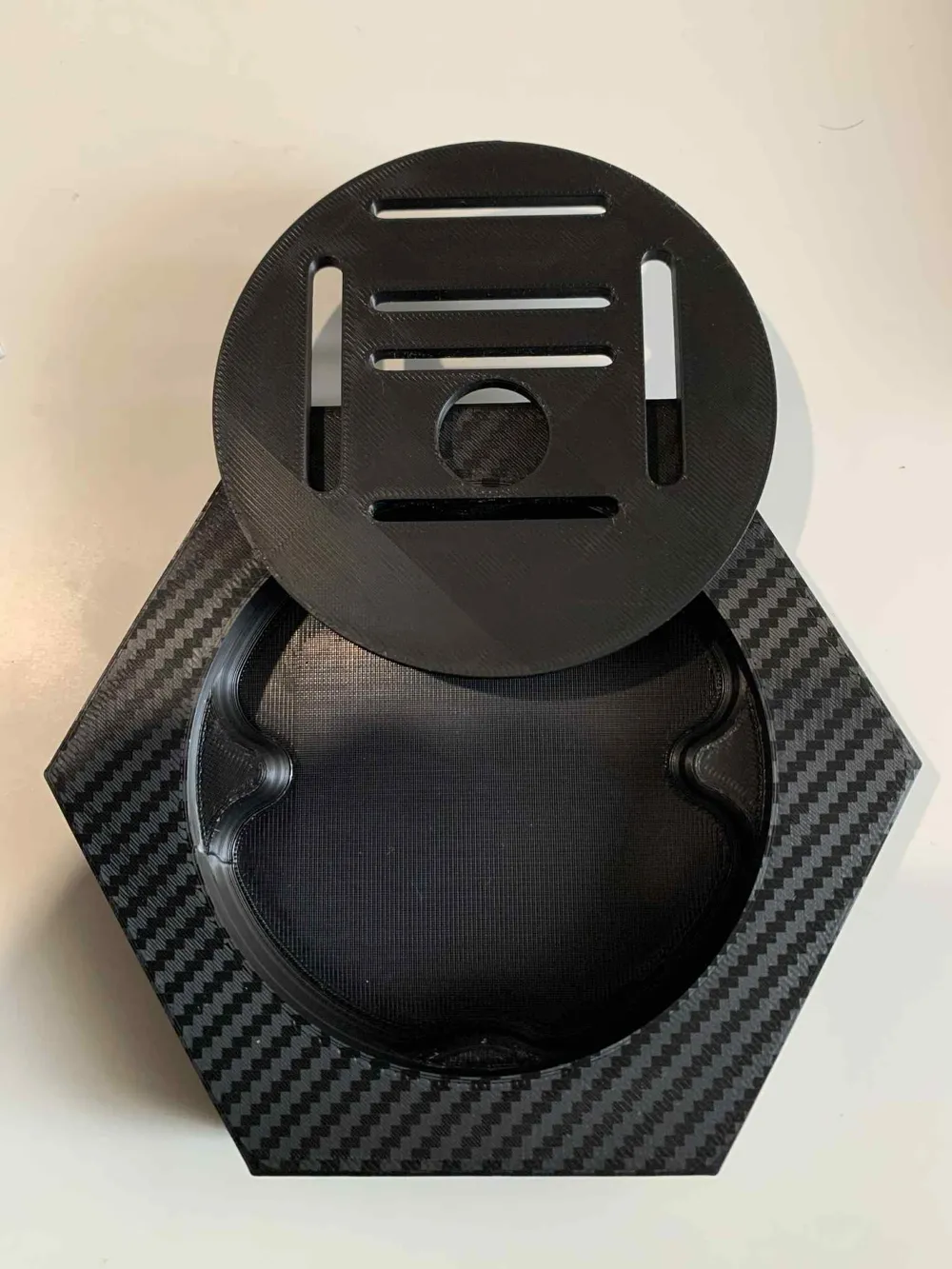

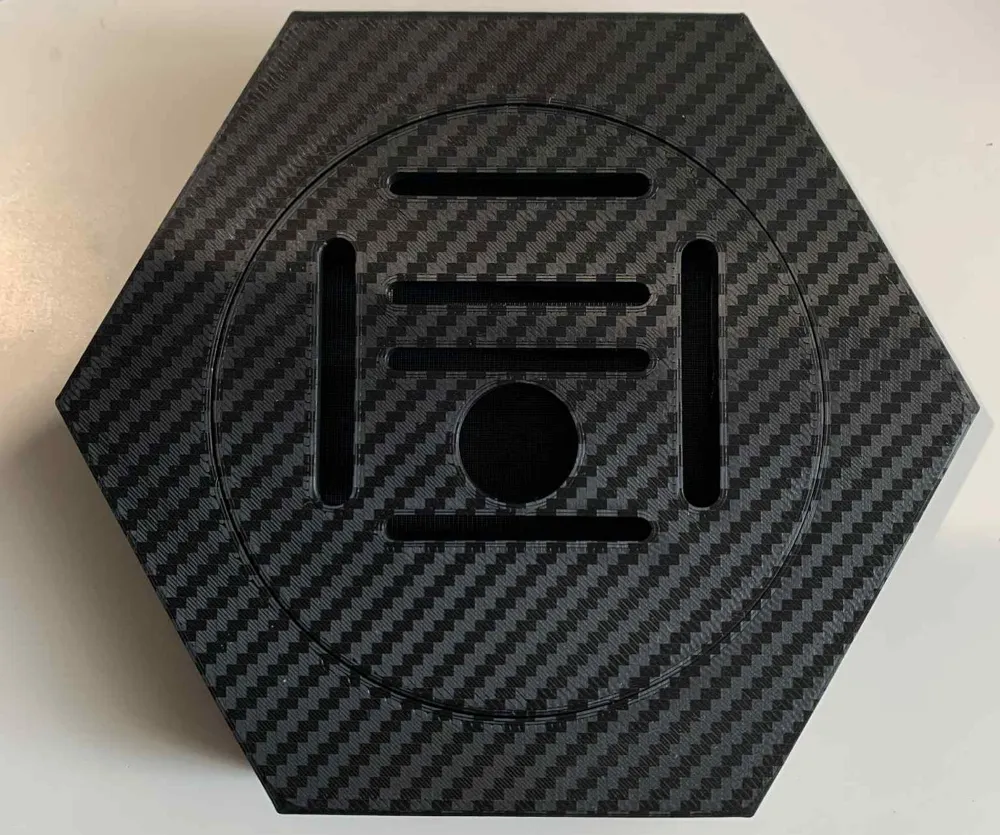

The inner plate features slots to slide and secure the medal's ribbon, for an impeccable presentation.



Minimalist & modern design

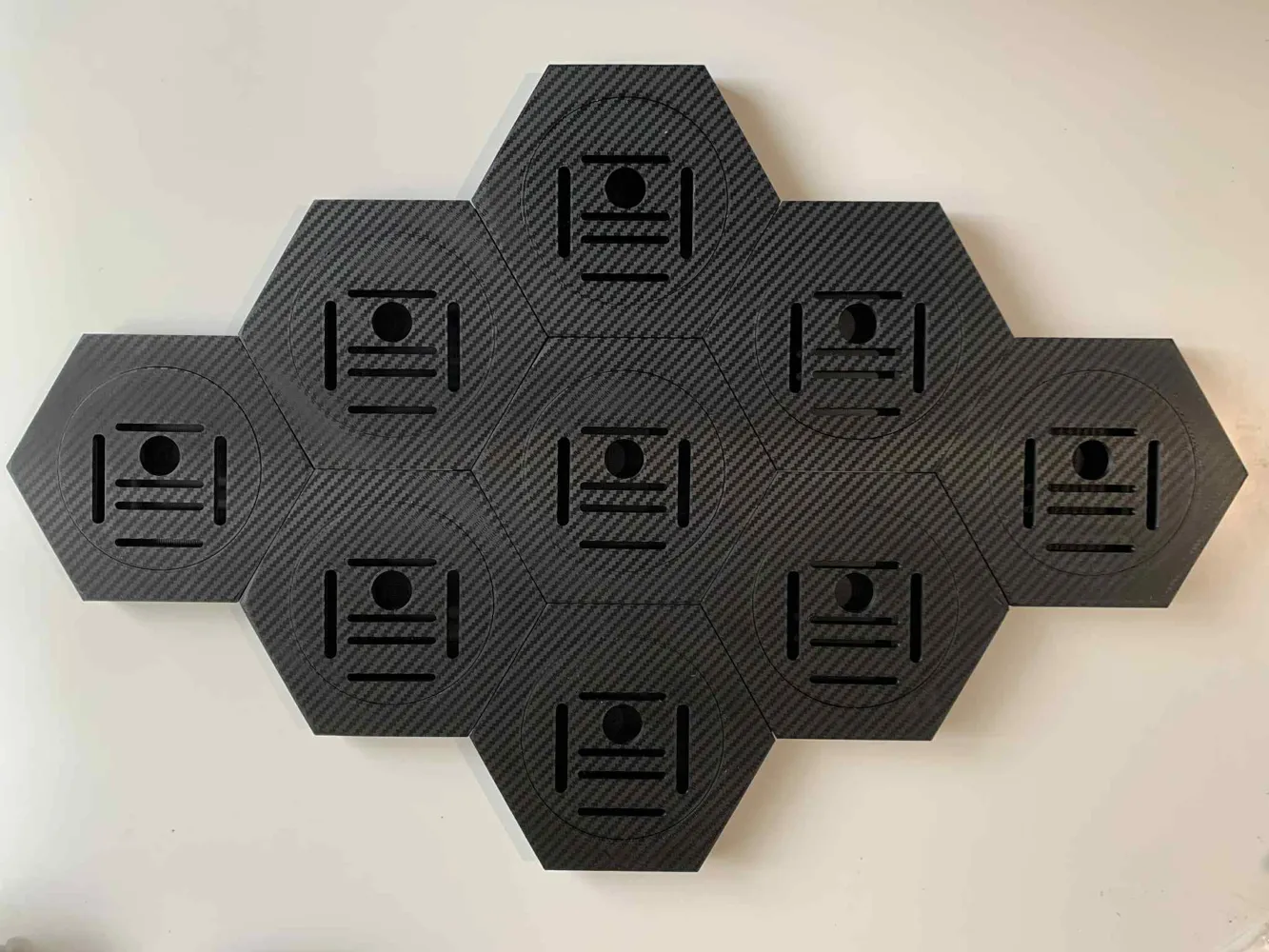

Its hexagonal shape, carbon texture, and meticulous finish make this holder an ideal choice to proudly display your sporting achievements.



Magnet insertion:





Warning, be vigilant about magnet polarity.

I recommend using a tool like this one:

https://makerworld.com/fr/models/1470876-magnet-applicator-easy-insertion-tool#profileId-1535130



For added security, it is also advisable to glue them.





Feel free to share your comments with me.



Happy printing ;-)



Comment & Rating (11)

(0/1000)

Print Profile
0.2mm layer, 2 walls, 15% infill, HideMagnet, Carbon Sheet
I liked the final result, but I found the supports to be very difficult to remove
The profile uploader has replied
Show original
profile
1
Reply
thank you for your feedback hoo the print profile is optimized with the petg support interface to facilitate removal and have a better result Did you print without modifying the profile
(Edited)
Show original
1
Reply
Replying to @nicolast :
Thank you for the feedback! I will change the support settings!
(Edited)
Show original
profile
1
Reply
Has this to be printed on a special plate?
(Edited)
The designer has replied
0
Reply
yes, I used the Bambu carbon effect plate https://eu.store.bambulab.com/products/bambu-3d-effect-plate
(Edited)
Show original
0
Reply
thanks a lot
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill, Visible Magnet, Carbon
too bad the base printing is reversed it causes a lot of support I launched it from my mobile and so it was not possible to flip it
The profile uploader has replied
Show original
0
Reply
Indeed The reason the base is inverted is to have the Carbon effect printed on the top face of the base I can publish a new print profile without the Carbon effect 😉
(Edited)
Show original
1
Reply
Hello What is the size of the magnets used?
The designer has replied
Show original
0
Reply
Hi, I am using the magnets available on bambulab CA001 diameter: 4 mm height: 2 mm https://eu.store.bambulab.com/products/round-magnet?skr=yes&;id=47966966579548&modelId=1958387
Show original
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill, HideMagnet, Carbon Sheet
profile
1
Reply
