DIY Personal Storage Plan — SMD Capacitor and Resistor Storage — 16mm Round Hole Pegboard Custom Accessories.1206.0603.0805

As a frequent DIYer, I'm sure you have a lot of SMD capacitors and resistors. The SMD capacitors and resistors we buy online come in strips, which are difficult to store. So, referring to some other people's work and combining it with my own usage needs, I re-modeled and produced this SMD capacitor and resistor storage tool that can be hung on a pegboard

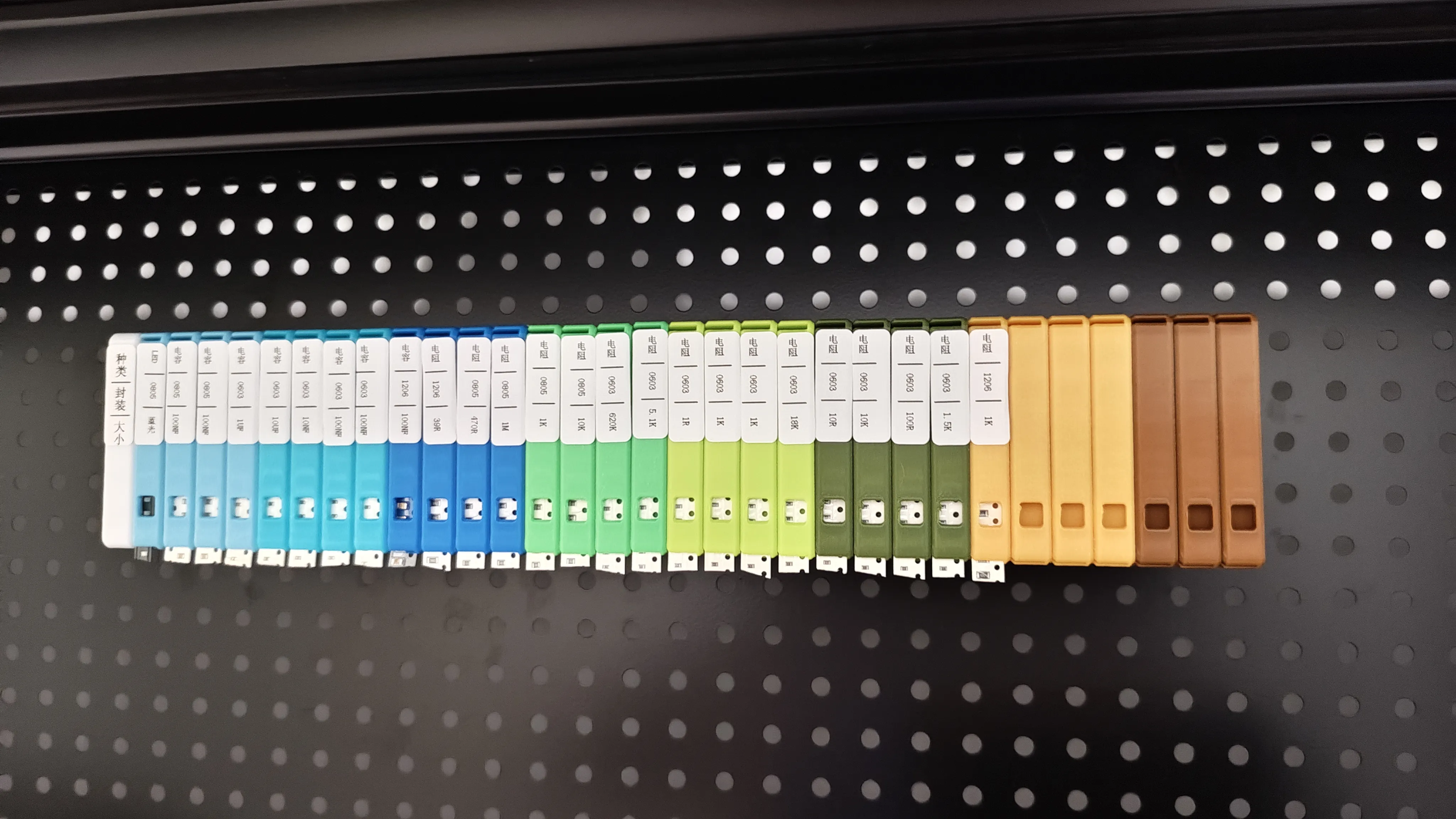

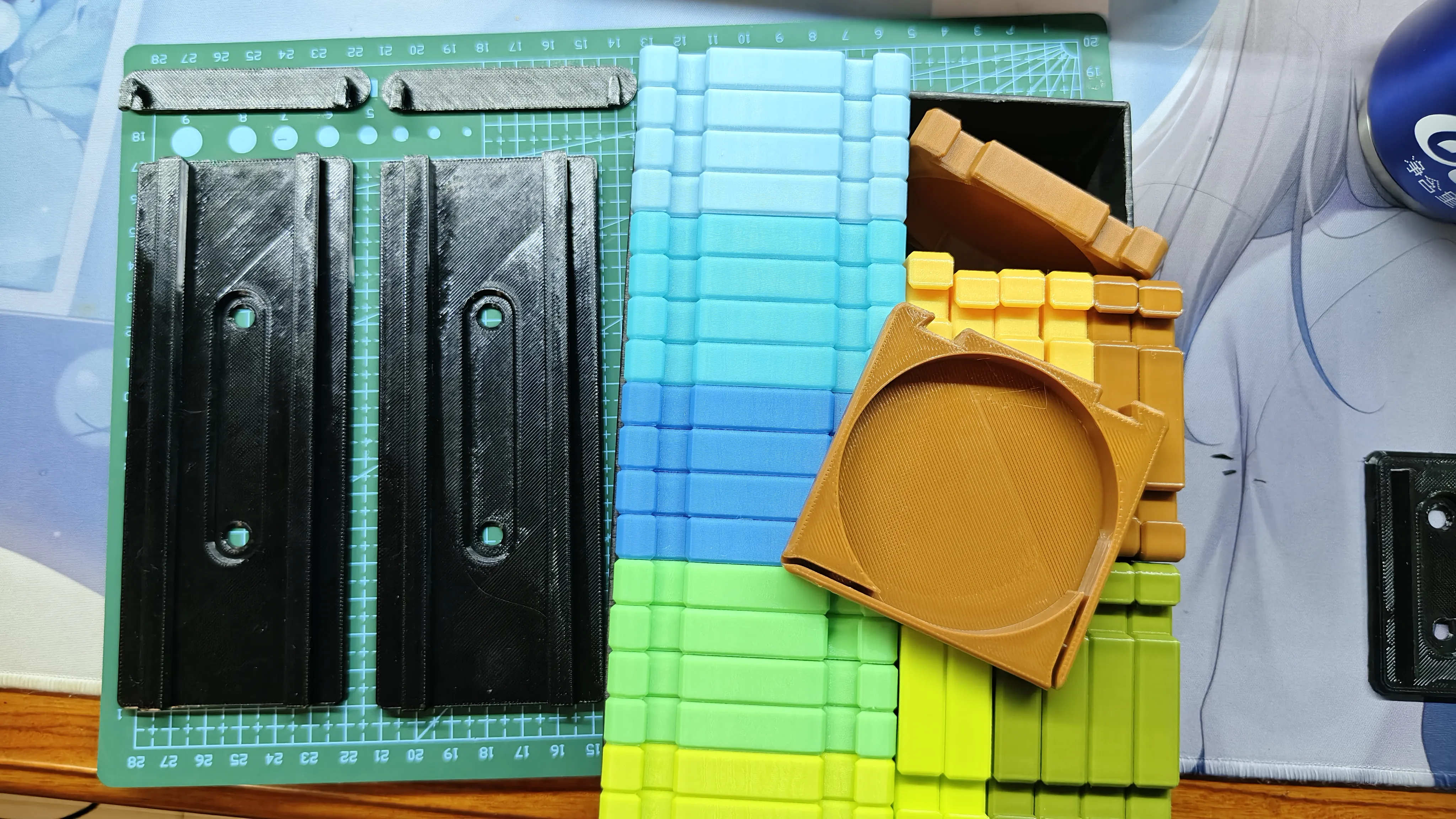

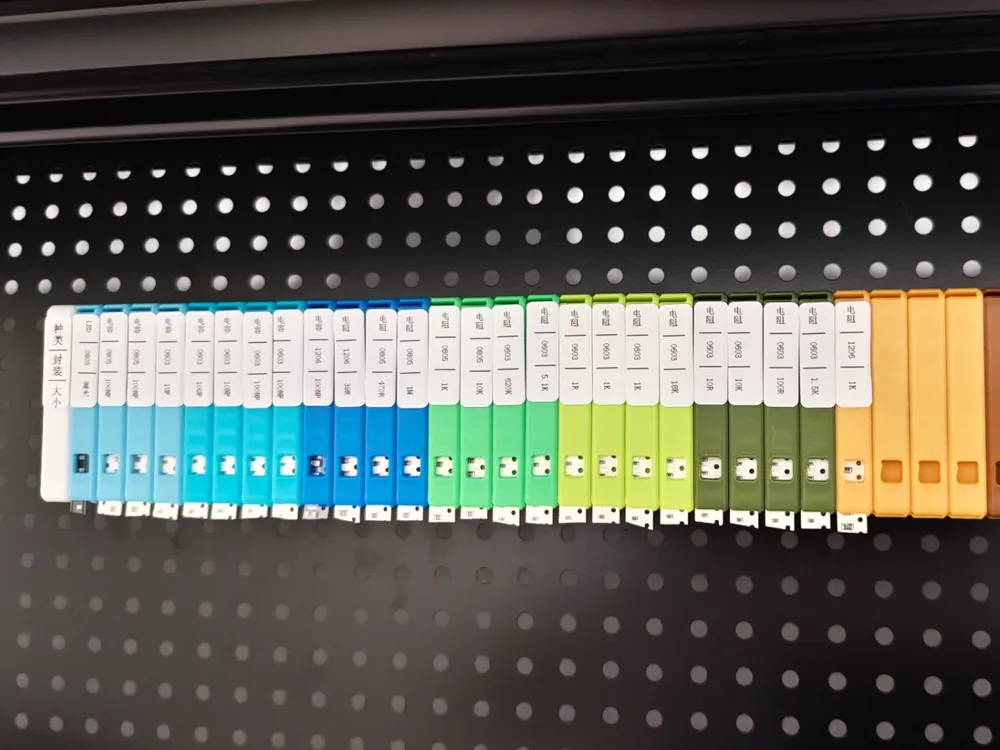

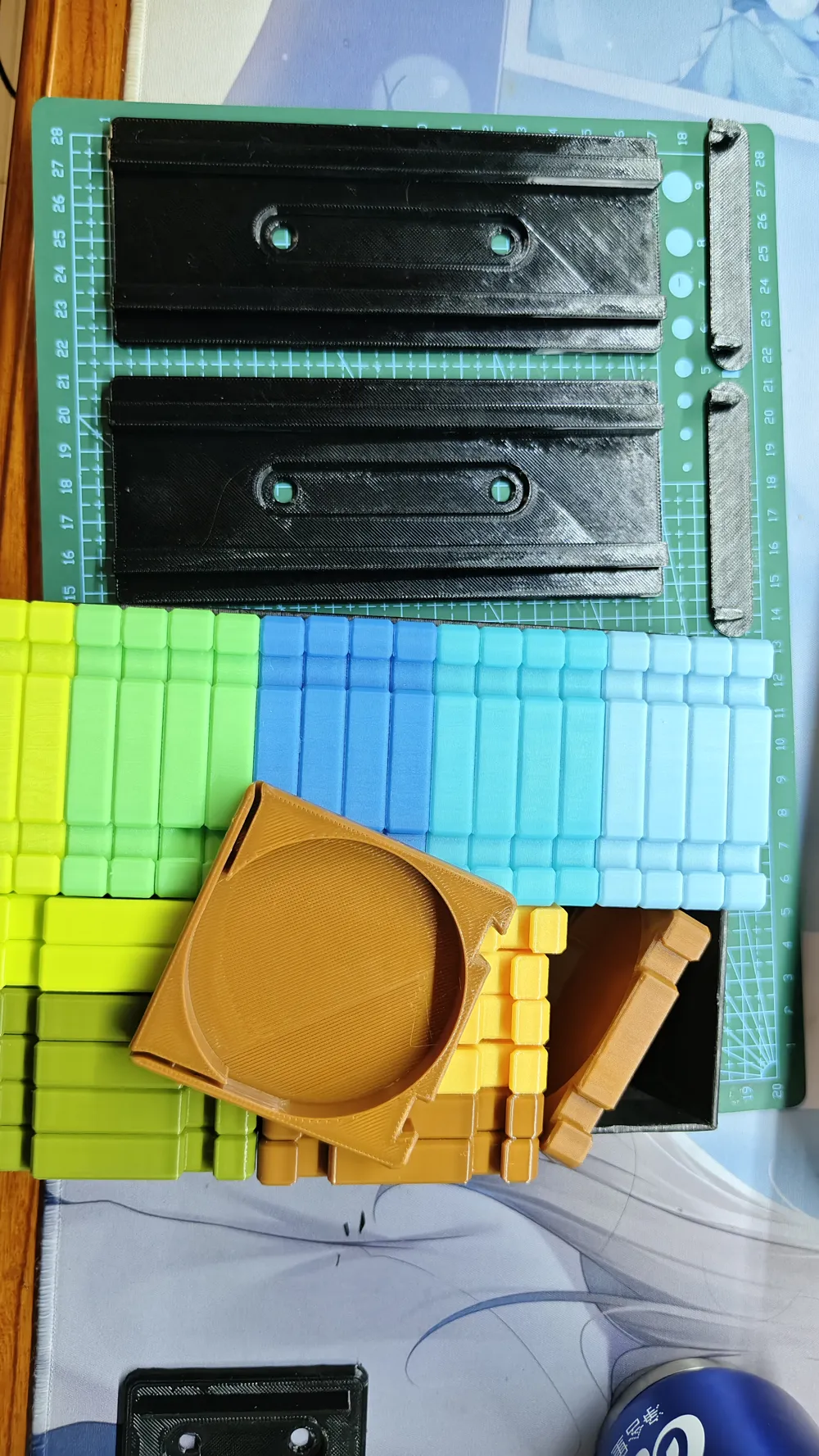

As you can see, I have printed many, and it's worth mentioning that this is a model that the A1 mini can print

Now let's see how it's installed

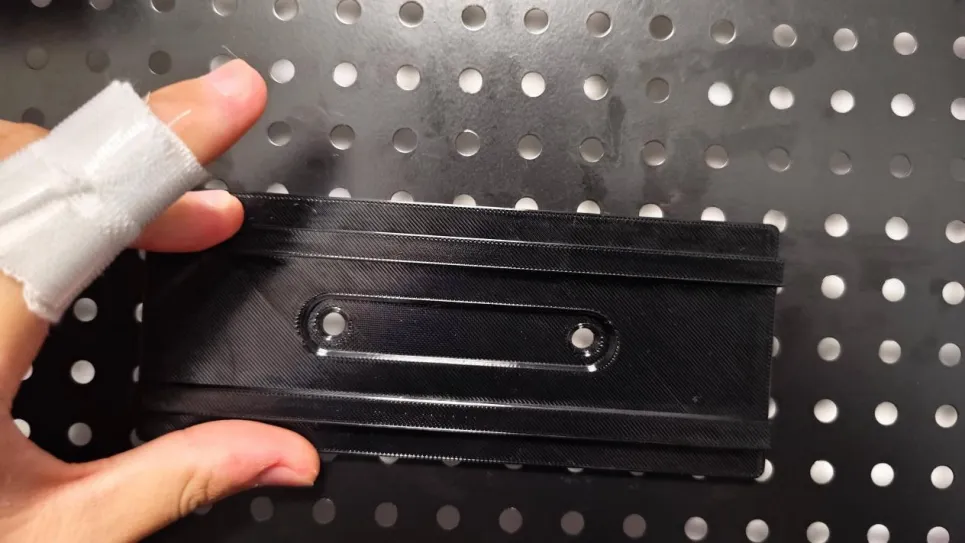

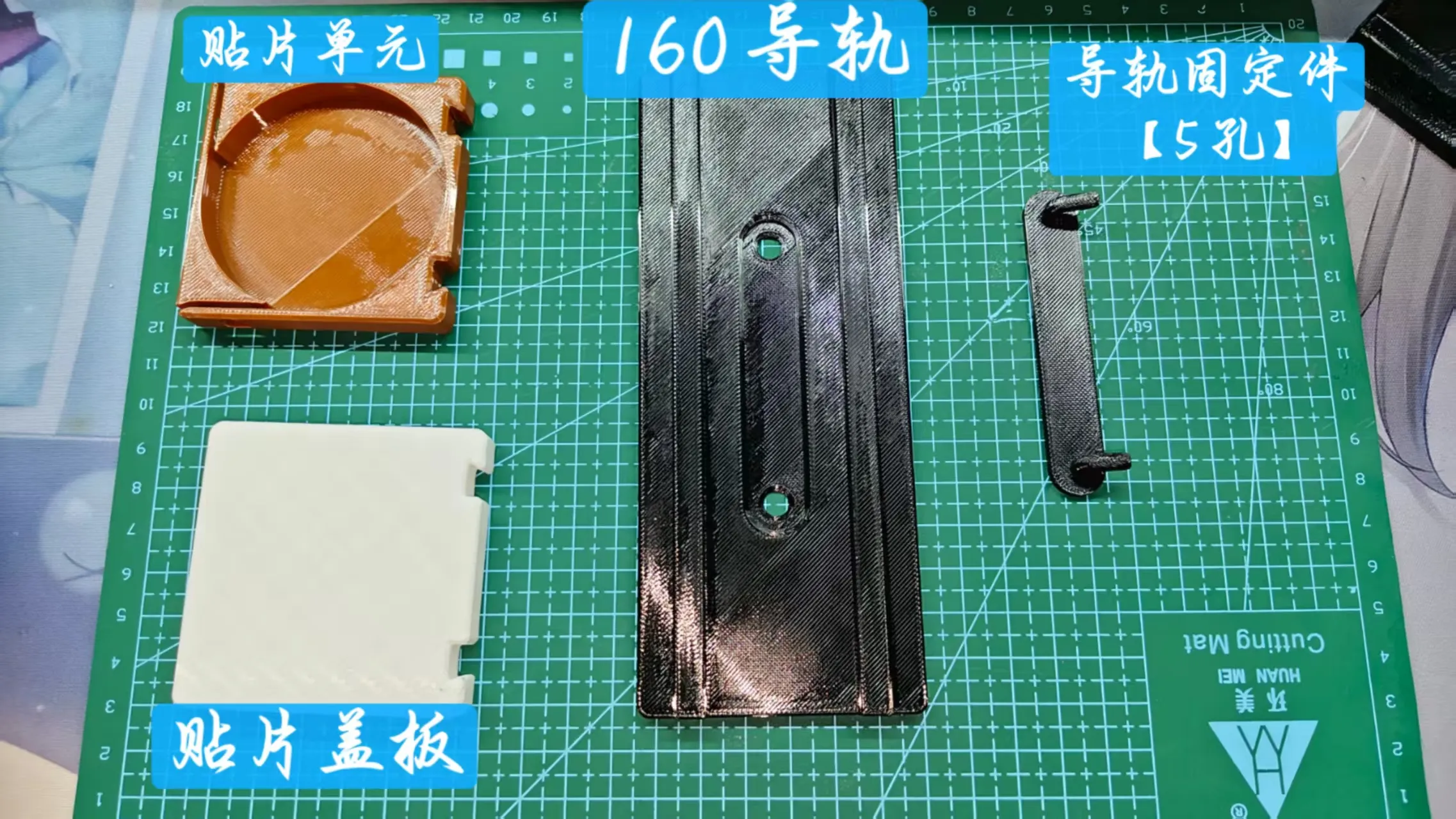

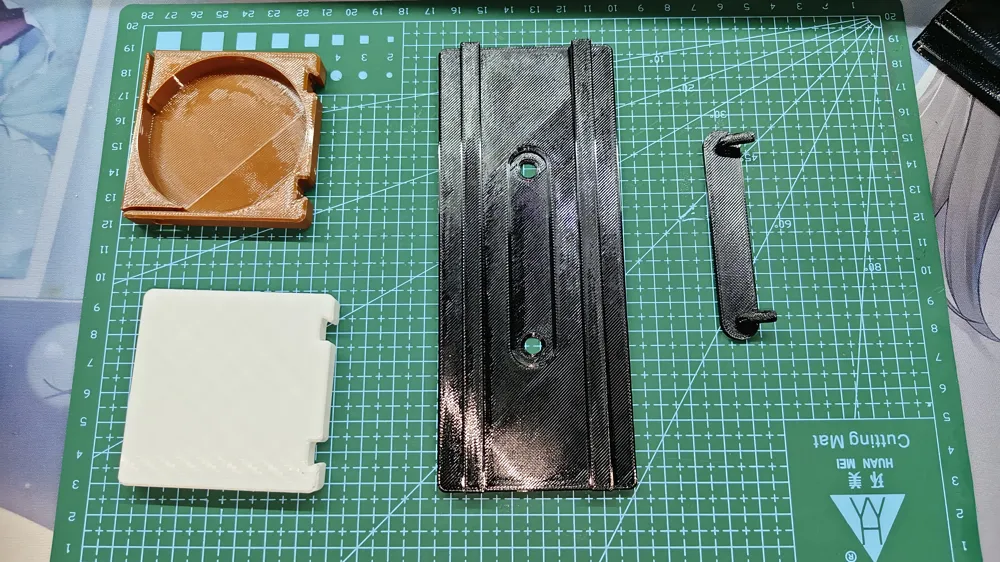

1. Find the base plate and align the central hole with the pegboard hole

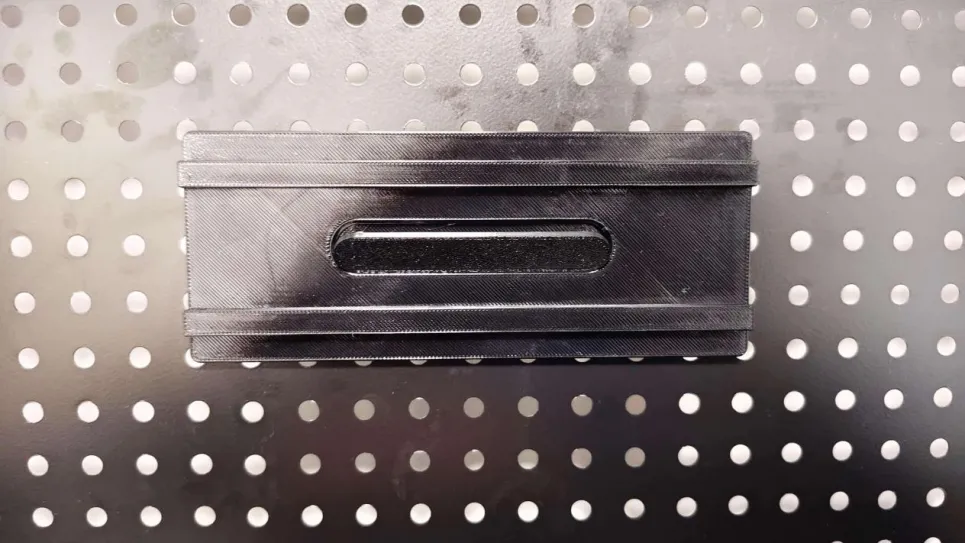

2. Insert the fastener to lock the base plate. If it doesn't fit, try wiggling the base plate (fastener can be printed without supports)

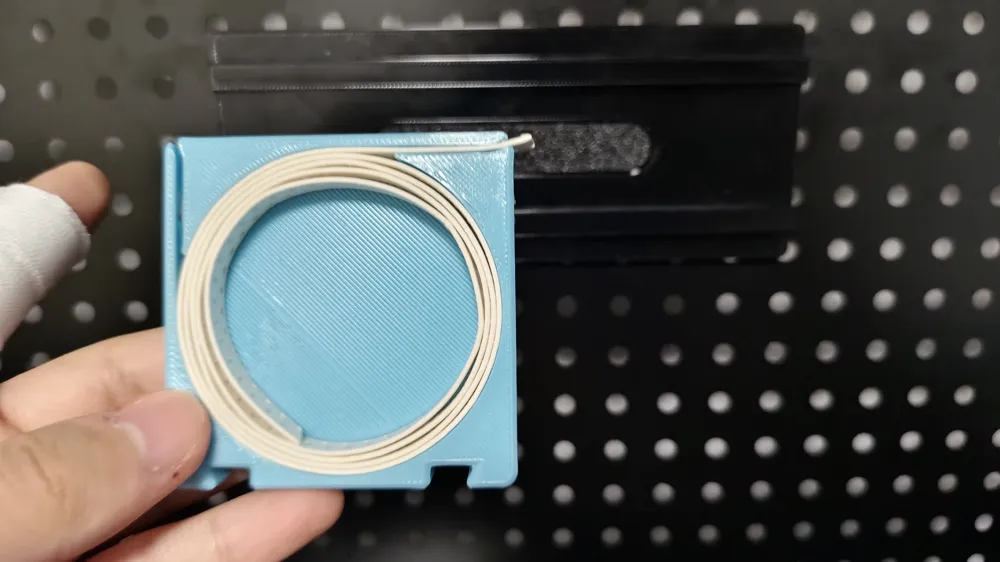

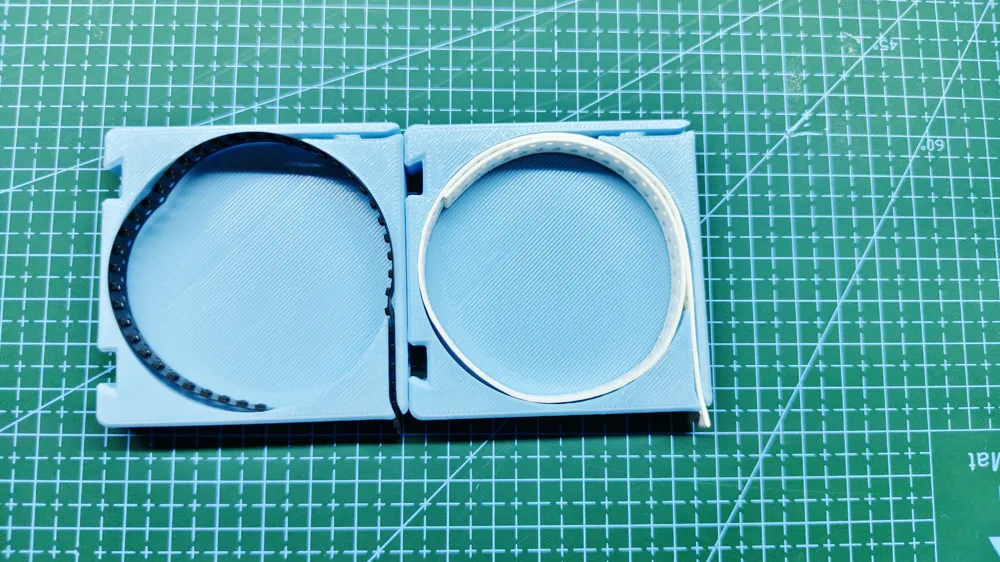

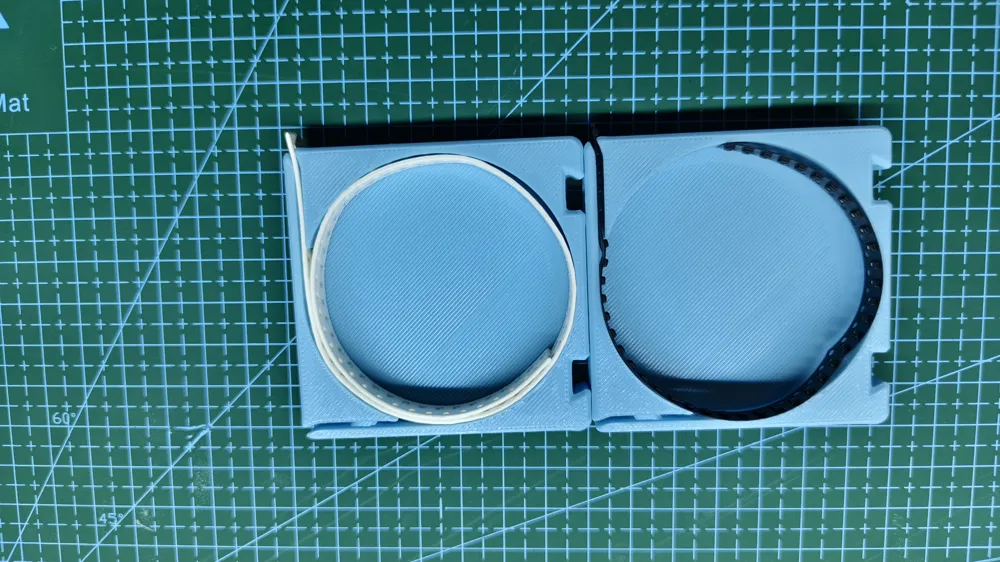

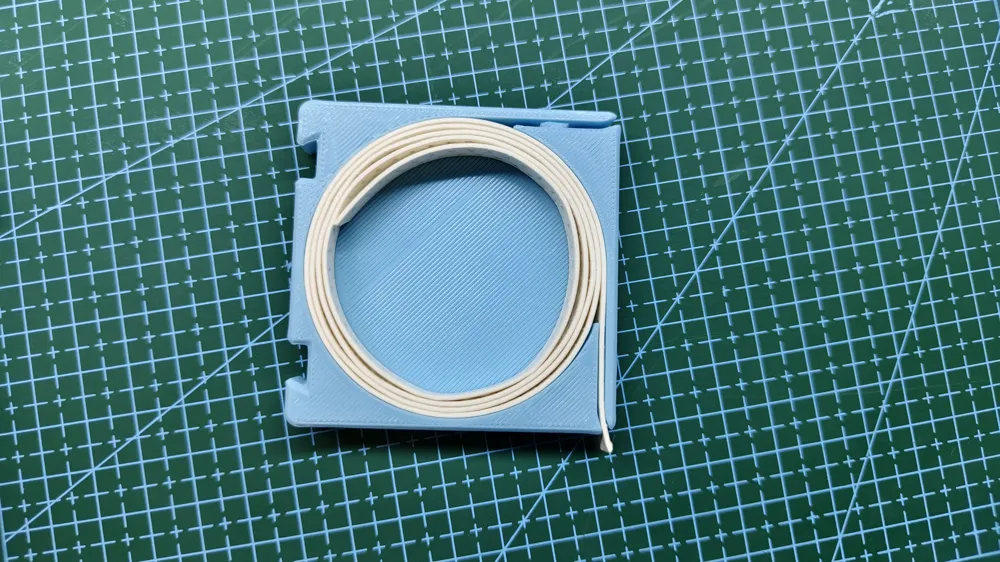

3. Insert the SMD component tape into the SMD unit

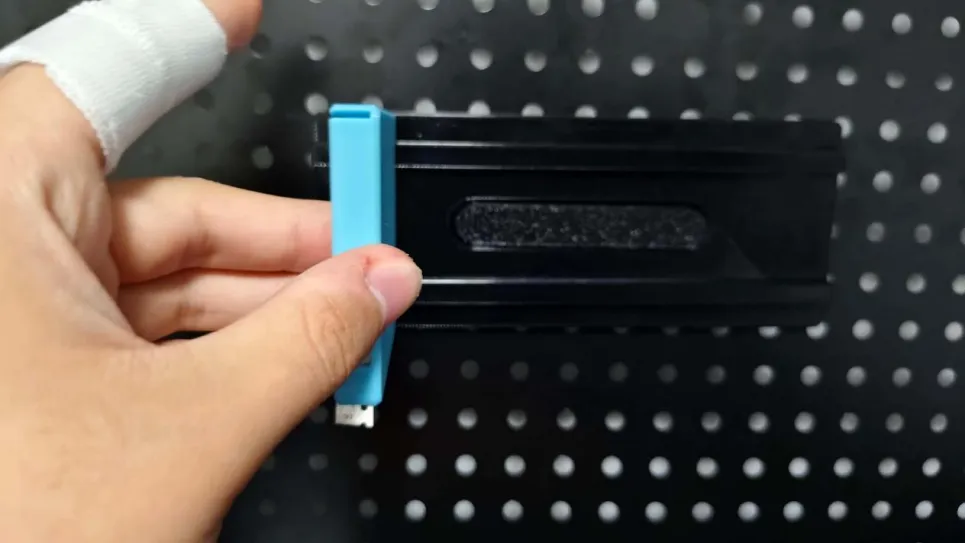

4. Slide the SMD unit horizontally into the guide rail

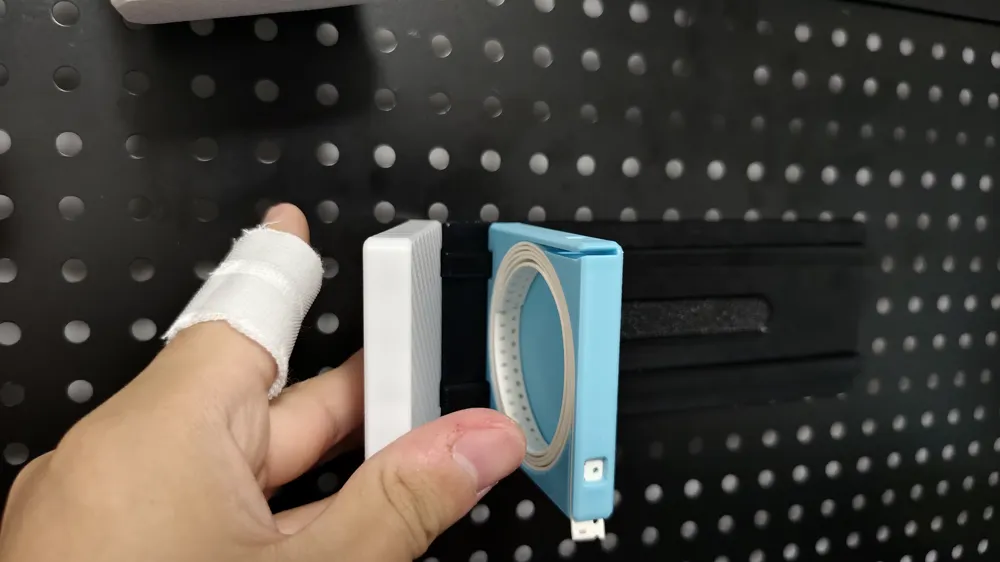

5. Slide the cover plate in from the left

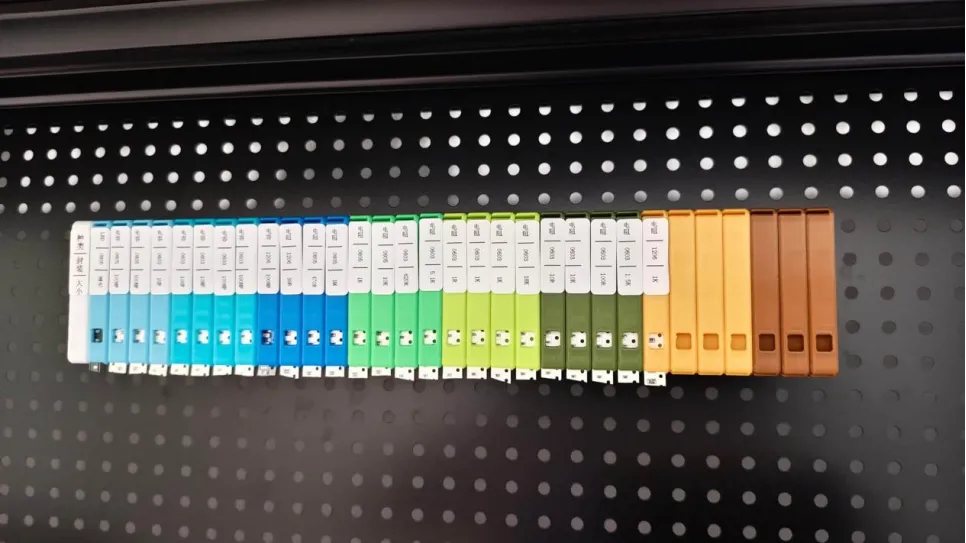

Installation complete

If you like it, please give it a like, thank you!!!
