Final Girl Insert - Box of Props/Tear in Core Box

Print Profile(1)

All
A1
X1E
X1 Carbon
X1
P1P
P1S
P2S
H2D Pro
H2S
H2D
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
4.6 h
3 plates
4.9(7)

Open in Bambu Studio
Boost
21
93
7
5
88
60
Released

Description

An insert for Final Girl that fits all upgraded Core components, Box of Props, and Tear Dice in the Core box. Here's a complete list of what it fits:

  • Action cards
  • Signature Action cards
  • Final Girls
  • Secret envelopes and their contents
  • Item and Event card proxies
  • Upgraded Final Health tokens, Horror Tracker, Bloodlust Tracker, and Time Tracker
  • Victims and Hearts
  • Ultimate Dice
  • Tear Dice
  • Overflow tiles and their tokens
  • Little wooden trackers
  • Core and Box of Props Rulebooks
  • Player board

The goal was to fit all the extras into the Core box that would be relevant, so you can just grab the core box and your Feature Film and play without having to worry about extra modules being spread across a bunch of other boxes.



Note: If you don't have the Tear Dice from Season 3, there is a spacer included that you can print to take their place in the insert.

Features

  • Fits everything listed above in the Core Box
  • Extremely fast setup and teardown: everything is super easy to grab and put back
  • Supports sleeved cards*
  • Victims and Hearts are in a removable tray that makes them trivial to set up and put away, no “you have to tediously line them up” nonsense here!
  • Inclines/ramps for certain wells to make tiny pieces easy to pull out
  • Flexible so that additional tokens or pieces can be accommodated easily as necessary

*Note on sleeves: All Final Girls, Signature Action Cards, and Action Cards through Season 3 fit in the card well without sleeves. With sleeves, the thickness of the sleeves will dictate how much you can fit. The mini card wells, however, should be deep enough to support all proxy cards and secret envelope contents even with sleeves.

Printing

There's nothing tricky about this print. It should print very well on just about any printer. I do recommend adaptive layer height because of the curved surfaces on a couple of the trays—it makes them turn out a little smoother.



My personal print settings:

  • 0.4mm nozzle
  • 0.2mm layer height
  • 15% infill
  • Adaptive layer height (for curved surfaces)
  • Ironing turned on (printer dependent)

However, just about any settings should work fine here. Nothing tricky, no supports, etc.

Optional Finishing Touches

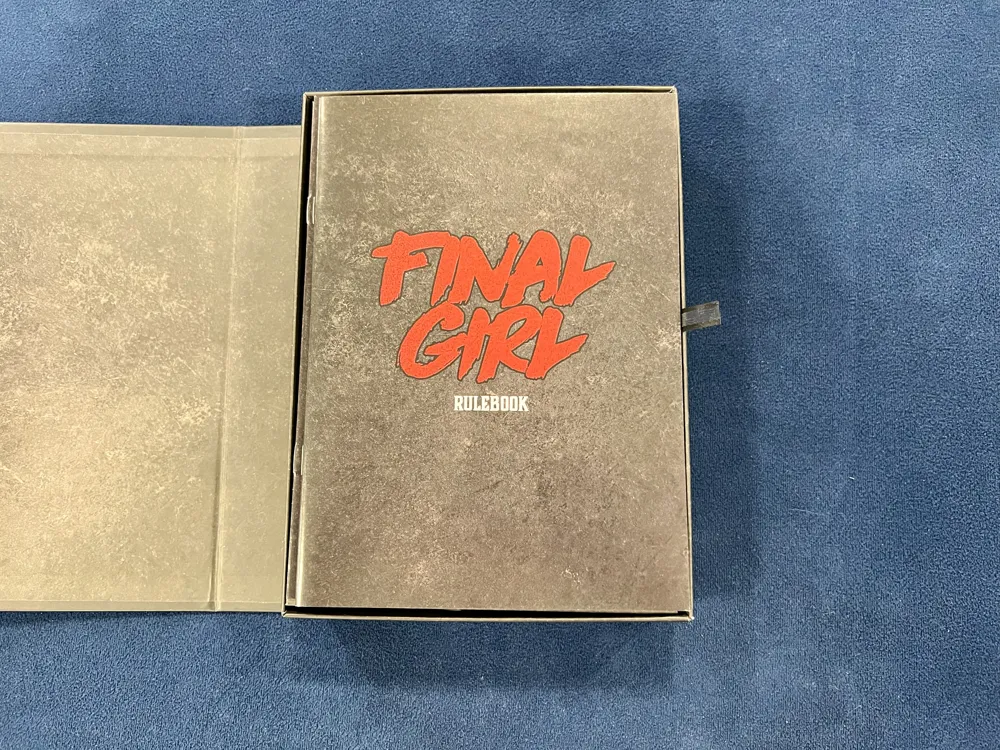

To make it look a little nicer, you can tape a piece of black construction paper to the bottom of the insert to hide the brown box. I also went through with a Sharpie and colored the inside edges of the box black. These are purely cosmetic and not at all necessary.



I also taped a ribbon under the insert to wrap over it and under the Player Board and Rulebooks to make them easier to take out. Again, not necessary, but still a nice addition.
