Lock for GDF meter door
Print Profile(1)
Description

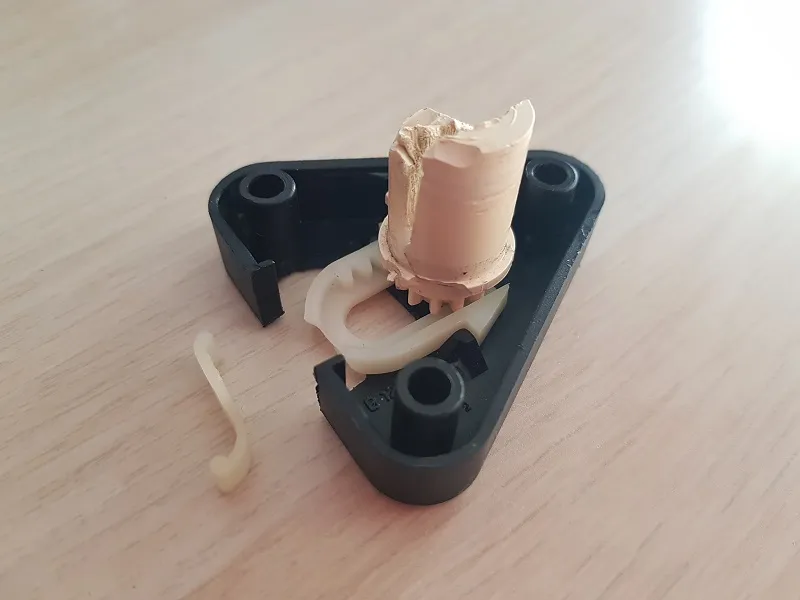

The lock on my GDF meter was broken and the door no longer closed. As for the EDF meter → https://makerworld.com/en/models/1261844-lock-for-edf-enedis-meter-box-door#profileId-1286613 I modeled and 3D printed the broken parts: the bolt, the bolt's drive shaft, and the housing. Only the cover was not damaged

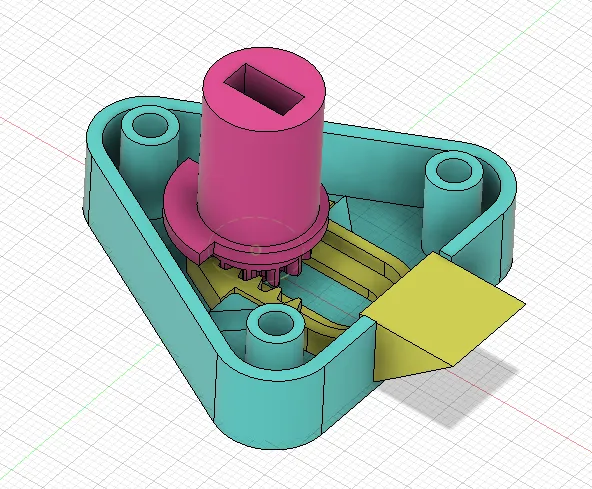

Measurements taken and modeled in Fusion 360. For the drive shaft, I used the "SpurGear" script which allows modeling gears
I made a small spring with piano wire to replace the original system on the bolt. I don't have the plans to reproduce it. But it's quite simple to do with a pair of round-nose pliers

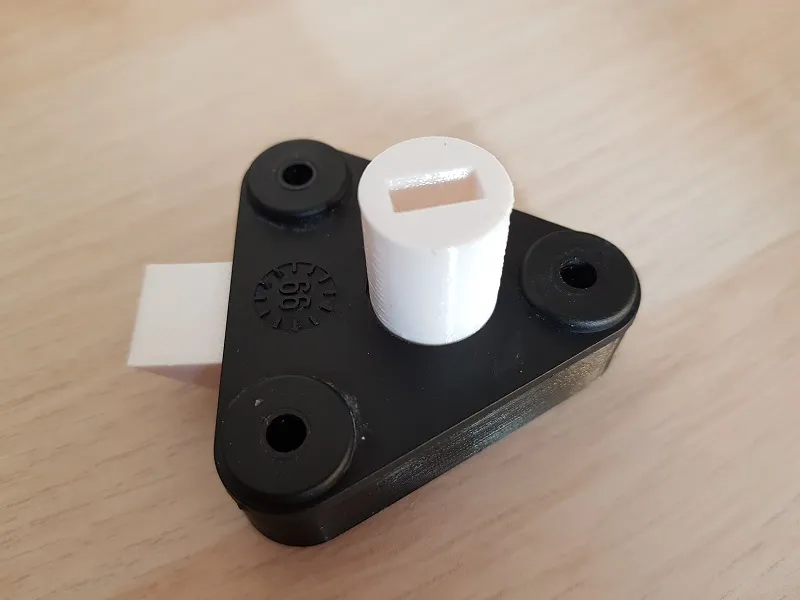

Printed in PETG White. The shaft in vertical position and the bolt flat with the part that should "slide" on top. 0.2mm layer height and 2 perimeters (Bambu Studio standard settings). Supports only needed for the shaft

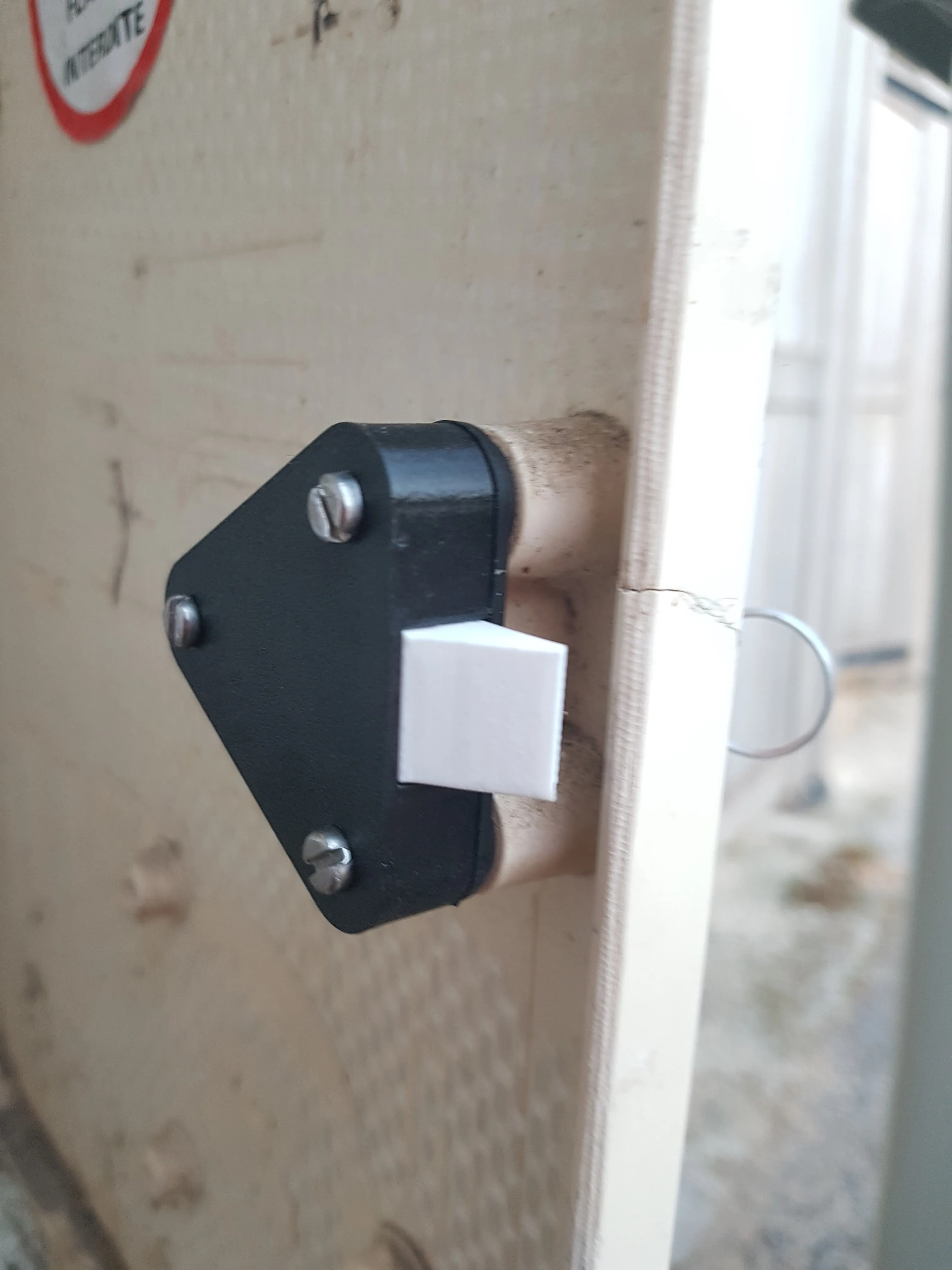

And there you have it, the lock reassembled and installed in the meter door. It closes again
The lock should also be fitted to an EDF cabinet. The lock's mounting system on the door being the same
Your downloads, feedback and comments (and of course your "likes") will always be welcome. Feel free to post nice photos of your "makes"
You can also check out other accessories for electrical cabinets that I designed and 3D printed
Boost Me (for free)
If you like this model, please feel free to Boost it. It will be greatly appreciated 😉
For international audience I documented it in french as only applicable in France for french gas company meter GDF. You can use Reverso or Google translation if needed
Downloads, feedback and comments (and for sure "likes") will be always welcome. Feel free to post nice pictures of your makes.
You can also look at other French electrical and gas meter cabinets accessories I designed and 3D printed
Boost Me (for free)
If you like this model, please consider boosting it. It would be greatly appreciated 😉
If you like this model, take a look also at my other designs
Enjoy
