Screw measuring tool: M2-M10+L:4-100mm
Print Profile(8)
Description
If you want the imperial or USA system version, I have another model here
After seeing multiple models of metric screw measuring tools, I decided to design my own

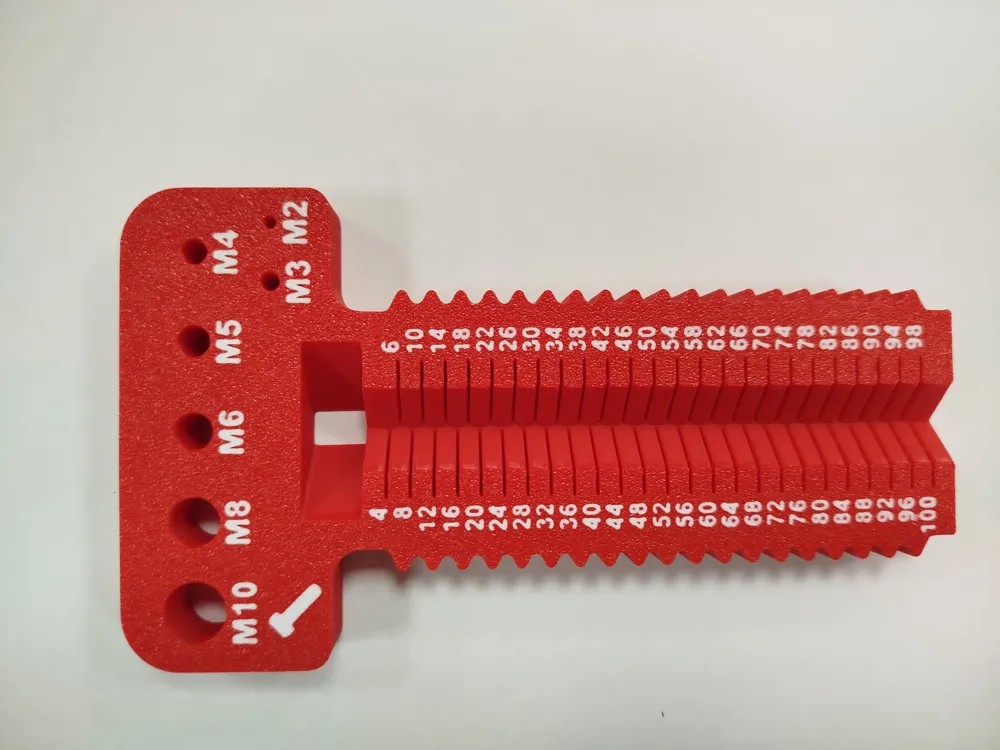

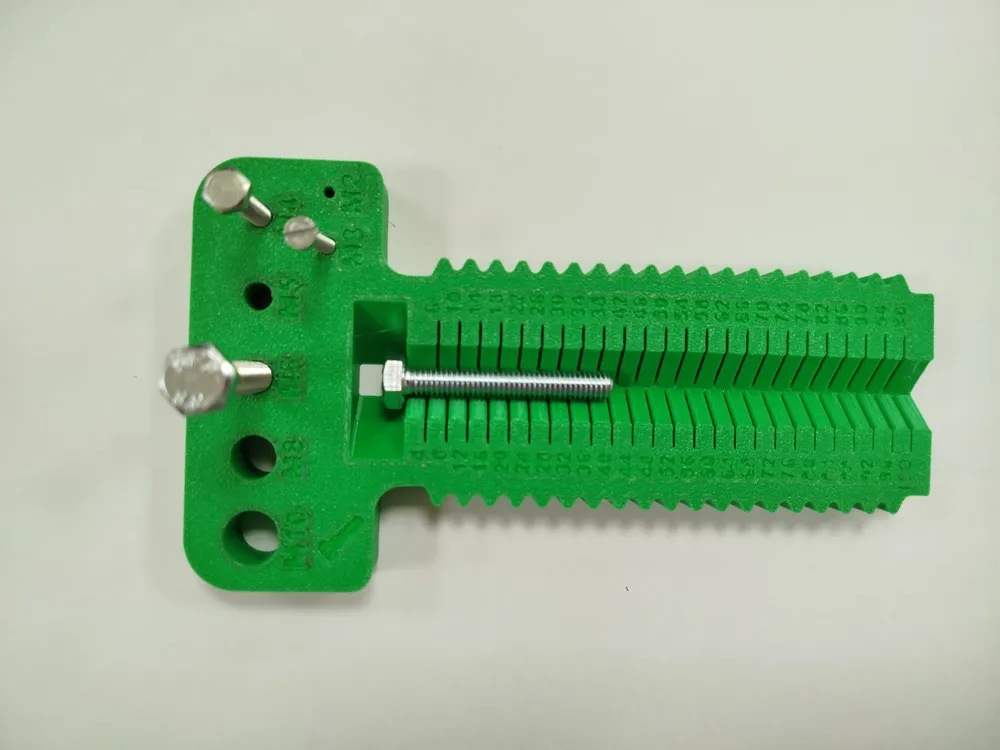

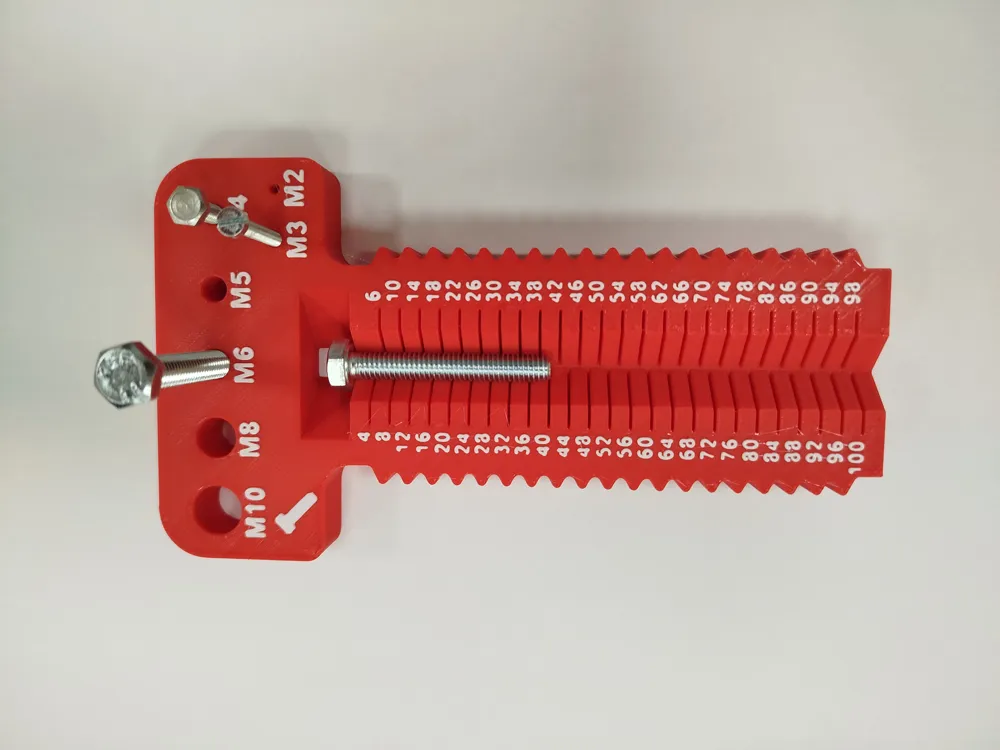

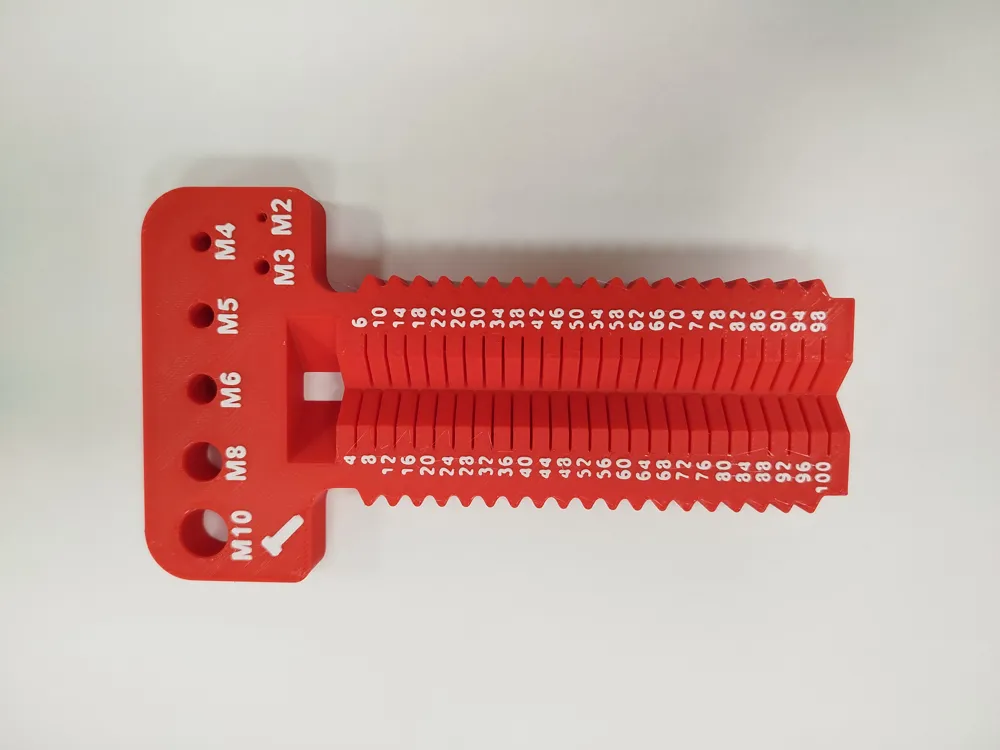

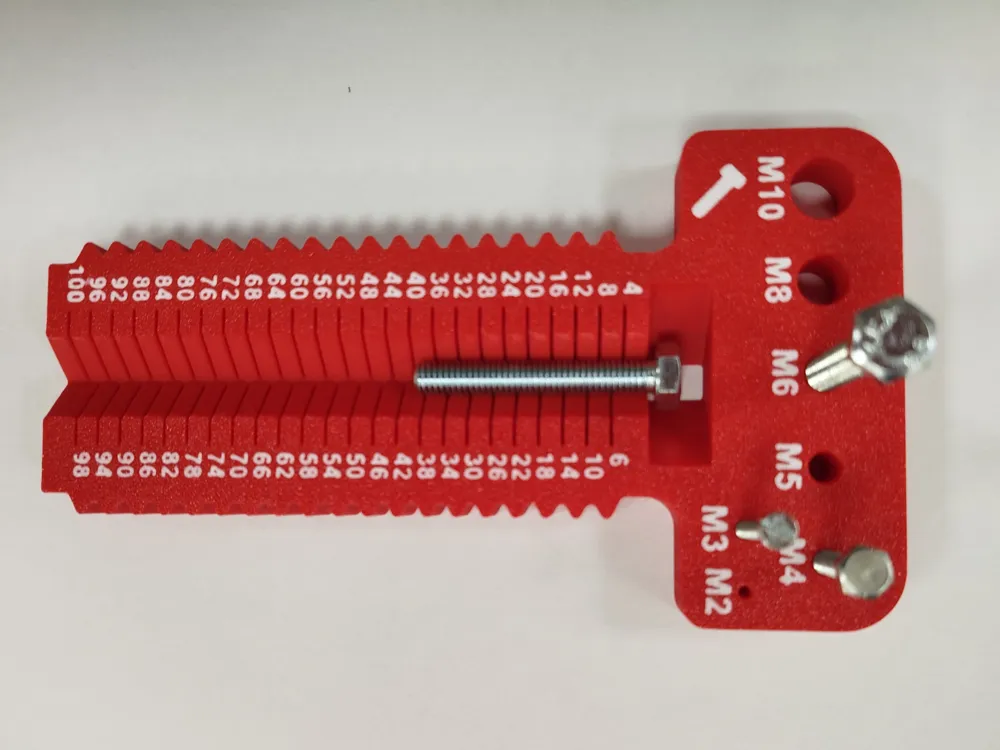

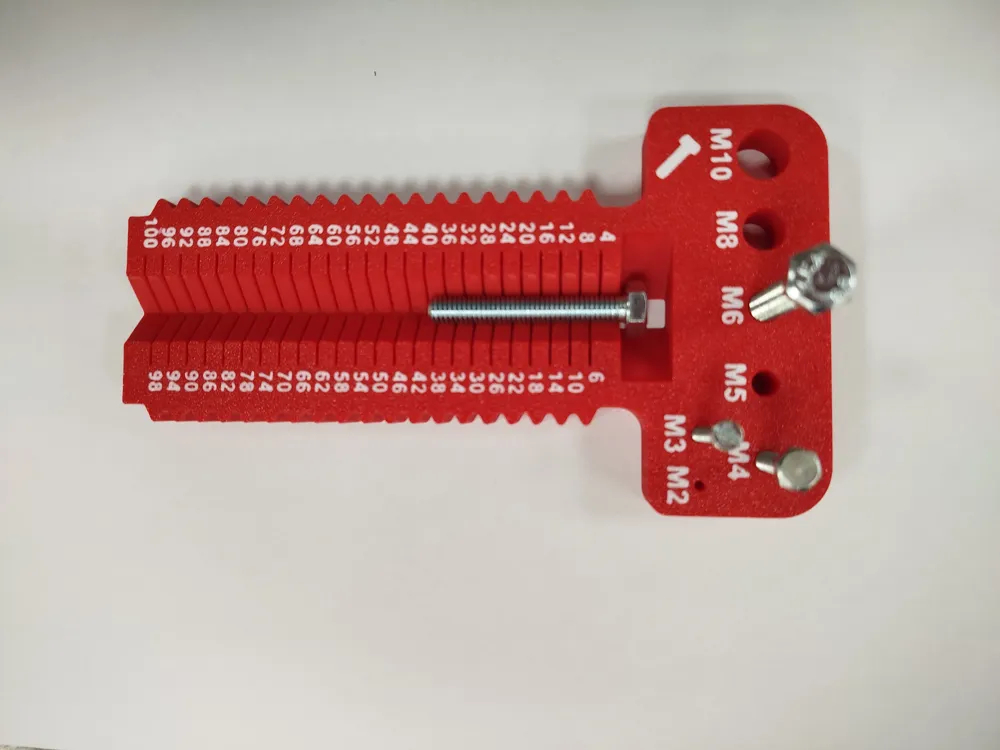

This tool allows measuring M2 to M10 metric screws with a length of 4 to 100 mm
There are 3 print models/profiles
- 2-color model with raised letters (with a filament change for the last 5 layers, so it can be printed without issues even without an AMS)
- 2-color model with non-raised letters (easier to print with AMS, although it has been prepared to only make two color changes)

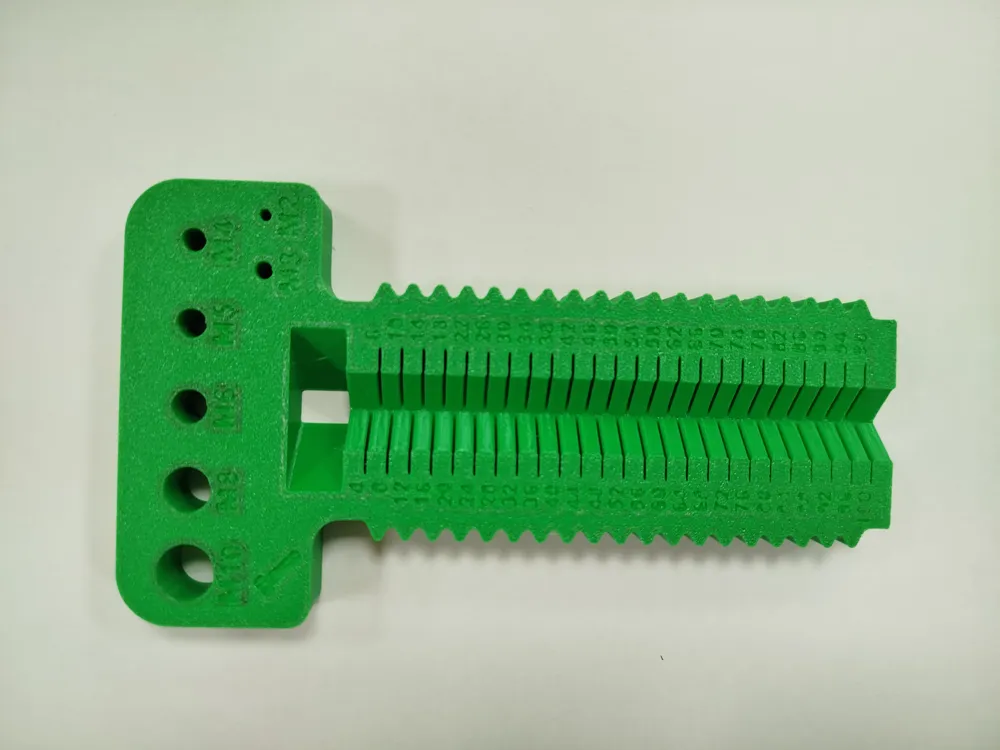

- 1-color model (negative letters)
If you only want to measure the metric of screws and also nuts, check out my screw and nut measuring tool: M2-M10
If you like tools, check out my other tools, such as my keys for technical or meter cabinets, my drill dust collector, my center finder or my center marker
