Pixel Watch 4 Charging Cradle

Charging Cradle for the Pixel Watch 4.

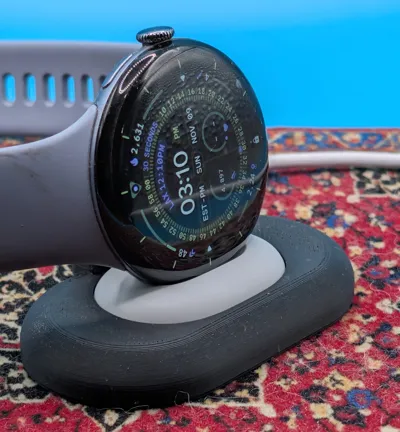

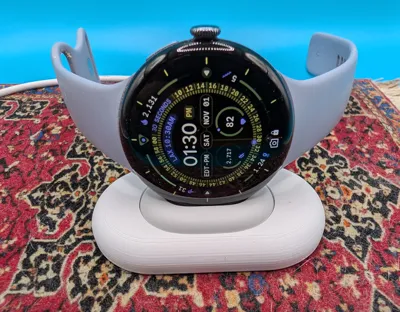

The 2025 Pixel watch uses a different charging system than previous watches.  My design overcomes a design flaw that allowed the watch to be knocked off of the charging stand.   This cradle will allow the watch to touch the back preventing it from being disengaged and with the magnets of the charger.  Your watch is not going anywhere.

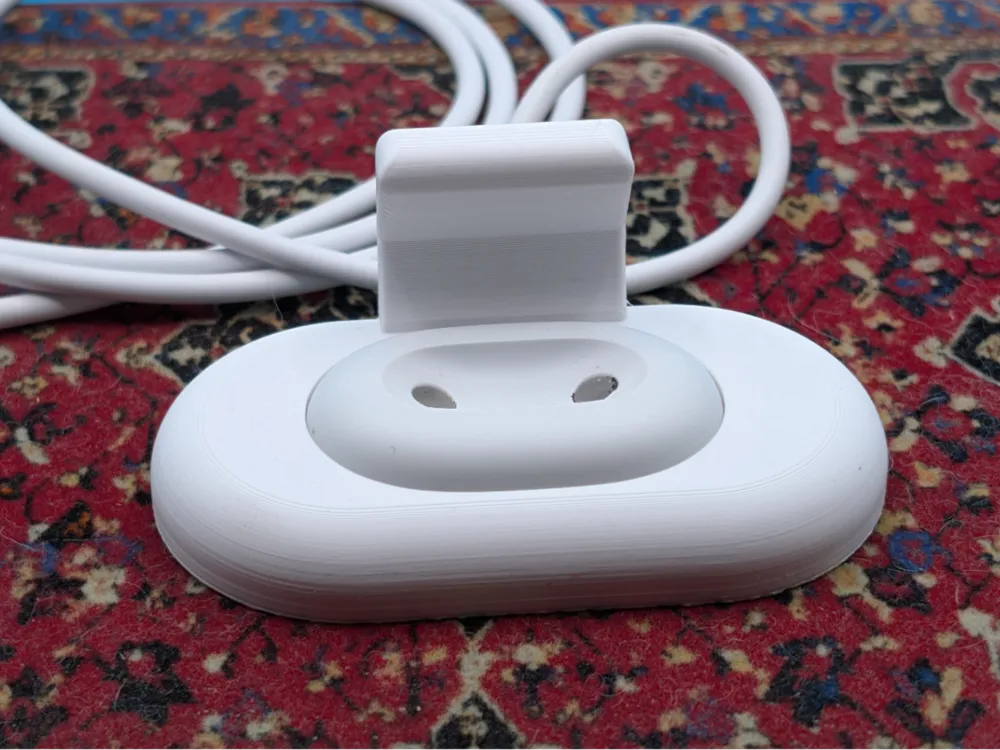

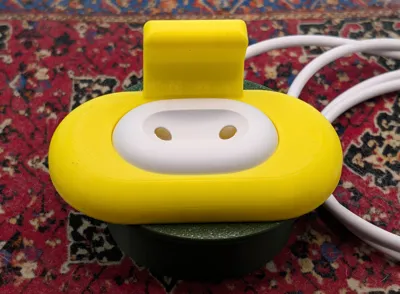

This charging cradle works with the official Pixel Watch 4 charger that comes with the watch.  It snaps in firmly and will not come out unless you want to remove it.  To remove the charger from the cradle use a pencil eraser and push from underneath.

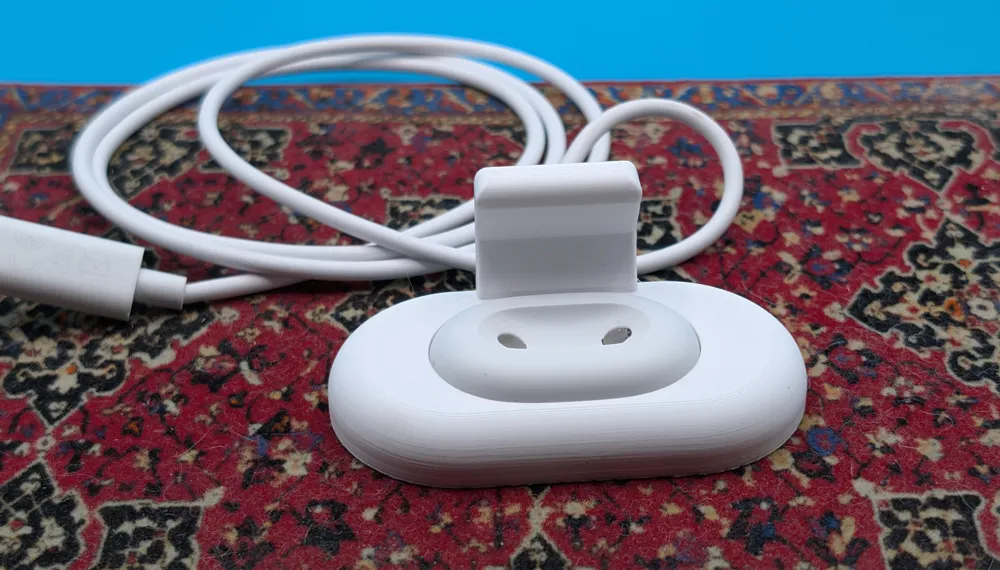

The base is sturdy and will not knock over -  the cable comes out the back and allows the stand to lay flat.

Prints well with Bamboo Labs PLA/PLA Matt although I have had great results with PETG-HF.  Even Generic PLA works well on standard settings.  No support needed.

I recommend increasing wall loops to 6 or 8 and infill to 40-50 to ensure the back is solid.

This is the charger I used:  Pixel Watch 4 Charger
