Depth Stop Drill Bit Set Organizer – Gridfinity

Another Gridfinity module designed to keep my woodworking jigs and tools in order.

This holder is made for the Snappy Quick-Change Depth Stop Drill Bit Set (available here).

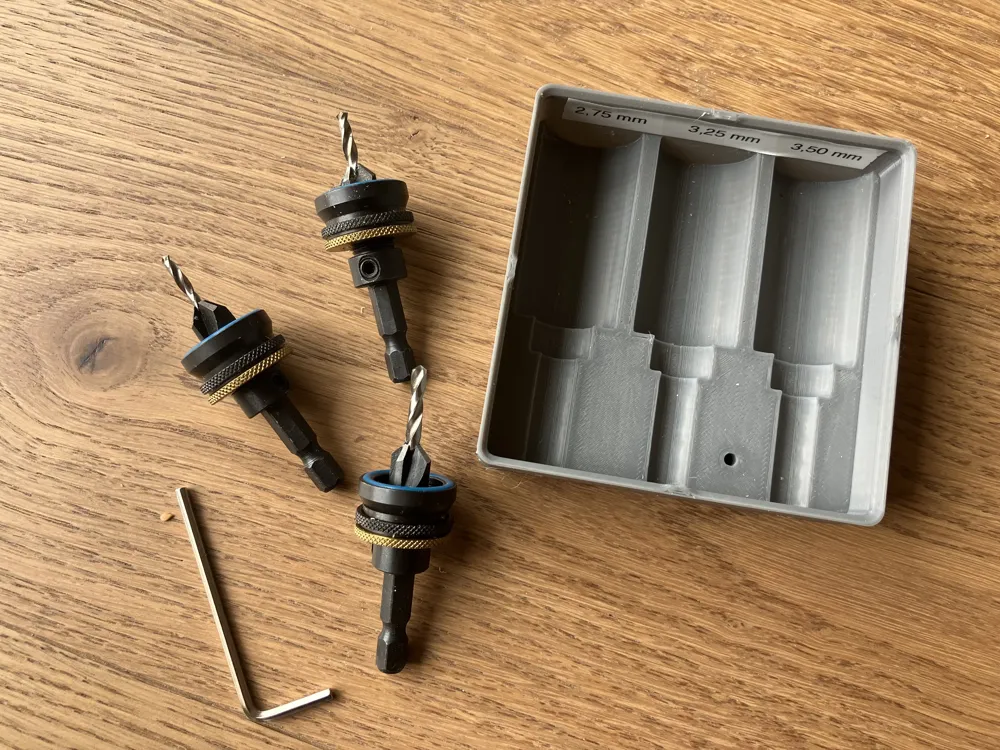

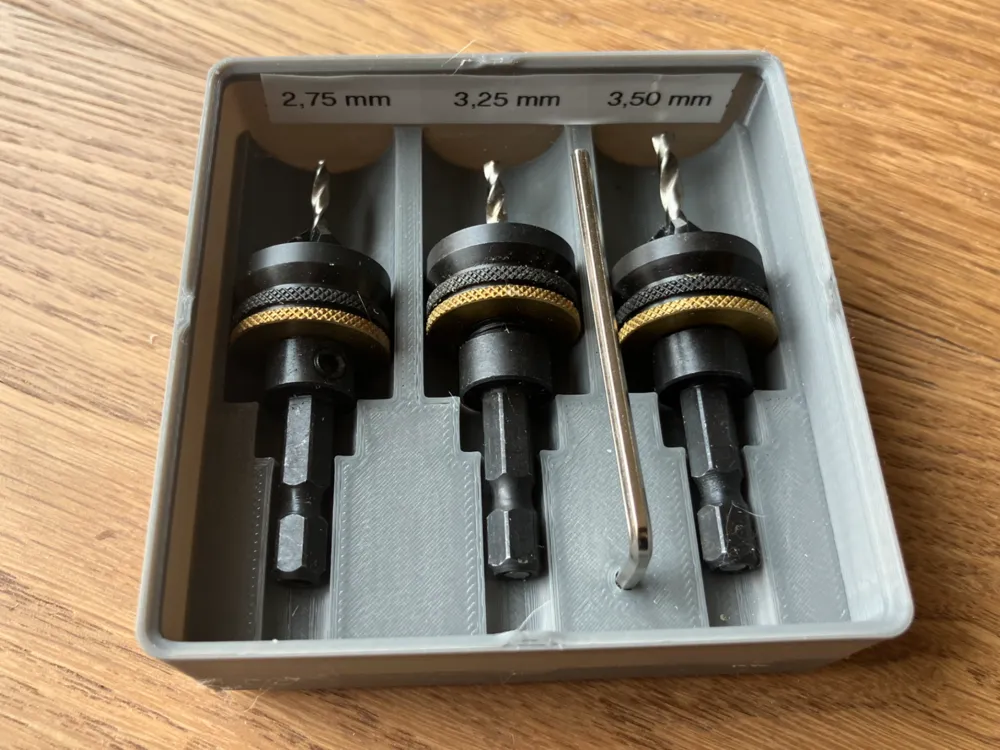

It keeps all three drill bits (2.75 mm, 3.25 mm, 3.50 mm) and the included hex key securely in place, with labeled compartments for quick identification.

Technical details:

• Size: 2×2 Gridfinity units

• Holds 3 bits + hex key

• Individual labeled slots for 2.75 mm, 3.25 mm, 3.50 mm

• Printed in PLA+

• Compact design optimized for quick access and visibility

Printing tips:

• No supports required

• 0.2 mm layer height

• 15–20 % infill

• Printed with PLA+ on a Snapmaker J1

Practical notes:

• Works with standard Gridfinity baseplates

• Custom-fit slots prevent wobbling

• Includes a small recess for the hex key

Original design by Simone Bettini. Part of my Gridfinity woodworking and tool organization series.

🧠 Author

Project by Simone Bettini, maker passionate about woodworking and 3D printing.

All modules follow the Gridfinity standard and are tested on the Snapmaker J1.

Created to bring order (and a bit of joy) to the workshop 😉
