A large-format Skadis-compatible pegboard panel that prints in one piece on the H2S. Panels connect seamlessly edge to edge. Mount as many as you need to cover any wall space. The 160 Pack expansion adds three additional sizes: 160x320mm (Vertical), 320x160mm (Horizontal), and 160x160mm (Gap Filler) to help fill awkward gaps on your wall.

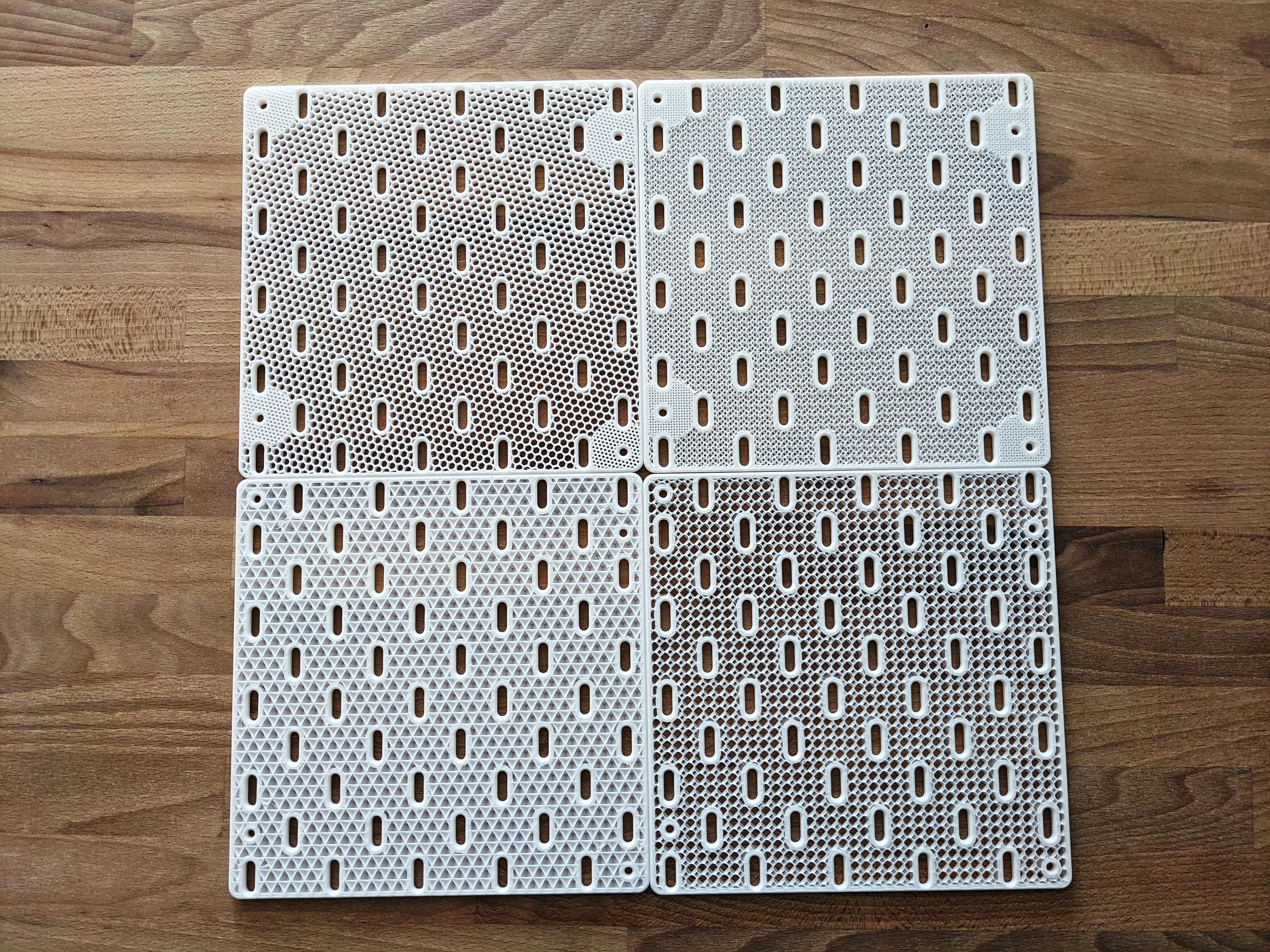

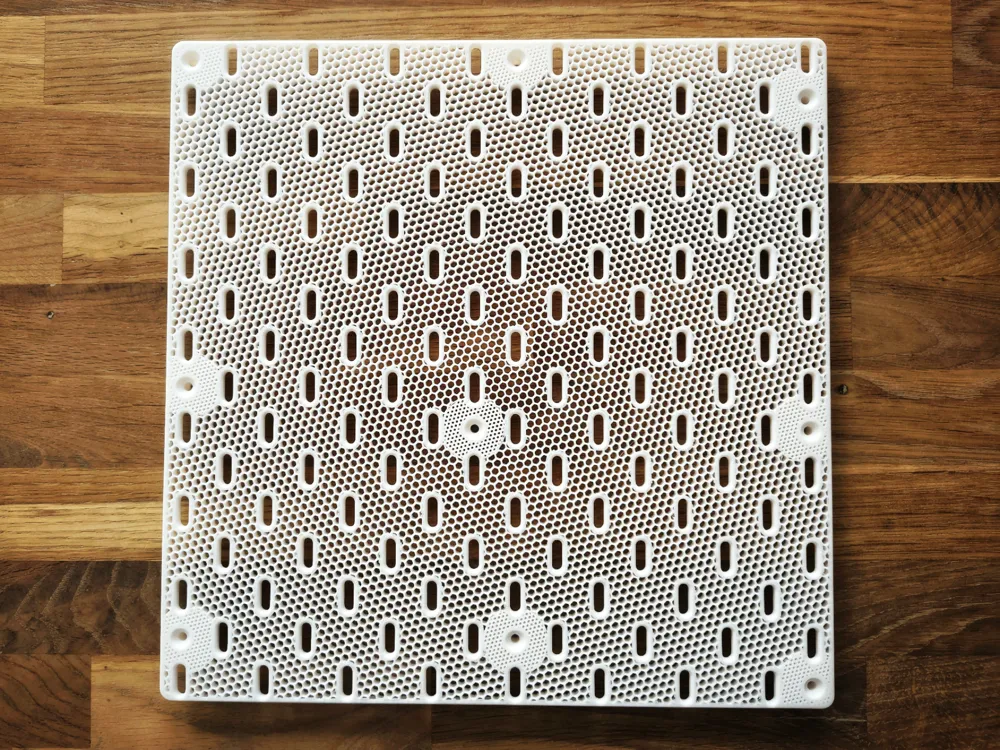

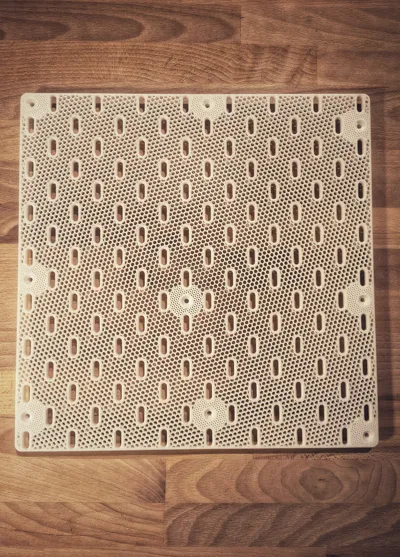

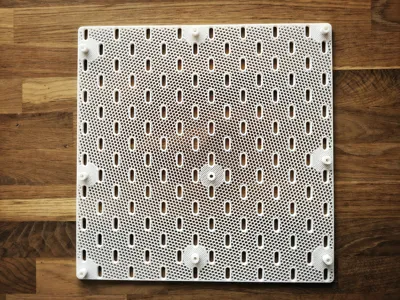

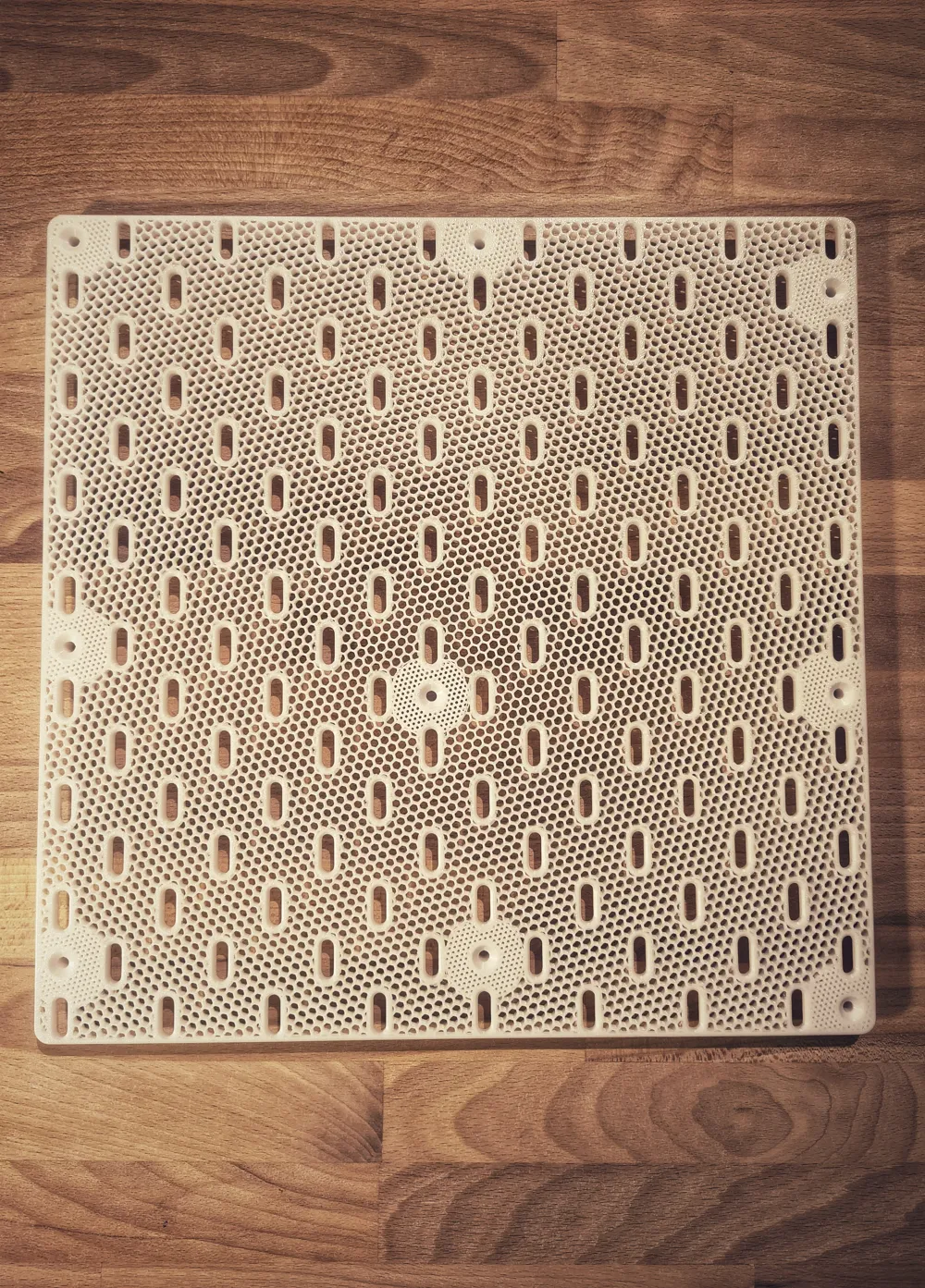

Panel size: 320x320x5mm. Nine mounting points for better stability. The infill pattern is fully visible from the front, so your choice of pattern (honeycomb, cross hatch, triangles) directly affects the look of the board. Cubic infill cuts print time almost in half compared to honeycomb. A print profile for it is included.
Two main print profiles with cubic infill are available: one for H2S and one dedicated for H2C.
For easy alignment just check: Infinite skadis Alignment Tool
If you want to reduce number of wall holes check: Lightweight Infinite Skadis Multi Panel Mount
Want to mount your panel without drilling? Check out the Lightweight Infinite Skadis Wall Mount - No Screws
New to Lightweight Infinite Skadis? Start here:
Customization
For Bambu Studio, check the Strength tab, under Sparse infill:
- Sparse infill density controls how dense the grid is.
- Sparse infill pattern allows you to choose the visual style (e.g., honeycomb, cross hatch, triangles).

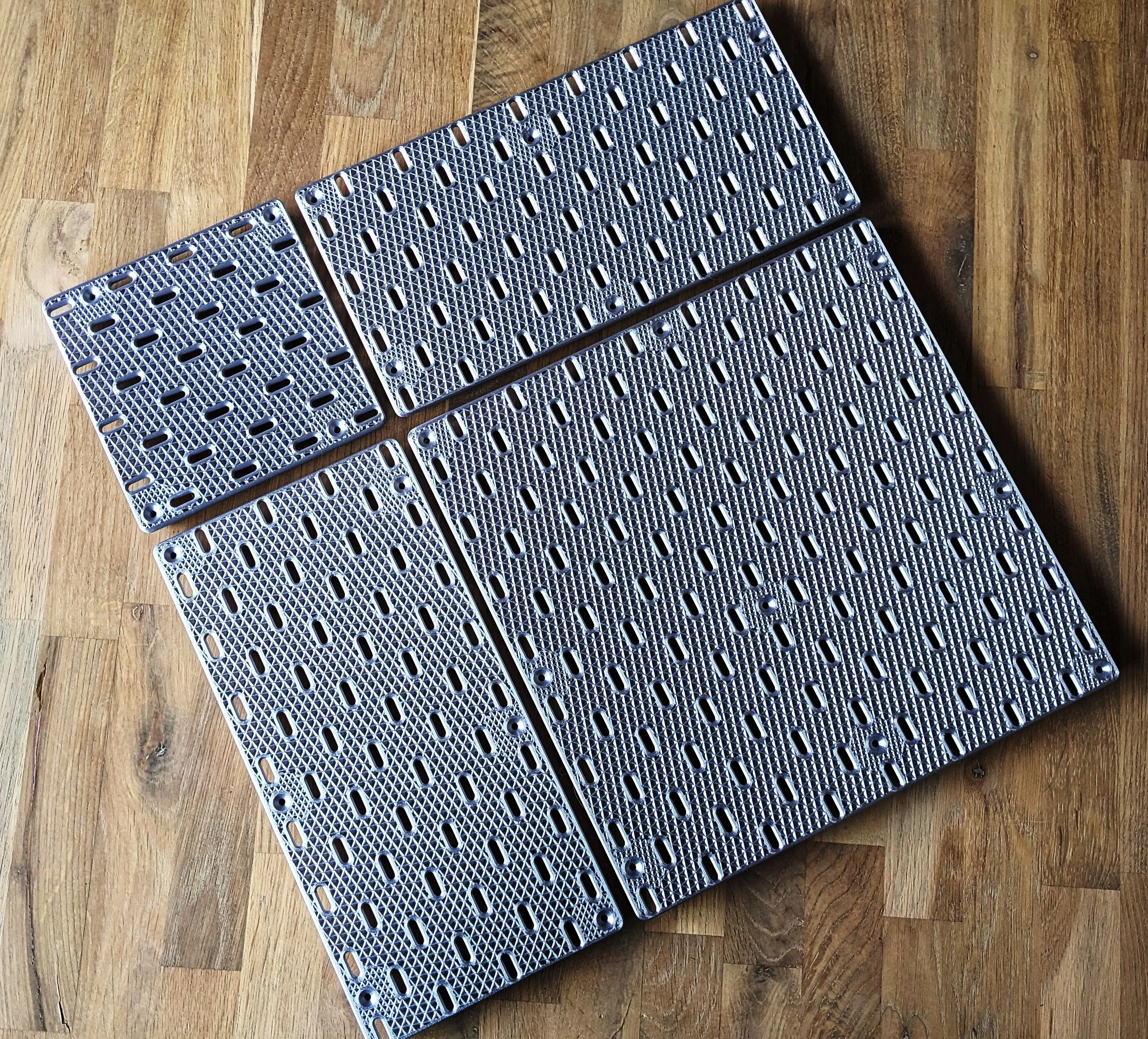

Update 31/01/2026: Introducing the "160 Pack" Expansion!
 |
|
The Lightweight Infinite Skadis family just got a lot more flexible. While the original 320x320mm panels are great for covering large areas quickly, I know that real-world walls aren't always perfect multiples of 320. To help you fill those awkward gaps and maximize every inch of your workspace, I’ve released the Lightweight Infinite Skadis 160 Pack.

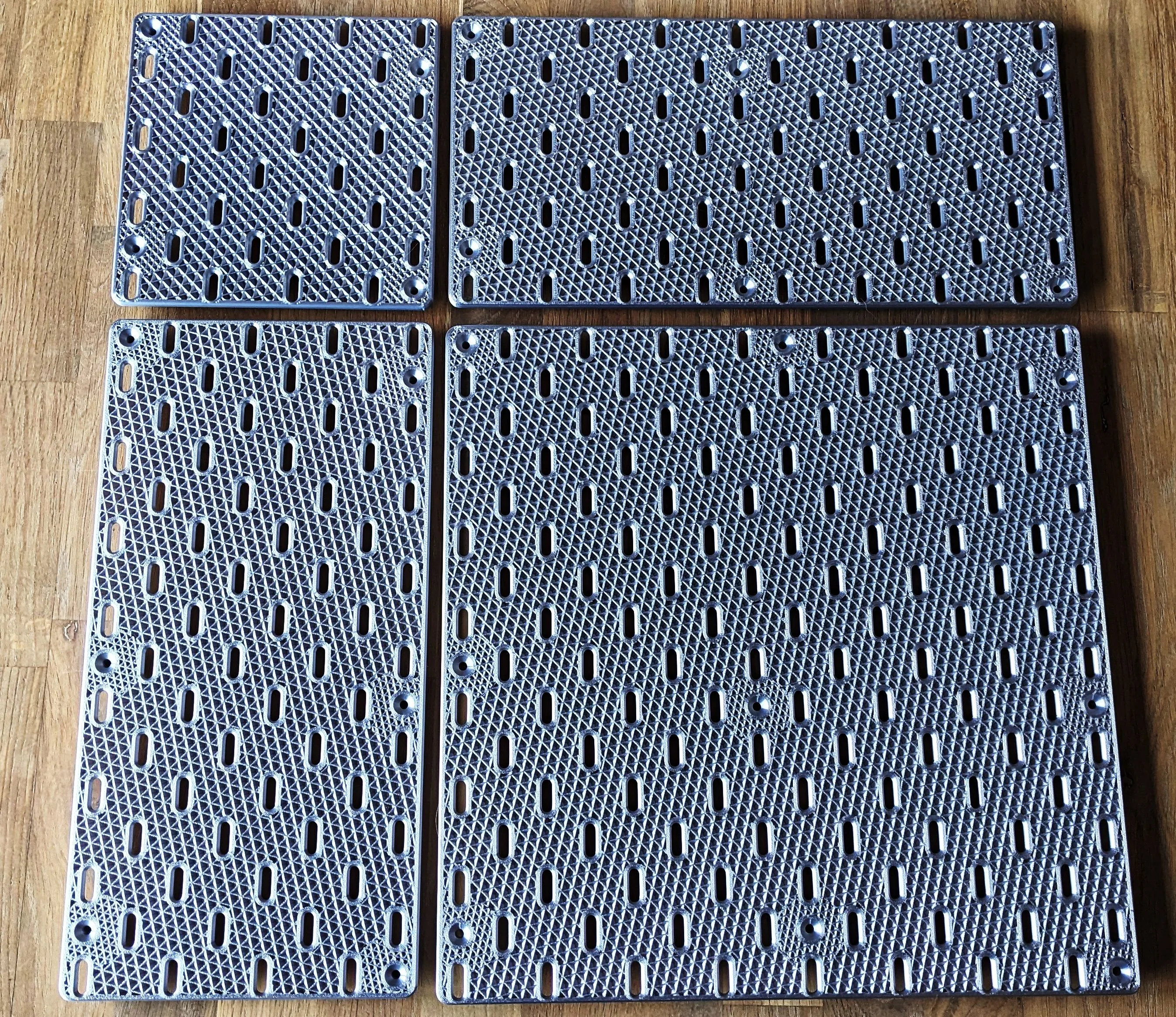

This upgrade includes three new panel sizes designed to fit perfectly with the existing system:
- 160 x 320 mm (Vertical)
- 320 x 160 mm (Horizontal)
- 160 x 160 mm (The "Gap Filler")
Big shout out to @fbgencer and @Webster43 for the inspiration! The models are in separate print profile on the right side ;)

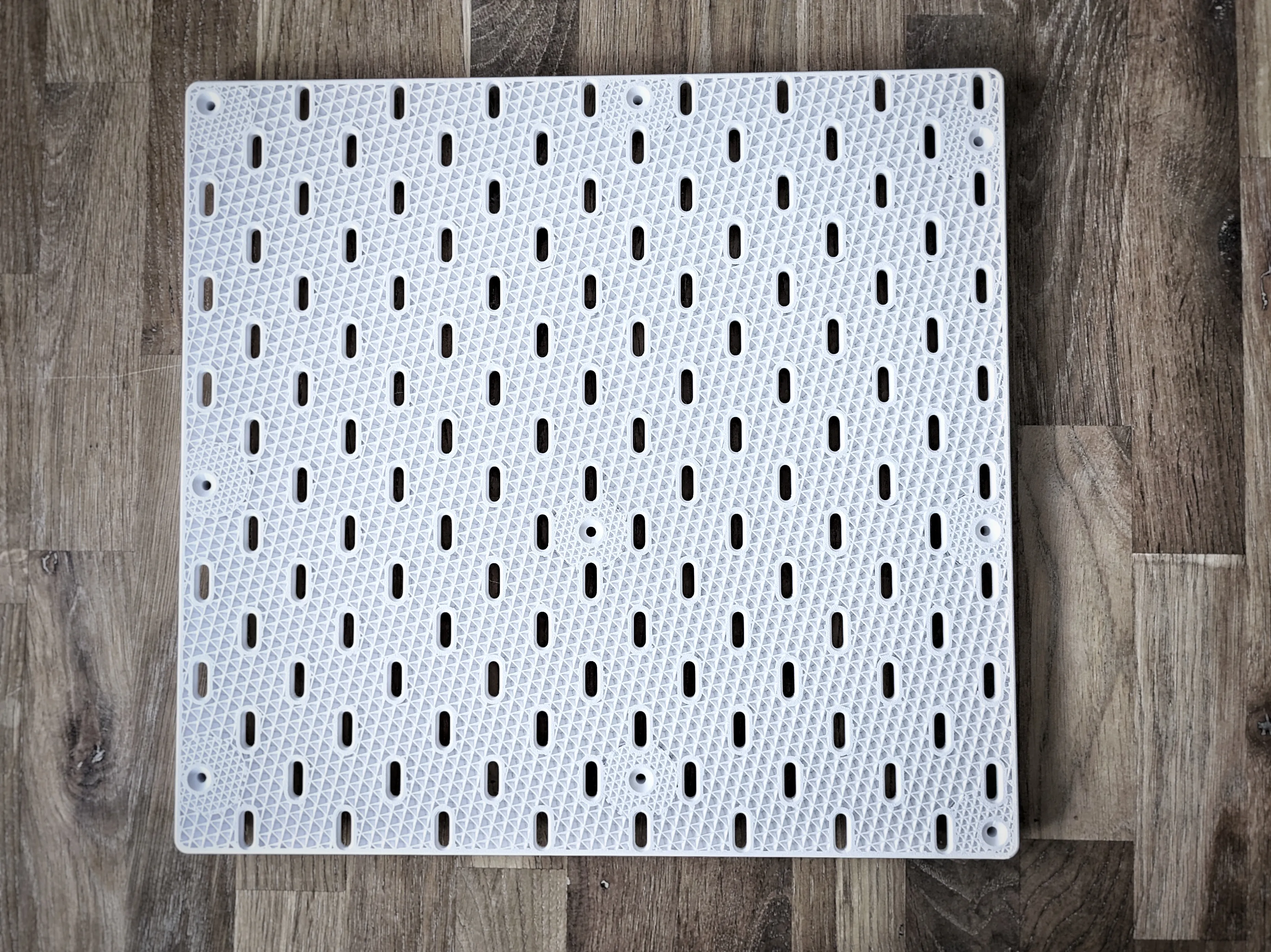

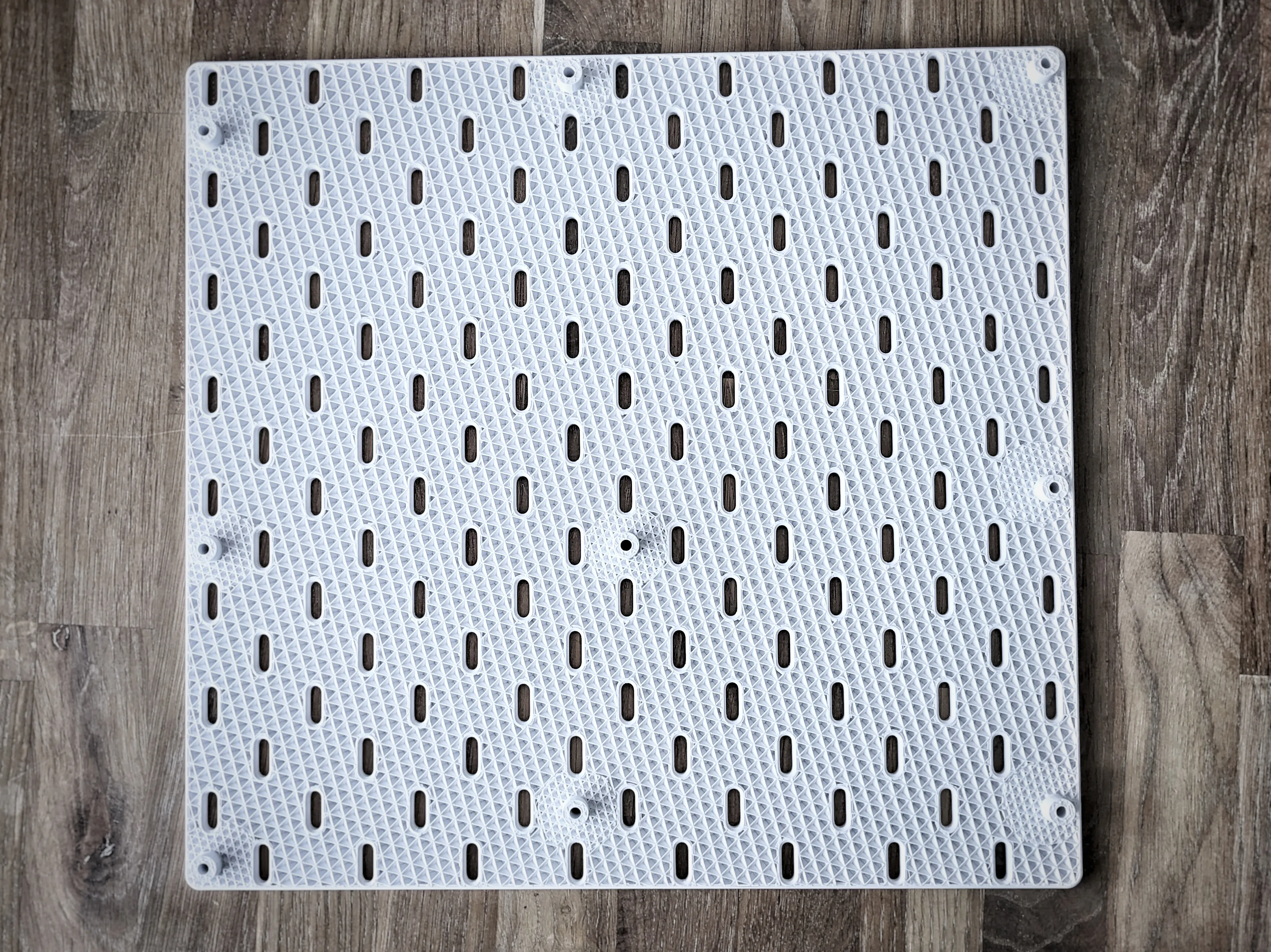

Update12/01/2026: Added a print profile for the 320 × 340 version, as requested by @DanH2D. To maintain compatibility with my Lightweight Infinite Skadis Multi Panel Mount, three hook holes had to be replaced with mounting holes. Before printing, please take a look at the left side of the panel shown in the left photi below and make sure this layout works for your setup.
 |
|
Update 11/11/2025: Switching to cubic infill significantly reduces print time, almost by half compared to the default honeycomb pattern! A print profile using this infill has been added. Big thanks to @melvinkeoh for pointing it out!
If you print it, please leave a make or rating. It helps a lot.
