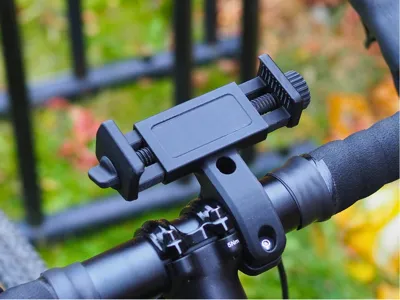

Bike Handlebar Phone Mount

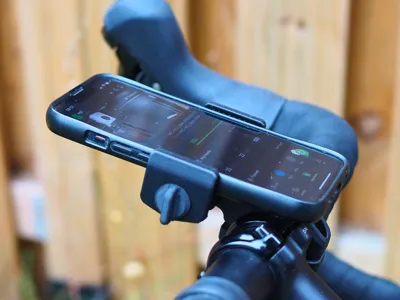

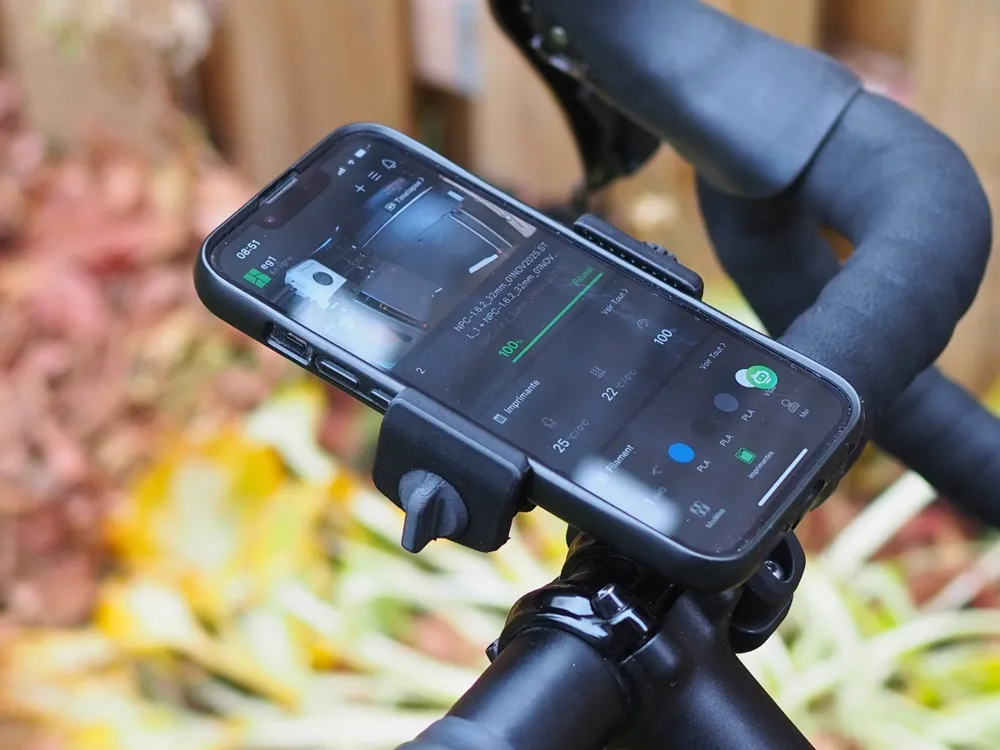

This accessory lets you securely attach your phone to your bike. It fits phones from 63 mm to 93 mm in width.

This is an alternate version of the Bike Stem Phone Mount, which was design to mount directly on the Stem.

There are three versions included in the print profile, each designed for different tube diameters:

• From 22 to 26 mm
• From 29 to 32 mm
• From 33 to 36 mm

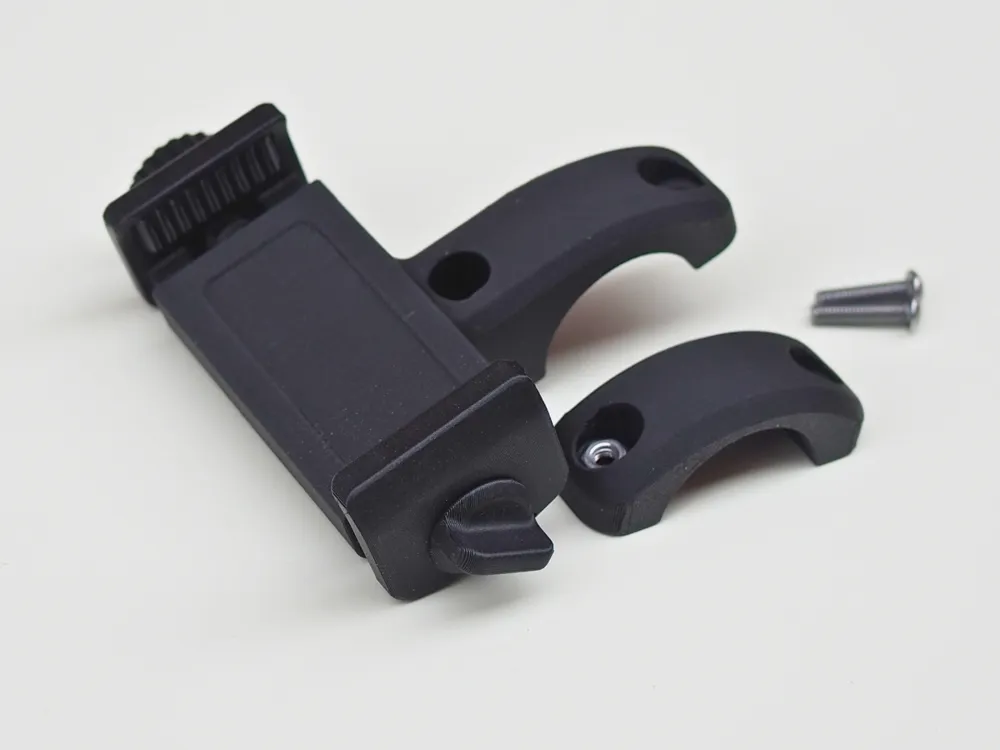

The clamping jaws are the same for all tube diameters. Two knob styles are included: a smaller one for quick position adjustments, and a larger one for easy mounting and removal of your phone. Both knobs are interchangeable, allowing you to customize the setup to your preference. To install, simply snap the knobs onto the clamping jaws.

I’ve also included optional TPU parts (common for all versions):

• 2x phone pads – useful if your phone doesn’t have a soft case (e.g., if you’re clamping directly on metal).
• 2x clamp pads – optional, but they help with grip and reduce slipping on smooth surfaces.

To mount it on your bike, you’ll need:

• 2× M4 × 20 mm screws (AA068)
• 2× M4 nuts (AB028)

If you prefer, you can use heat-set inserts instead. M5 screws and nuts may also work, but you’ll need to slightly enlarge the holes.
