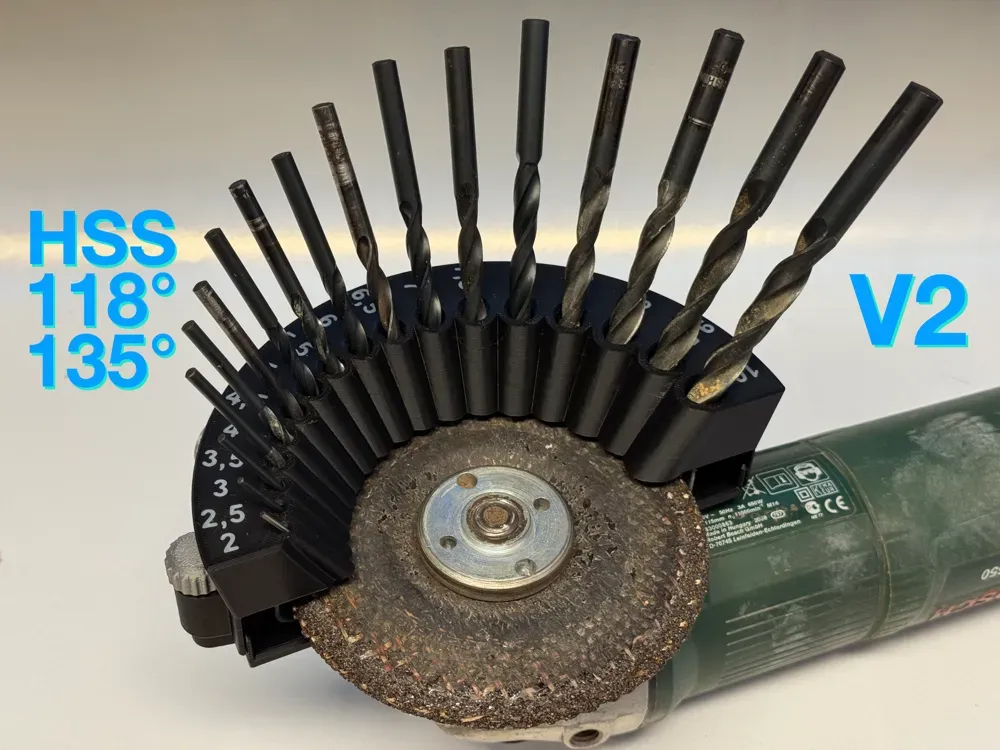

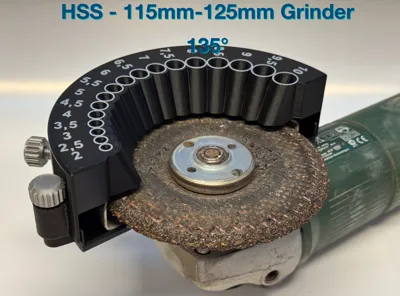

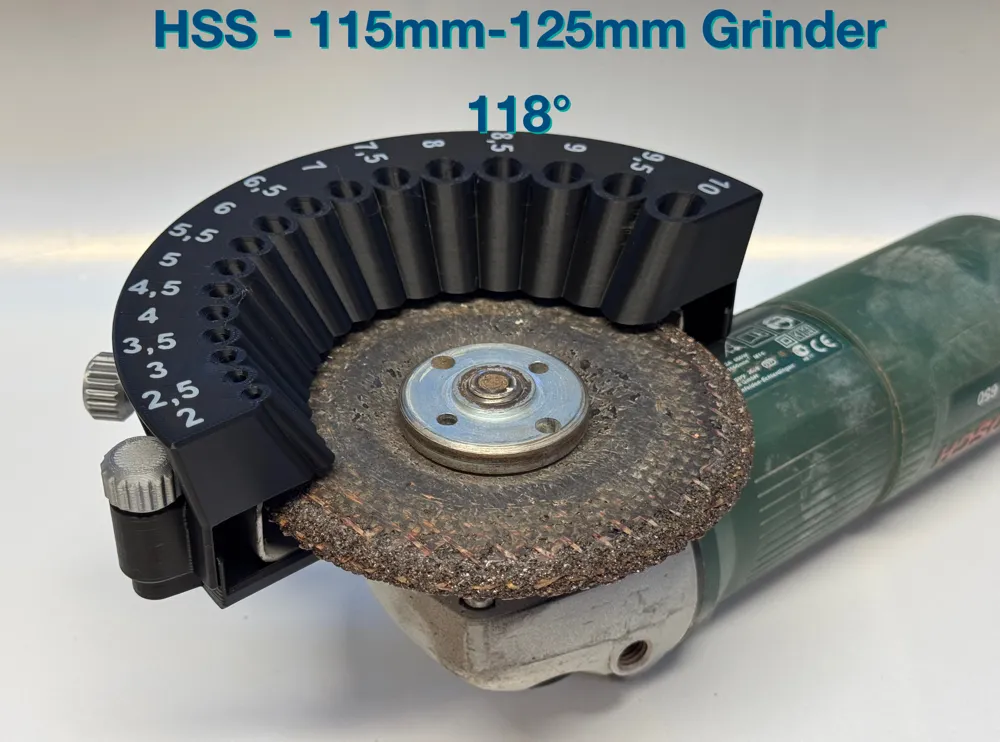

Drill sharpening attachment for angle grinders with 115mm to 125mm discs

HSS drills with 118° or 135° cutting edge

____________________________________

should be operated with a grinding disc, NOT with a cutting disc

P.S... yes, the clearance grind of the cutting edge is missing... nevertheless, the drills cut well again after sharpening !!!!!

____________________________________

The attachment should work for all 115mm to 125mm angle grinders

It is screwed together with screws (included in the print)

Feel free to contact us with questions and suggestions :)
