120x50 spike tire, 12mm hex, M4, 0.2mm layer, 3 walls, 15%

Designer

14.8 h

1 plate

5.0(1)

120x50 tire, 12mm hex, M4, 0.2mm layer, 3 walls, 20% infill

Designer

10.9 h

1 plate

5.0(3)

130x50 tire, 12mm hex, M4, 0.2mm layer, 3 walls, 20% infill

Designer

13.1 h

2 plates

130x50 tire, 17mm hex, M12, 0.2mm layer, 3 walls, 20% infill

Designer

15 h

2 plates

5.0(2)

Click to see more

Open in Bambu Studio

Boost

112

Released

Description

Content has been automatically translated.

Show original

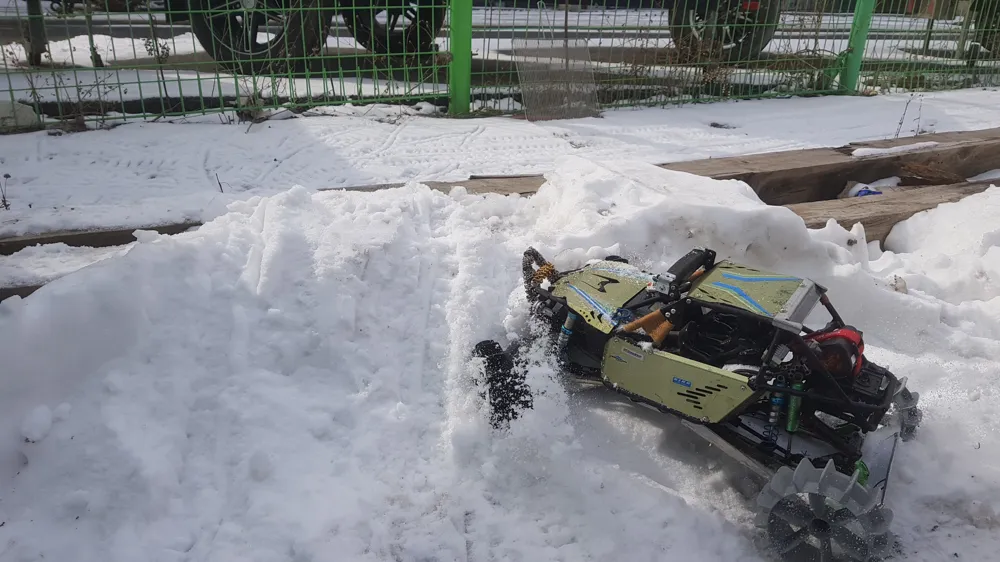

1:8 RC car snow tire

1:10-16 RC car snow tire added

12mm hex, 17mm hex / M4, M12

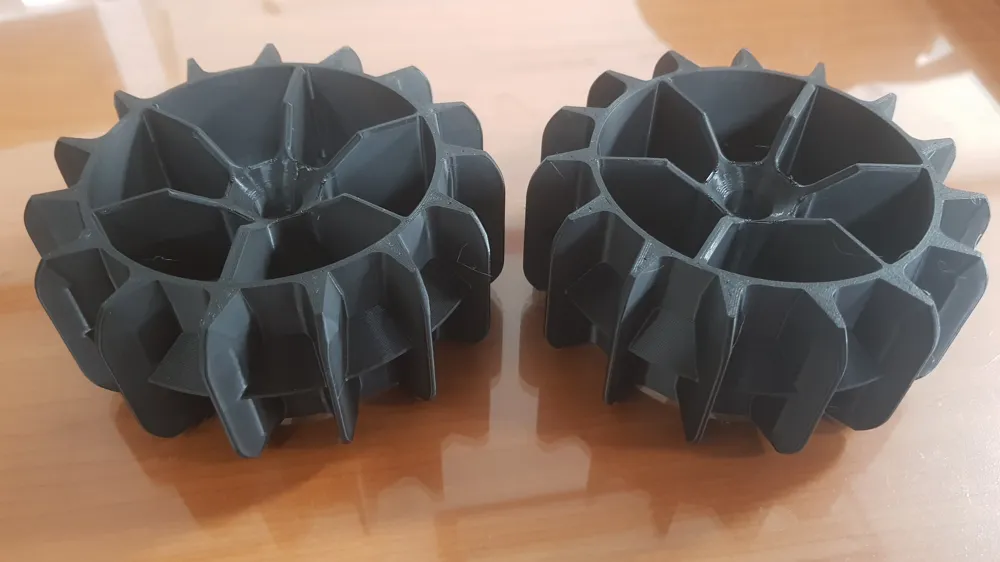

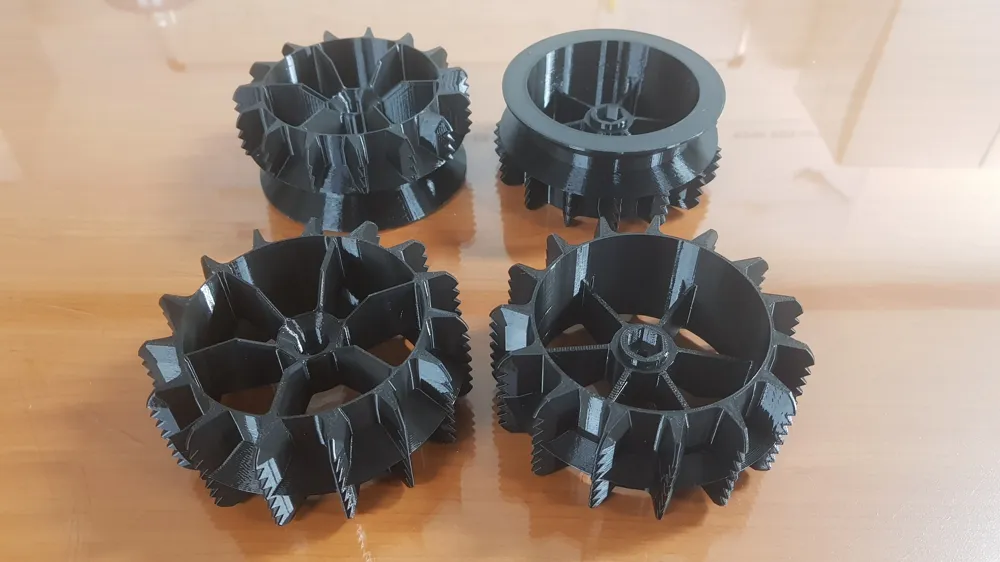

Tire size: 120mm x 50mm,

130mm x 50mm,

70mm x 40mm

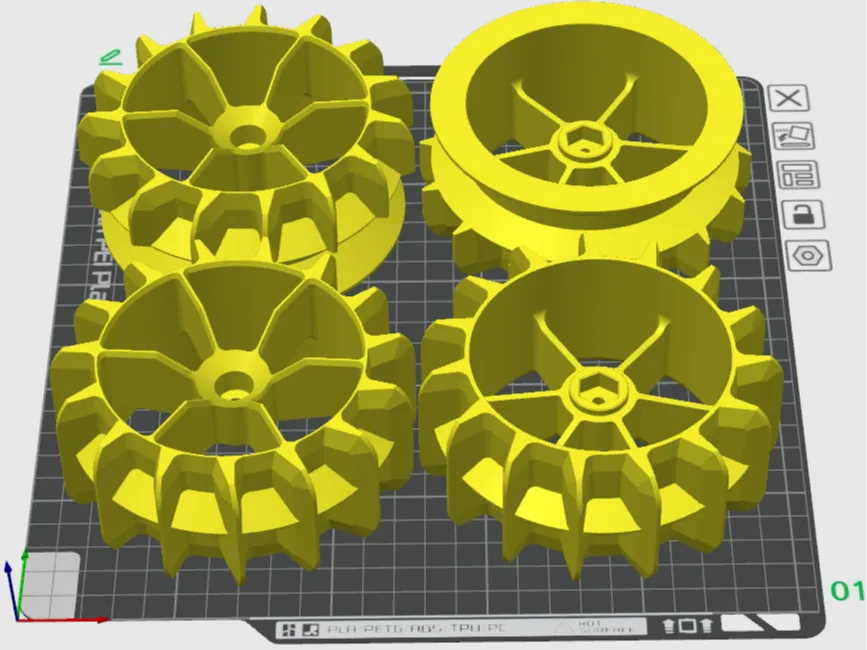

Minimum support for the center wheel nut area

May not fit if additional brass wheel weights are present A 20mm hole with a 3mm insert is provided (hex depth 7mm)

The central fin reduces lateral slip (improving straight-line stability) and minimizes bumping when driving on flat surfaces

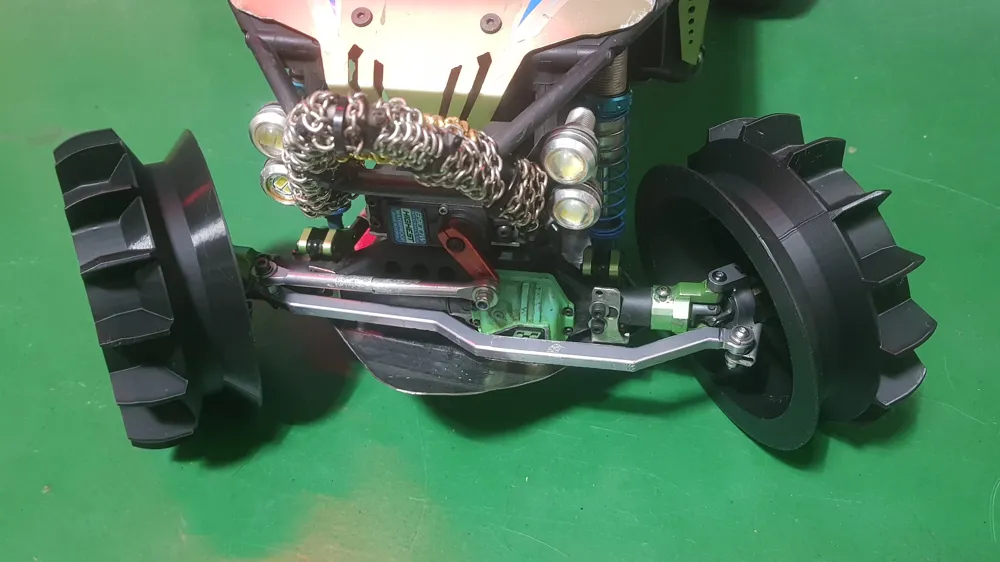

The front tires feature half-wings to reduce debris splashing onto the body

Snow does not easily get stuck in the treads

Comment & Rating (26)

@FilthyCreations

Boosted

I can’t wait for more snow so I can try these out. I printed them in TPU for some flexibility and hopefully increase the lifespan. FLAWLESS print!

The designer has replied

@user_1600283223

Wow~! good quality!! TPU is also good! Need a M4 wide washer!

(Edited)

@user_2915700499

did they hold up in tpu?

@FilthyCreations

Boosted

Replying to @user_2915700499 :

They unfortunately don’t, at least not on my basher.

@user_1820583118

Hello Brother. Am I able to offer feedback on the 17mm version? I think that it is a Fantastic design but had critical flaw.

The designer has replied

@user_1600283223

What is the problem

Show original

@user_323659229

Boosted

Replying to @user_1600283223 :

this is how they print. I assume it is because the wall is too thin for the slicer. Also a 17mm socket is tight enough that I can lift the wheel by the socket. if the walls were there it wouldn't fit.

@user_1600283223

Replying to @user_323659229 :

I'll upload a revised version soon. The socket wall may break if it's too thin

Show original

@Hotdog3429

Can someone make the tire and rim smaller to the dimension of around 70mm x 40mm but still the same hex size? (Hex size is 12mm)

The designer has replied

@user_1600283223

OK! 7 hours of drawing work completed. Added profiles.

(Edited)

Show original

@Hotdog3429

Replying to @user_1600283223 :

THANK YOU SO MUCH!!!

@printer_nerd

can u make an a1 mini profile, and also which set of tires goes on the front?

The designer has replied

@user_1600283223

You can print one or two pieces according to the plate size. You need to attach half wheels to the front wheels so that the eyes do not protrude as much during left and right steering

(Edited)

Show original

@RB4R

😆 🤣 its called bambu studio

@happy3dprint

is it good for the tarmo 5 i would like to take it to sandy forest areas because its fun going around tree roots but i cant find good tyres that will grip the floor.

(Edited)

@twall

Boosted

Print Profile

120x50 tire, 12mm hex, M4, 0.2mm layer, 3 walls, 20% infill

The profile uploader has replied

@user_1600283223

Thank you

Show original

@user_2363120174

Boosted

Print Profile

120x50 spike tire, 12mm hex, M4, 0.2mm layer, 3 walls, 15%

The profile uploader has replied

@user_1600283223

Thanks for the 5-star rating!

@Vento_glx_vr6

Print Profile

130x50 tire, 17mm hex, M12, 0.2mm layer, 3 walls, 20% infill

(Edited)

The profile uploader has replied

@user_1600283223

If it were 17mm, it would be fast, but can it hold up

Show original

@user_2363120174

Boosted

Print Profile

120x50 tire, 12mm hex, M4, 0.2mm layer, 3 walls, 20% infill

The profile uploader has replied

@user_1600283223

Thanks for the great review

(Edited)

@user_1567775566

Print Profile

130x50 tire, 17mm hex, M12, 0.2mm layer, 3 walls, 20% infill
