Description

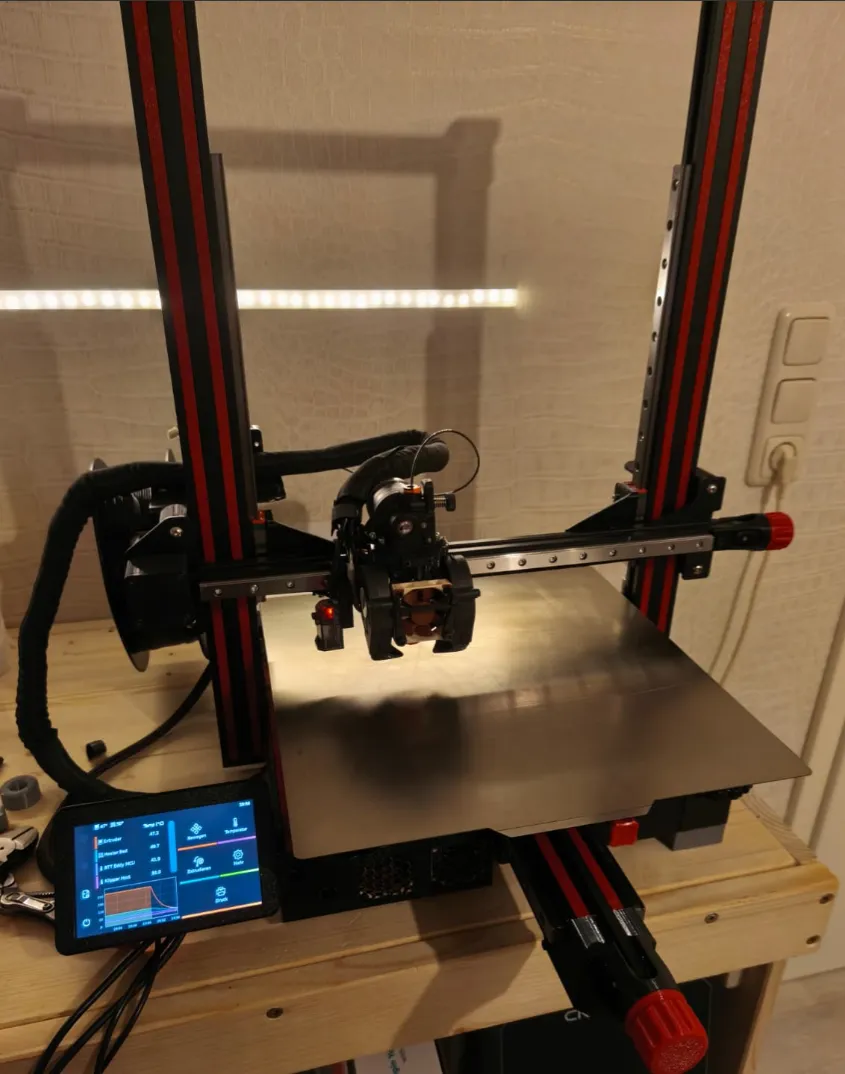

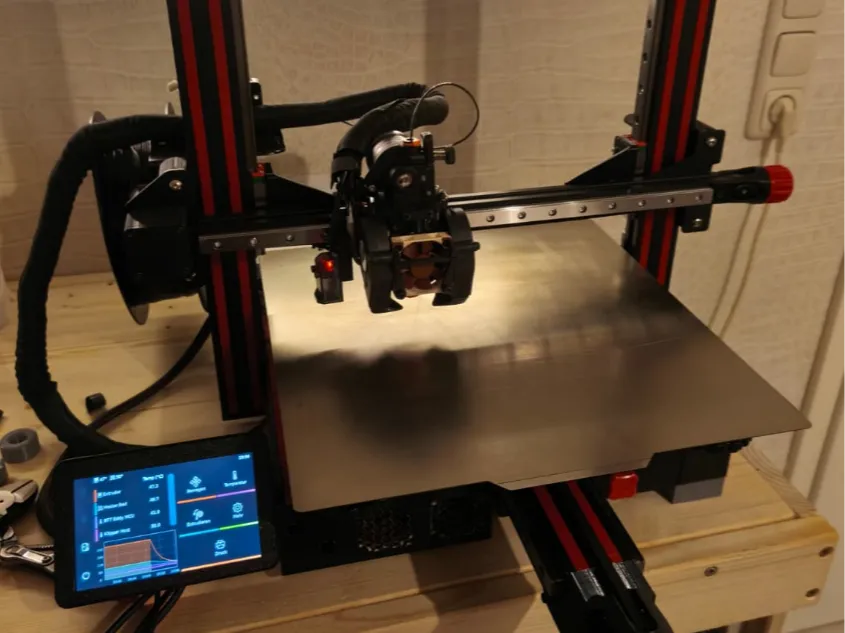

Parts for an complete upgrade of an Ender 3 Max Neo including:

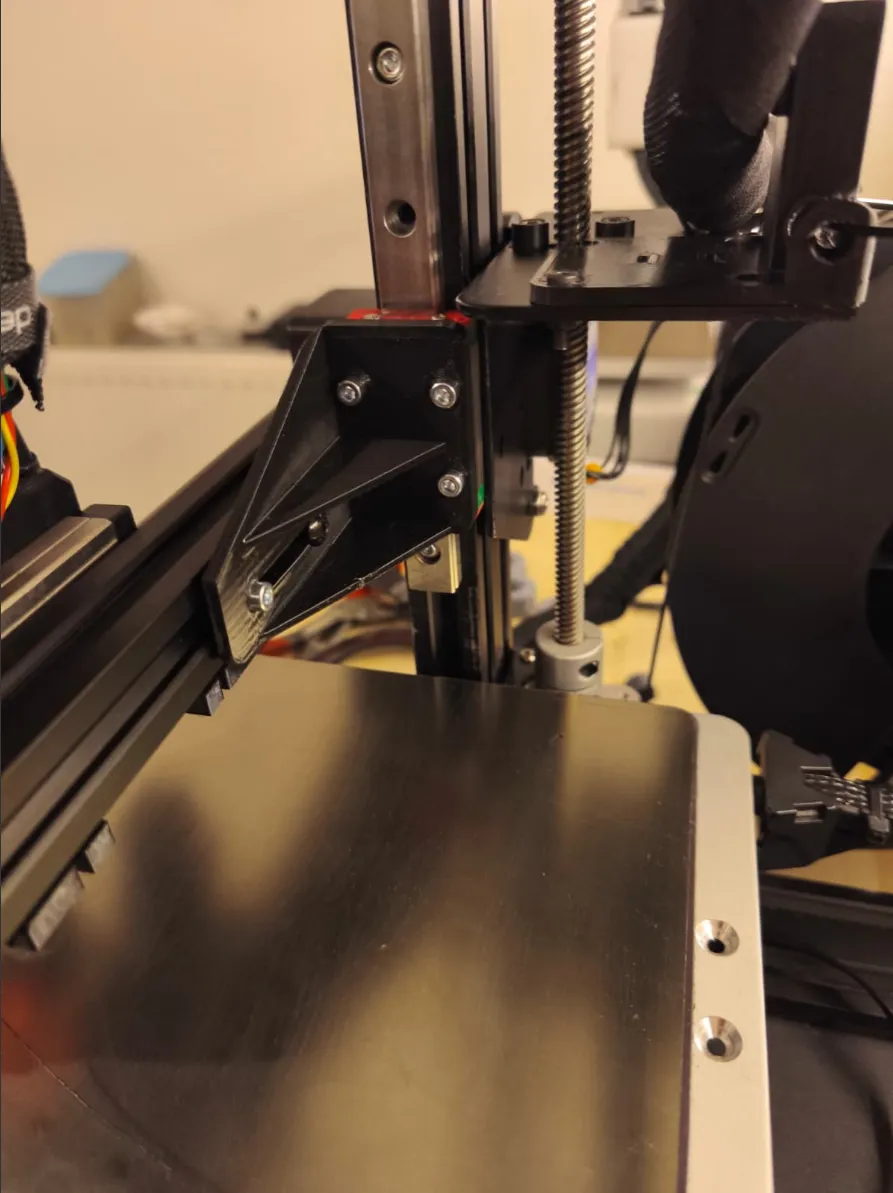

Linear rails for X-, Y- and Z-axis

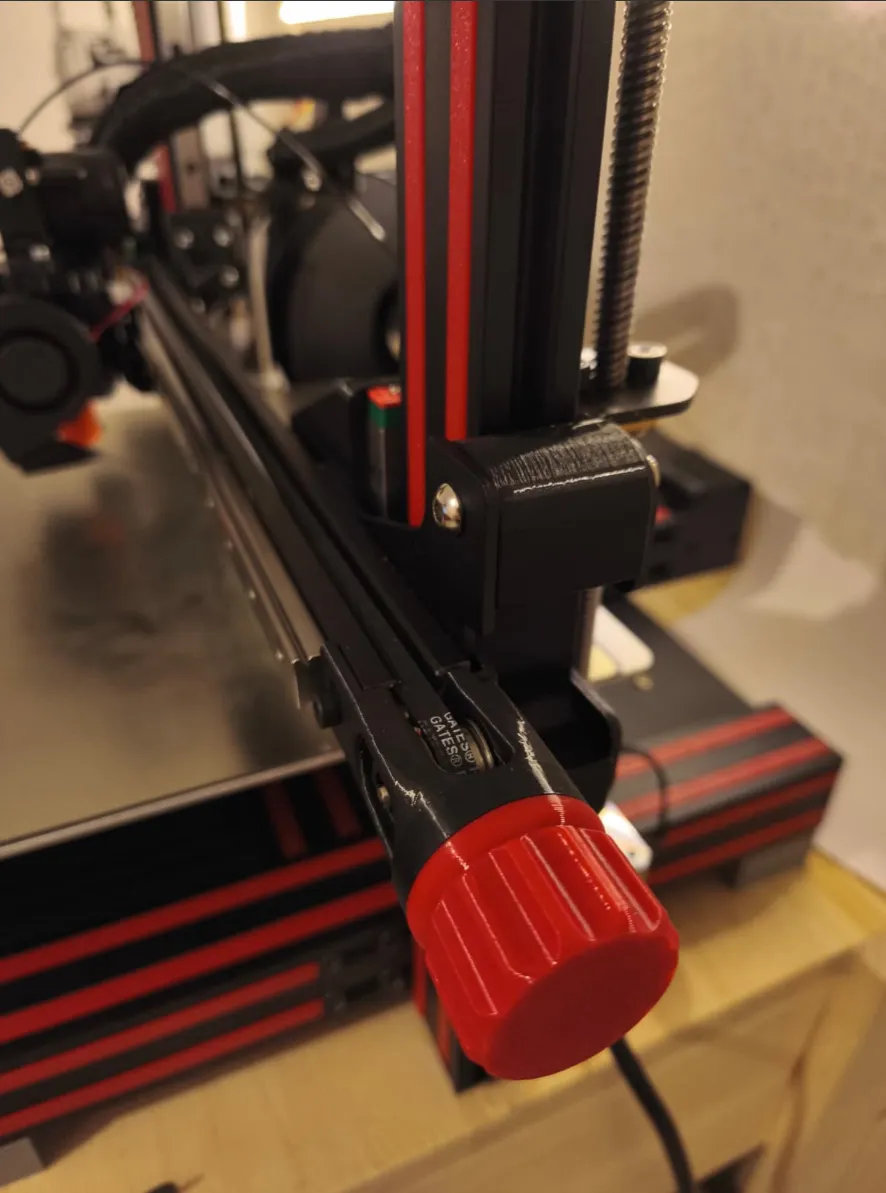

New belt tensioners

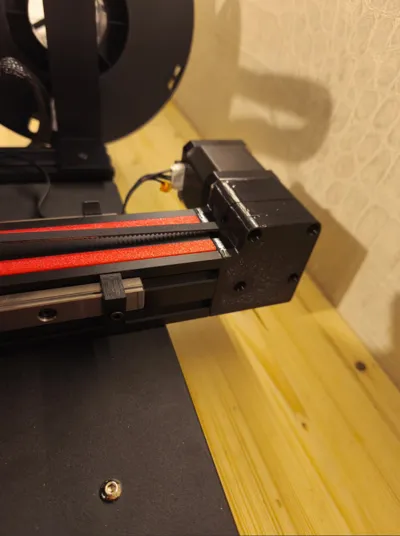

New stepper mount for the Y-axis

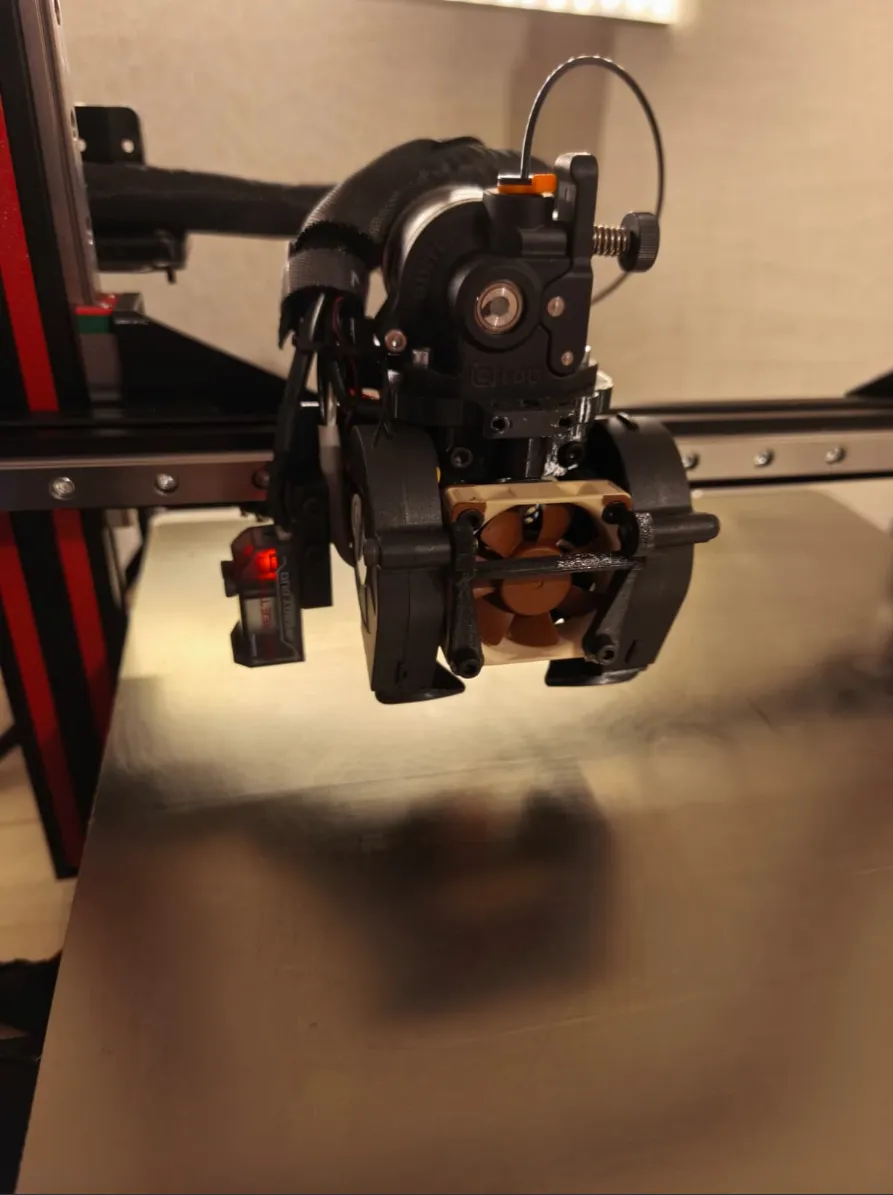

New Printhead

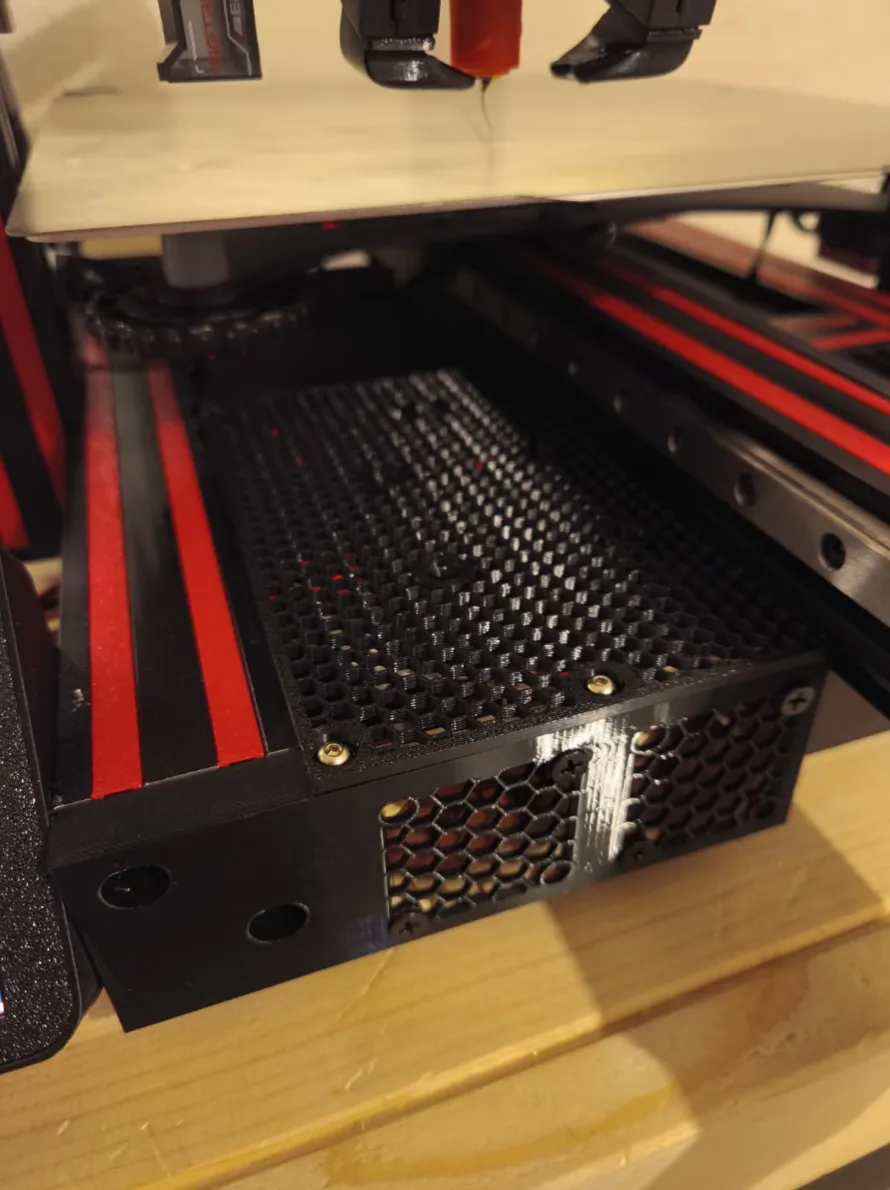

New Mainboard (SKR 1.4) and cooling of the stepper drivers

Following parts are needed for those upgrades:
Printhead: Orbiter V2.0/2.5, BTT Eddy Duo, Trianglelab CHC Pro Hotend (Volcano), 2x 5015 Fans, 4010 Fan, numerous heat set inserts

Linear rails: 1x 350mm, 2x 400mm, 2x 300mm, 80 M3x8 screws+T-nuts

Mainboard: SKR 1.4, 2x 4010 Fans, 6 heat set inserts

For the rest you can use the original parts.
