0.2mm layer, 0% infill & 8% infill

Spetz3D



I tested different lampshade settings to get the light flow exactly how I wanted it. Here is the print profile I used!&nbsp;If you want to support my work please rate this profile and check my designs here on makerworld! <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/@Spetz3D">https://makerworld.com/en/@Spetz3D</a>&nbsp;Happy printing! :)

Lampshade

Meltdown




This print profile is specifically optimized for a 0.8mm nozzle to achieve a unique, thick &#34;glass/crystal&#34; look. The profile combines two distinct techniques in a single print job: a &#34;blobby&#34; clear lampshade and a sturdy, functional base.&nbsp;First remix so let me know if somethings need to change.Tested with Bambu Translucent pla, before printing i tested optimal temp, height, width and flow for perfect print. Made it bigger in size also&nbsp;Highlights of this profile:<ul><li>Unique Texture: The lampshade features extra thick walls that bulge slightly (&#34;blobby&#34; look) for beautiful light refraction.</li><li>Smart Remix: The base settings have been recalculated for the thicker layers to ensure stability and a proper fit with the shade.</li><li>Hybrid Settings: Includes automatic switching between &#39;Vase settings&#39; for the shade and &#39;Solid settings&#39; (with cooling) for the base.</li></ul><h3>Specific Settings Details:</h3>For the Lampshade:<ul><li>Layer Height: 0.6 mm (for a coarse glass effect)</li><li>Line Width: 1.0 mm (Outer wall)</li><li>Flow Ratio: 1.15 (Increased to create the &#34;chunky/blobby&#34; texture)</li><li>Speed: 20 mm/s (Outer wall - slow speed for maximum clarity and layer bonding)</li><li>Temperature: 240°C (Higher temperature for better transparency)</li><li>Structure: 1 Wall, 0% Infill, 0 Top layers (&#34;Fake Vase&#34; mode)</li></ul>For the Base:<ul><li>Structure: Printed solid (15% Infill, 3 Walls)</li><li>Bottom Layers: 14 layers (Calculated to match the original thickness and stability using 0.6mm layers)</li><li>Cooling: 100% Fan (Standard PLA cooling enabled for clean top surfaces and overhangs)  </li></ul>

0.8mm Nozzle "Chunky Crystal" Remix - Thick layers


0.6mm nozzle for both pieces. Disabled fuzzy skin on the base. I used PETG for the top, copper PLA for the bottom.

0.6mm nozzle, 0.3mm layer, 2 walls, 8% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

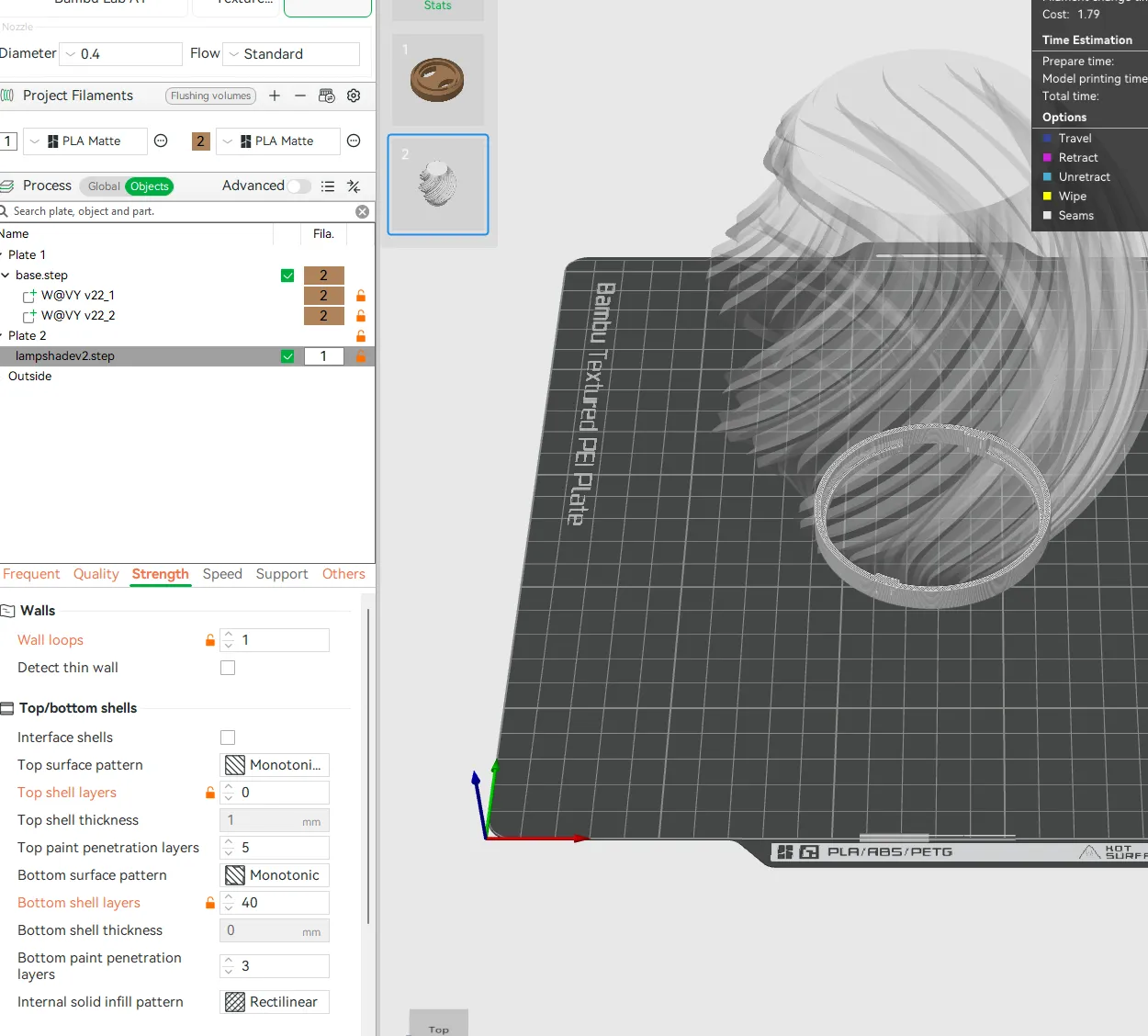

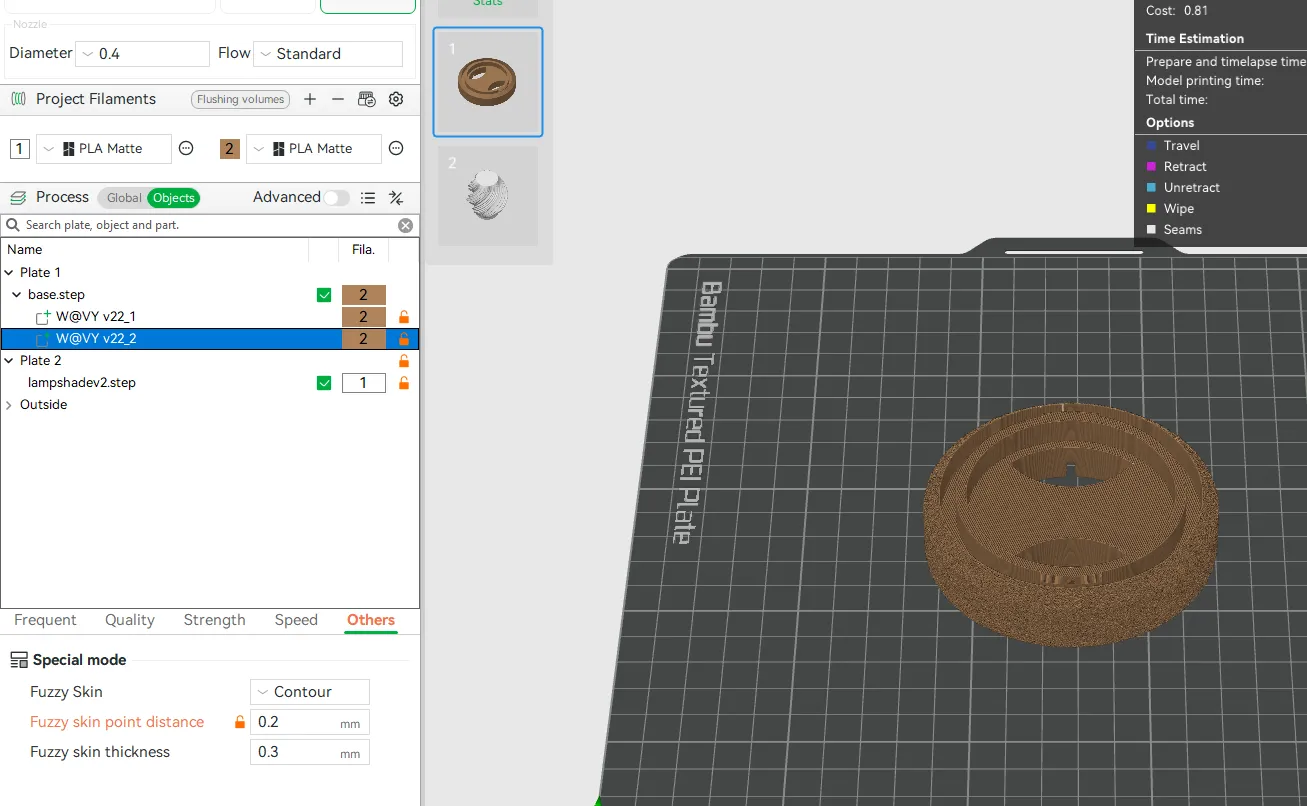

This lampshade is designed for the Bambu Led Lamp 001. The profile contains specific parameters for the lampshade and the base.&nbsp;The lamp is in vase mode with lower layers for the base :&nbsp;<figure class="image image_resized" style="width: 66.2%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001946618/design/2025-11-01_e57d98a3b9b5a8.png"></figure> One part of the base is in fuzzy skin :  <figure class="image image_resized" style="width: 66.02%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001946618/design/2025-11-01_48e26058240c9.png"></figure>&nbsp;<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/@makustom/">The base is compatible with other lamps, feel free to check it out : https://makerworld.com/en/@makustom/</a>&nbsp;<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Thanks for your support !</boostcontent></boostme>
