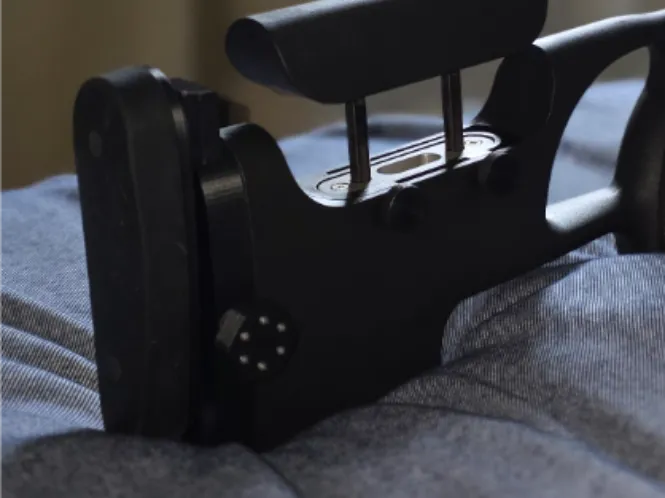

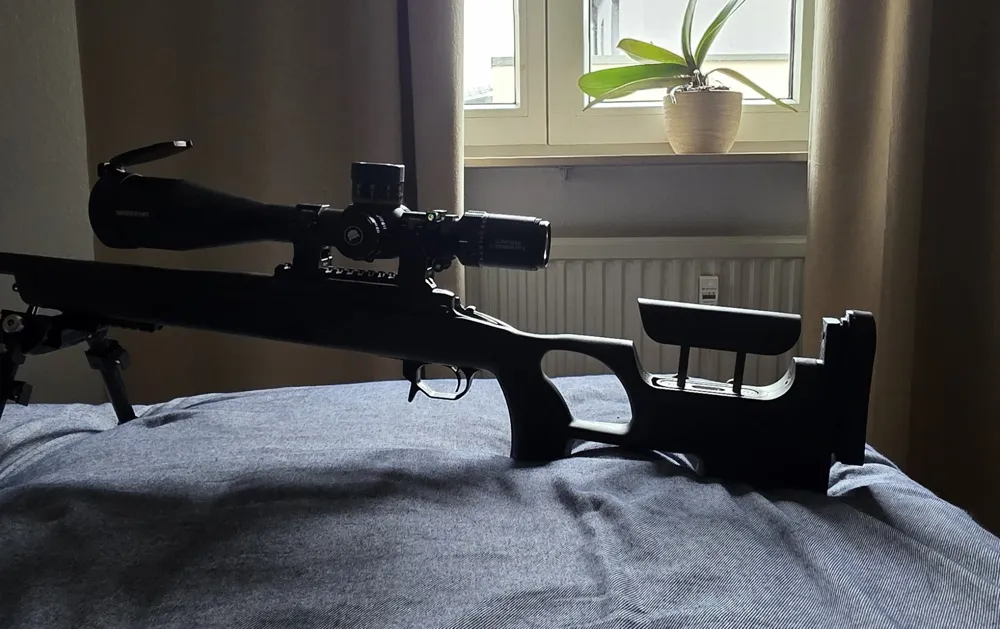

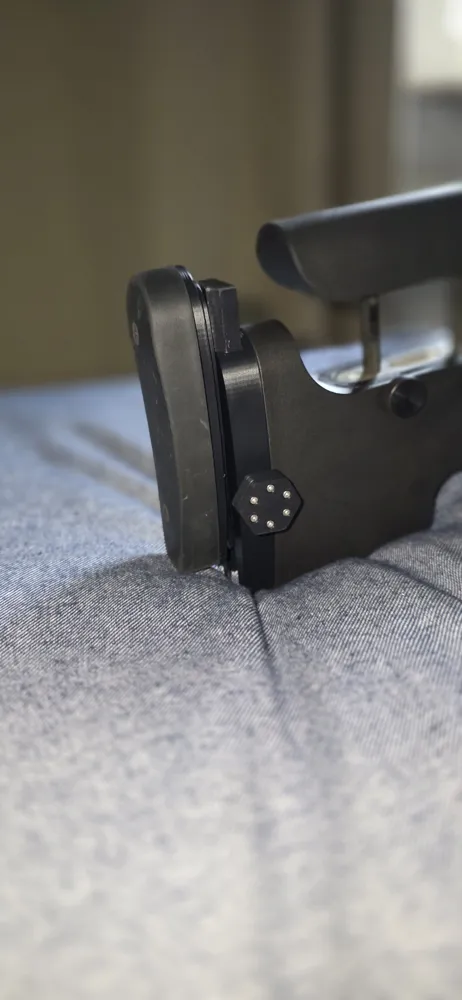

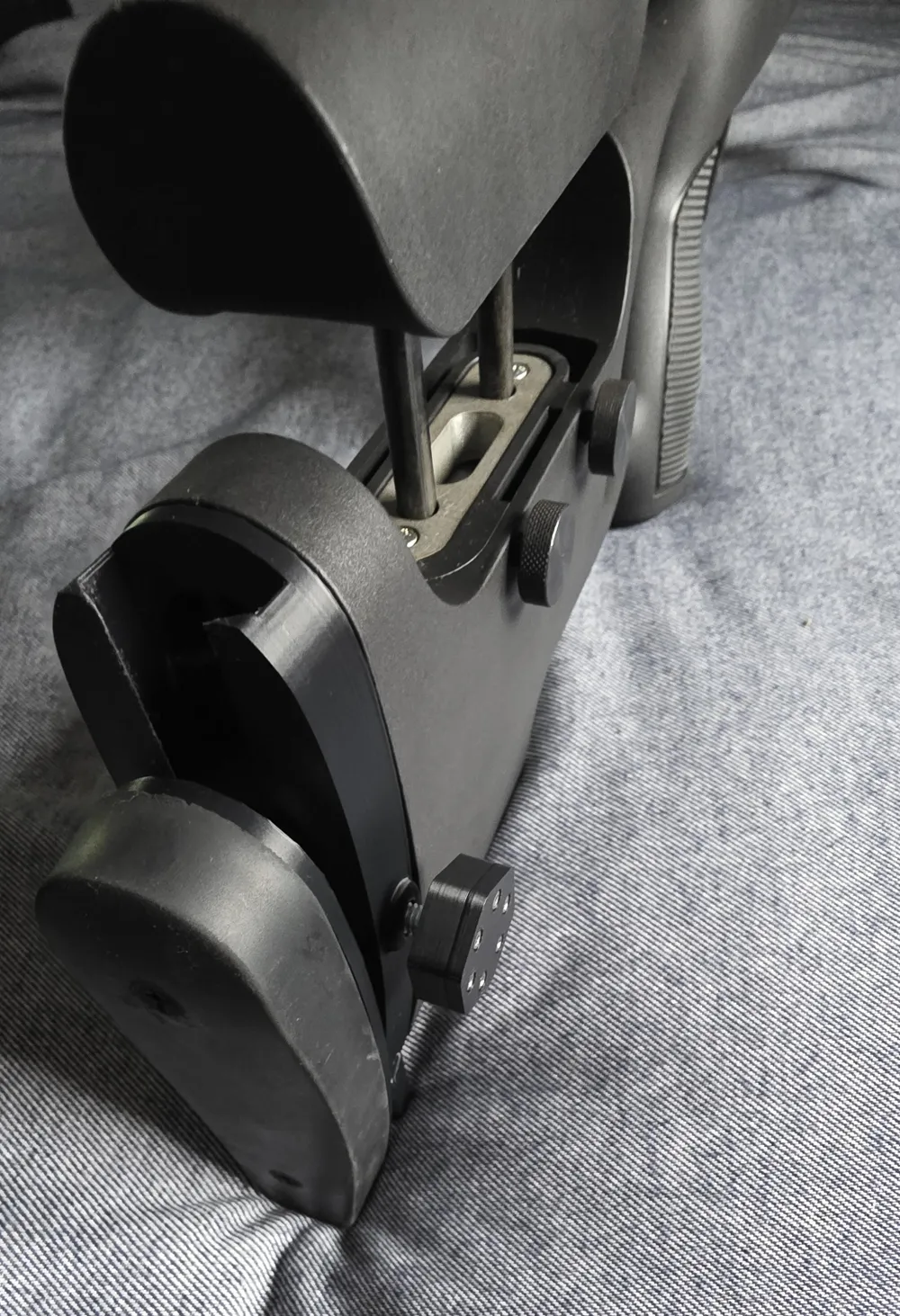

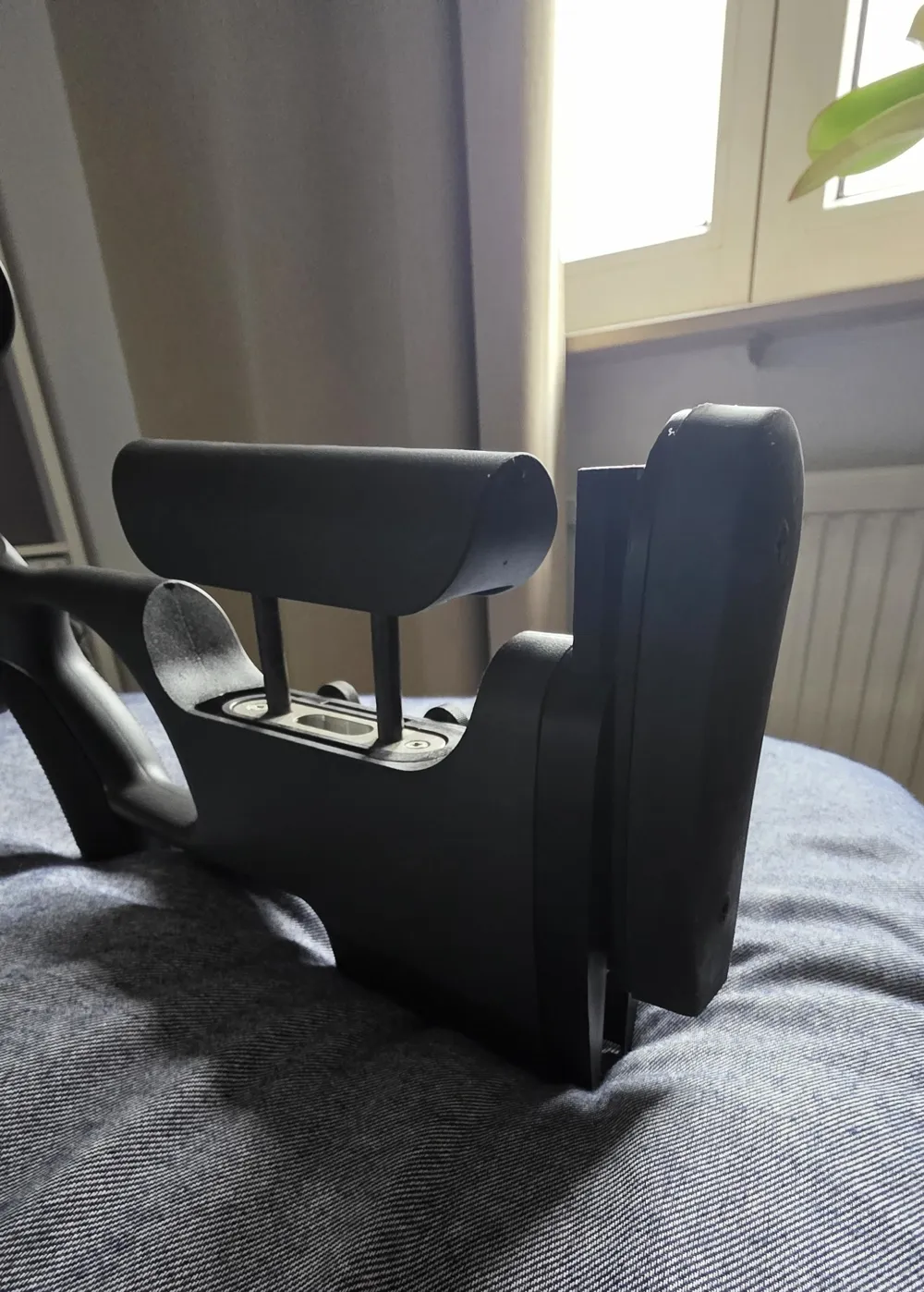

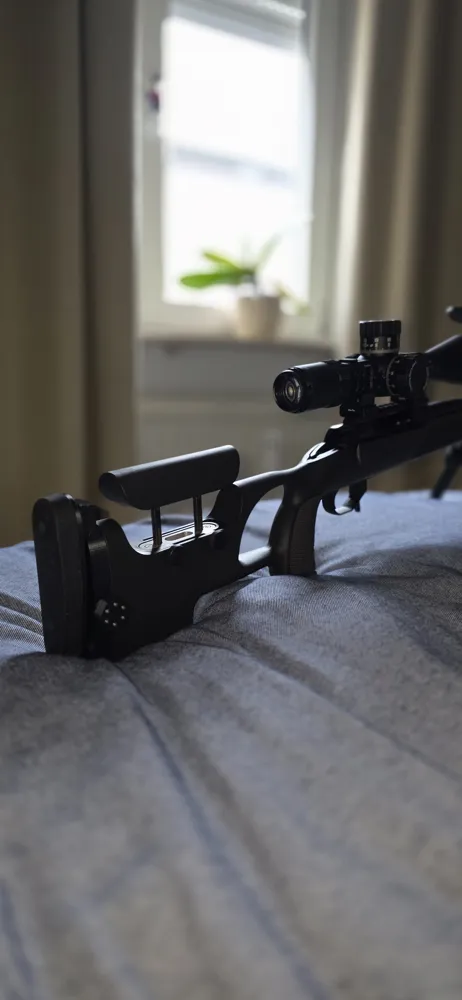

Sabatti urban sniper adjustable butt-pad
Print Profile(1)
Bill of Materials
Description

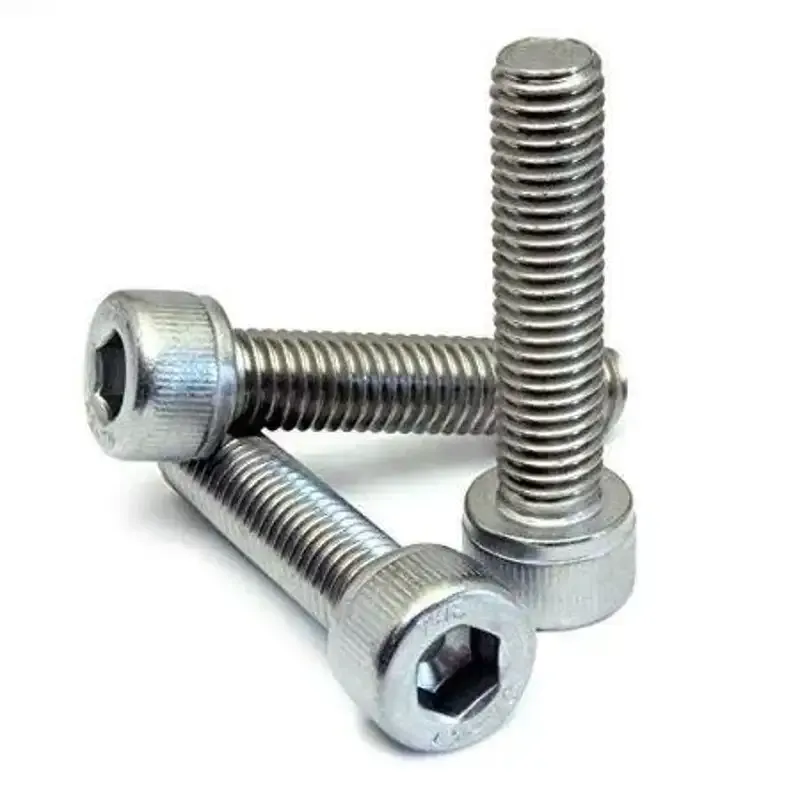

Screws needed for the project:

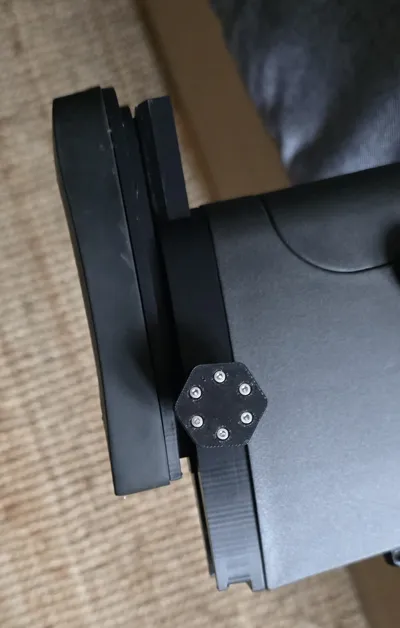

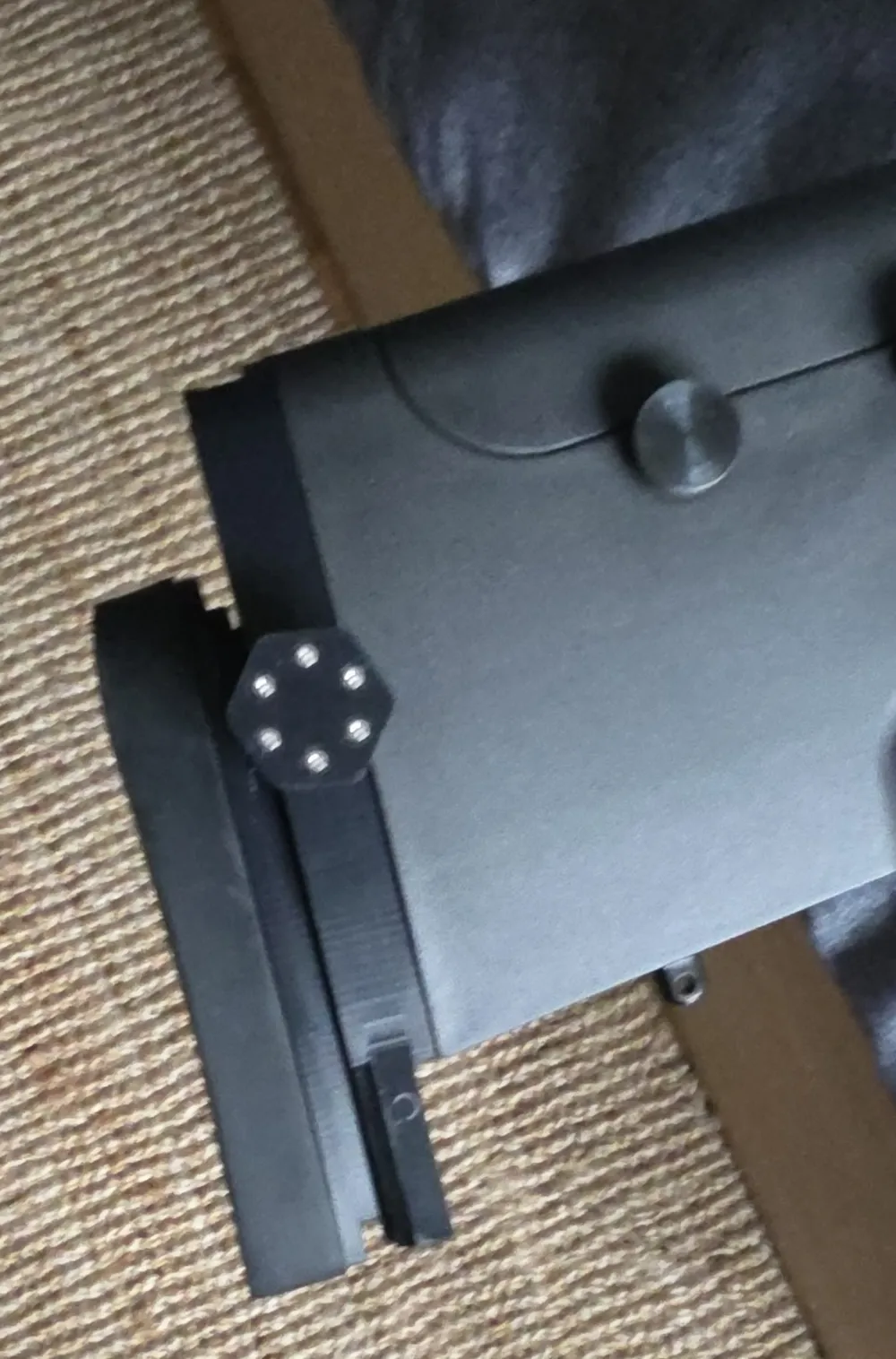

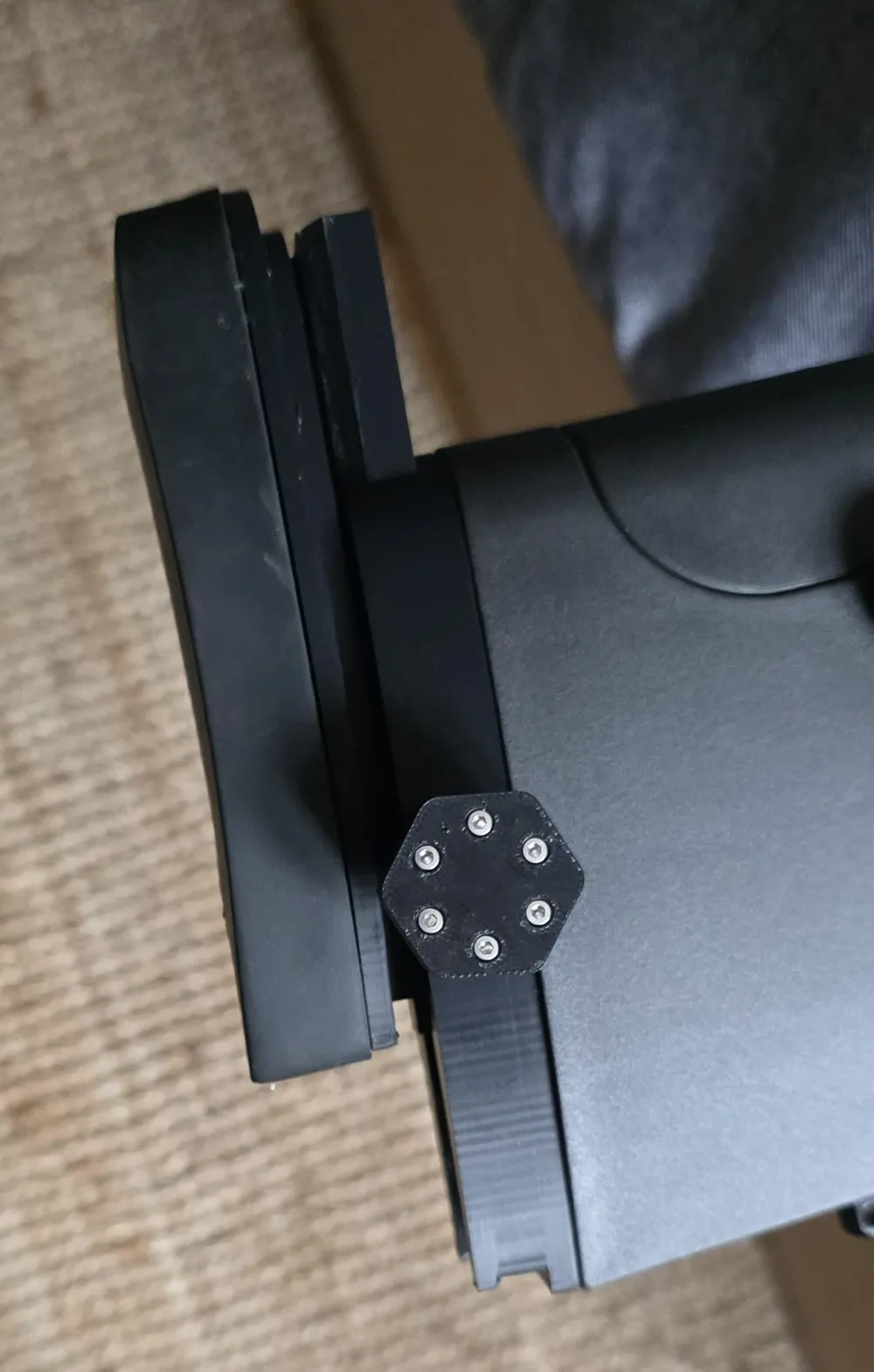

3x M2x8mm + nut (optional) x6 These screws are for the knob cover, 3 are enough, but I prefer the look of the 6.
1x M4x14mm + nut
2x M4x20mm + nut
1x M6x15mm (hexagonal head) + nut
---observation----

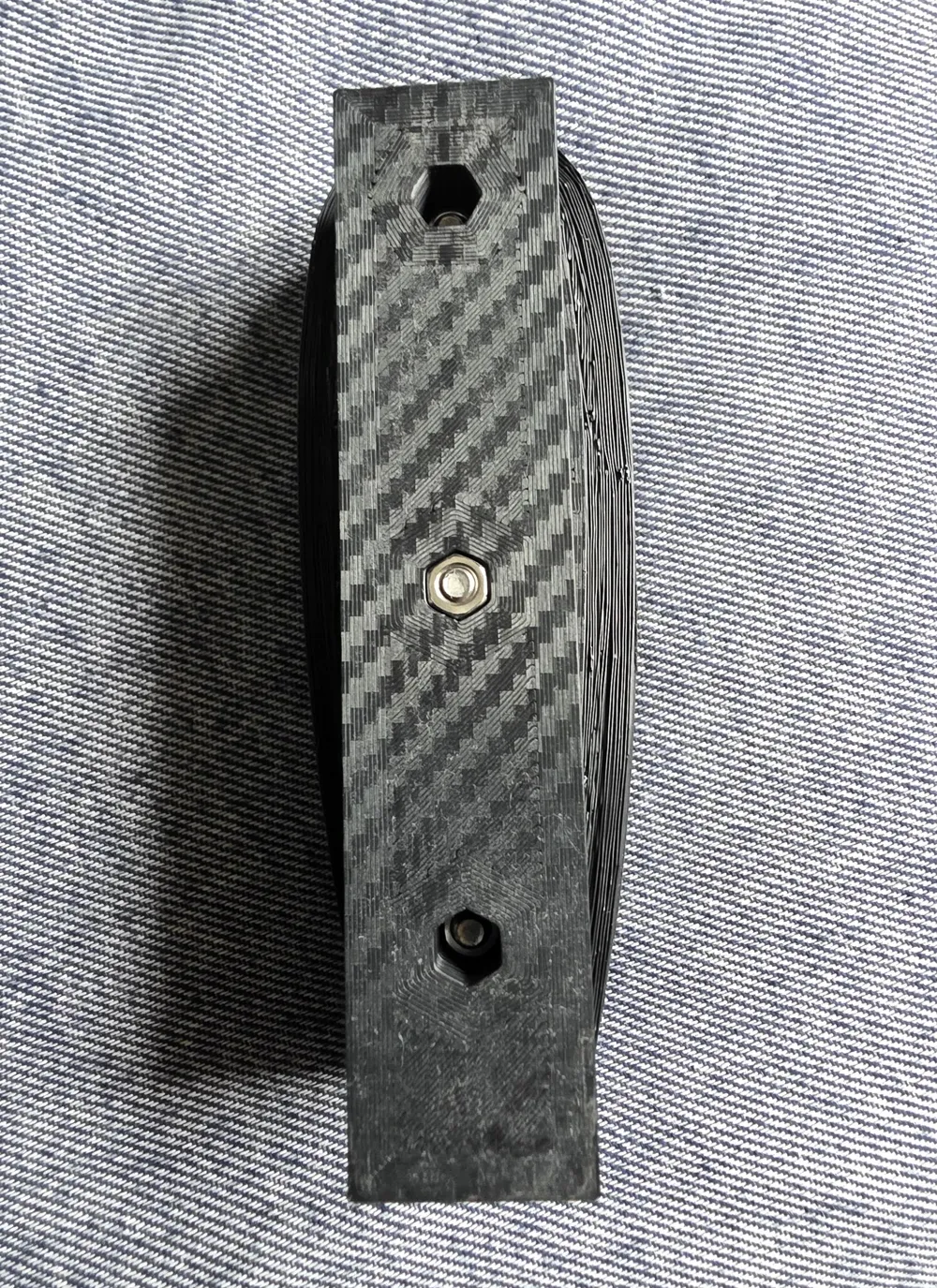

The hole for fitting the nuts of the knob screws is intentionally tight; you will probably have to align them with the screw and tighten it to make them go down into the hole.
------------warning---------------
Printed with ASA This part will have to to be stronger than the recoil of your gun, it has to be strong MIN. Spec : walls: 10 Top:10 bot: 10 40%infill
