Parametric Cup Holder for Strollers, Scooters...

Link to my other models - Thangs, MakerWorld and Printables (photos at the end of the page)

- - -

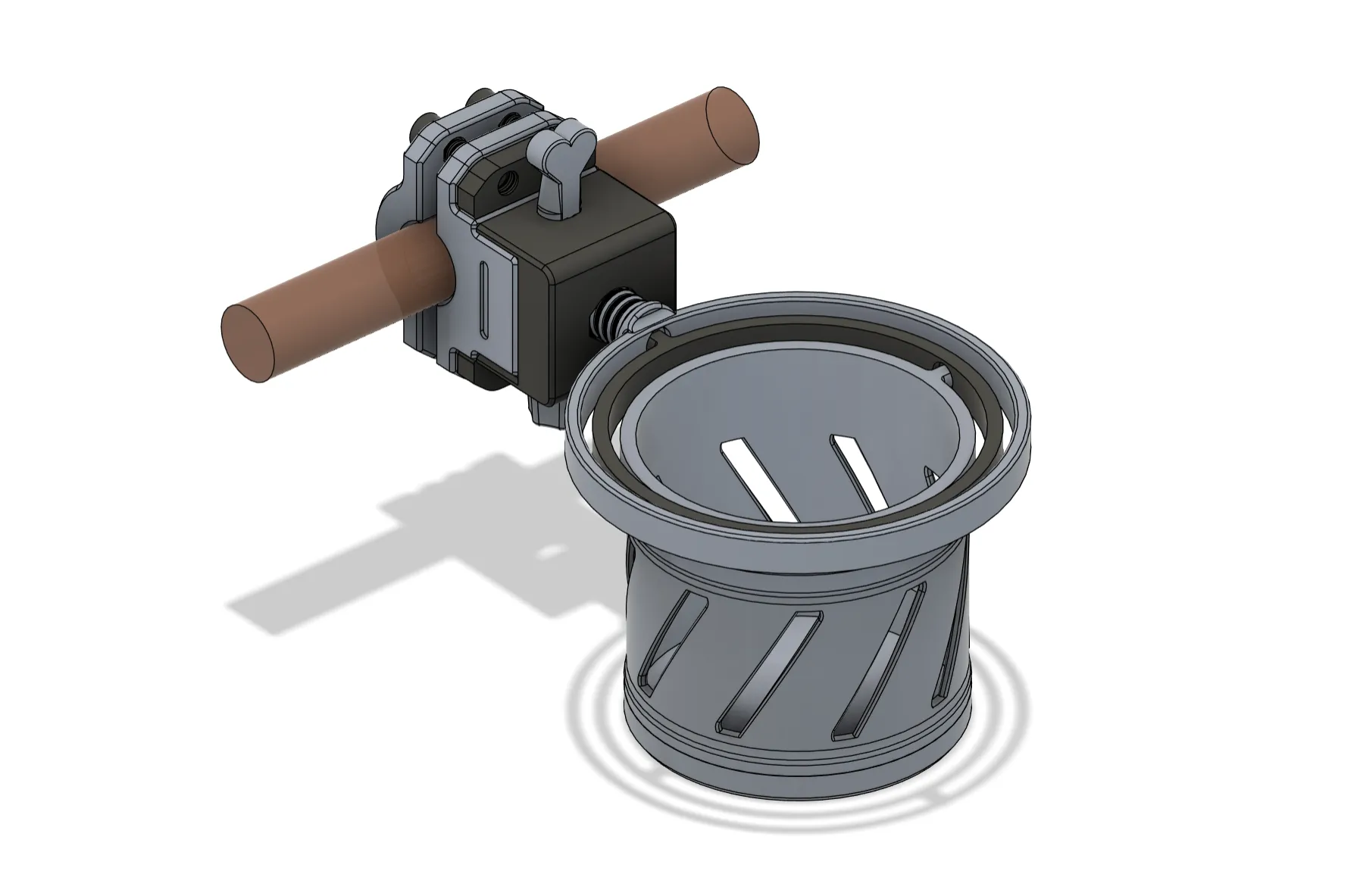

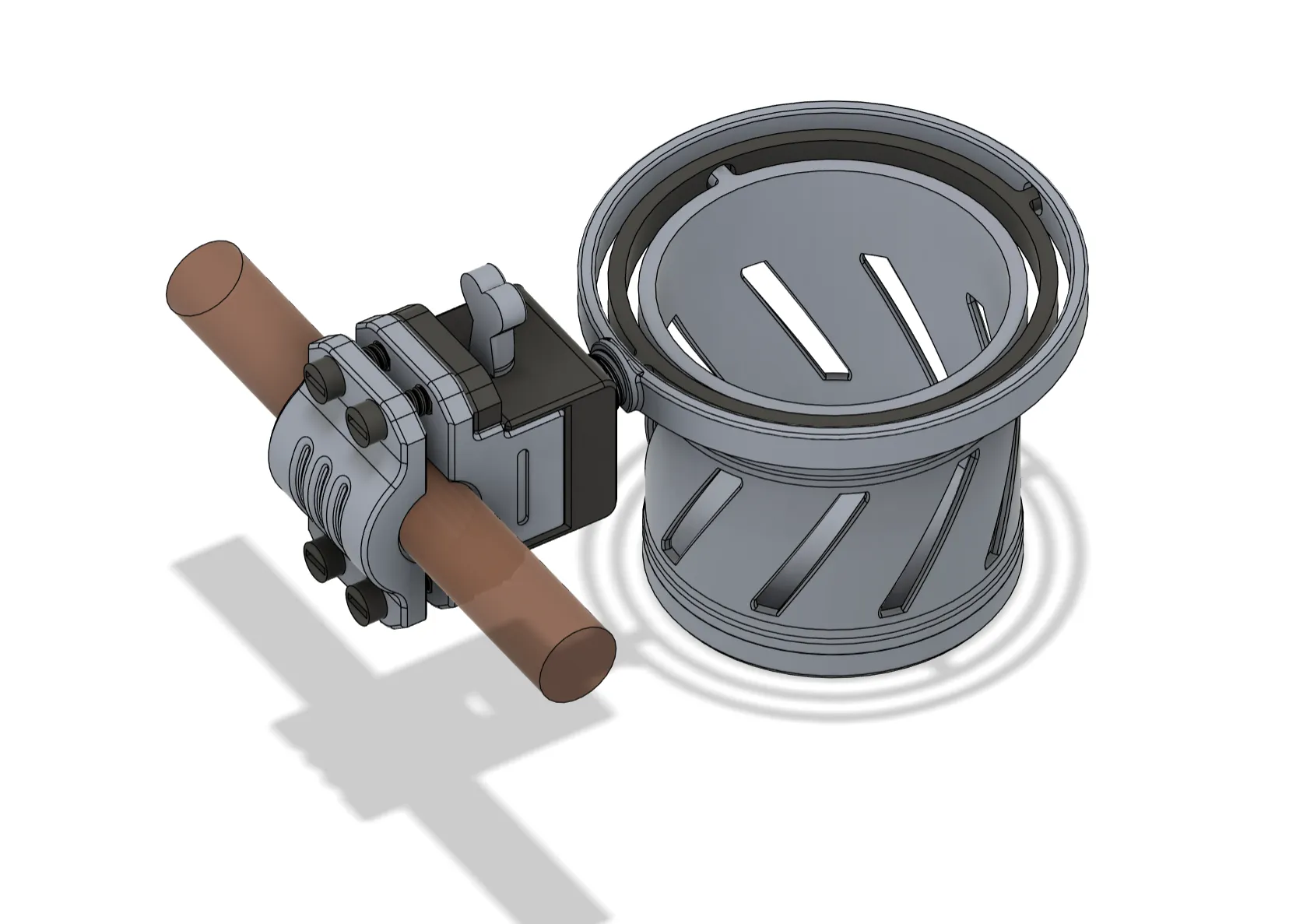

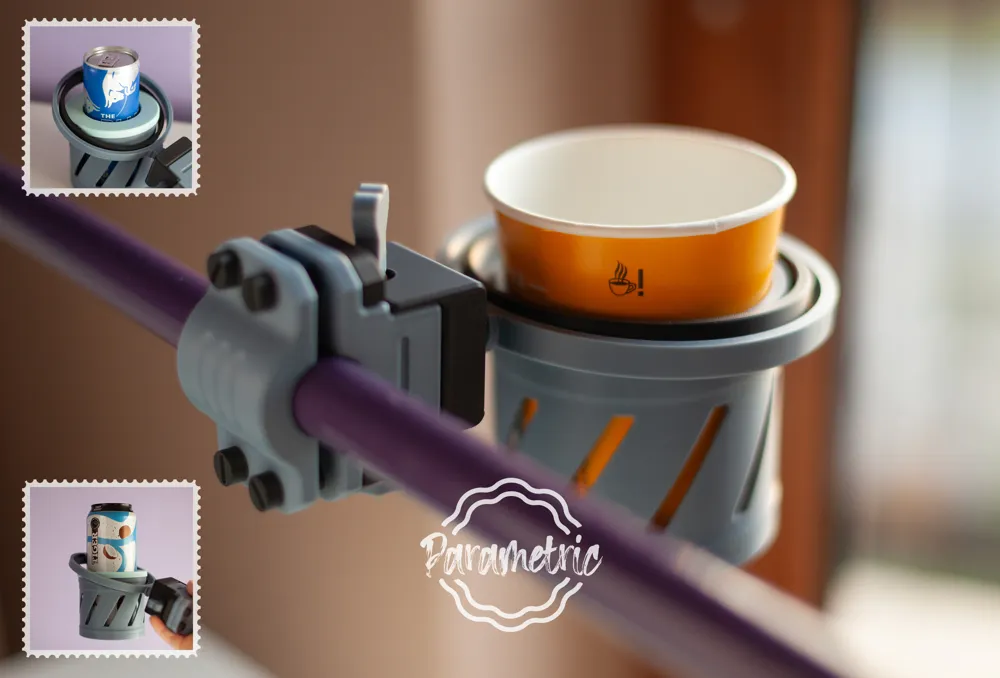

A Cup Holder I designed for strollers, motorbikes (maybe?), bicycles, scooters etc.

Seems very complicated at first but that's because not everything is straight and level and this holder let's you adjust the angle (within reason of course).

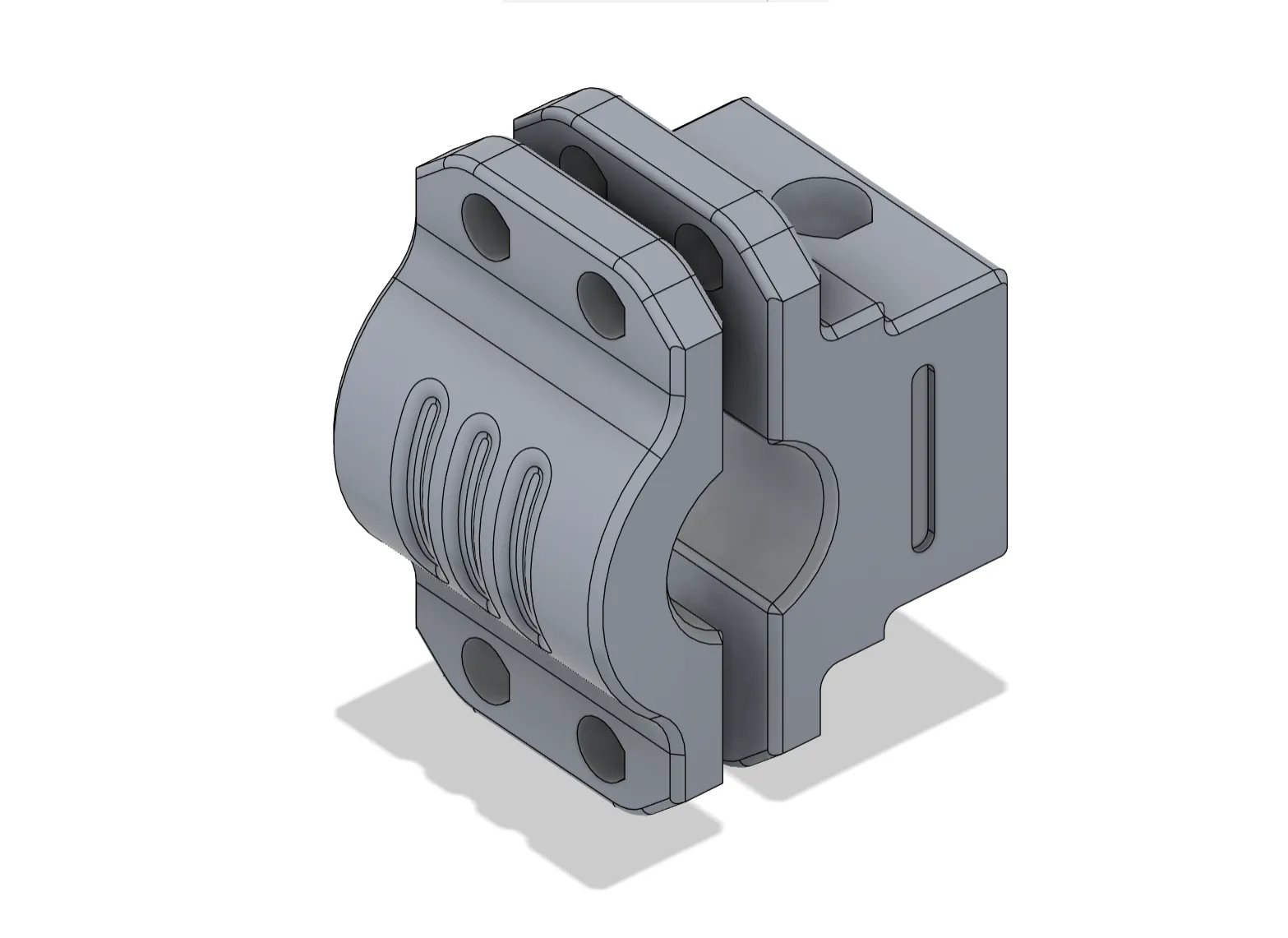

• This parametric model (part of my Parametric Collection) let's you set your own diameter of the bar you're attaching the holder to (between 15mm and 35 mm)
• the rest of the model is attached to this mount

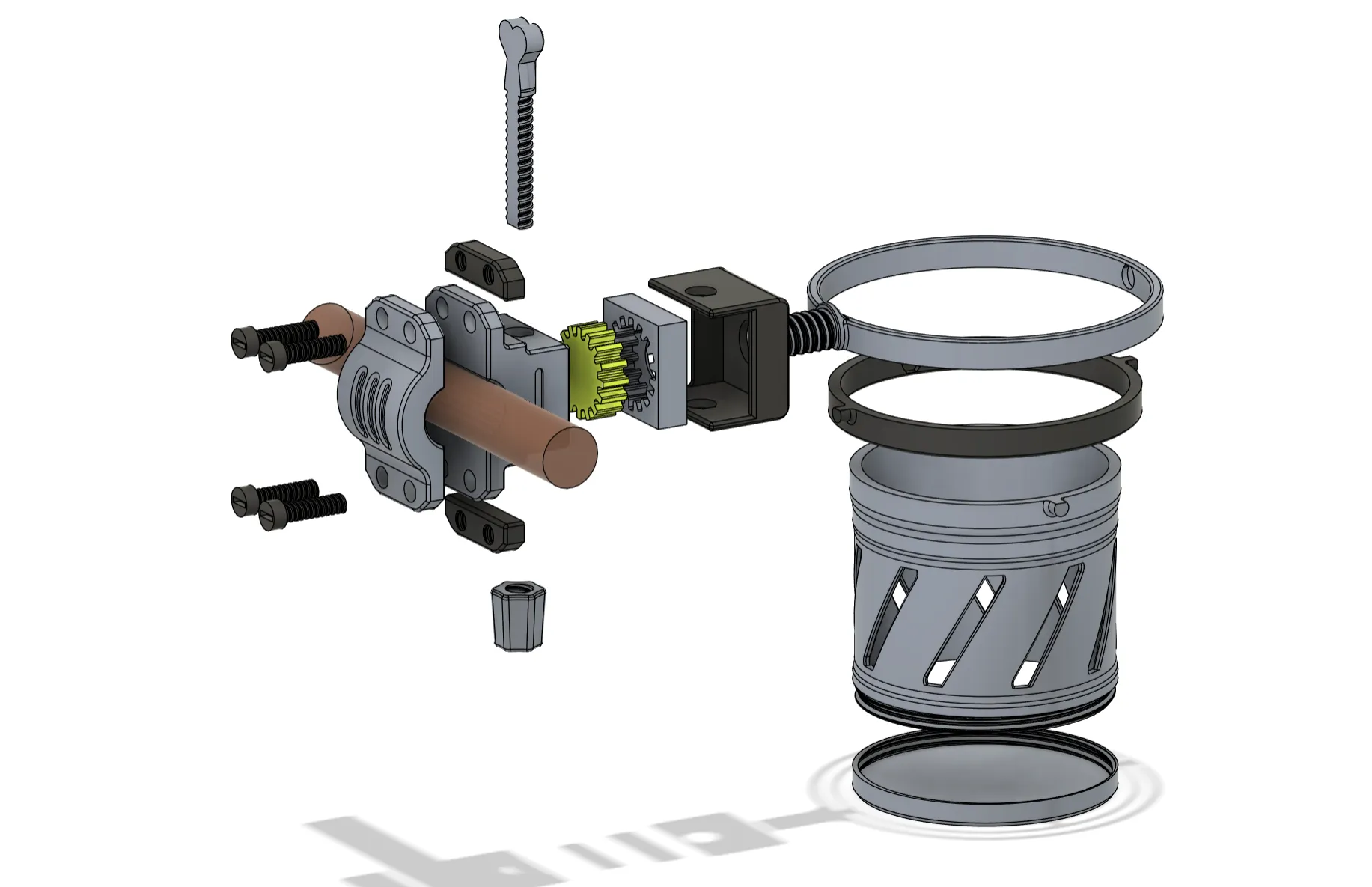

• Here's an image of how to put it together

• Cup holding part: smallest Ring (cup) goes into Ring 2 (middle one) then that one goes into Ring 3

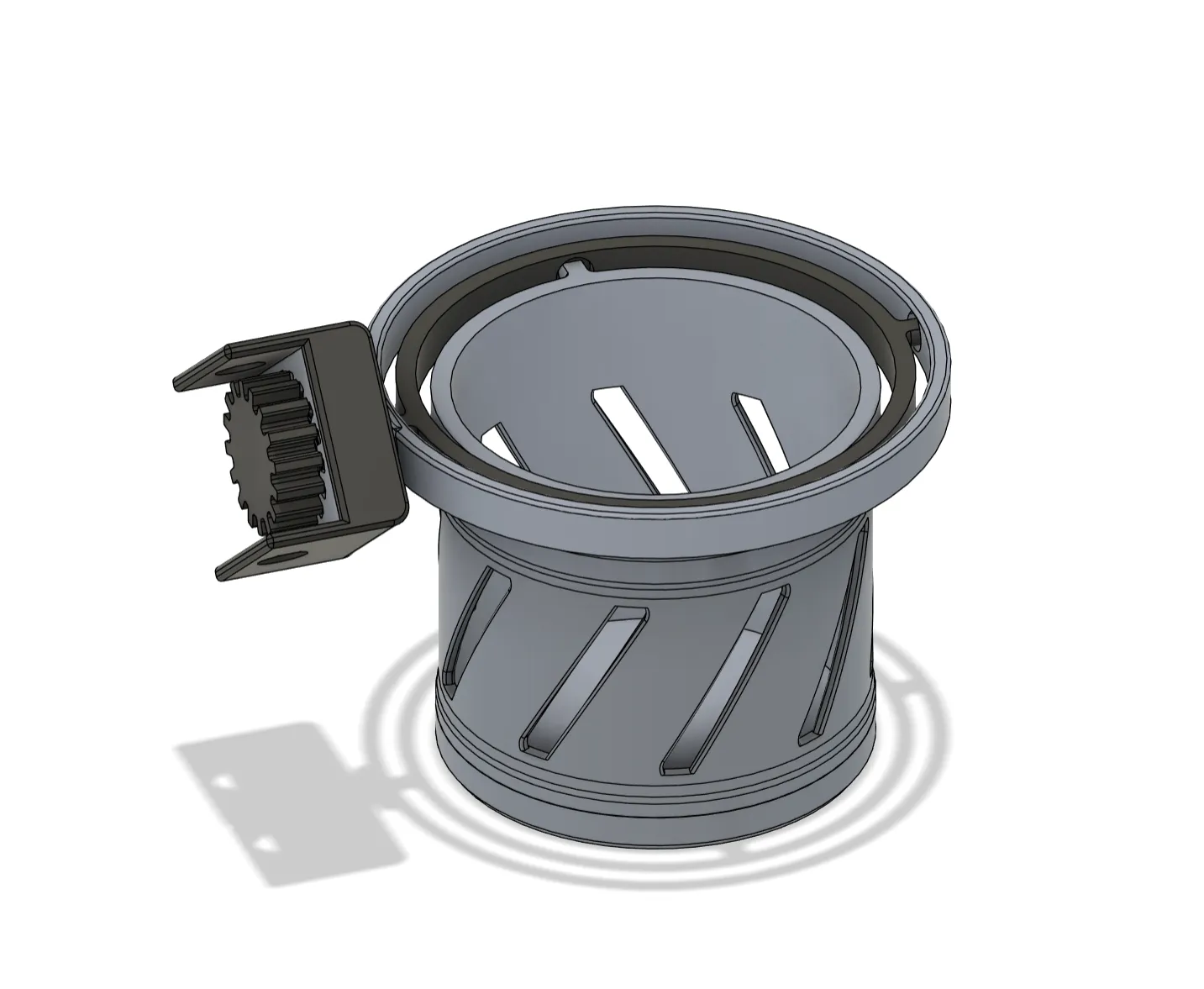

• The part that Ring 3 is attached to (screwed on) consists of 3 parts, box (black), gear shape box and a gear. Gear shape box goes into the black box (push it in, you can glue it too but no need as it will be tight (bridging).

• If you need to adjust the angle just push the gear back with holder attached to it, adjust, put back in

• There is also a Customize button to create a lid that fits your drink of choice

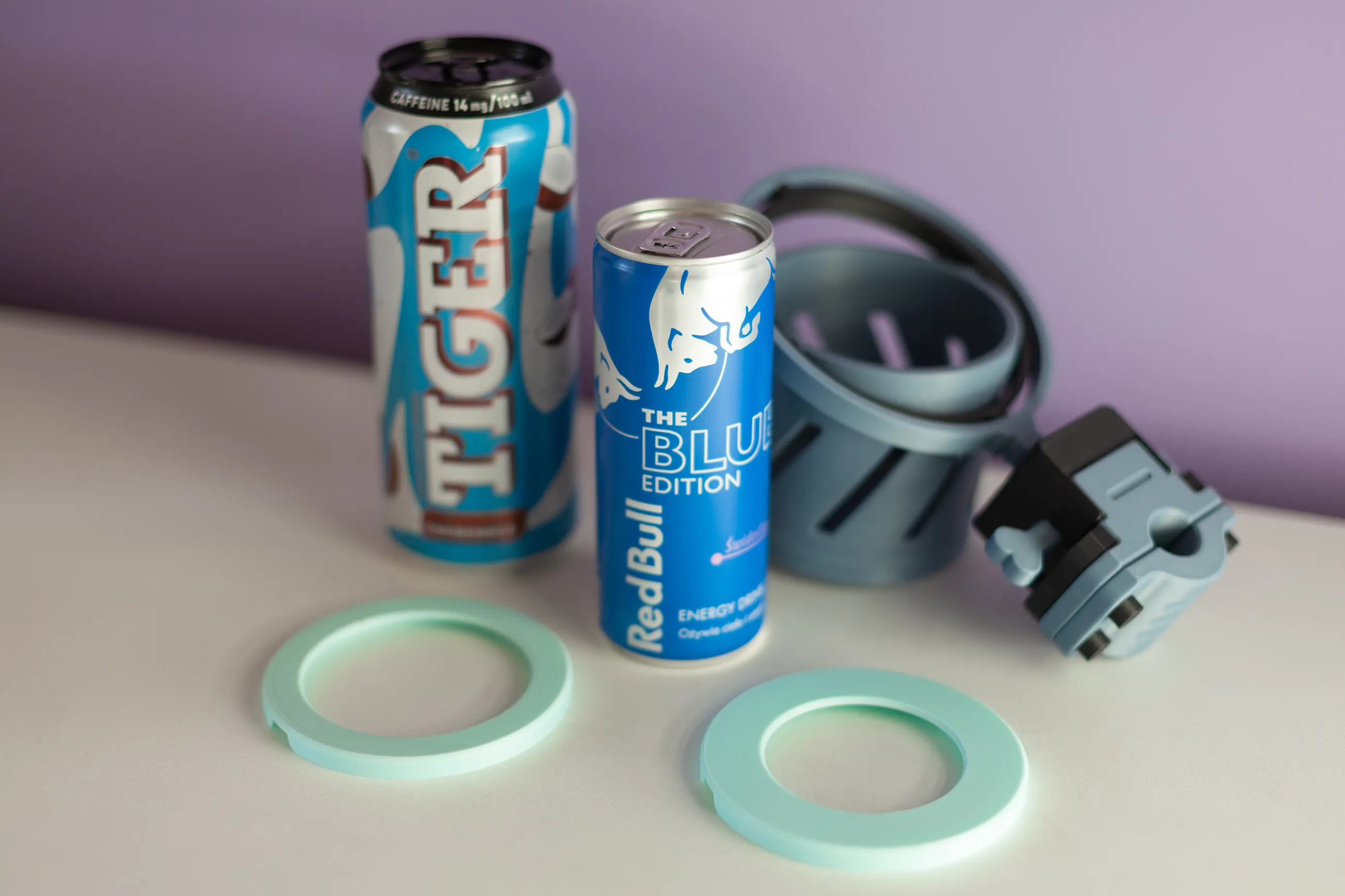

• I'm uploading a print profile with Red Bull and Monster/Tiger lid so stay tuned, any other size you can set yourself by hitting that Customize button

• I'm sure once you have all the pieces ready you will put it together in no time :)
• There is also a profile for a printable screw driver if you don't have one at home or wanna carry a light one with you at all times just in case (simple flat head one)
• if you need the print to be stronger add more walls > infill

If you have any problems with the model please let me know so I can fix it :)

Happy printing!
