LB FPV-"Little Hawk" Twin-engine FPV Carrier Aircraft
Print Profile(1)
Description
2026-1-4 Update: Given that someone is selling open-source drawings online, I also provide printing services and can provide some hardware kits, see details below.
11-14 Update: Fixed the issue of overlapping horizontal stabilizer rudder surfaces.

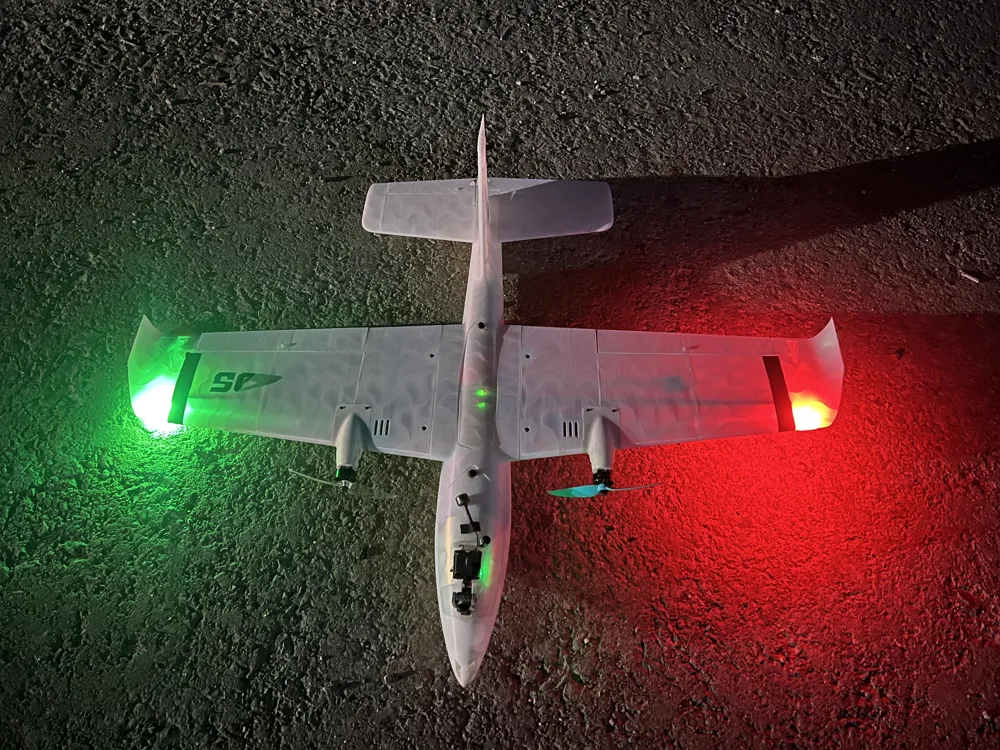

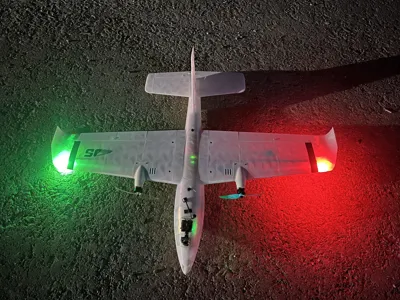

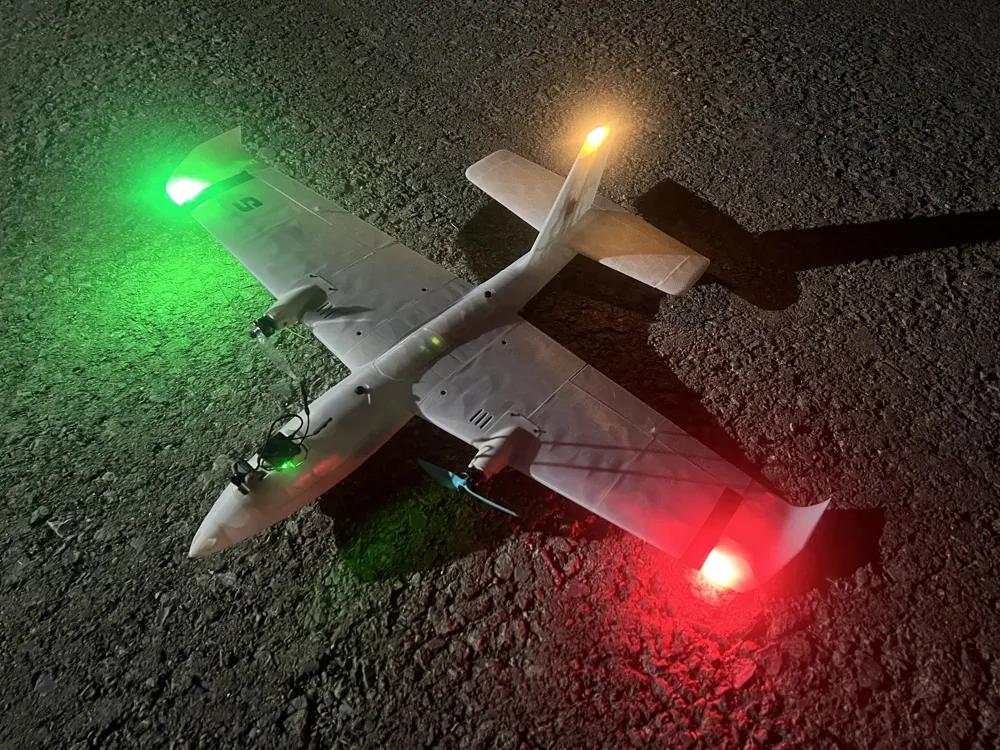

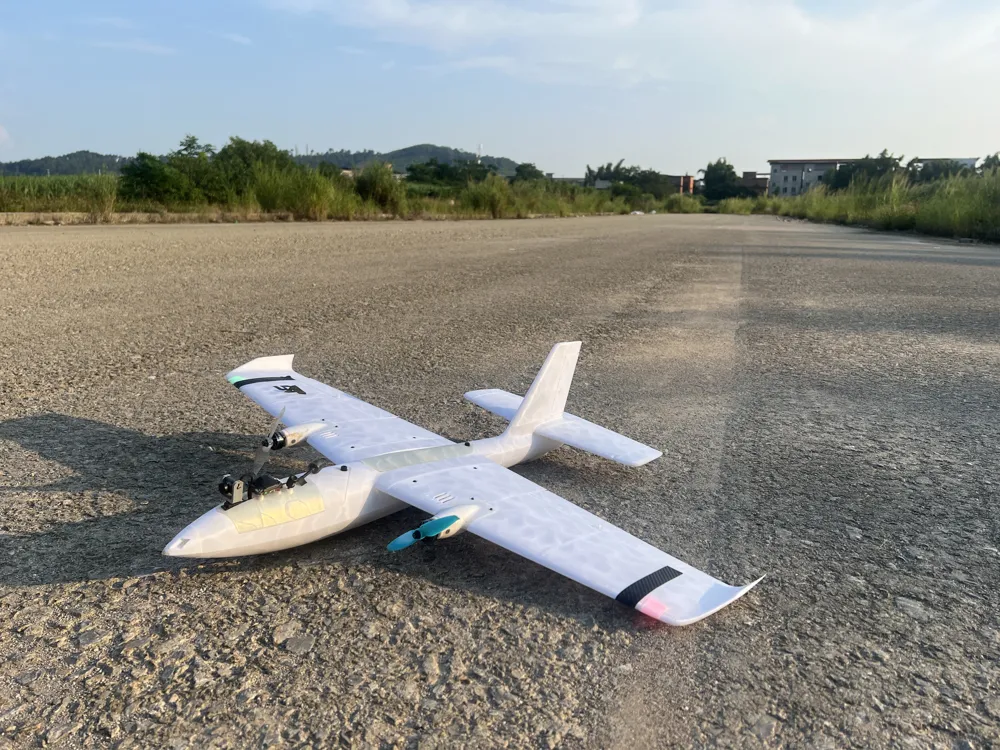

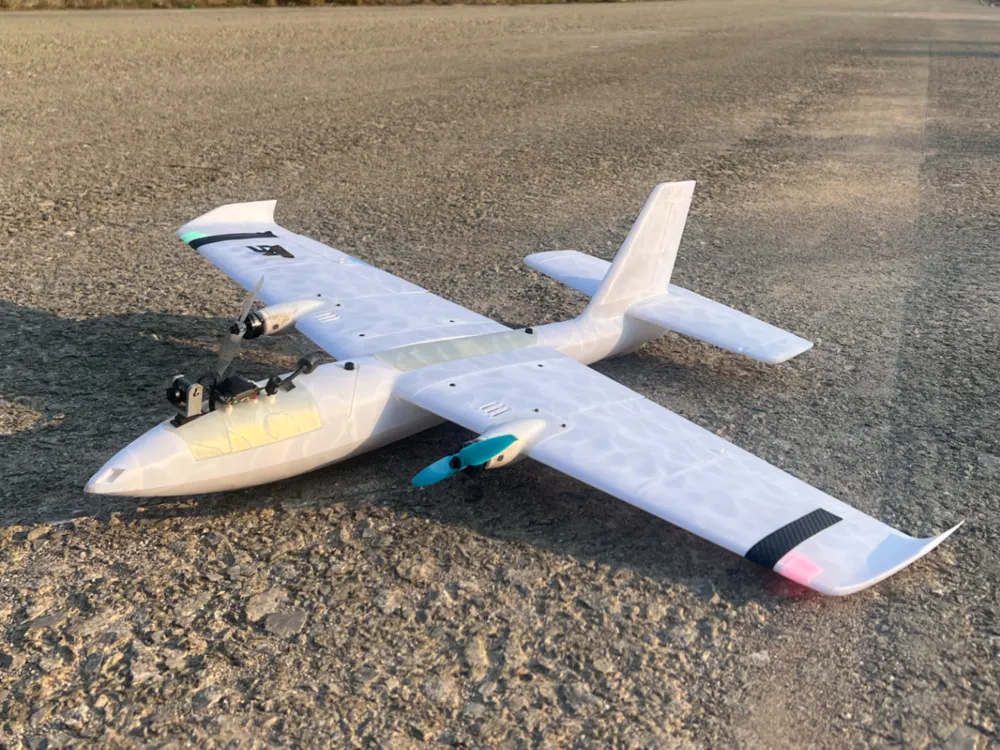

LB FPV's 1-meter wingspan twin-engine carrier aircraft has undergone multiple iterations and tests and is now relatively stable. 6S is recommended. I personally flew it with 2207 1750KV at a top speed of 200km/h in level flight, and the power is quite strong.

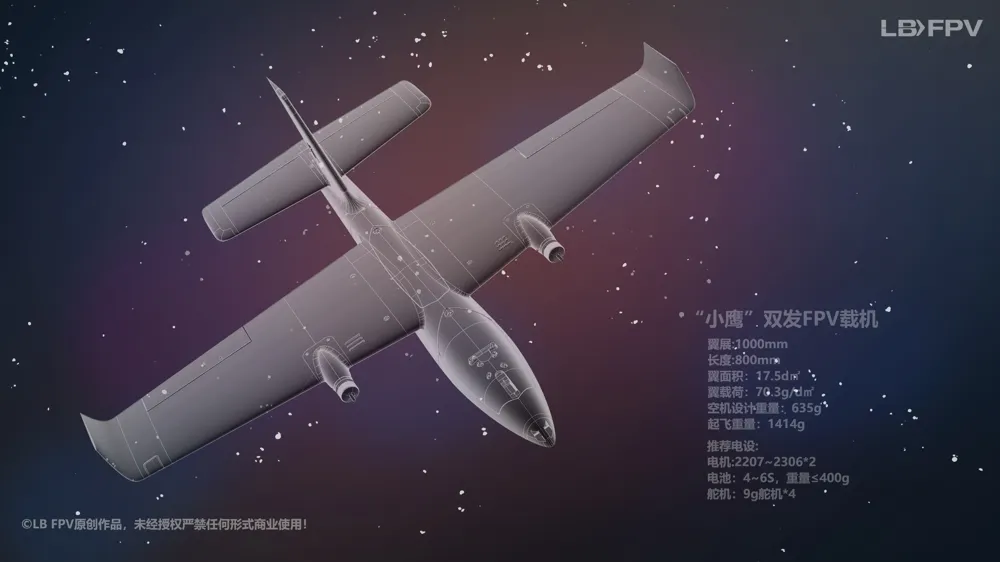

Basic parameters are as follows:
Wingspan: 1000mm
Length: 800mm
Wing Area: 17.5dm?
Wing Loading: 70.3g/dm
Empty Weight (designed): 635g
Take-off Weight: 1414g
Recommended Electronics:
Motor: 2207~2306*2
Battery: 4~6S, weight ≤400g
Servo: 9g servo*4
Center of Gravity: Located at the protrusion below the wing
Model printing services available, please look for the official account with the same name on idle fish:
printing recommendations:

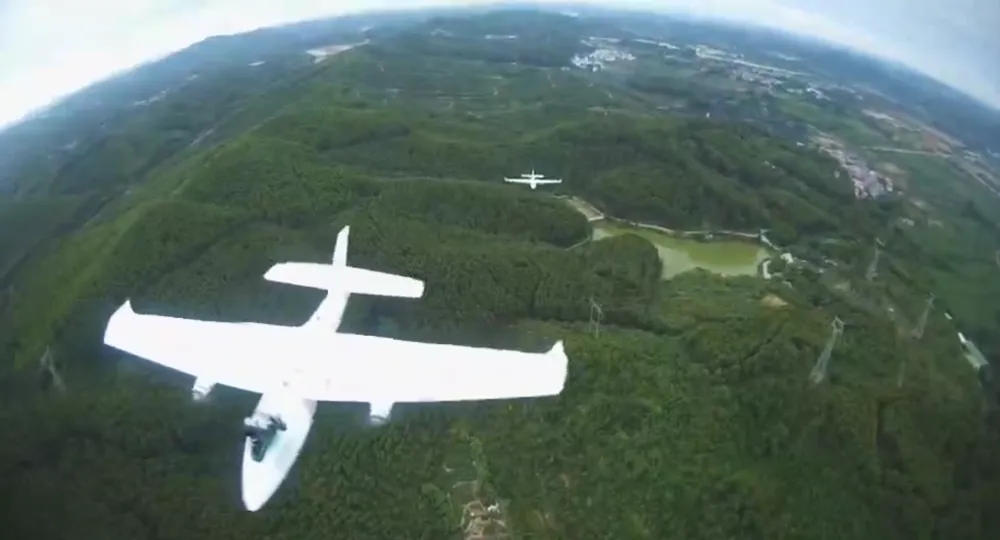

ABS/ASA, standard spiral infill 2%, local areas such as screw mounts and anti-scratch strips are recommended to have 15% infill. Below is a video of daily flight:
