Description

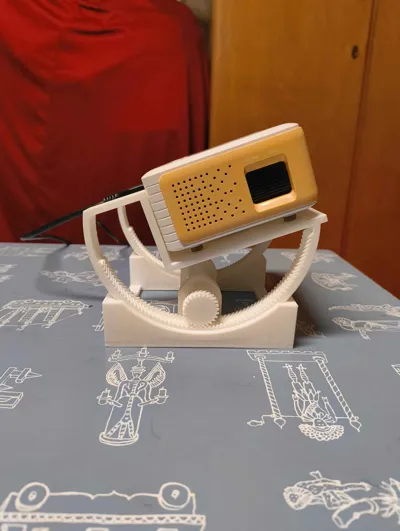

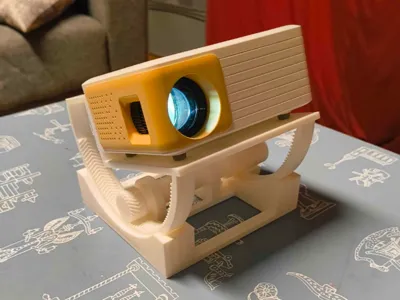

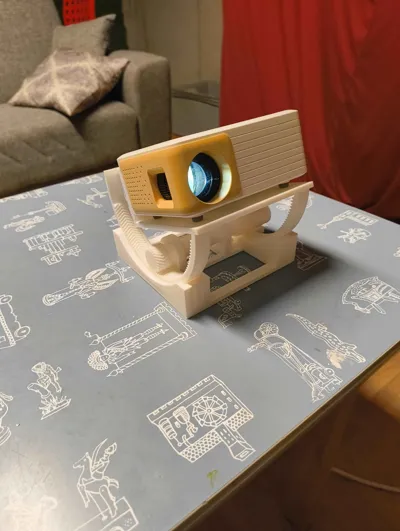

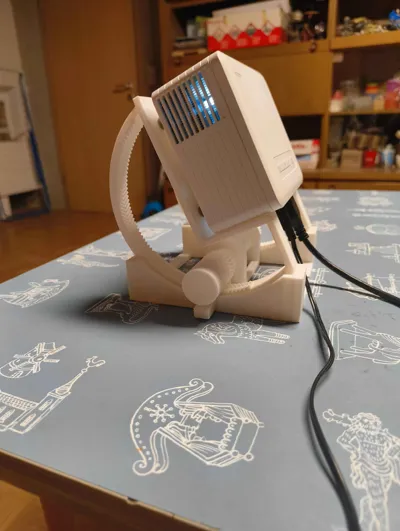

This Projector/Beamer angle adjuster helps you setting the perfect angle for your beamer, especially when the beamer often gets moved.

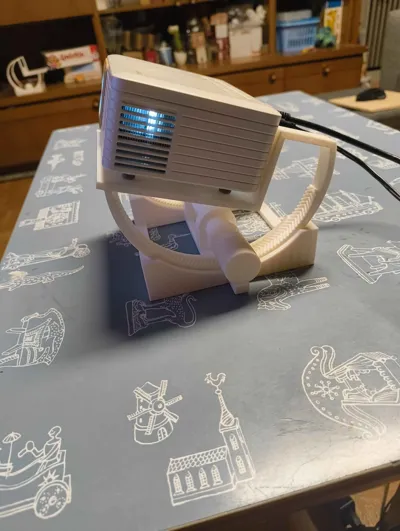

Angles of up to 90° are supported.

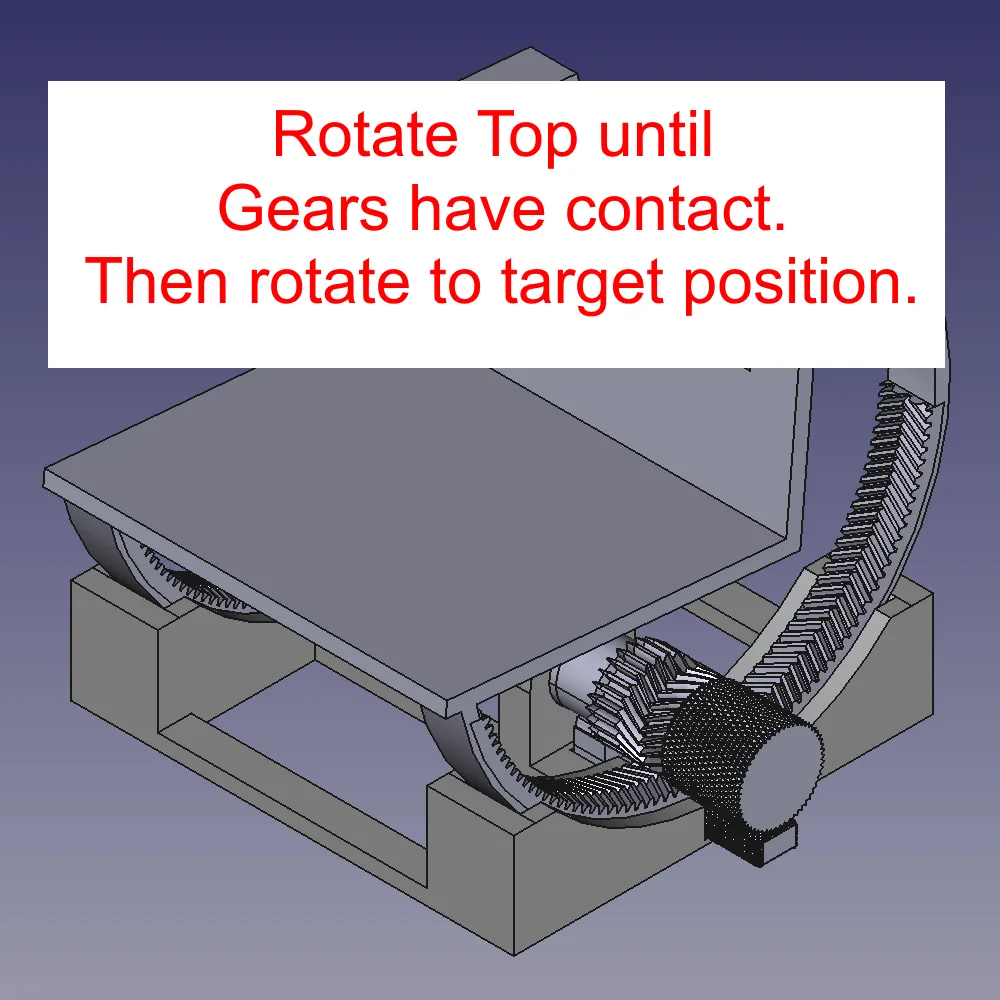

Assembly
Changes / Improvements from Version 2:

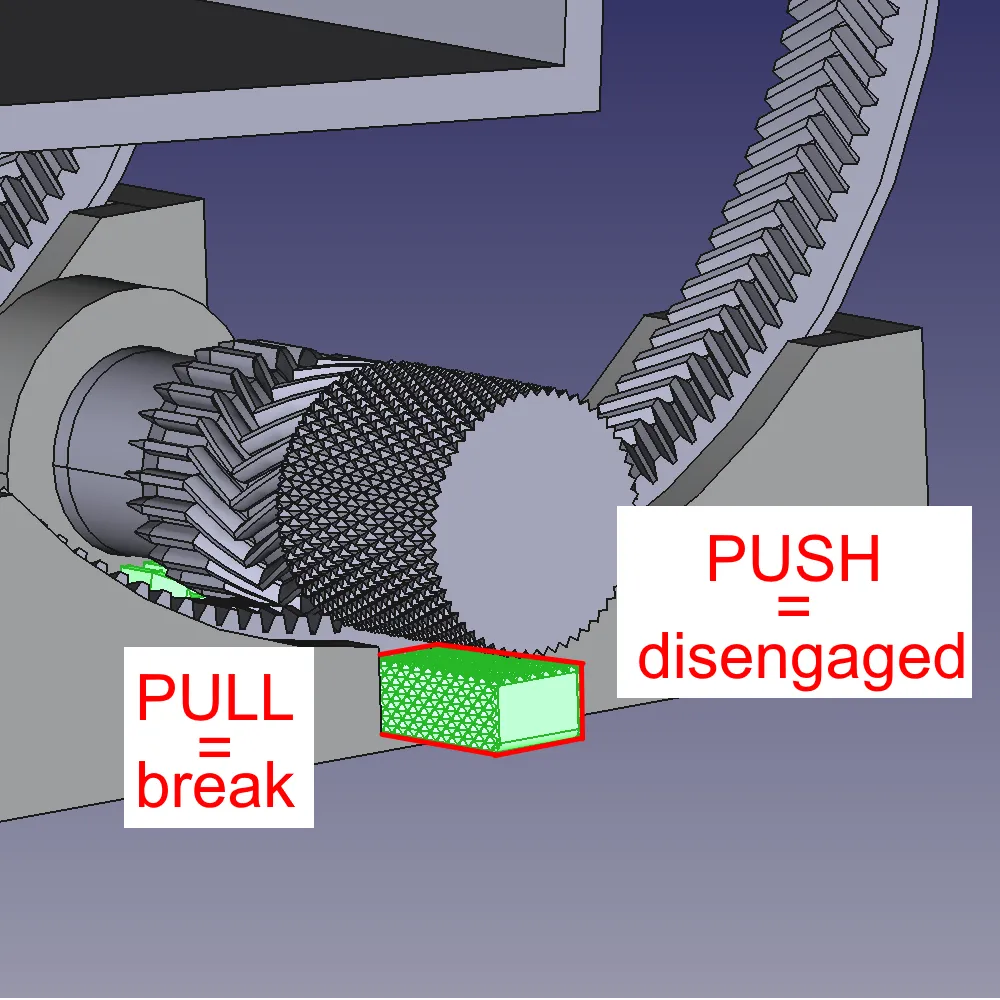

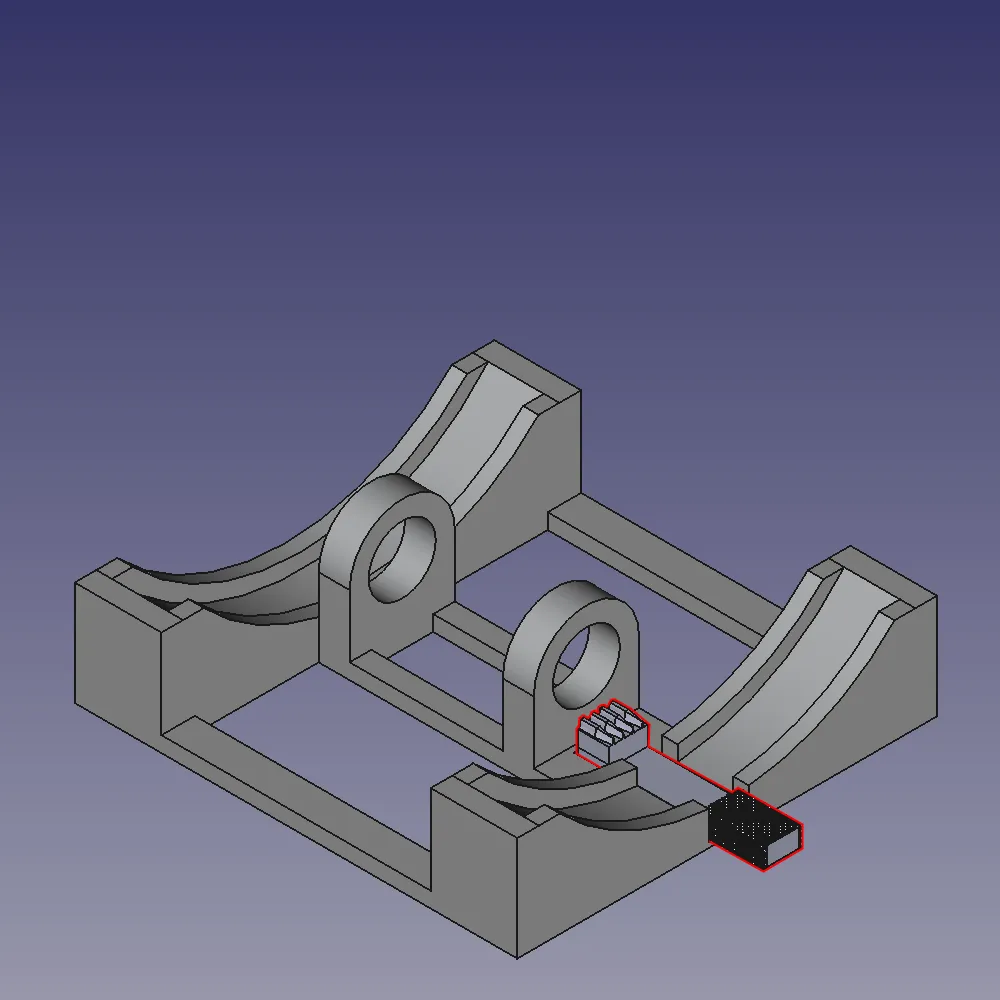

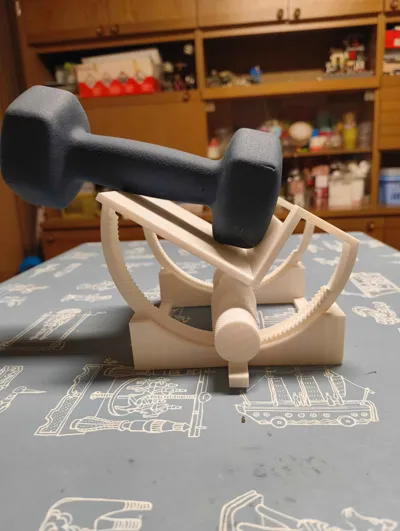

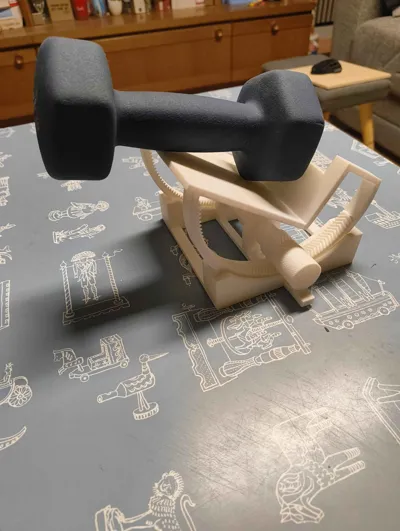

- Added a break to support heavier projectors (In my test it could easily hold 3kg / 6.6lbs)

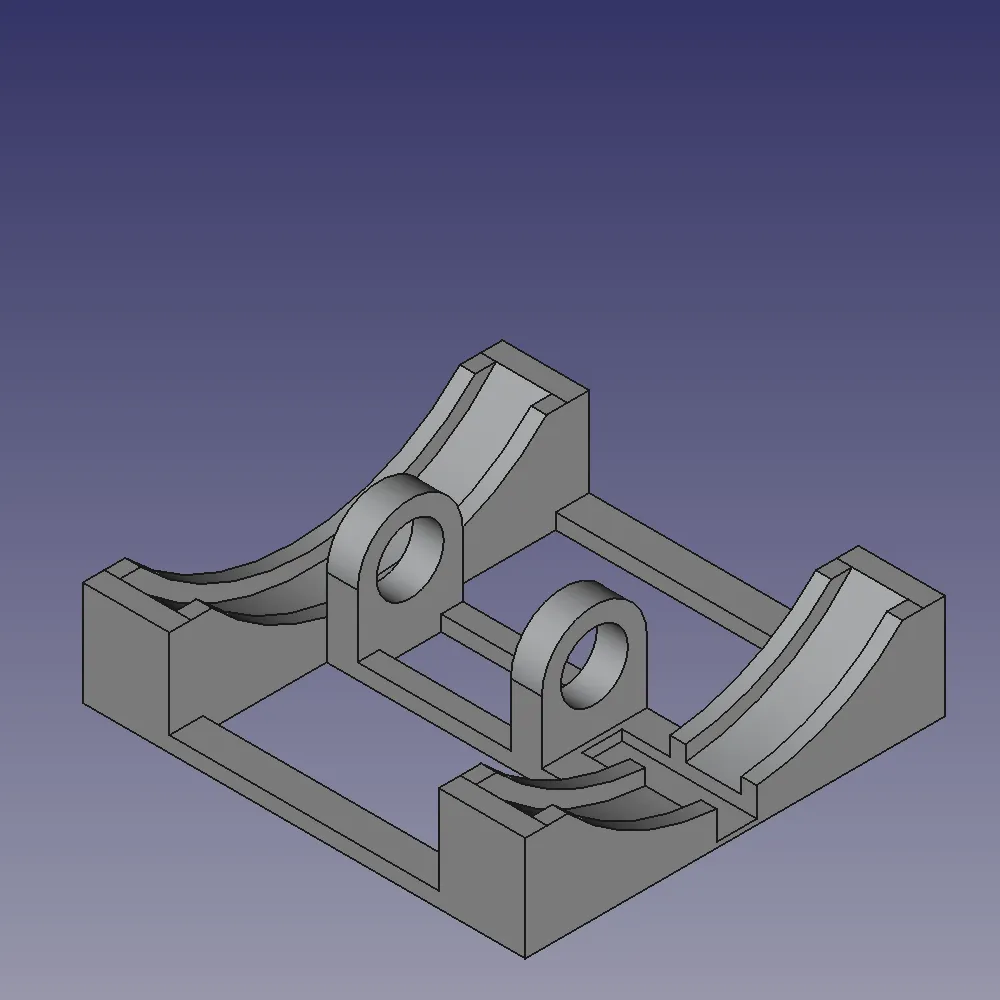

- Reduced base size while keeping all functionality (less filament, faster printtime, possibility of a single plate print)
- Changed the handle to circular with texture (better grip, easier use)
- Repositioned the location of the beamer on the top-part (less filament, faster printtime, possibility of a single plate print, better weight distribution)

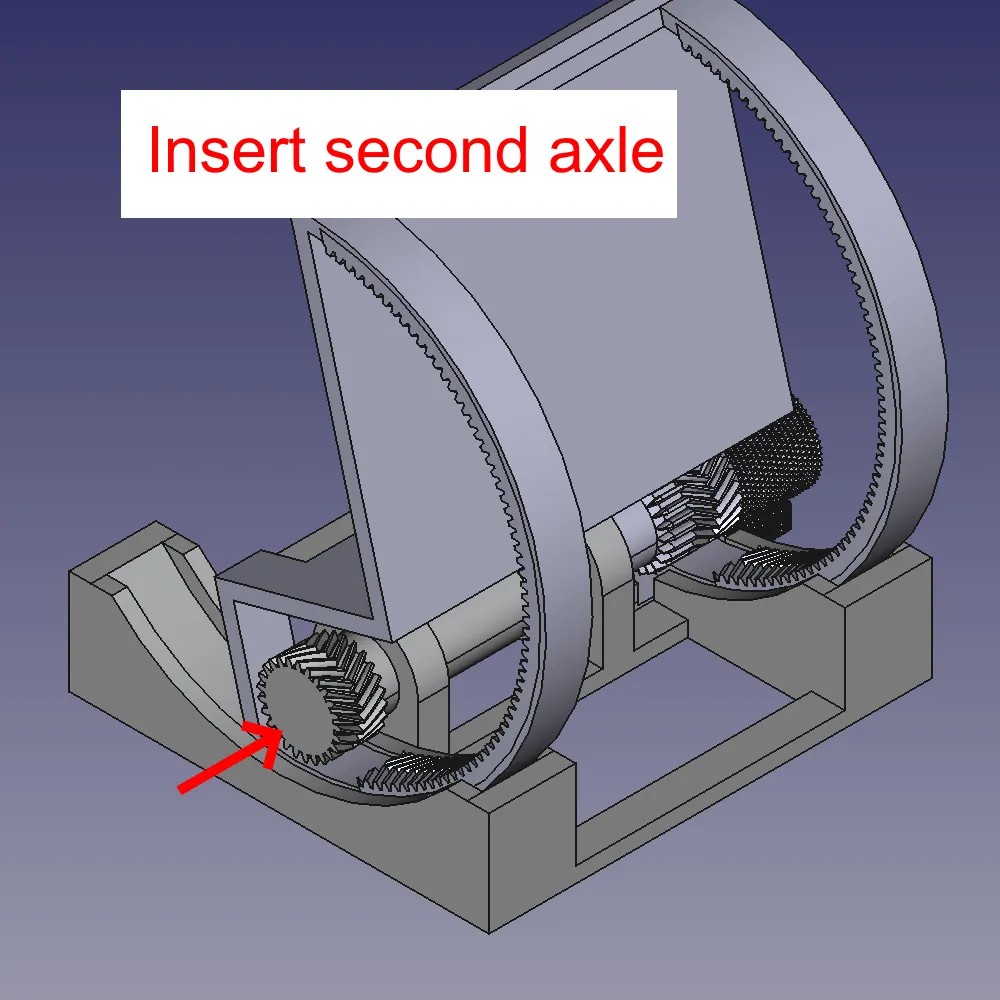

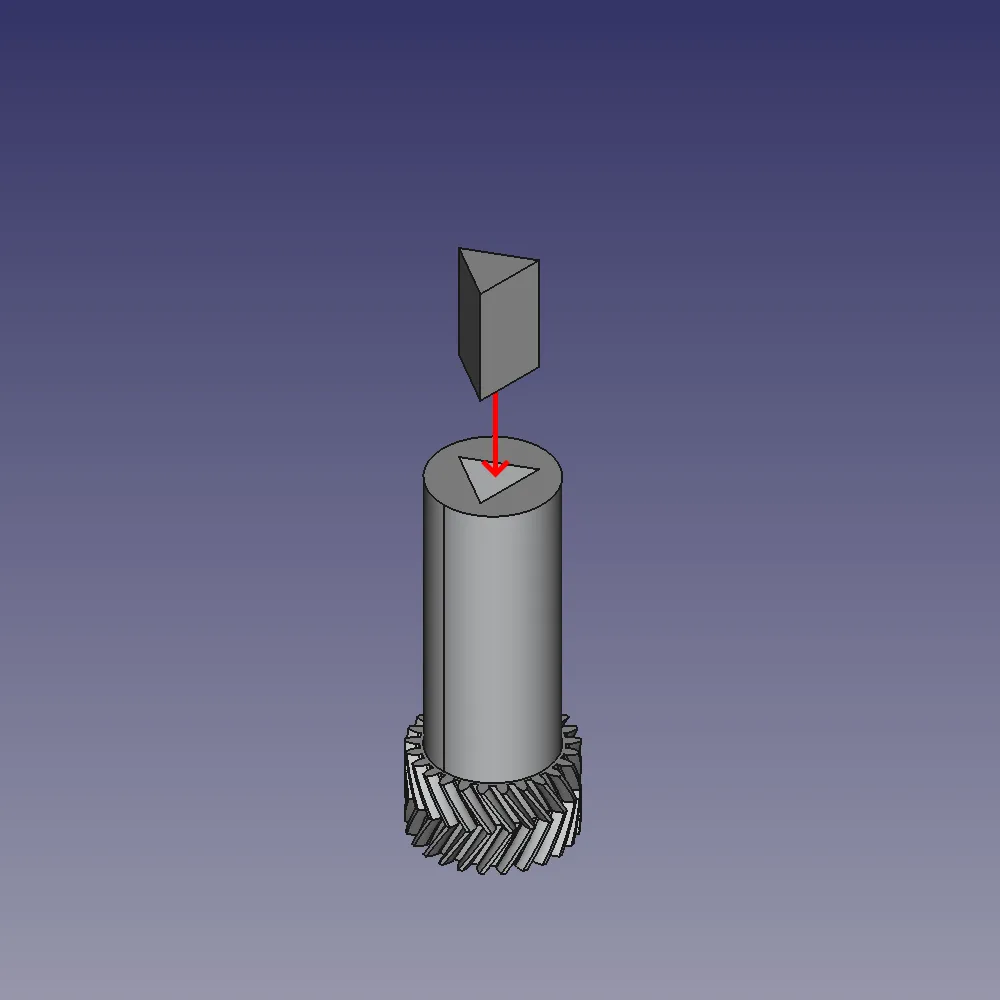

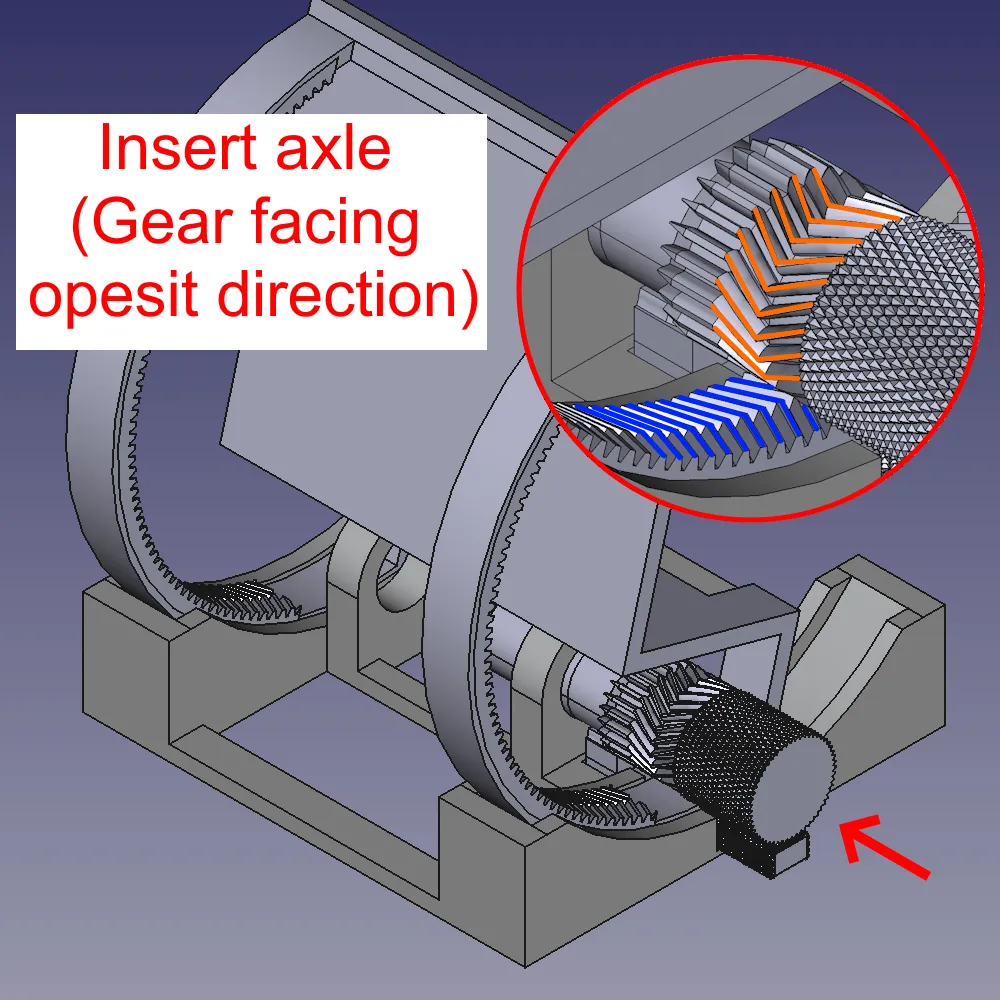

- Made the axle connector a separate part (more stability)

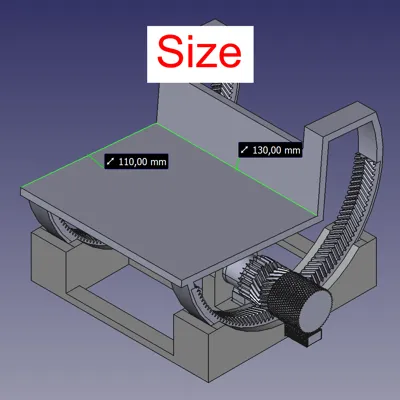

Size
Projector Plattform size (main profile):
Width: 13cm (5.118 inch)
Depth: 11cm (4.33 inch)

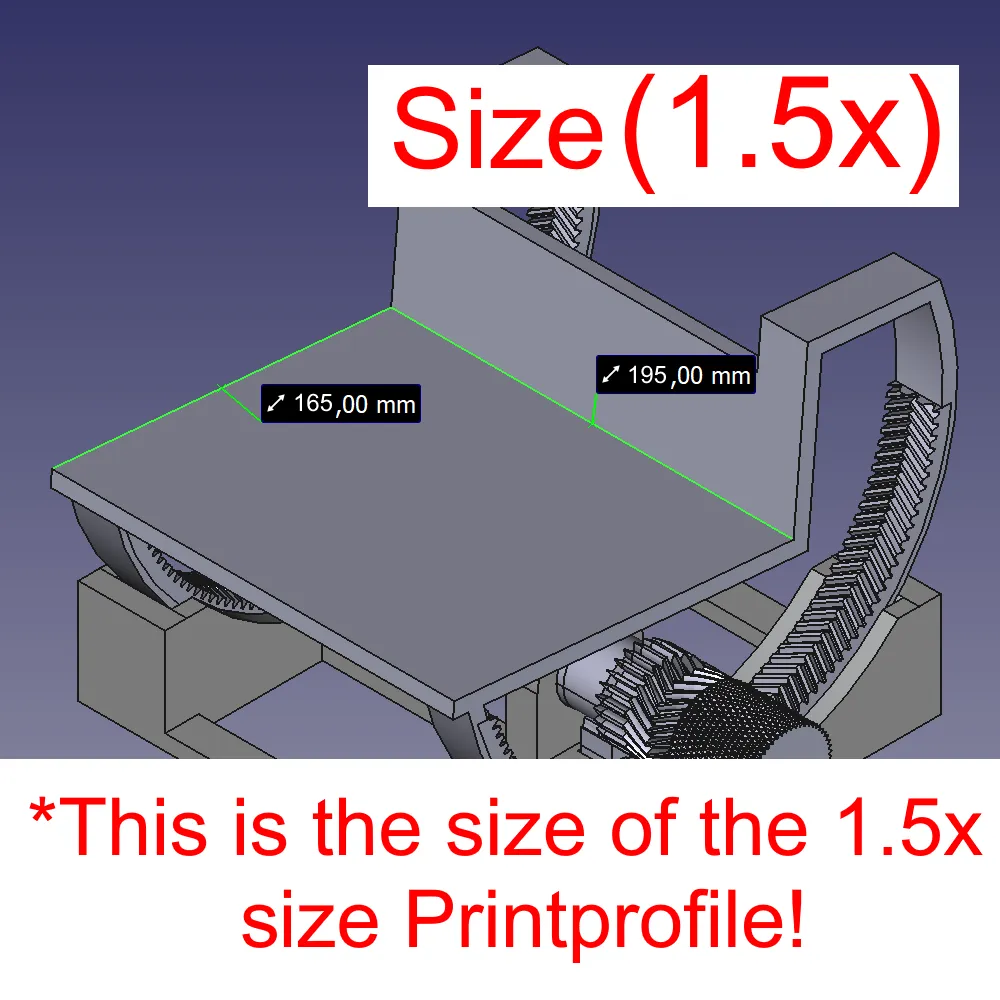

Projector Plattform size (1.5x scaled profile):
Width: 19.5cm (7.677 inch)
Depth: 16.5cm (6.496 inch)
