Bill of Materials
- M3 Screws x 4:
- M4 wall screws x 4:
Description
📷 Reolink Soffit Mount Kit – Round-Base Cameras 🧱
🔌Reolink Wall Mount Specially Designed for Reolink Cameras 🔧

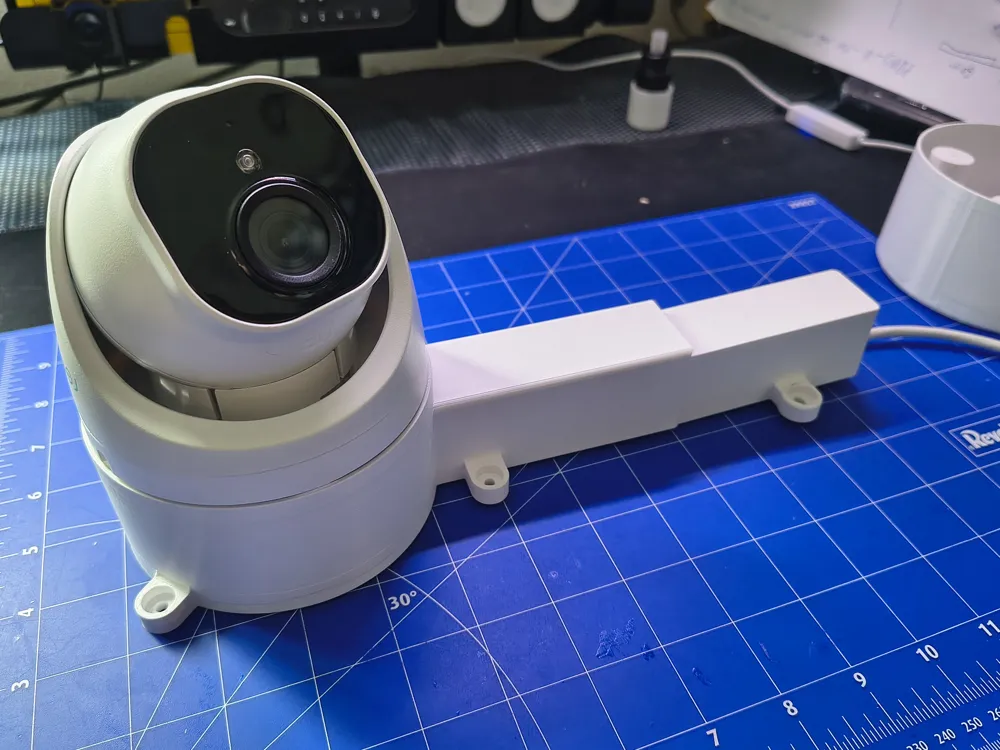

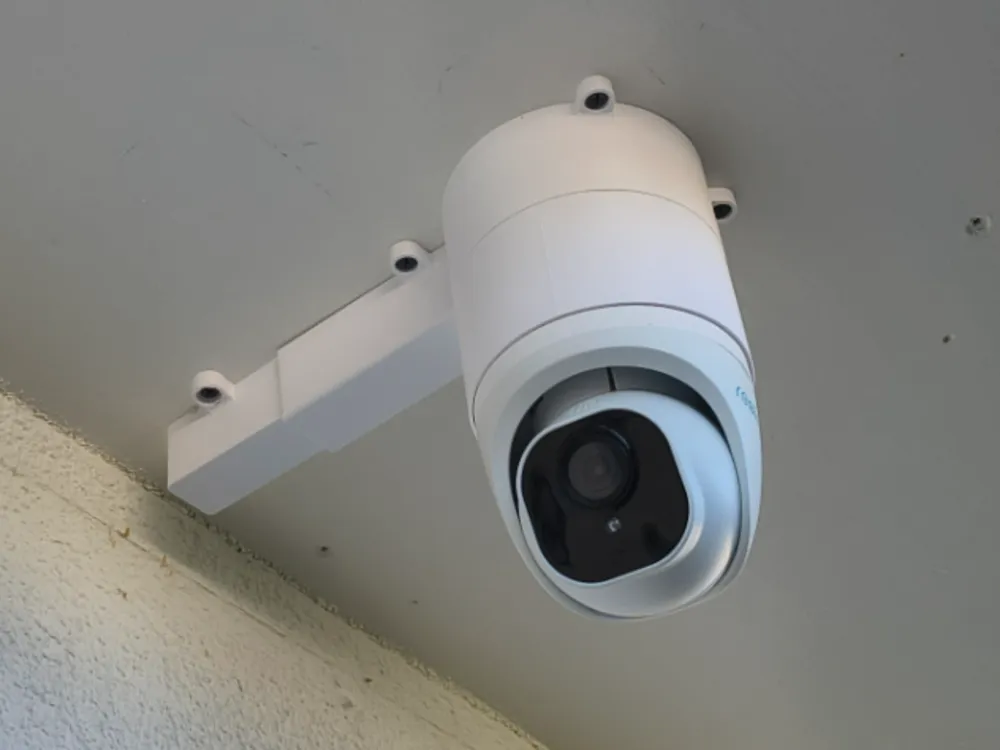

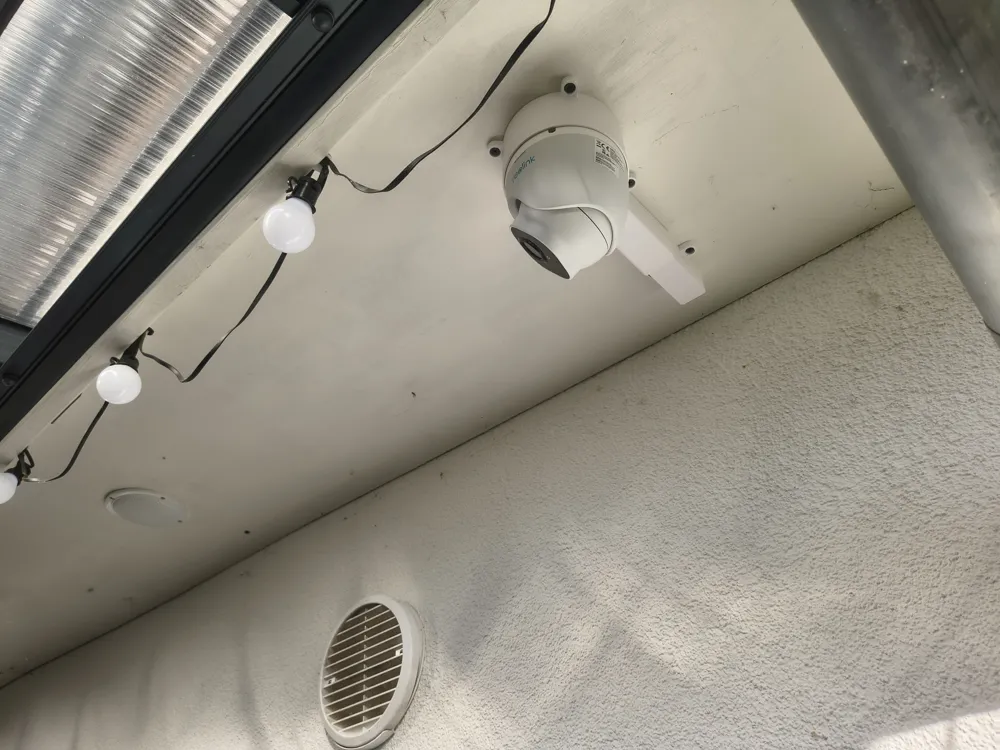

📐 Cleanly mount your Reolink dome/bullet with a round base (e.g., D1200, D500, D800, RLC-1224A, RLC-520A, RLC-820A, RLC-822A, RLC-833A, and other round-base models) under a soffit/eaves. The system hides cables, adds strain relief, and includes stackable height extenders so you can drop the camera below the roof edge for an unobstructed view.

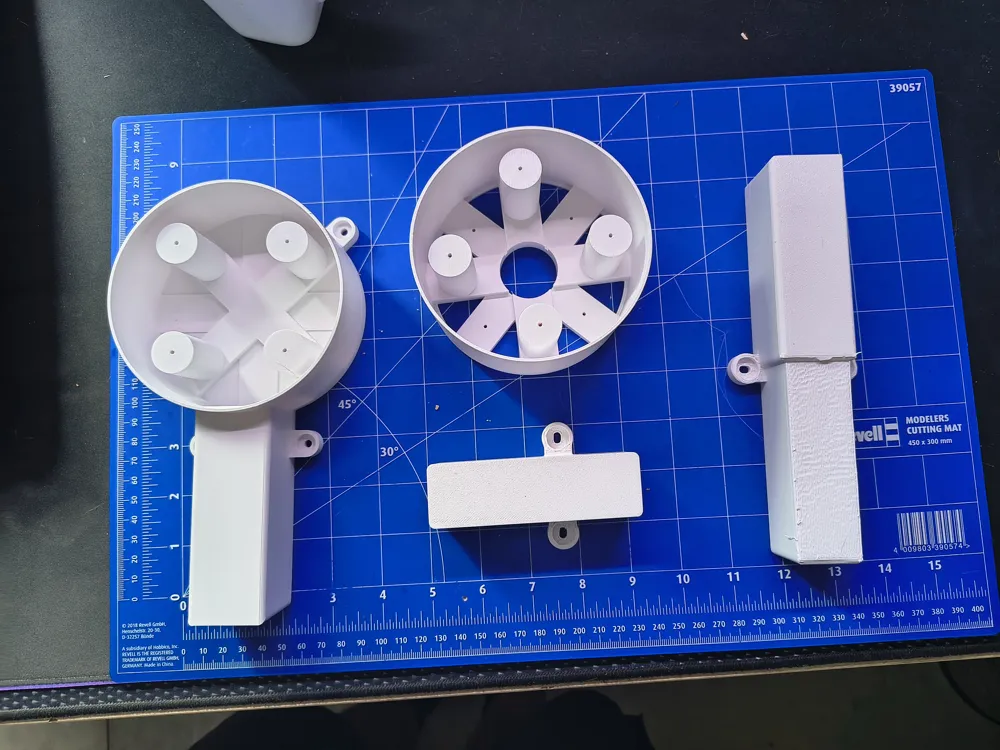

What’s in the kit

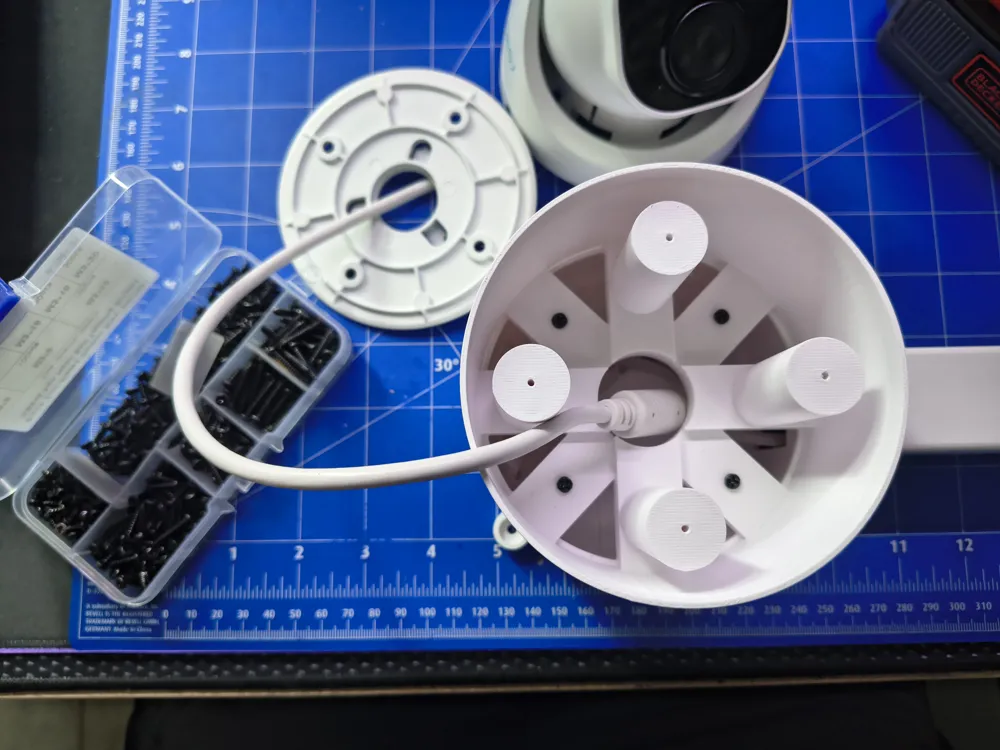

- Soffit base with 4 mounting holes (fits round Reolink bases)

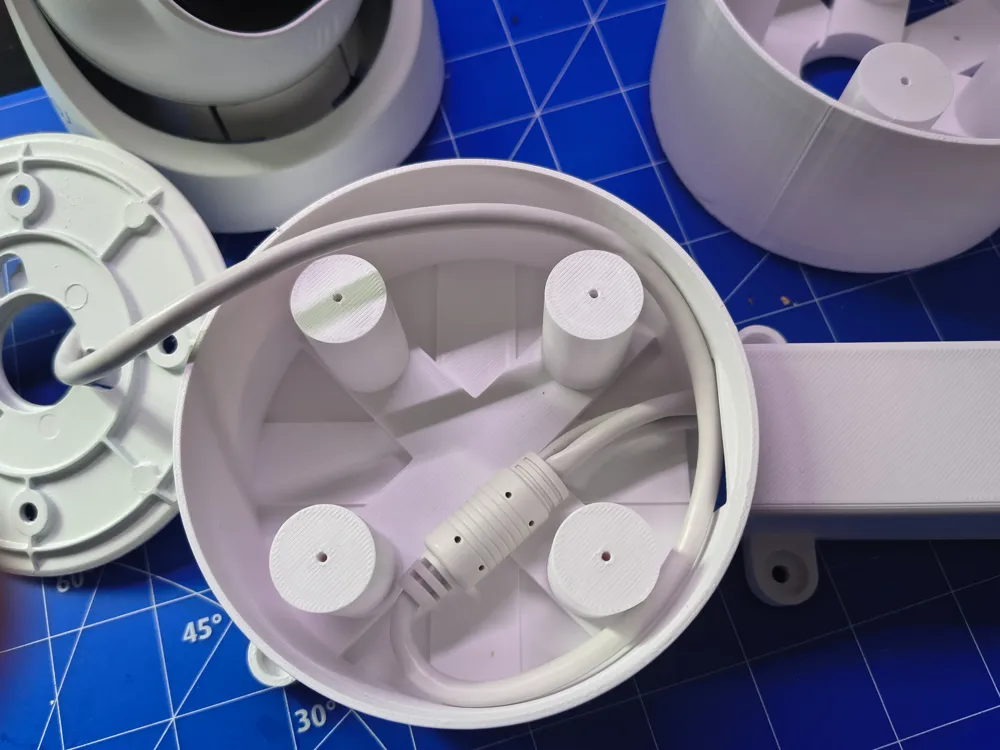

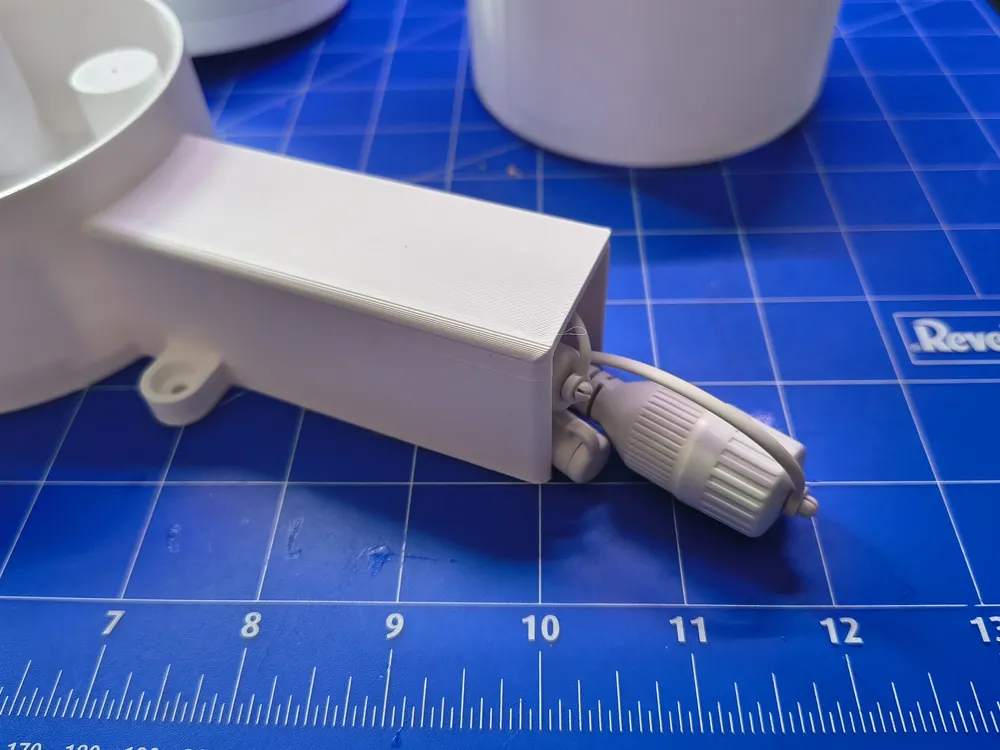

- Cable bucket/duct with end cap for tidy RJ45/PoE & slack storage

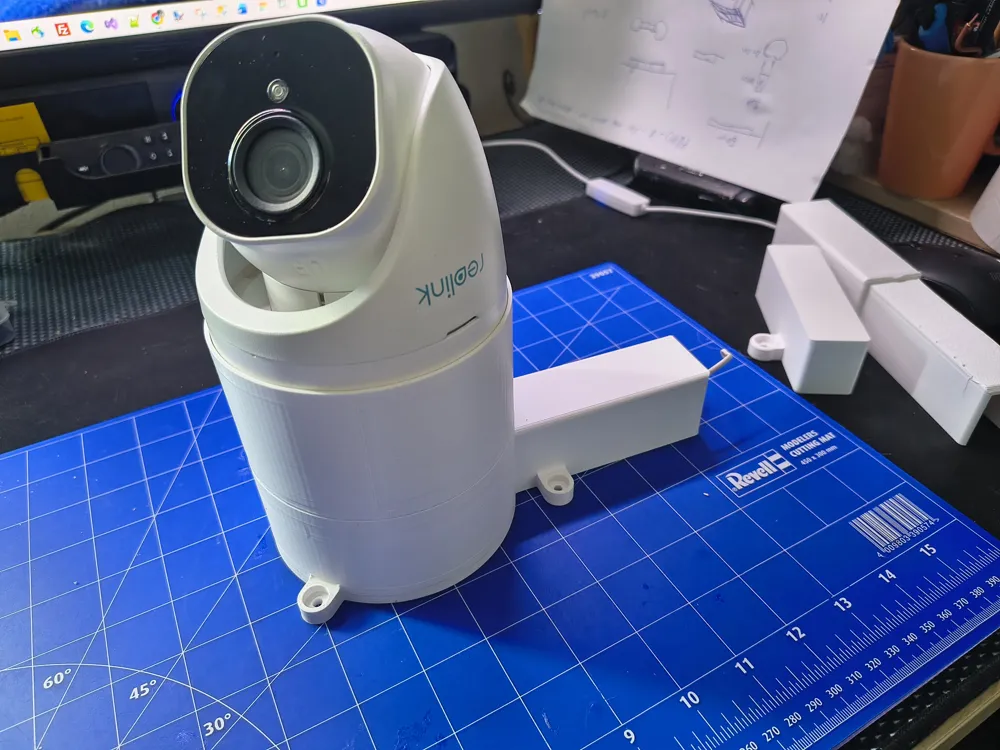

- Plug-in height extenders (stack as many as you need)
Why you’ll like it
- Modular drop length: mix extenders to clear fascia/gutters
- Hidden wiring: route and protect cables in the bucket/duct
- Rigid & weather-ready: prints strong in PETG/ASA and resists sag
- Service-friendly: camera can be removed without taking down the bucket
Print recommendations
- Material: PETG, ABS or ASA (outdoor/UV). PLA only for testing.
- Orientation: bases/extenders flat; bucket on its back for clean interior.
- Fasteners: 4 x wood screws for soffit (use wall plugs where appropriate). For camera base, use the original Reolink screws.
Install (quick)
- Mark and drill the soffit; feed the cable through the bucket.
- Fix the soffit base; plug in one or more extenders to reach below the eave.
- Attach the bucket/end cap, manage slack inside, and mount the camera base.
- Aim camera, tighten, and enjoy the view past the roof edge.
