*Final* Update Supportsettings easy to remove

Designer

9.6 h

2 plates

4.6(8)

Open in Bambu Studio

Boost

286

290

136

Released

Description

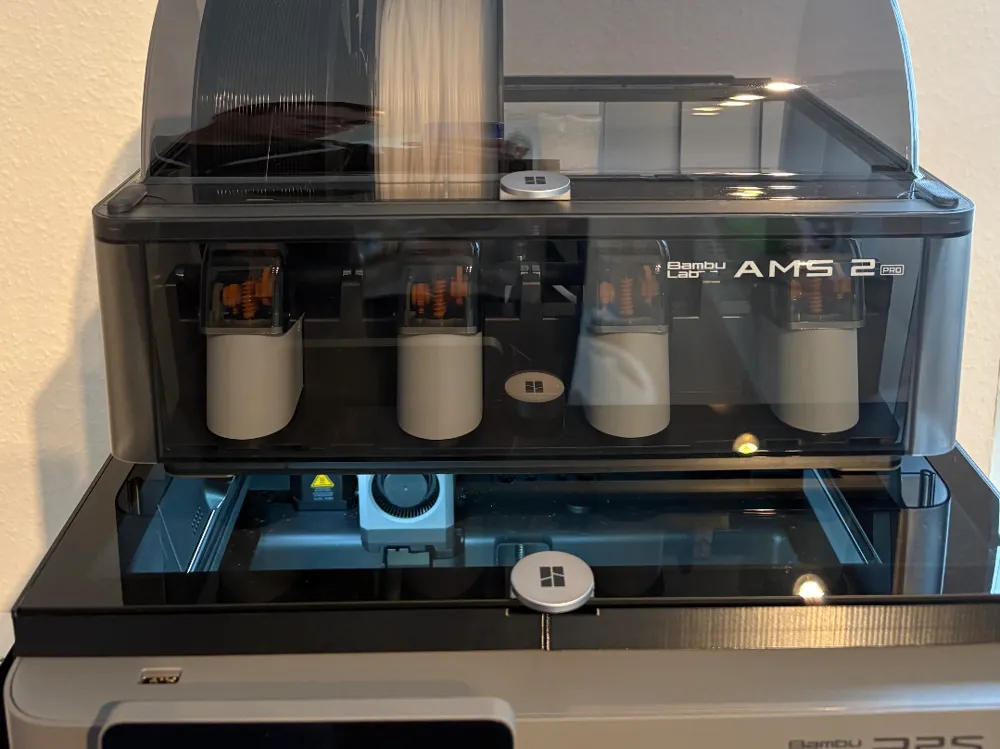

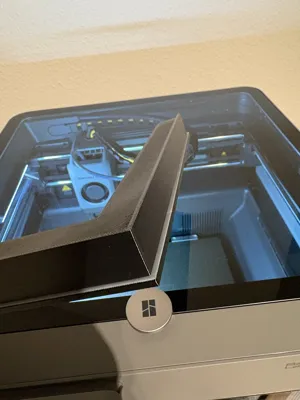

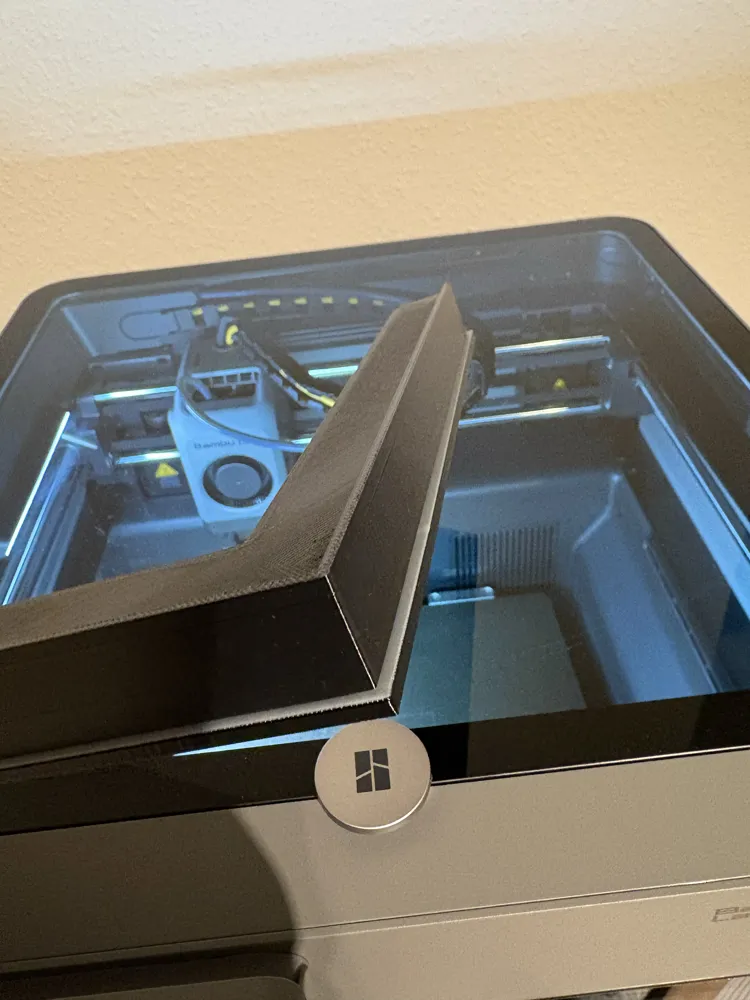

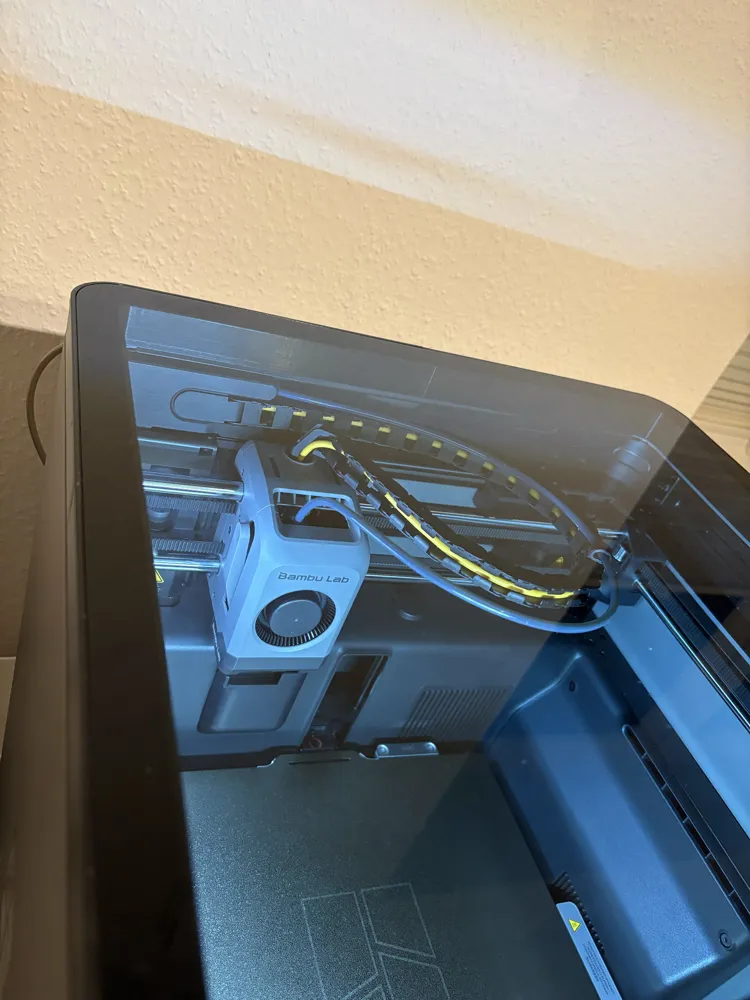

This spacer is designed for the Bambu Lab P2S printer to prevent the PTFE tube from scratching against the glass panel. It creates a small, precise gap that keeps the tube safely away from the glass surface.

The supports were printed separately using PLA.

A simple and effective upgrade to keep your printer’s glass panel in perfect condition!

Printed in PETG

Update V2:

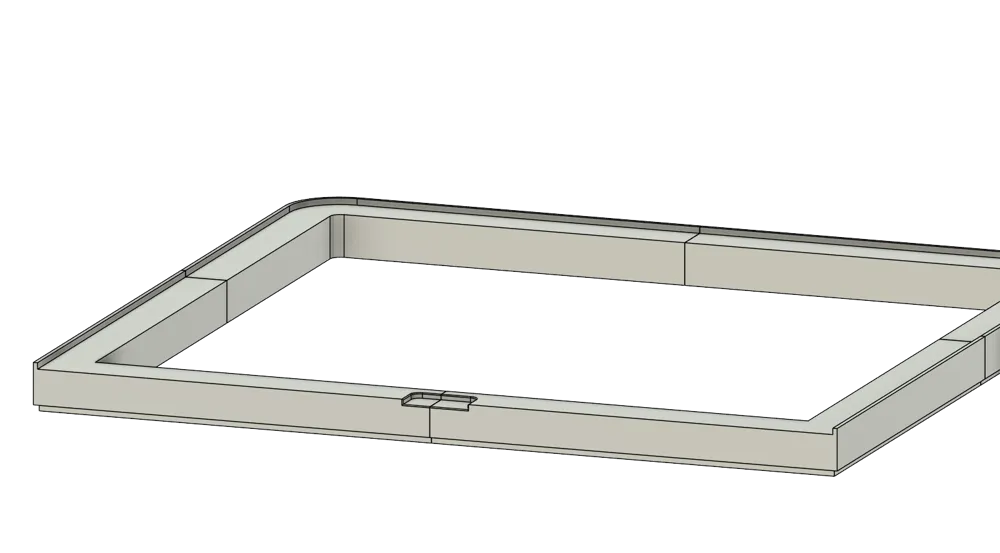

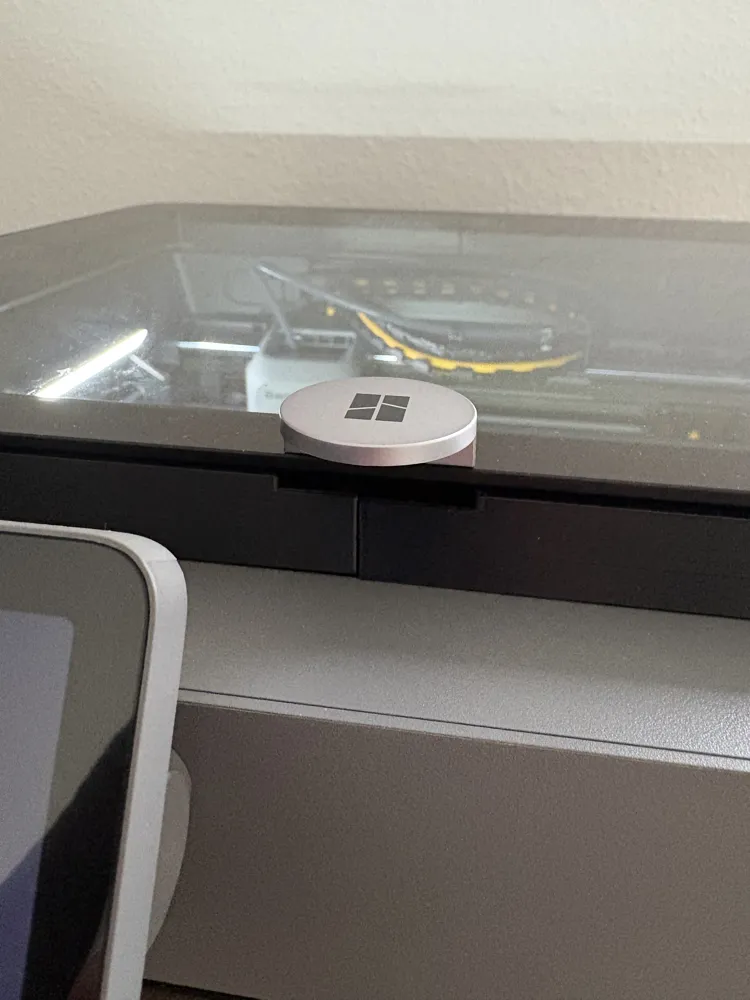

Add a cut out for the screws from the Holder in front off the glas panel

Comment & Rating (44)

@user_562255152

Boosted

The print profile is no longer public

This took 3 attempts but once it printed it came out flawlessly! My issue was the pla supports which was a "me" problem and not the model. The pla I was using had different cooling settings to the petg I was using and caused a layer shift in the petg at that layer that made it come apart. I changed the supports to petg then changed all the support settings to my preferred and they came off clean and easy. Now installed and recalibrating, thank you!!

The profile uploader has replied

@jdtec

Thank you for the vote and boost❤️

@jdtec

@teslapunk pls Share a Foto from the side I think you Downloaded a old Version

The designer has replied

@teslapunk

download was yesterday, I see today were new uploads, what did you change?

@jdtec

Replying to @teslapunk :

2,1mm cut out on the bottem. In the release i saw it was not there but without That it does Not fit Right..

@teslapunk

Replying to @jdtec :

ok, my challenge for you: My idea is a heat insulating cover reusing the air seal wrap the machine was covered in on delivery. This can be folded or cut 3 times which gives 4 layers with an height of ~60mm. The other dimensions would fit perfectly into the frame. So what we need is version with 60mm of space and a ground plate or light structure to hold the foil in place. Maybe with some space below to keep the function as a raiser :-) I hope you did get my idea so far ... This may be useful to keep the inner temperature somewhat higher for printing ABS/ASA ...

@teslapunk

printed in Bambulab ABS but did not fit: Frame is too large to fit on the printer Glass is tool large to fit in the frame Used the STL as at this time no print profile was online

@Chief_SeS

Boosted

Fits perfectly - thanks for sharing this model!

The designer has replied

@jdtec

Nice :-) you welcome dude ! Thank you for the boost 🦾

@jdtec

Thank you! Glad to hear the panel fits perfectly 👍 Have fun with it!

Show original

@user_1584459840

The print profile is no longer public

The interlocking joints are suuuper tight but I scraped away enough of the material for them to fit together. Very easy to print!

The profile uploader has replied

@jdtec

Hey, thanks for the hint i uploaded a new profile with more space in the interlocking.

(Edited)

@user_1584459840

Replying to @jdtec :

sweet! I might print again- it’s been so useful. thank you!

(Edited)

@user_3186434728

Printed perfect!! Great Job on the Design

The designer has replied

@jdtec

Thank you ! :-)

@ragin666

The print profile is no longer public

the print broke in my case, no clue why. and the connect posts are very, very tight. a design without support would be much better

The profile uploader has replied

@jdtec

Too bad, I had no problems. The connections are tight so nothing wobbles, it fits perfectly for me. Did you use the ready-made print profile

(Edited)

Show original

@jdtec

I have re-adjusted the print profile and added additional top and bottom layers as well as 1 wall thickness that should no longer happen

(Edited)

Show original

@Trusdor

Print Profile

*Final* Update Supportsettings easy to remove

The profile uploader has replied

@jdtec

Thank you for the stars 🌟

Show original

@jdtec

Thanks for the great review :-) !

Show original

@random_3D

Print Profile

*Final* Update Supportsettings easy to remove

The profile uploader has replied

@jdtec

Thanks for the vote ❤️

@jdtec

Thanks for the vote ❤️

@jdtec

Thanks for the great review :-) !

Show original

@billrlogan

Boosted

Print Profile

*Final* Update Supportsettings easy to remove

Printed without an issue. Love it.
