Description

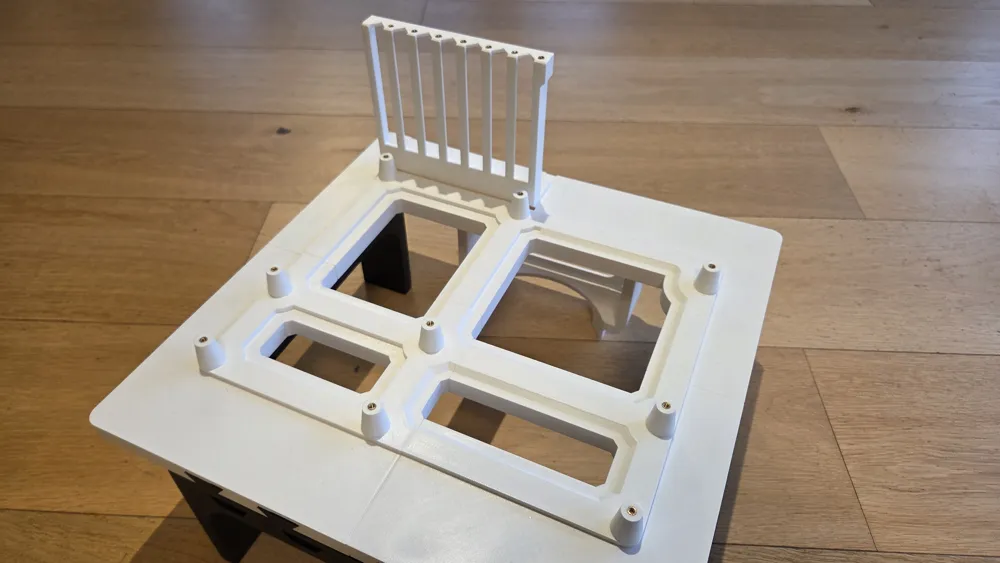

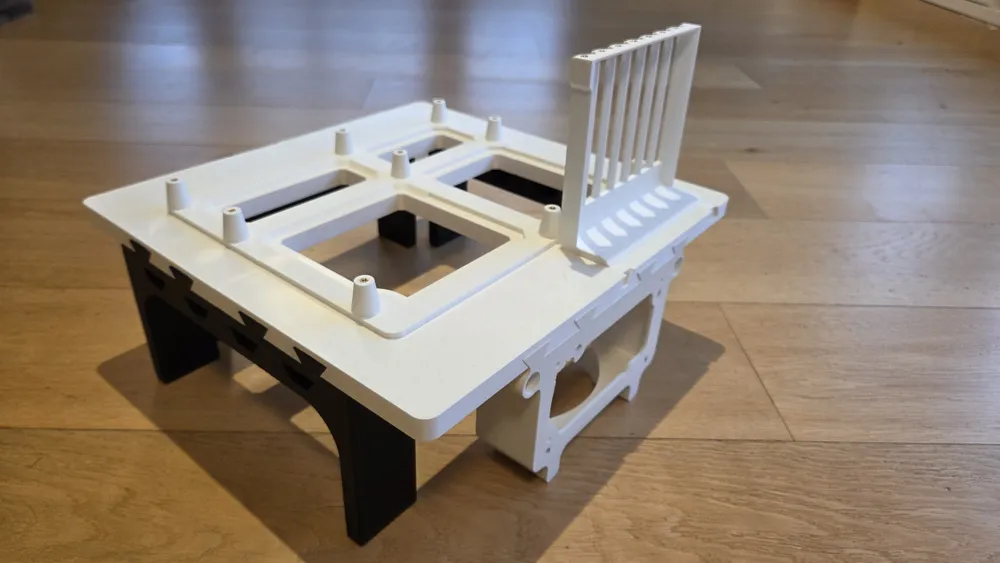

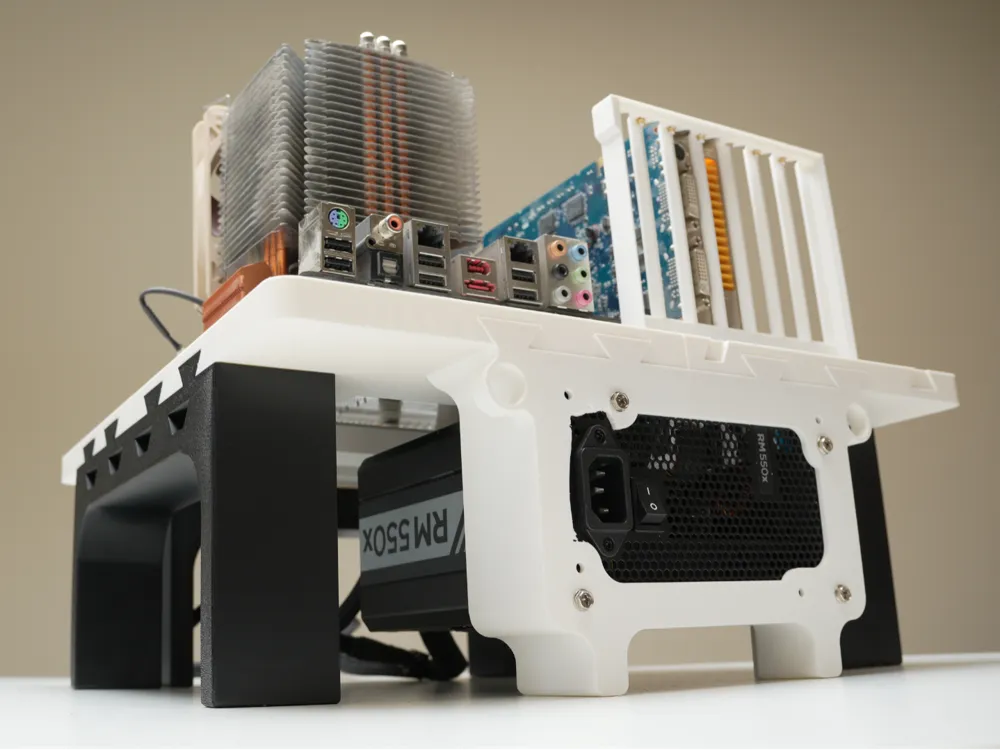

This is a fully 3d printable test bench. You can use M3 heat inserts for the holes but be mindful of the hole size. You may have to adjust the model before printing to fit your heat inserts. I printed in ABS. PLA or PETG should also work but check that it can take the heat from the PC.

Check out this video for more information:

pc test bench

test bench

bench

Comment & Rating (15)

@Clayton69

awsome print if your in need of a test bench, only issue is the psu bracket is little tight.

@Ivanos

Looks really nice! Simple (mean that in a good way!), but up to which motherboard size is this rig supported? Looking for a eATX version :)

The designer has replied

@jonaskello

It only has mounting holes for regular ATX. I think you would have to remix it to make it wider and add extra mouting holes for eATX.

@Ivanos

Replying to @jonaskello :

now i think of it, does a eATX not use the same amount of standoffs, and only the board is bigger in size... ?

@jonaskello

Replying to @Ivanos :

Yes, I think eATX uses the same holes as ATX so it would probably work. Some eATX may have extra holes for the extended part but I guess it will work without attaching those.
