V2.1 AMS Lift Rack For X1/P1 P2/X2 H2 AMS 1, 2, HT
Print Profile(7)
Bill of Materials
- K1245 14" drawer slides x 1 x 1: https://www.amazon.com/dp/B0797QBPWT
- 10" 10lb (45N) gas strut pair with hardware shown x 1: https://www.amazon.com/dp/B07S6GFCXB
Description
The Dual AMS Lift Rack V2.1 is a major upgrade to the original design — now even more modular, capable, and printer-friendly.
This stand holds two AMS 1 or AMS 2 Pro units and up to two AMS HT units at the same time. The AMS HT mounts are modular, so you can attach one on each side as needed. It’s compatible with the H (H2S, H2C, H2D), P (P1S, P1P, P2S), and X (X1, X1C, X2D) printer families — each with its own riser system that allows you to remove the top glass plate without taking off the rack.
The X1/P1 riser also includes a raised-shelf option for improved airflow while keeping your setup clean and accessible.
This lift rack uses a gas strut-assisted upper AMS for smooth lifting and easy filament loading, while the lower AMS slides out on ball-bearing drawer slides for quick access.
If you want to mount on a desk, work bench, or shelf instead a printer I would recommend using the X1/P1 Riser.
How to Print:
Step 3: Determine how many slots your Top and Bottom AMS are and which model they are.
Example:
Top: AMS 2 Pro, 5 slot 31-48-46-48-36
Bottom: AMS 1, Three slot version
Step 4: Print the Top and Bottom mount plates for your model AMS. Then print the lifter bars, base (left and right). Finally choose what you want in the accessory slots (maybe a spacer on one side and an AMS HT mount on the other).
Membership
If you like my work consider supporting me by subscribing.
Dimentions:
Printer | Height needed above printer |
X/P | 580mm (22.9in) |
H2 | 595mm (23.5in) |
Key Upgrades in V2 over V1:
- Supports AMS 1, AMS 2 Pro, and AMS HT units
- Modular AMS HT mounts (attach one or both sides)
- Printer-specific risers for H2, P1, and X1 families
- Easy removal of glass top plates while in place
- Optional raised shelf for improved airflow (P/X riser)
- Works standalone or attached to a printer
- Improved rigidity and assembly fit
Updates:
V2.1.1 6/28/30:
- X2/P2 riser full release
- LED riser options for all printers
V2.1.0 11/19/25:
- 5x stronger AMS lifter bearing shafts
- X1/P1 LED Riser
- Slight change in dimensions for X1/P1 riser
- P2 riser beta

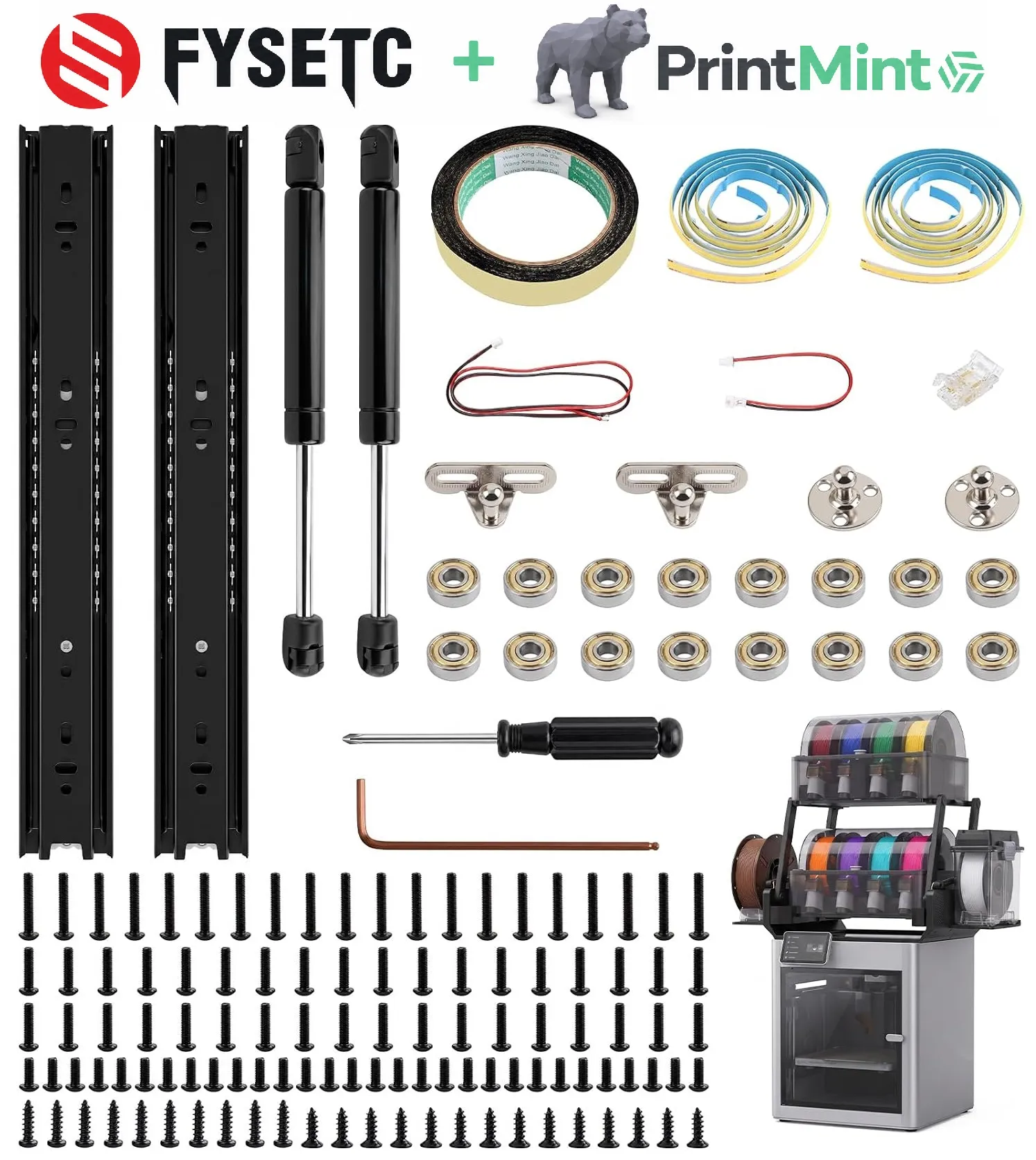

Hardware needed:
Qty | Item | Links/Notes |
16 | 608 Ball bearings | Link in BOM |
8-14 | BT3x8 Button Head | Link in BOM |
37-49 | BT3x12 Button Head | Link in BOM |
8 | BT3x18 Button Head | Link in BOM |
8 | BT3x20 Button Head | Link in BOM |
1 | Adhesive Foam Sponge Strip Roll | Link in BOM |
6 | 6mm x 3mm Round Magnets | Link in BOM |
1 Pair | K1245 drawer slides |
|
1 Pair | 10" 10lb 45N Gas strut |
|
Recommended Print Materials: ASA or ABS for best strength and heat resistance; PETG also works well; PLA is suitable for low-heat use.
