Description
Modular Drawer System for IKEA Skådis 🧰
| Version | Data of release | Change |
|---|---|---|
| V4 | 9th May 2026 | Added double width drawers + 2x2 base units + 3x3 base units |
| V3 | 29th March 2026 | Added side panels to give a clean look + optional front without holes. |
| V2 | 22nd January 2026 | Updates the fit of drawers as requested. And adding new labels. |

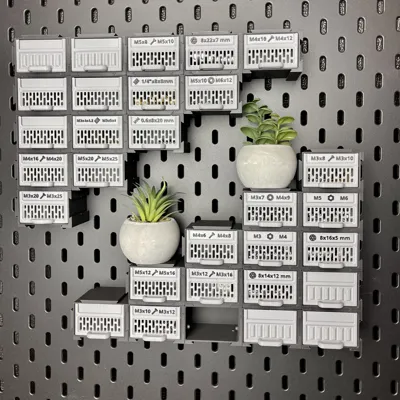

Keep your small parts perfectly organized with this modular drawer system for the IKEA Skådis pegboard.

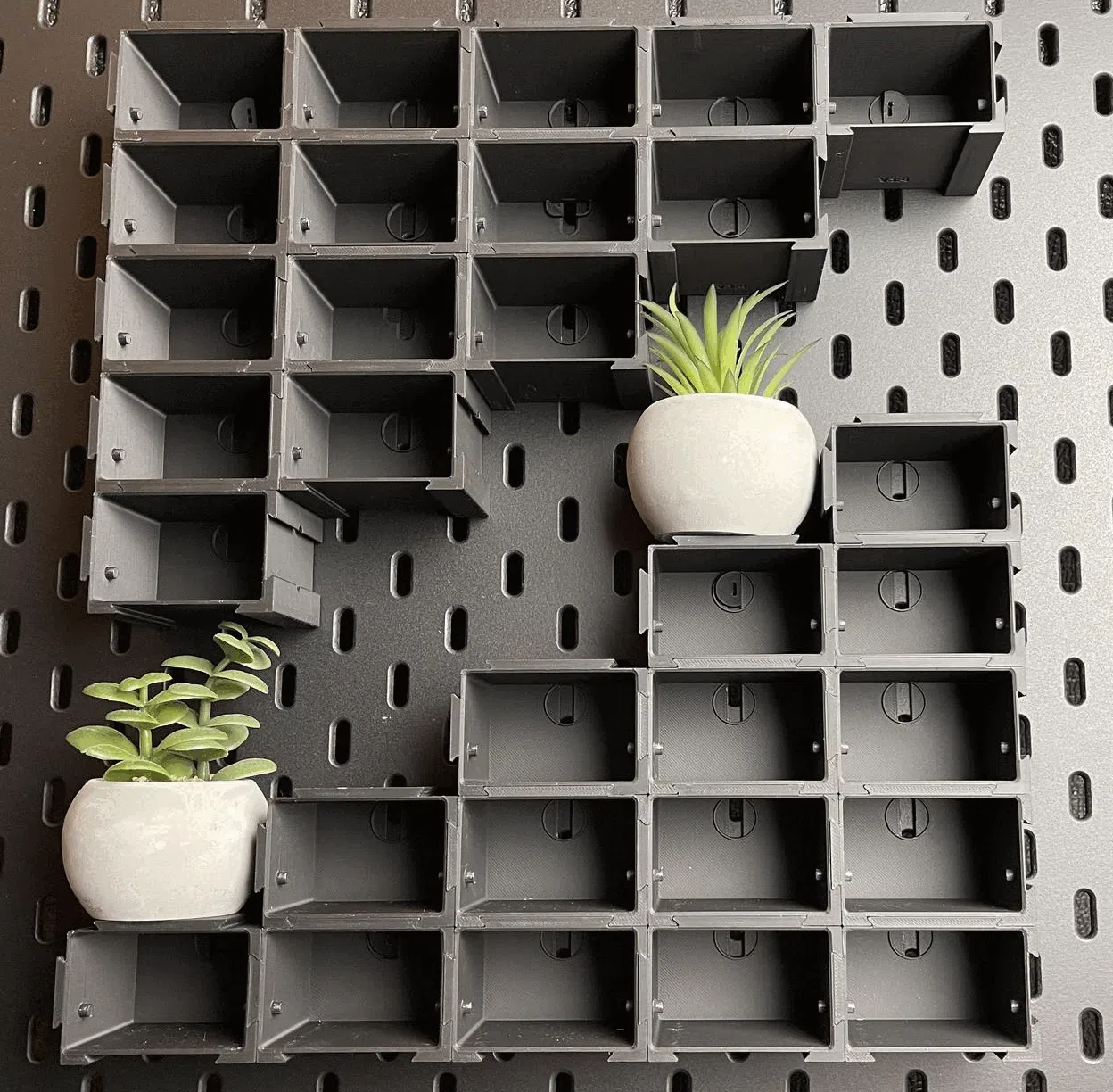

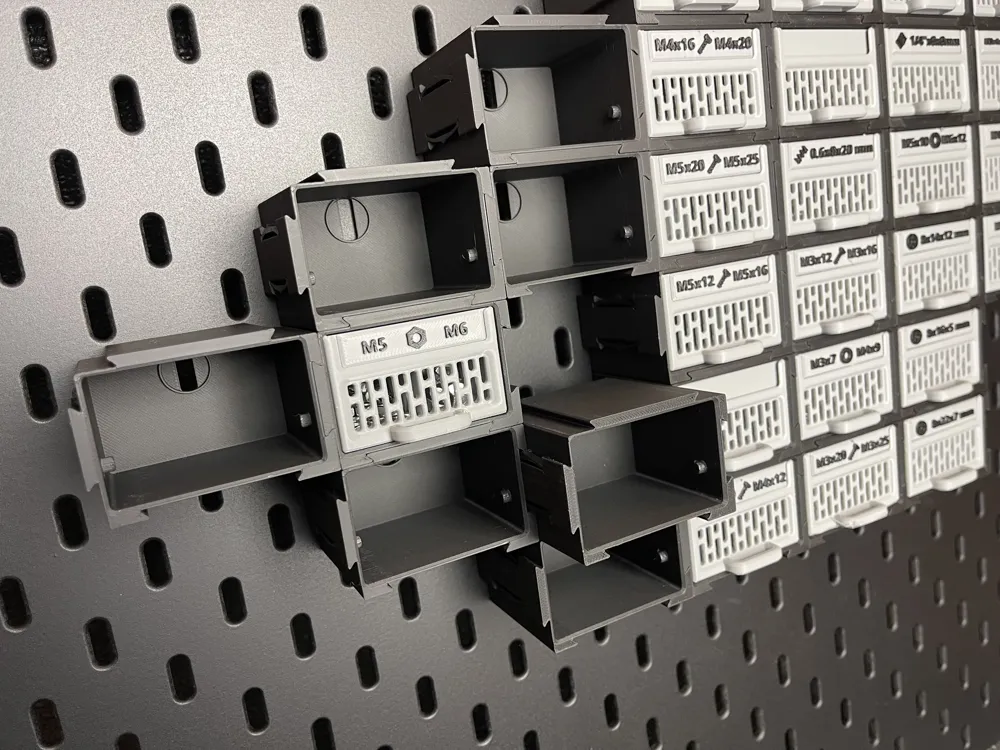

Each drawer is a self-contained module that connects like puzzle bricks — making it easy to expand, rearrange, and customize your setup.

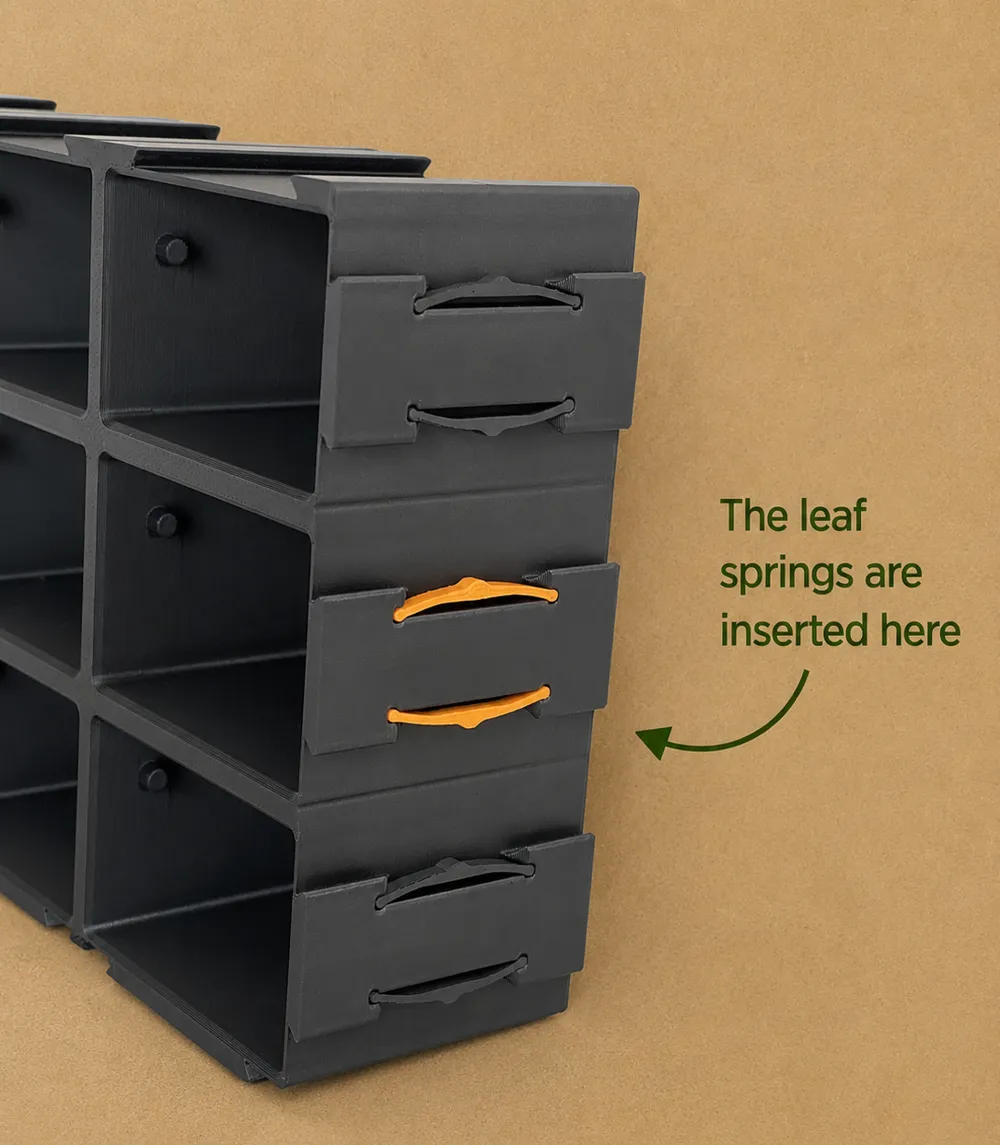

Each module has a leaf spring mounted on the side that allows the modules to snap together securely. The spring simply slides into the slots after printing — no tools needed.
Boost Me (for free)
Your free support of my work. Thanks 🙏

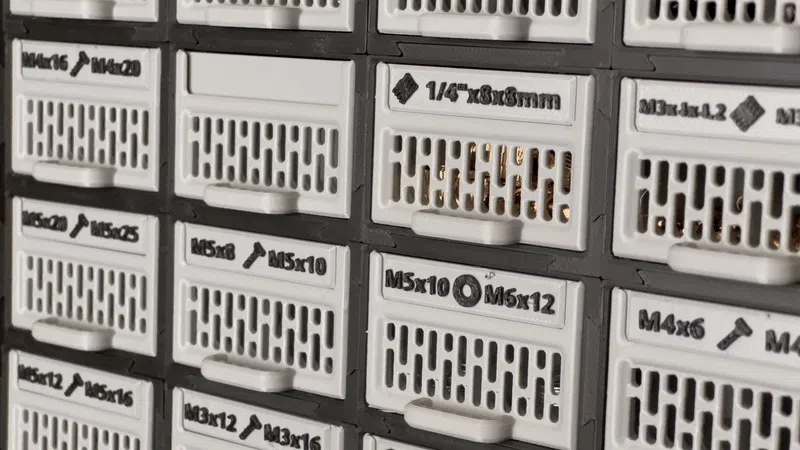

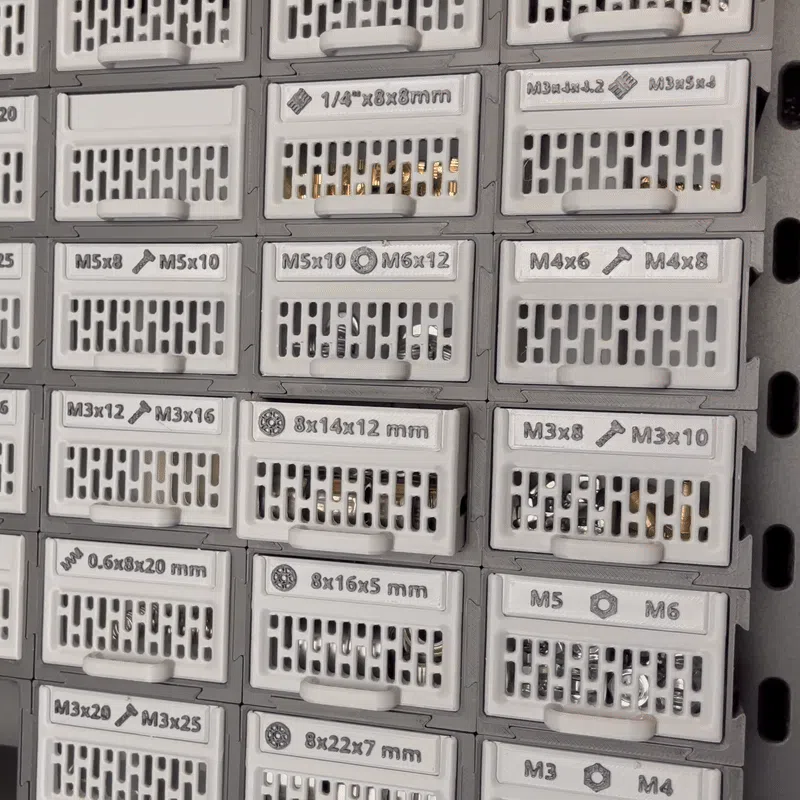

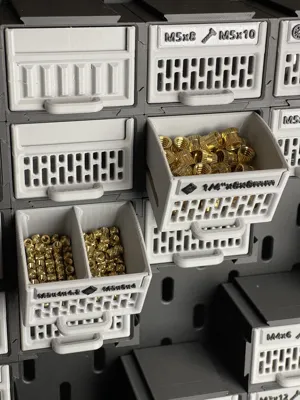

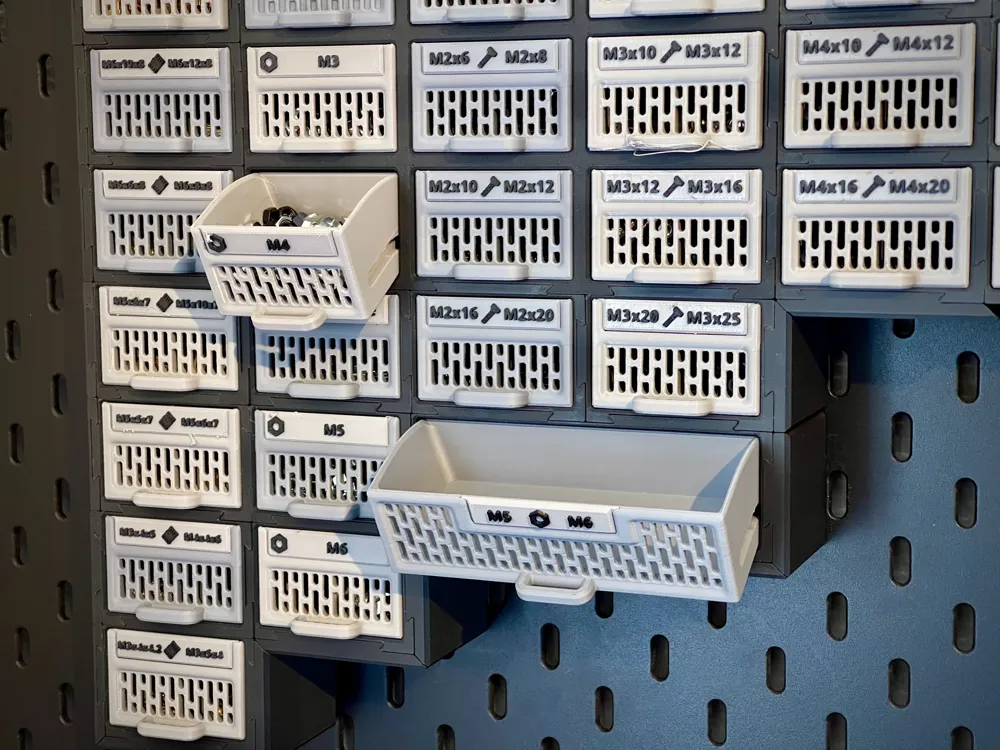

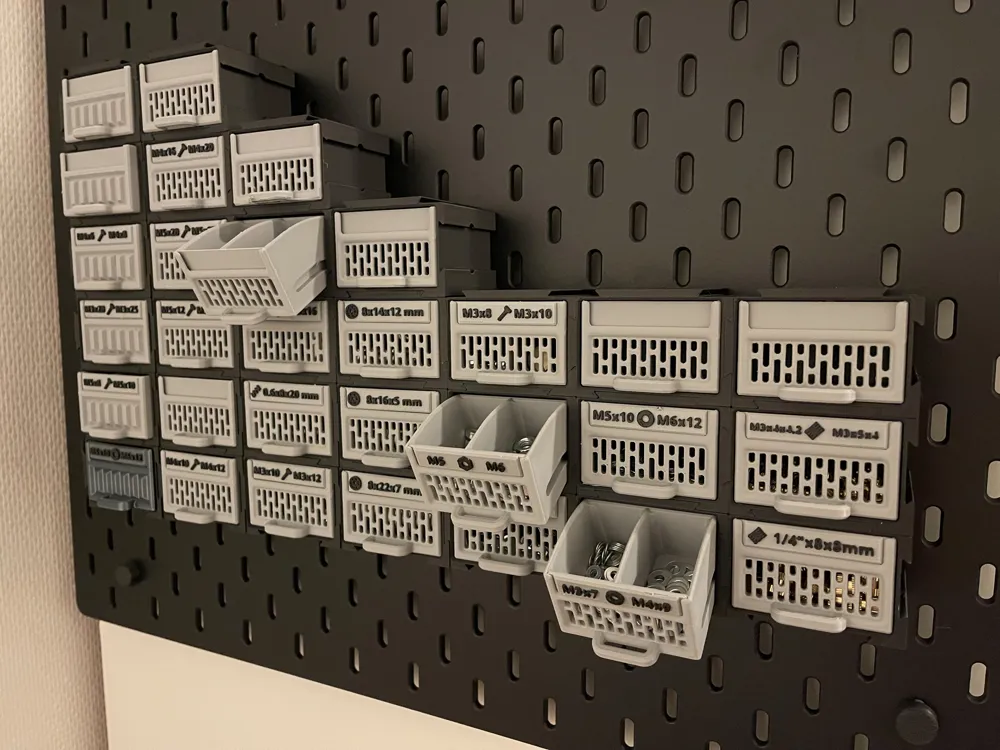

The drawers tilt down when opened and can be removed completely by tilting upwards, so you can bring them to your workspace. They are a bit tight the first couple of openings. But just require a few openings before being perfect.

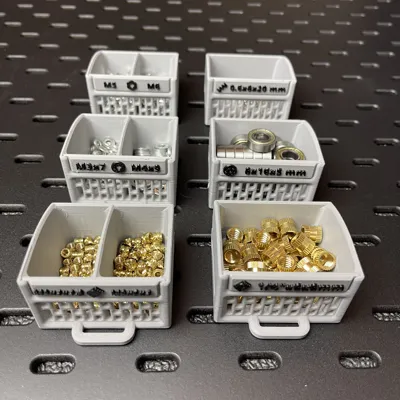

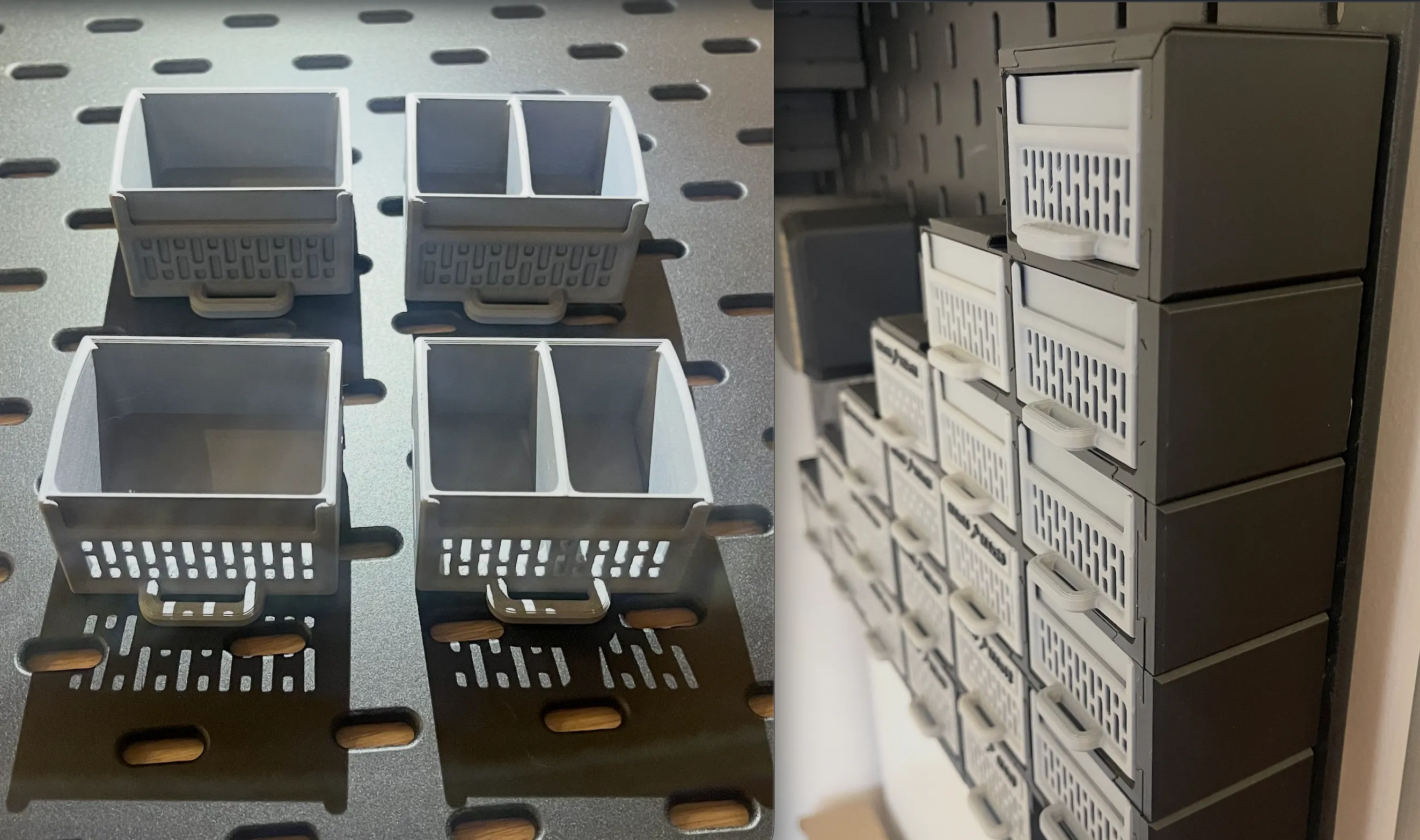

The drawers are both available as single and double compartments depending on your needs. And now also in double width. To store your larger items.

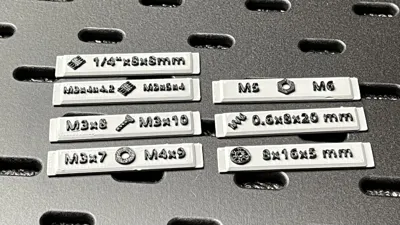

Each drawer has a slot for a replaceable label, and the included label sheet allows you to edit text directly in your slicer.
Icons include: Nuts, Bolts, Screws, Washers, Threaded Inserts, Bearings, and Springs.

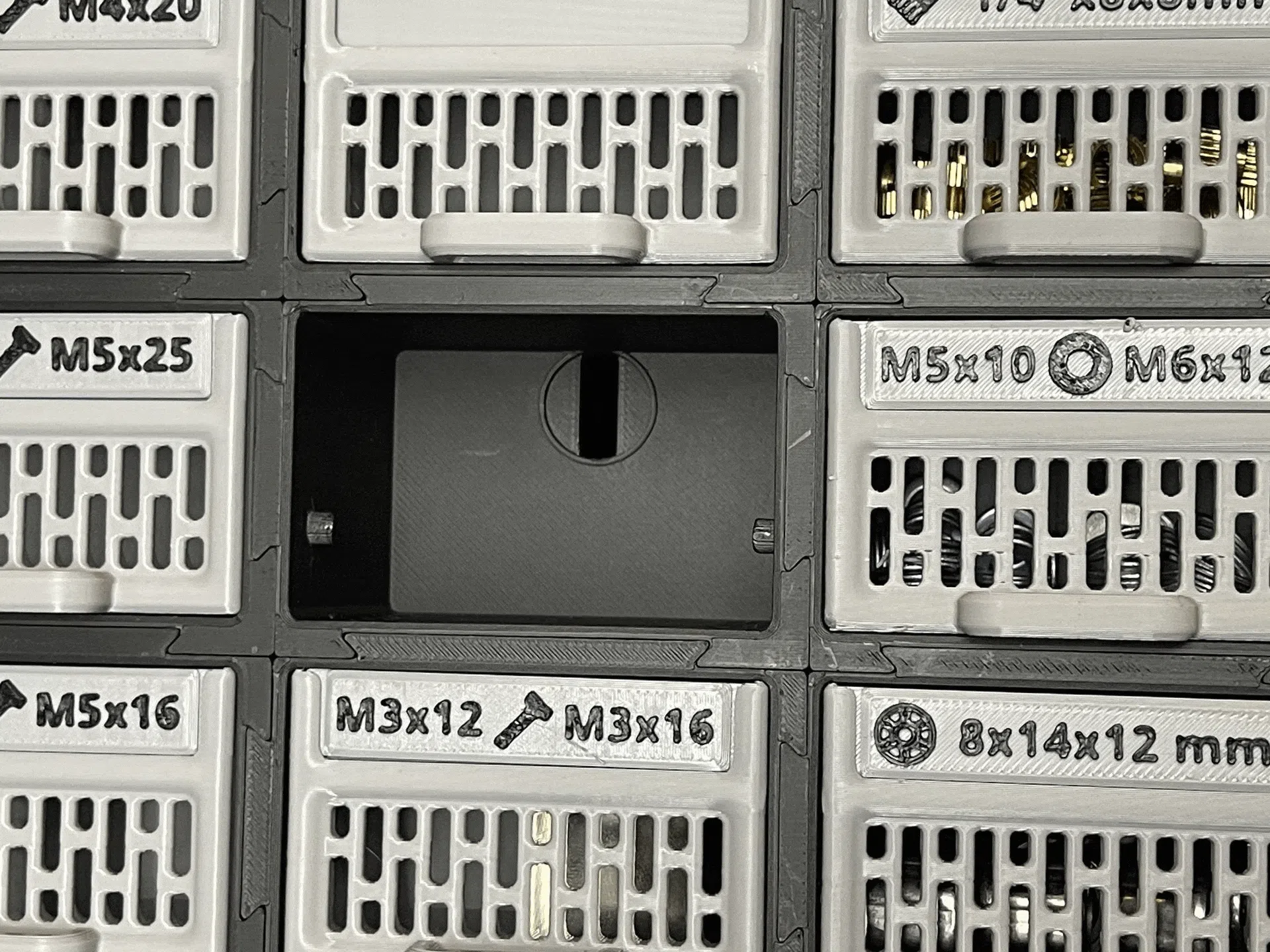

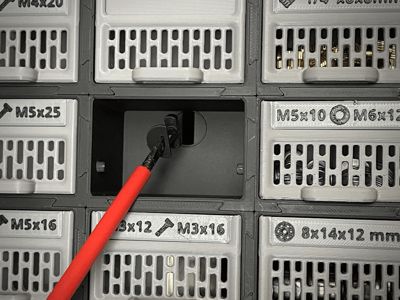

Mounting is simple: every other pegboard column aligns with the holes, and the hook system locks in place by turning it with a flat screwdriver — secured with a small locking piece (see GIF). The locking piece has a M3 hole for removal.

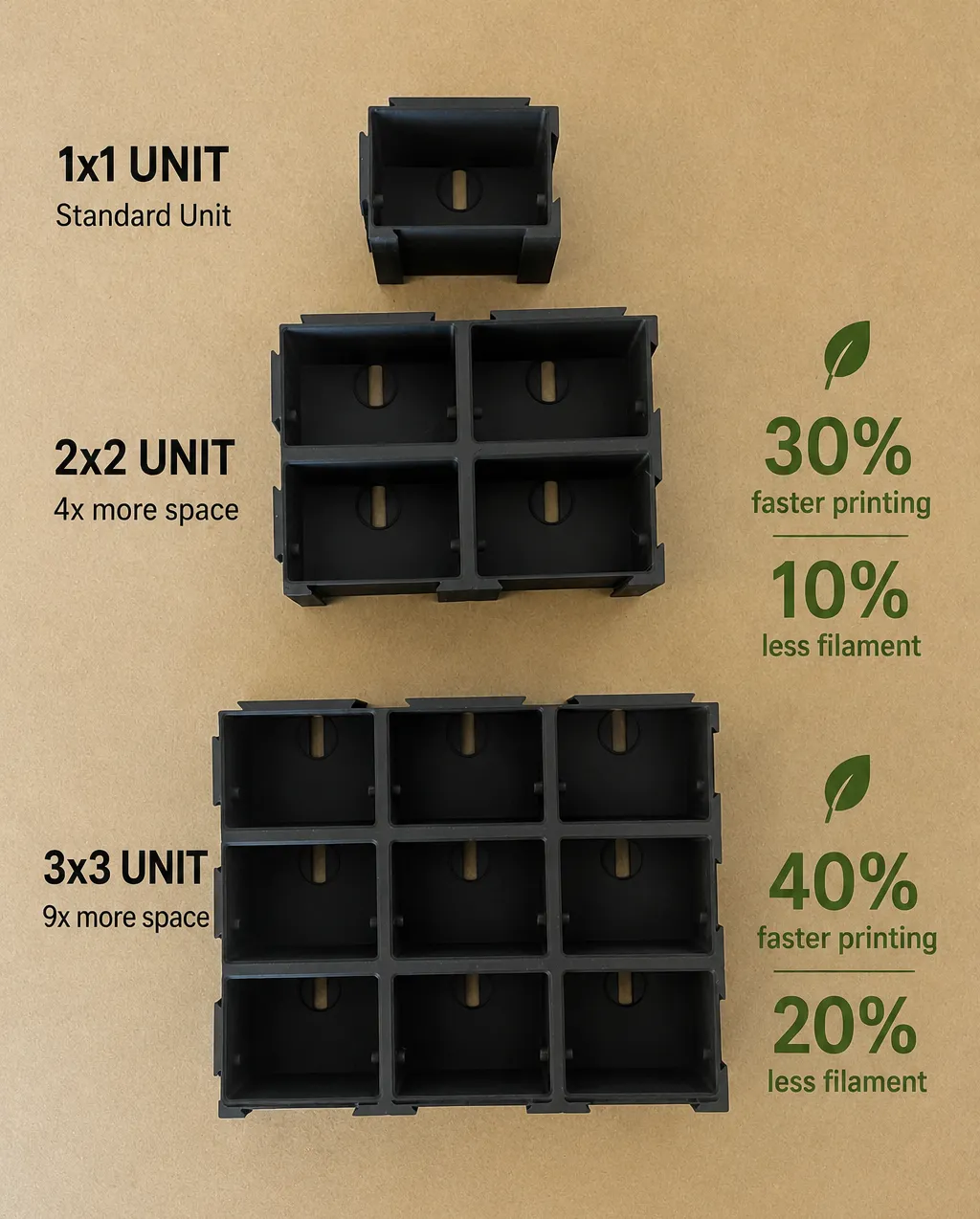

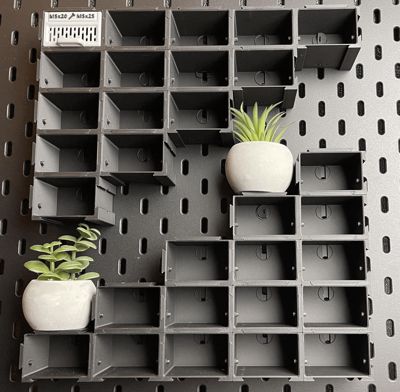

The base units come in 4 sizes.
- Standard single unit
- 2 by 2 unit cluster
- 3 by 3 unit cluster
- 2 by 1 double width unit
Features:
- 🧩 Modular system – Easily expand or rearrange drawers.
- ⚙️ Snap connection – Built-in leaf springs let modules connect securely.
- ⚙️ Tilt & remove – Smooth pull-down motion and removable design.
- 🏷️ Editable labels – Customizable icons and text directly in your slicer.
- 🔒 Simple mounting – Secure hook system fits IKEA Skådis pegboard.
- 🪛 Single & double drawers – Store everything from M3 bolts to bearings.

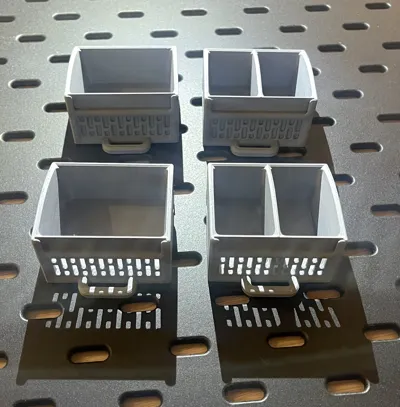

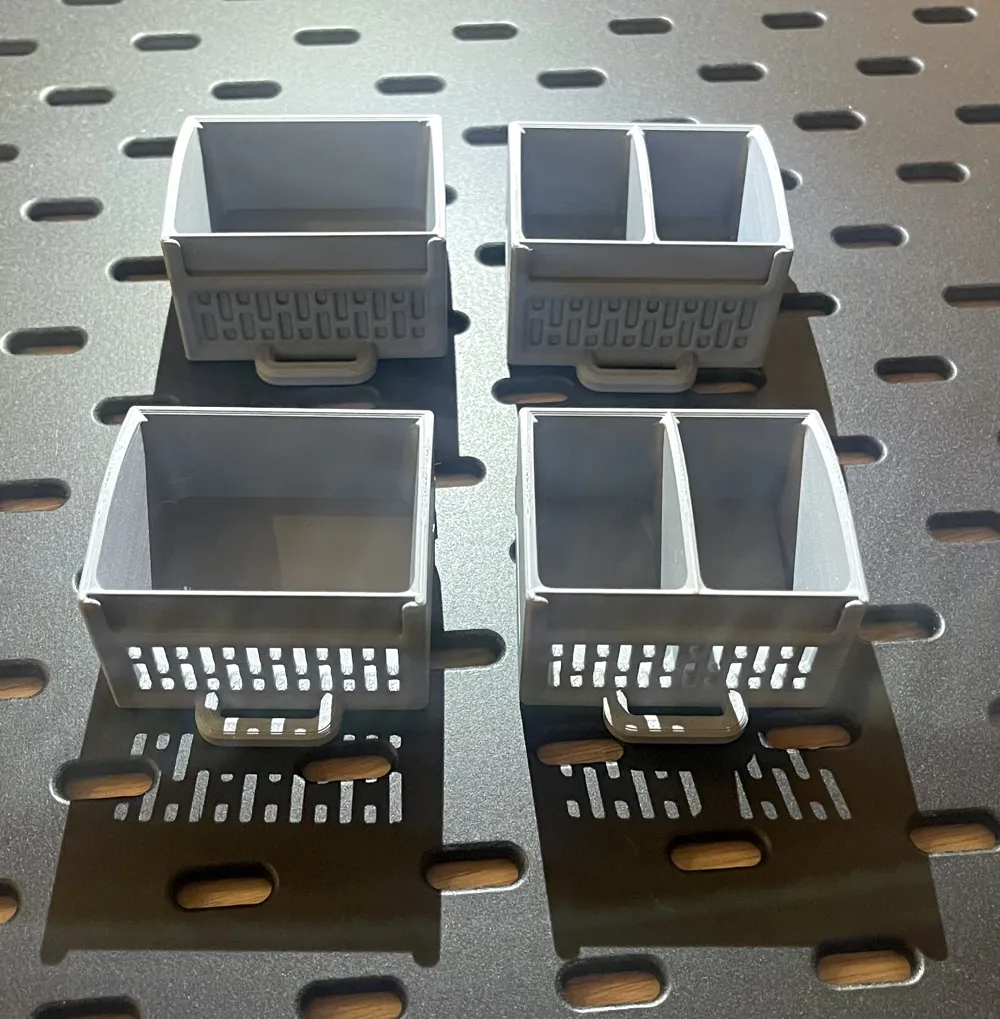

- 🗄️ Open or closed front – Store even the smallest things.

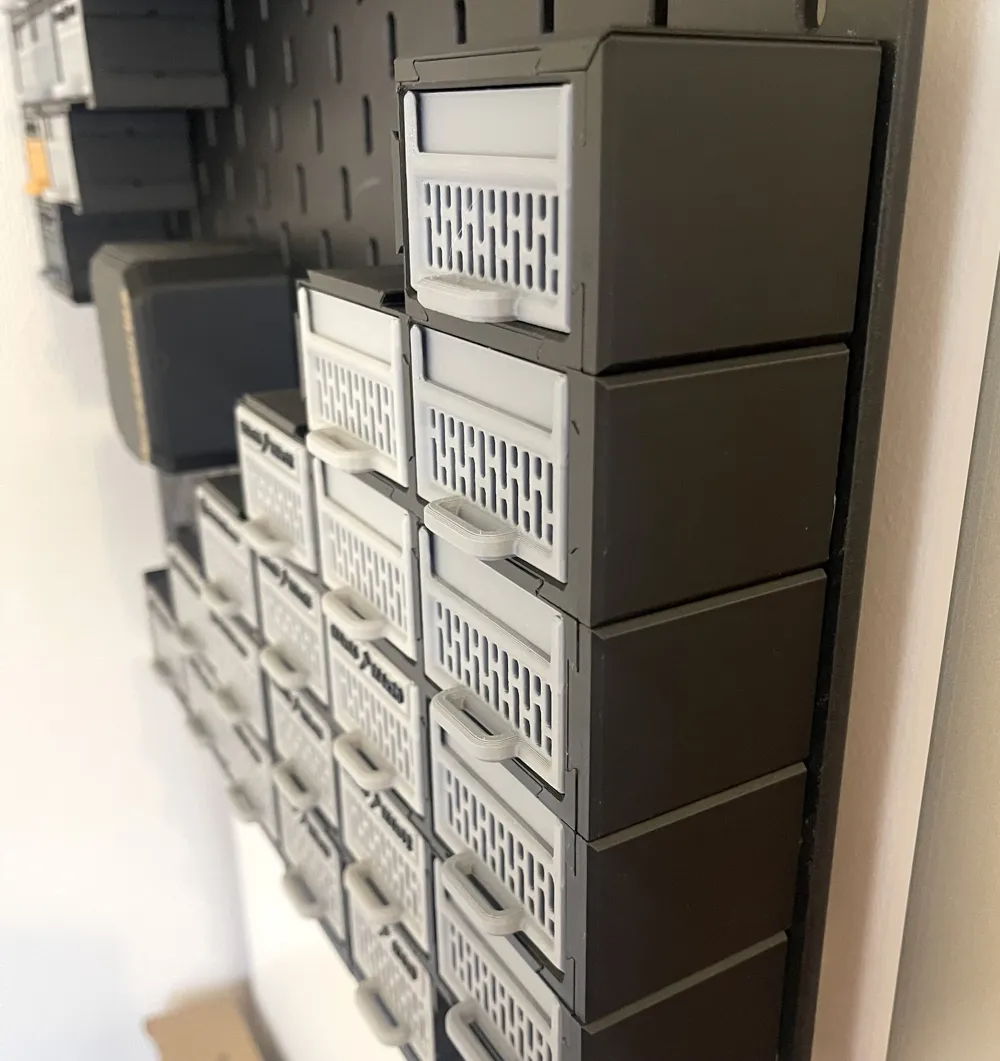

- 🗄️ Side panels – Make all sides appear clean.
Stay organized — and make your pegboard setup a little smarter!
I look forward to see you creative and colorfull combinations.
