Description

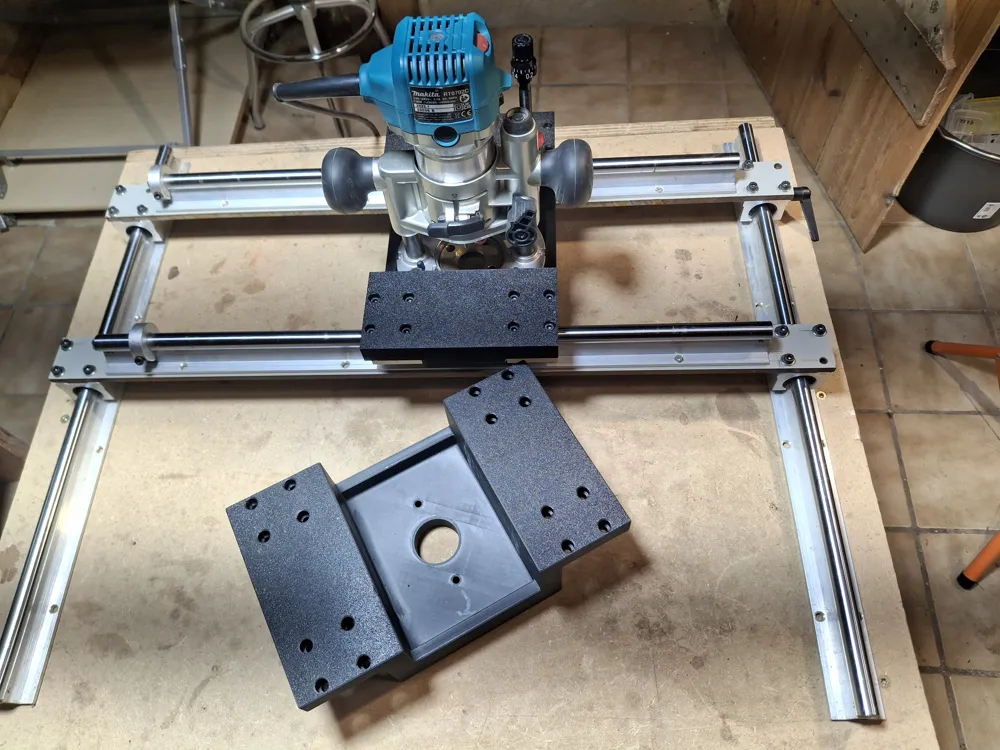

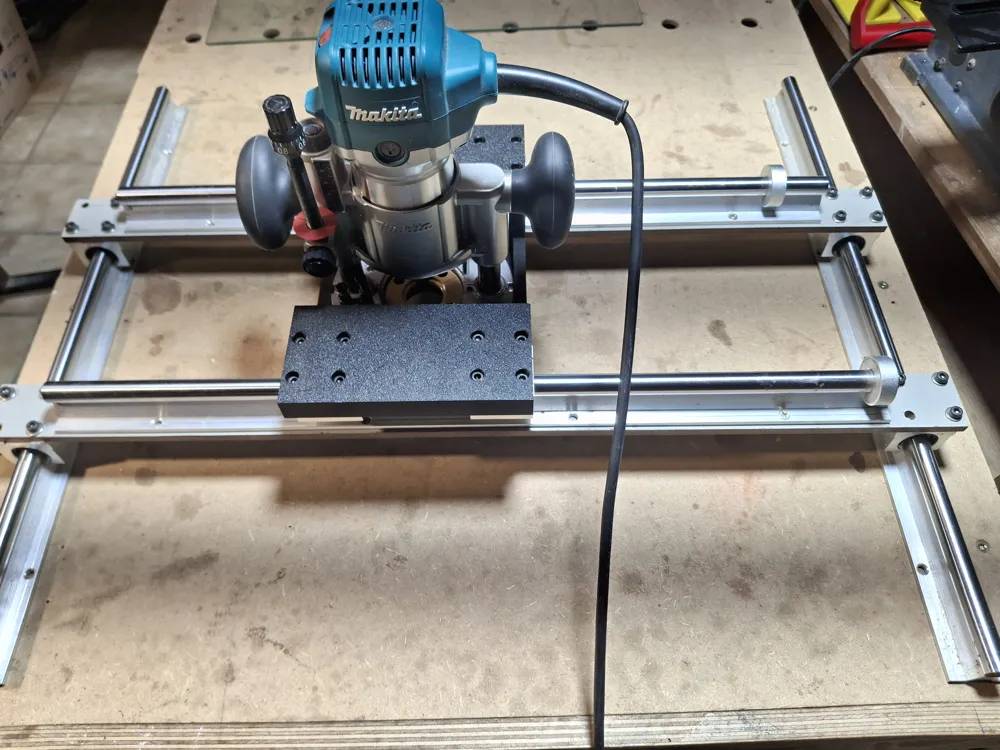

Router mount for use with the Metabo RT0700 / RT0702 router for surfacing wood

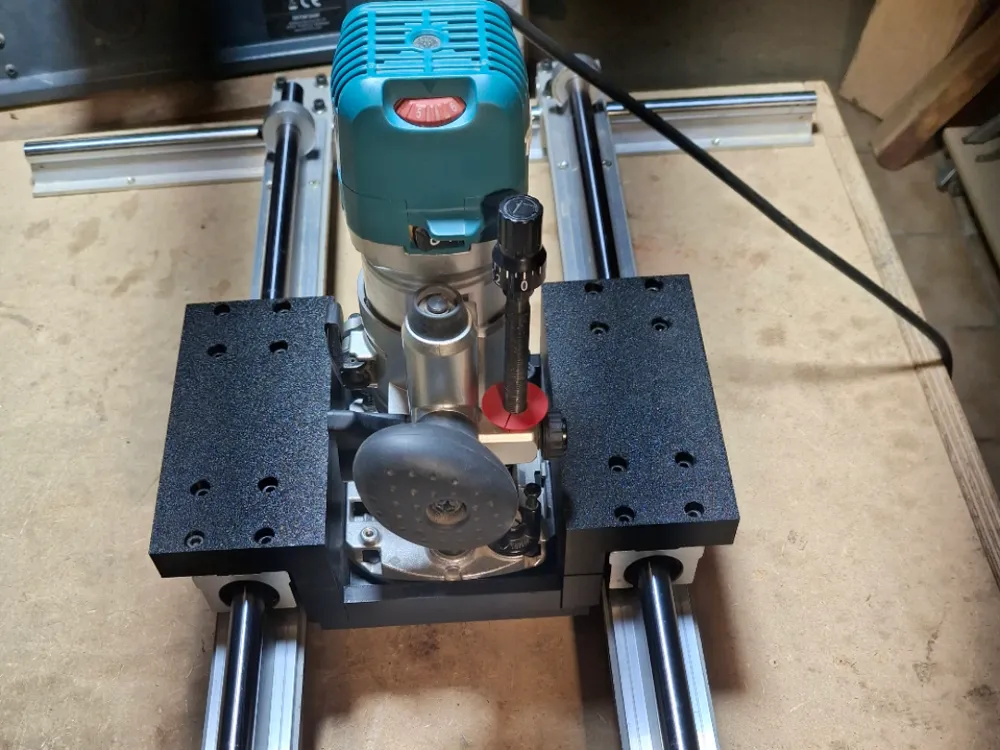

The router mount is specifically designed for the Makita RT0700 / RT 0702 combination with an SBR20 linear guide. The holes are precisely made for the corresponding bearing blocks
Mounting
Router fixed by two screws from below
Additional clamping at the top edge possible via one or two small outriggers (threads available)
Important note
The use of the router body made with the provided data is exclusively at your own risk. Any liability of the provider for damages or consequential damages is excluded
3D Print Settings
When printing the router mount I used 100 percent infill made of PETG. This allows for additional mounting holes to be created later for other attachments or machines
